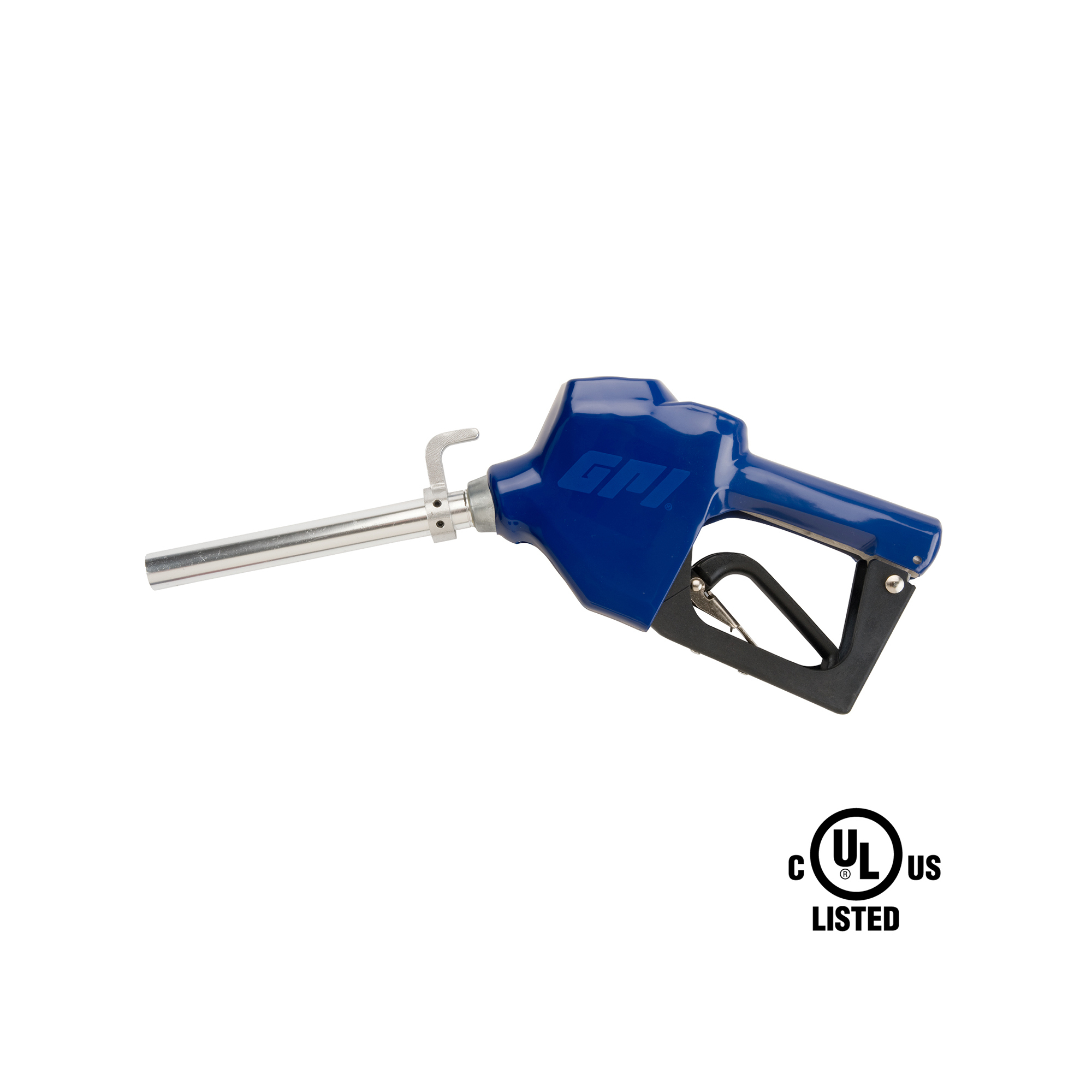

GPI 3/4-inch NPT, UL Listed Unleaded Automatic Shut-off Nozzle

Item# 53225
"GPI 3/4-inch NPT, UL Listed Unleaded Automatic Shut-off Nozzle"
Top Seller
GPI 3/4-inch NPT, UL Listed Unleaded Automatic Shut-off Nozzle

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI 3/4-inch NPT, UL Listed Unleaded Automatic Shut-off Nozzle

Click or Tap image to Zoom

$99.99

  • Shipping:

    Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Safe and easy to use
  • One-finger hold-open clip allows you to set the flow rate -- up to 18 GPM
  • Automatic shutoff reduces fuel spillage
  • Aluminum body resists corrosion and tarnish
  • Blue protective boot for longer life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

GPI® Automatic Unleaded Shutoff Nozzle with 3/4in. NPT inlet is ideal for use with gasoline (up to 10% alcohol blends such as E10), diesel fuel (up to 20% bio-diesel blends such as B20), and kerosene. Designed for use with electric transfer pumps.

What's Included

    (1) Automatic unleaded shutoff nozzle with nozzle hook

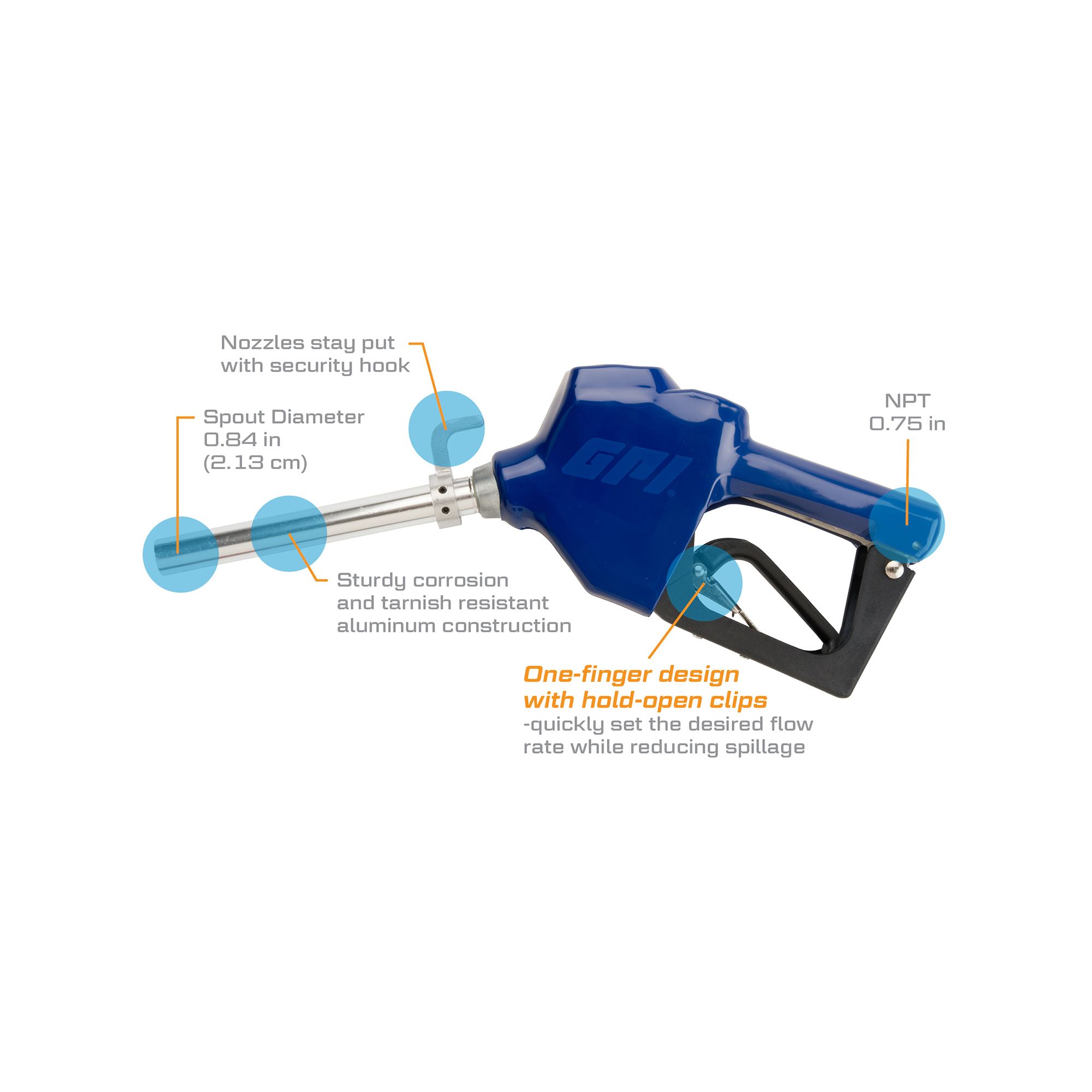

Features + Benefits

  • Safe and easy to use
  • One-finger hold-open clip allows you to set the flow rate -- up to 18 GPM
  • Automatic shutoff reduces fuel spillage
  • Aluminum body resists corrosion and tarnish
  • Blue protective boot for longer life
  • Handy built-in nozzle hook for easy storage

Key Specs

AttributeSpecification

item#

53225

Brand

GPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.51 LB

Max. Flow Rate

18 GPM

Min. Flow Rate

18 GPM

Inlet Port

3/4 in
AttributeSpecification

Outlet Port

21/25 in

Max. Temperature

120 °F

Min. Temperature

-20 °F

Material

Aluminum

Latch Type

One-Finger

Compatible With

Gasoline, Diesel Fuel and Kerosene

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Will this nozzle work with water?

    1 answer

    1. The auto nozzle is not recommended to be used for water. It is designed specifically for gasoline (up to 15% alcohol blends such as E15), diesel fuel up to 20% bio diesel such as B20 and kerosene.

      Helpful?

  2. I’ve a GPI M-150S 15 GPM manual nozzle can I use this to swap out for automatic function even this nozzle stayed 18 GPM?

    1 answer

    1. The auto nozzle model 11021-8 is compatible with the pump model 11000-107 (M-150S-EM).

      Helpful?

  3. will this work with a hand pump instead of an electric pump?

    1 answer

    1. The nozzle will not work with a hand pump. It would require an electric pump with a minimum of 15 PSI and 15 GPM.

      Helpful?

  4. What is the thread type for the inlet connection?

    1 answer

    1. The inlet connection would be 3/4" NPT.

      Helpful?

  5. Will the auto shut off work using a 10psi, 8 gpm maximum pump?

    1 answer

    1. This is designed to work with pumps that have a minimum of 15 PSI and 15 GPM.

      Helpful?

  6. Inlet Pressure

    Will this fuel nozzle work with a gravity fed hose? For instance, can I install this on a 5 gallon "dump can" used in refueling our race car?

    1 answer

    1. This nozzle is not compatible with gravity fed hoses or tanks. Please view item #107992 for a manual nozzle that can be used with gravity flow systems.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
