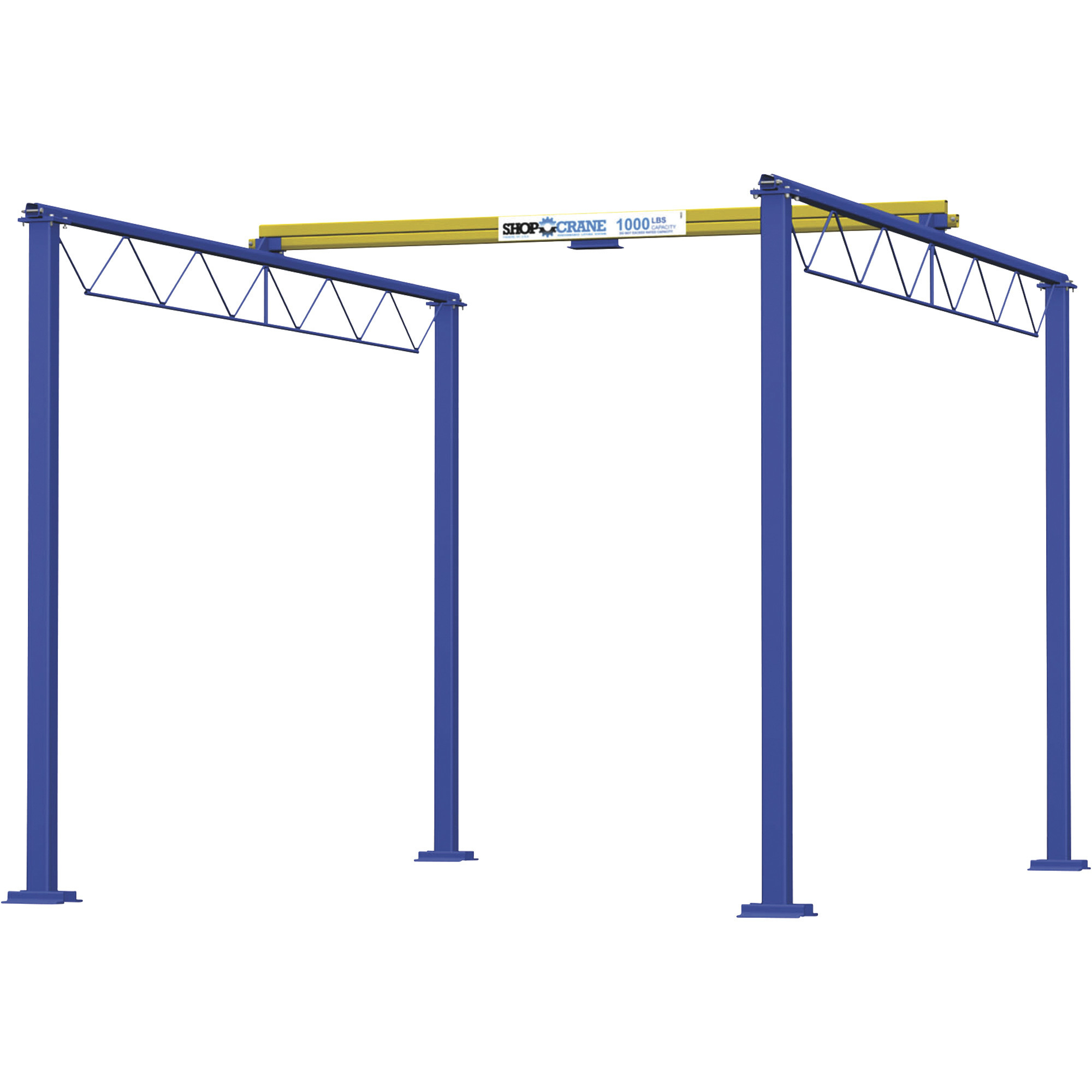

Gorbel 1000-Lb. Overhead Shop Bridge Crane, 8ft.L x 15ft.W x 10ft.H, Model# SC1000-FS-8-15-10

Item# 56125
Top Seller
Gorbel 1000-Lb. Overhead Shop Bridge Crane, 8ft.L x 15ft.W x 10ft.H, Model# SC1000-FS-8-15-10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gorbel 1000-Lb. Overhead Shop Bridge Crane, 8ft.L x 15ft.W x 10ft.H, Model# SC1000-FS-8-15-10

Click or Tap image to Zoom

$5129.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Non-industrial overhead system for distributing weight over bridge and 2 parallel runways
  • Makes moving and positioning loads of up to 1000 lbs. almost effortless
  • Includes non-binding trolley for moving loads
  • Ideal for vehicle restoration, maintenance of farm or golf course equipment, or preparing a car, ATV, snowmobile or other motor vehicle for action
  • Easy for 2 people to install within a couple hours with common tools and step ladders

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

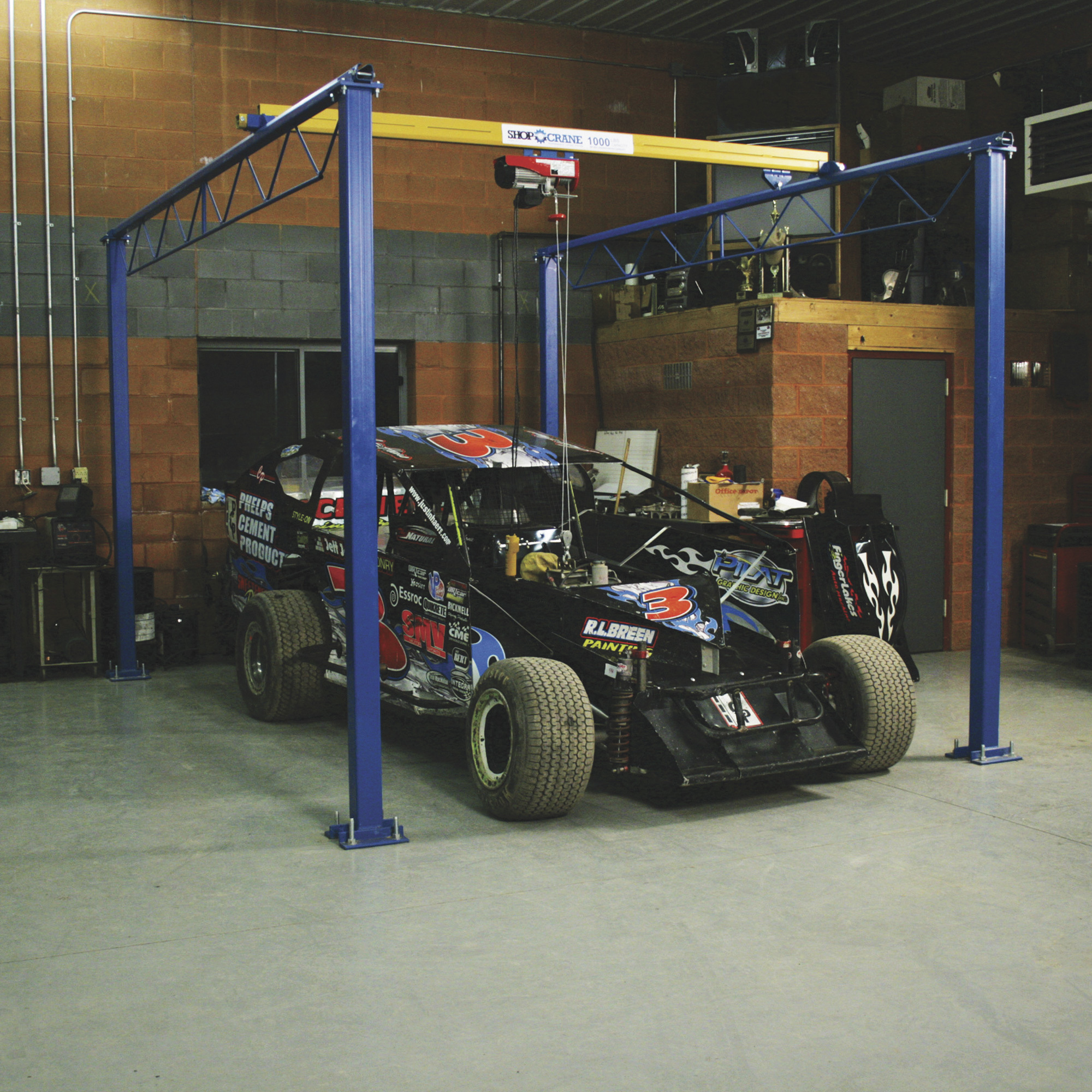

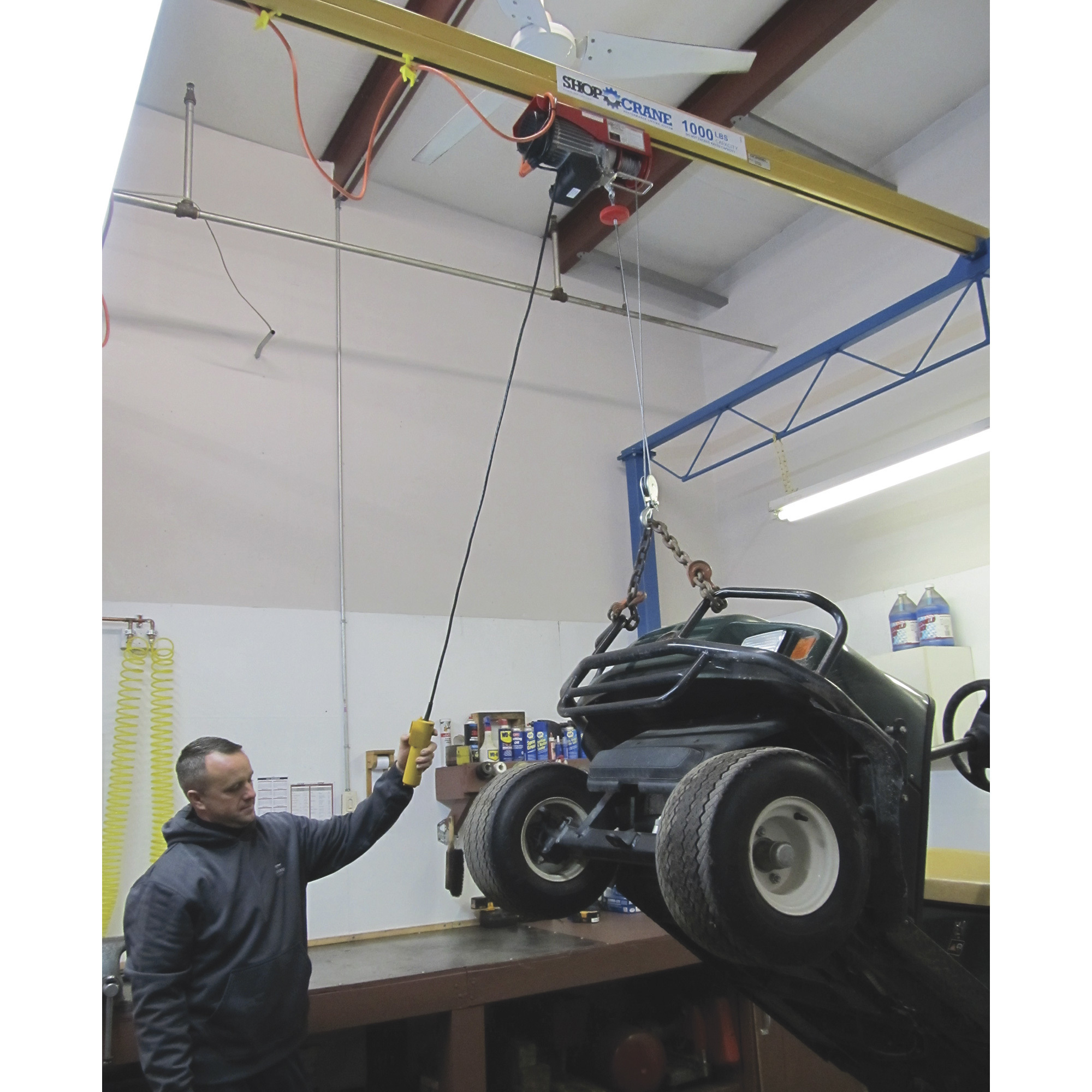

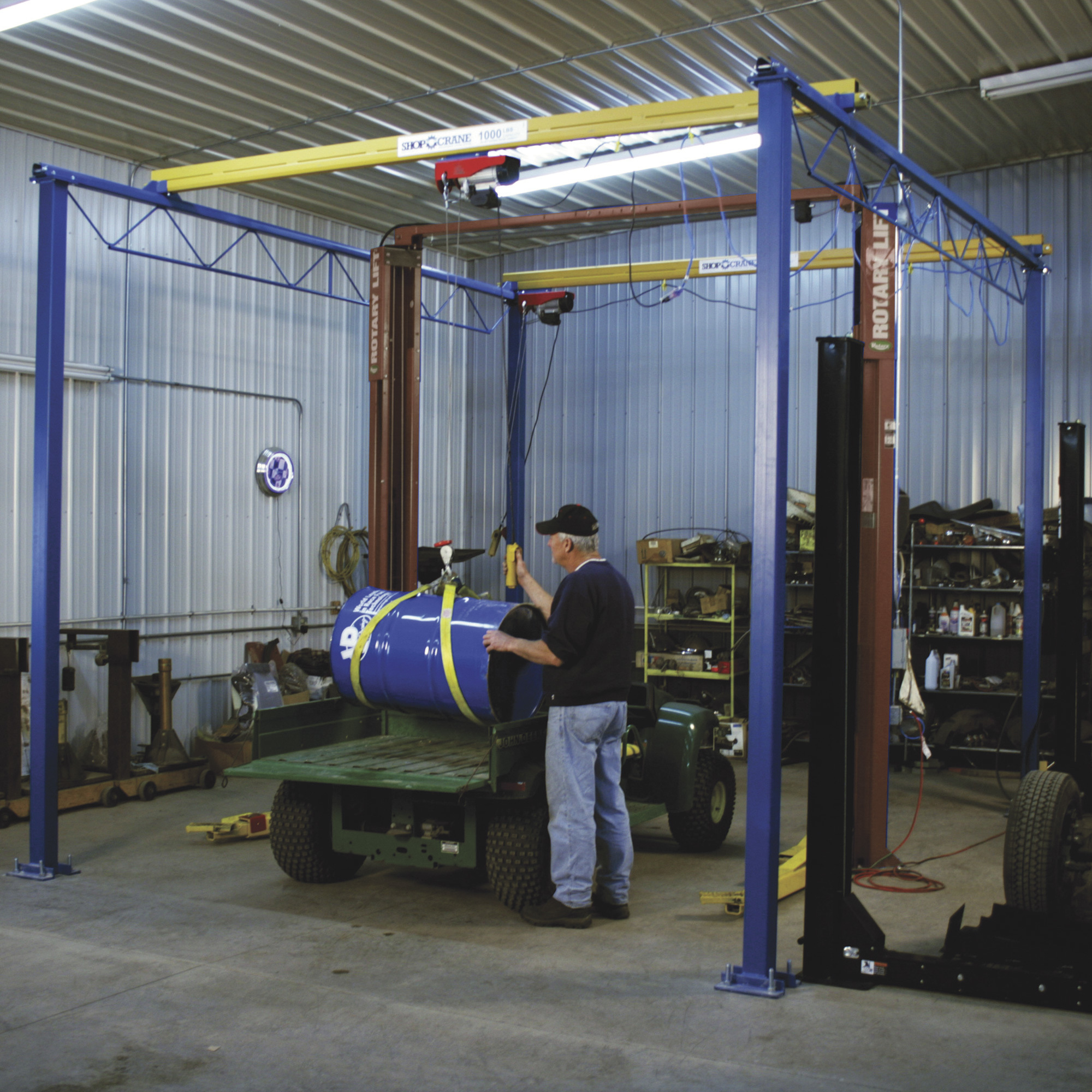

This Gorbel® 1000-Lb. Shop Crane is designed as a non-industrial overhead bridge system that distributes the weight of your load over a bridge and 2 parallel runways via the included non-binding trolley. With weight spread out, moving and positioning loads of up to 1000 lbs. become almost effortless. This crane is ideal for vehicle restoration, maintenance on farm or golf course equipment, or getting your car, ATV, snowmobile or other motor-driven vehicle ready for action. This crane is easy for 2 people to install in a garage within a couple hours using common hand tools, 2 step ladders and a hammer drill. Since its narrow support columns can be tucked into a shop corner or next to a garage door, this crane delivers full-service lifting without becoming an obstacle. Height stated indicates the ceiling height that accommodates movement of this crane. Durable steel construction. Assembly hardware included. Hoist sold separately.

What's Included

    (1) Runway weldment kit (1) Bridge weldment kit (1) Set of end trucks (1) Set of wire rope hoist trolleys (1) Set of column weldments (1) Optional column extension (1) Set of spacer plates (1) Set of clamp plates (1) Set of 1/2-13, 3.5in. long hex bolts (1) Set of 1/2-13 hex nuts (1) Set of 1/2-13, 1.5in. long hex bolts (1) Set of 3/8-16, 1in. long hex bolts (1) Set of anchor bolts (1) Thimble (1) Turnbuckle (1) Wire rope clamp (1) 1/2-13 hex nut (1) 1/2in. lockwasher (1) 3/8in. lockwasher

Downloads

Product Manual

Features + Benefits

  • Non-industrial overhead system for distributing weight over bridge and 2 parallel runways
  • Makes moving and positioning loads of up to 1000 lbs. almost effortless
  • Includes non-binding trolley for moving loads
  • Ideal for vehicle restoration, maintenance of farm or golf course equipment, or preparing a car, ATV, snowmobile or other motor vehicle for action
  • Easy for 2 people to install within a couple hours with common tools and step ladders
  • Narrow support columns can be tucked easily into a corner or next to a garage door for convenience and efficient use of space
  • Durable steel construction
  • Assembly hardware included
  • Hoist sold separately

Key Specs

AttributeSpecification

item#

56125

Brand

Shop Crane

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1010.0 LB
AttributeSpecification

Material

Steel

Load Capacity

1,000 lb

I-Beam Length

96 in

I-Beam to Ground

120 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. If the bridge travels "north to south", what is the distance between the uprights from east to west?

    1 answer

    1. The inside width of the vertical columns is 8 feet. The overall width would be 9 feet.

      Helpful?

  2. What is the height of the bottom side of the trusses of this crane? This will determine whether or not I can use this solution. Thank you!

    1 answer

    1. The height of the bottom side of the trusses is approximately 101".

      Helpful?

  3. What is the beam height? (not the total height of the bridge, but the height of just the beam) I'm working in a low overhead and worried about the height of the beam and hoist.

    1 answer

    1. This bridge crane requires a minimum 10' ceiling height. The overall height of this bridge crane is 9' 10".

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
