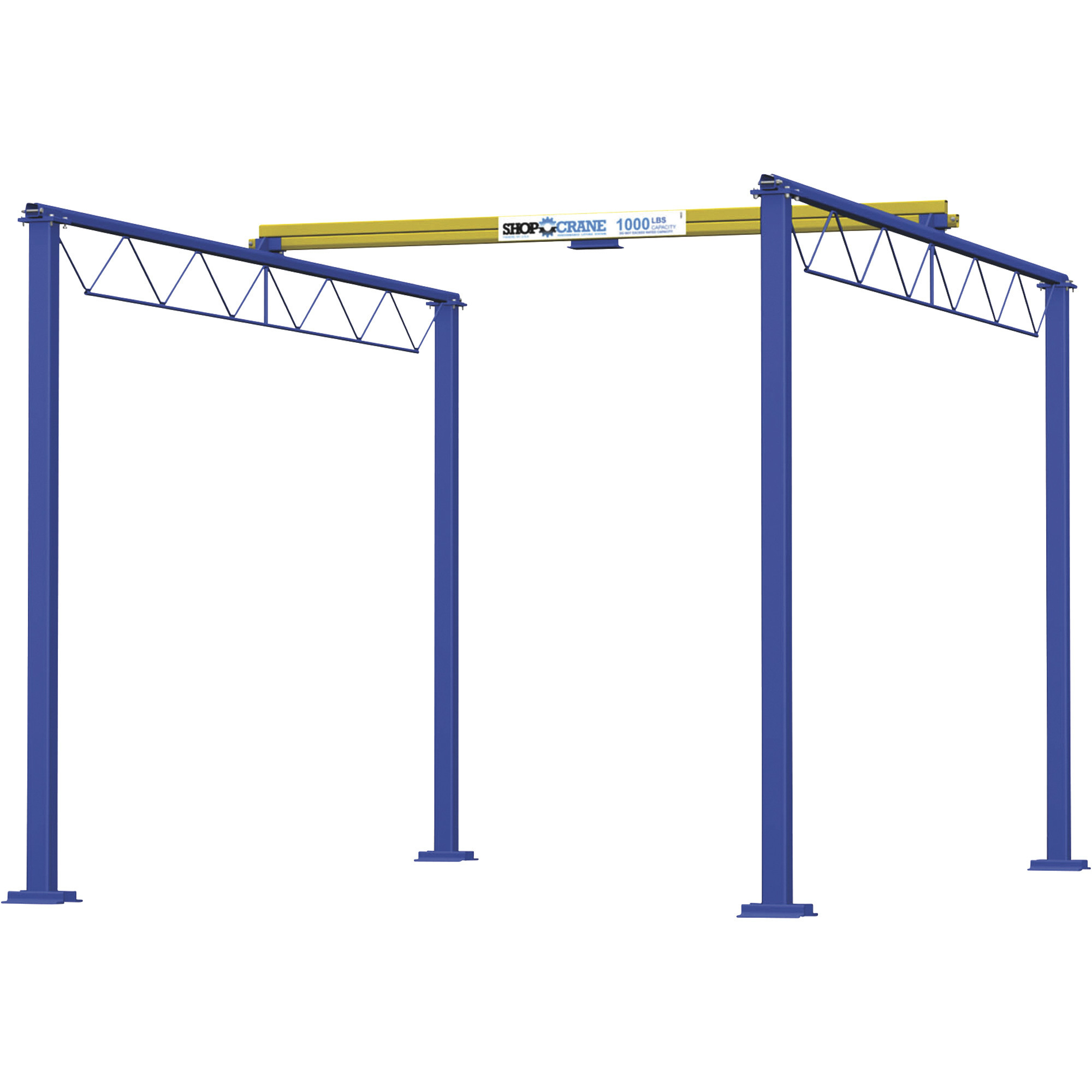

Gorbel 1000-Lb. Overhead Shop Bridge Crane, 12ft.L x 15ft.W x 8ft.H, Model# SC1000-FS-12-15-8

Item# 56143
Gorbel 1000-Lb. Overhead Shop Bridge Crane, 12ft.L x 15ft.W x 8ft.H, Model# SC1000-FS-12-15-8

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gorbel 1000-Lb. Overhead Shop Bridge Crane, 12ft.L x 15ft.W x 8ft.H, Model# SC1000-FS-12-15-8

Click or Tap image to Zoom

$5179.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Non-industrial overhead system for distributing weight over bridge and 2 parallel runways
  • Makes moving and positioning loads of up to 1000 lbs. almost effortless
  • Includes non-binding trolley for moving loads

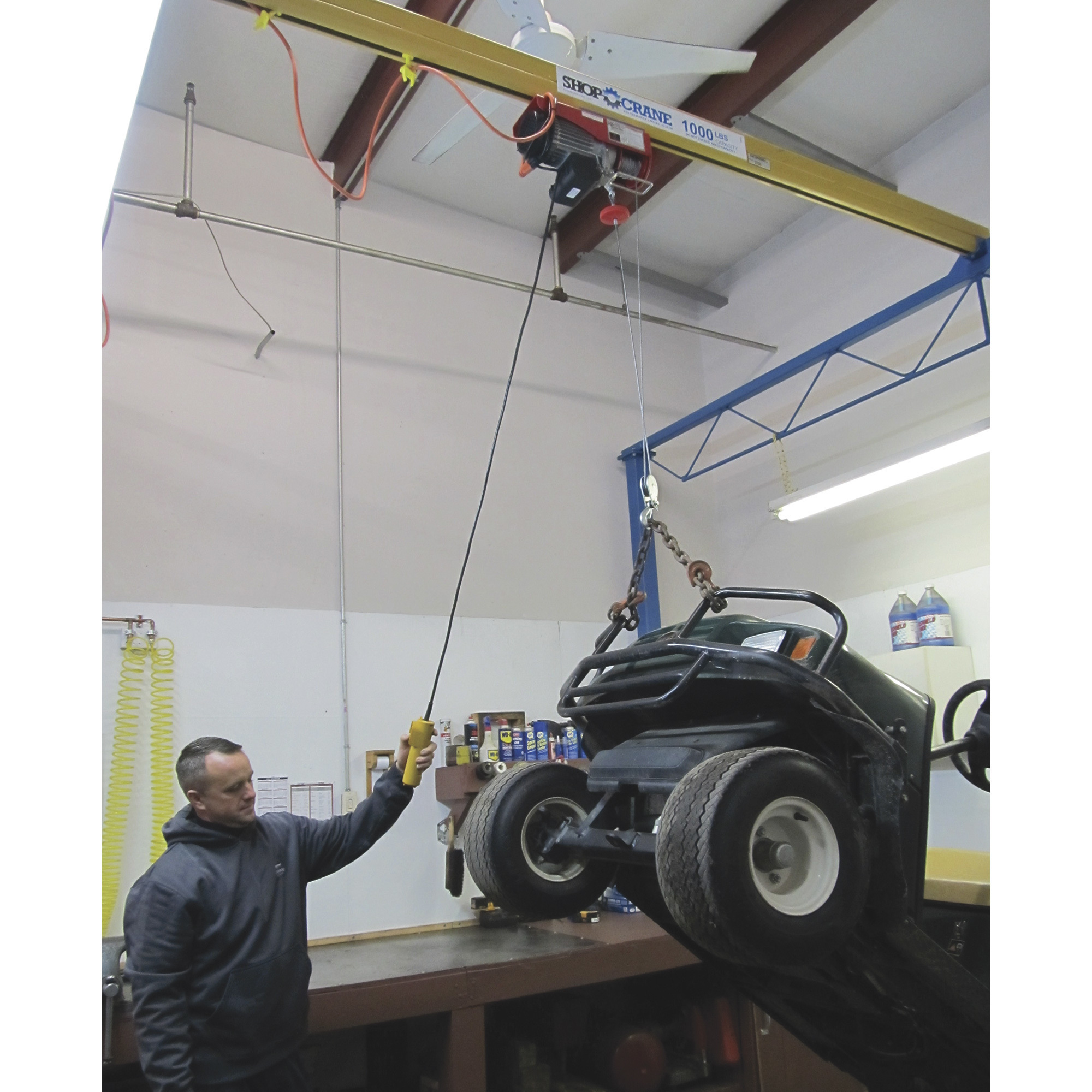

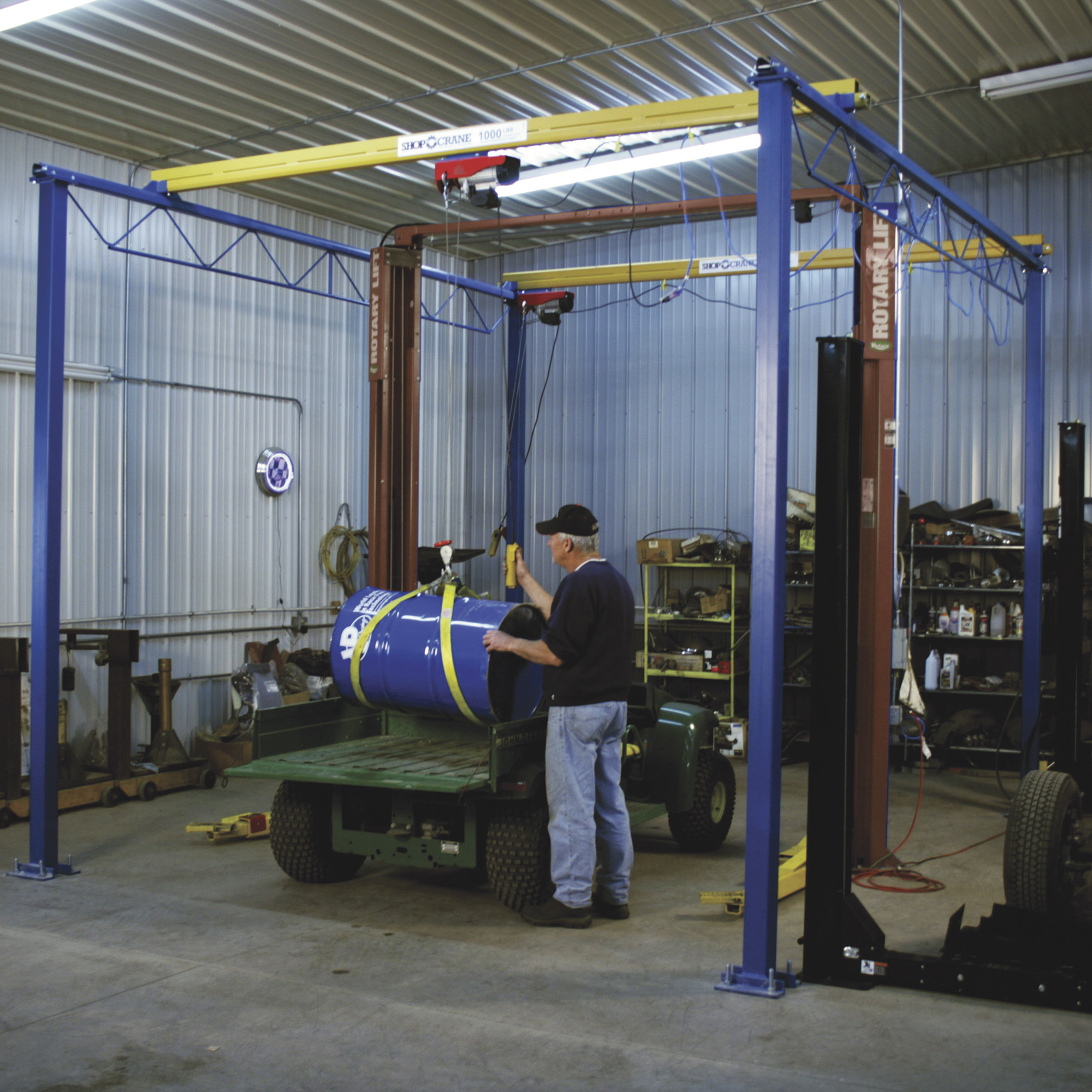

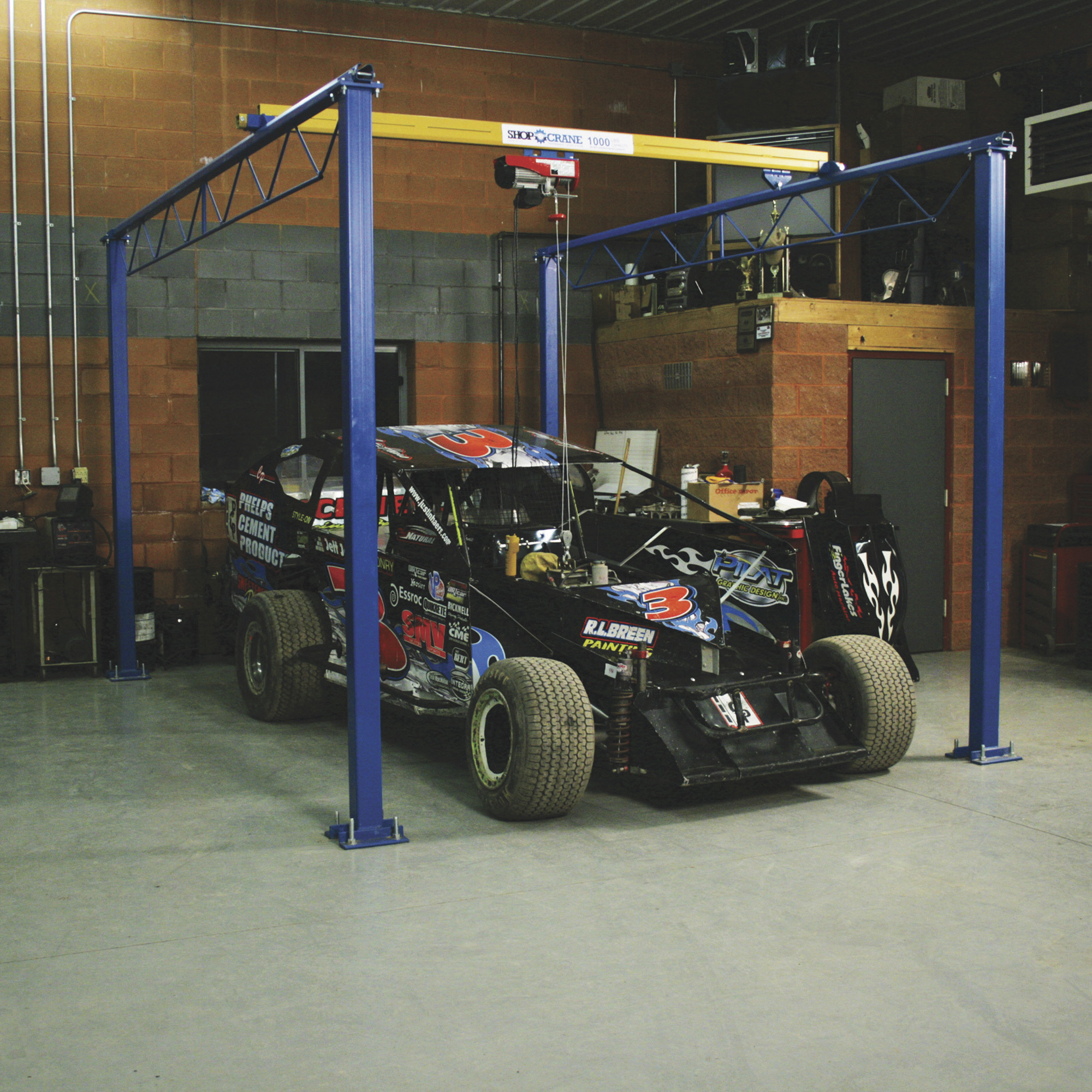

  • Ideal for vehicle restoration, maintenance of farm or golf course equipment, or preparing a car, ATV, snowmobile or other motor vehicle for action
  • Easy for 2 people to install within a couple hours with common tools and step ladders

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Gorbel® 1000-Lb. Shop Crane is designed as a non-industrial overhead bridge system that distributes the weight of your load over a bridge and 2 parallel runways via the included non-binding trolley. With weight spread out, moving and positioning loads of up to 1000 lbs. become almost effortless. This crane is ideal for vehicle restoration, maintenance on farm or golf course equipment, or getting your car, ATV, snowmobile or other motor-driven vehicle ready for action. This crane is easy for 2 people to install in a garage within a couple hours using common hand tools, 2 step ladders and a hammer drill. Since its narrow support columns can be tucked into a shop corner or next to a garage door, this crane delivers full-service lifting without becoming an obstacle. Height stated indicates the ceiling height that accommodates movement of this crane. Durable steel construction. Assembly hardware included. Hoist sold separately.

What's Included

    (1) Runway weldment kit (1) Bridge weldment kit (1) Set of end trucks (1) Set of wire rope hoist trolleys (1) Set of column weldments (1) Optional column extension (1) Set of spacer plates (1) Set of clamp plates (1) Set of 1/2-13, 3.5in. long hex bolts (1) Set of 1/2-13 hex nuts (1) Set of 1/2-13, 1.5in. long hex bolts (1) Set of 3/8-16, 1in. long hex bolts (1) Set of anchor bolts (1) Thimble (1) Turnbuckle (1) Wire rope clamp (1) 1/2-13 hex nut (1) 1/2in. lockwasher (1) 3/8in. lockwasher

Downloads

Product Manual

Features + Benefits

  • Non-industrial overhead system for distributing weight over bridge and 2 parallel runways
  • Makes moving and positioning loads of up to 1000 lbs. almost effortless
  • Includes non-binding trolley for moving loads
  • Ideal for vehicle restoration, maintenance of farm or golf course equipment, or preparing a car, ATV, snowmobile or other motor vehicle for action
  • Easy for 2 people to install within a couple hours with common tools and step ladders
  • Narrow support columns can be tucked easily into a corner or next to a garage door for convenience and efficient use of space
  • Durable steel construction
  • Assembly hardware included
  • Hoist sold separately

Key Specs

AttributeSpecification

item#

56143

Brand

Shop Crane

Manufacturer's Warranty

2 year limited warranty

Ship Weight

912.0 LB
AttributeSpecification

Material

Steel

Load Capacity

1,000 lb

I-Beam Length

144 in

I-Beam to Ground

96 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. is runway length 15 feet or 12 feet

    1 answer

    1. The bridge crane is 15 ft long (front to back) and 12 ft wide (side to side).

      Helpful?

  2. I have a question, what is the total height with the beam installed?

    1 answer

    1. The item needs a total ceiling height of 8 feet. The total height of the item is 7 feet 10 inches.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
