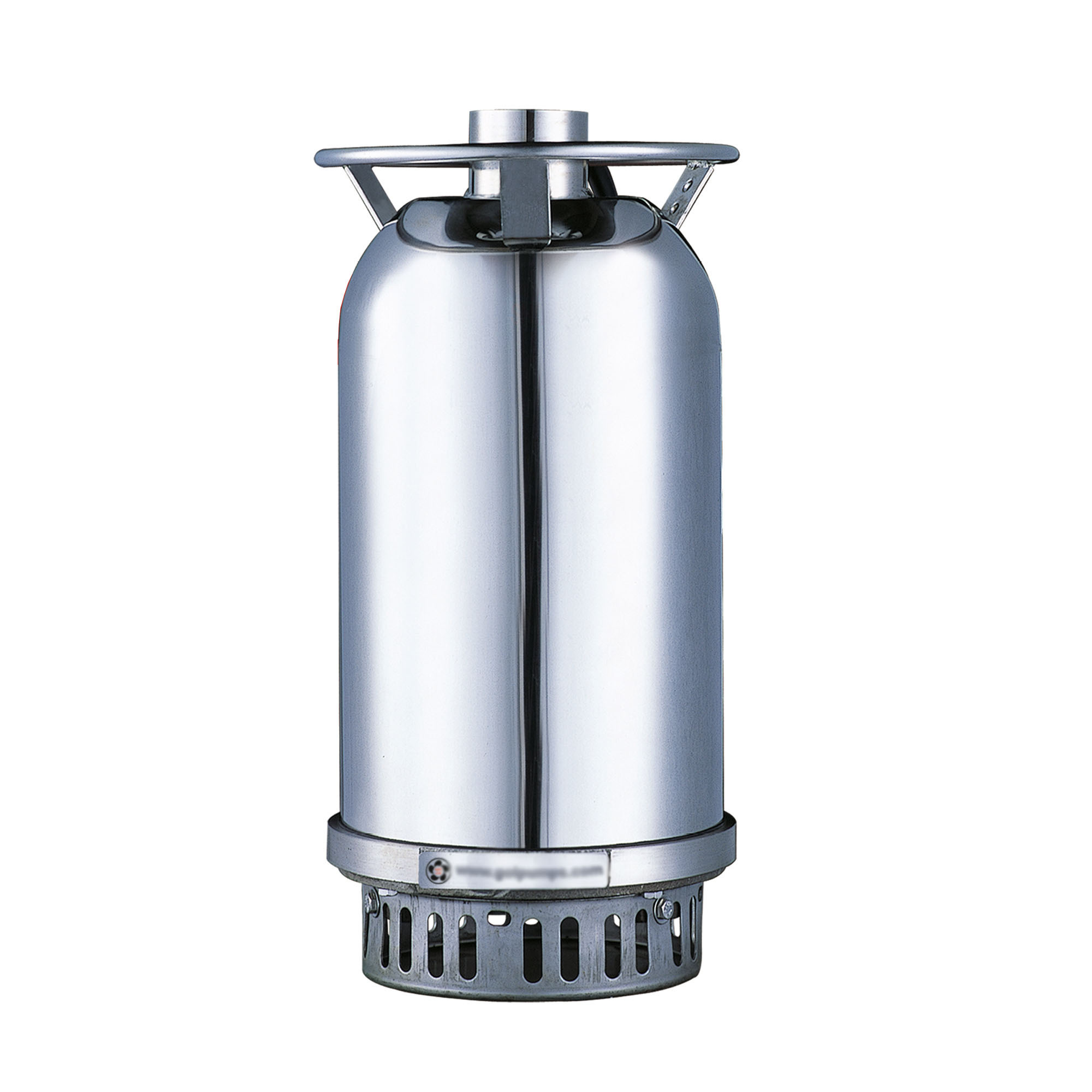

Gol Pumps High Flow Drainage Pump,33,300 GPH,10 HP, 460V,3Ph, Max. Flow 33240 GPH, Horsepower 10 HP, Port Size 6 in, Model# GKHQ-1032

Item# 4936199
Gol Pumps High Flow Drainage Pump,33,300 GPH,10 HP, 460V,3Ph, Max. Flow 33240 GPH, Horsepower 10 HP, Port Size 6 in, Model# GKHQ-1032

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps High Flow Drainage Pump,33,300 GPH,10 HP, 460V,3Ph, Max. Flow 33240 GPH, Horsepower 10 HP, Port Size 6 in, Model# GKHQ-1032

Click or Tap image to Zoom

$11,521.04

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Top discharge for easy piping on-site, and water cooling design can remove the water to a much lower level.
  • The water-cooling design for longer servicing life.
  • Pump Casing: Rugged SCS13 (#304) stainless investment casting with a smooth surface finish.
  • Impeller: Statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
  • Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) together with a separate Viton Oil Seal.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Gol Pumps High Flow Drainage Pump is engineered to deliver exceptional performance and energy efficiency in demanding applications. Capable of handling a maximum flow rate of 33,240 gallons per hour (GPH), this powerful pump is driven by a robust 10 horsepower (HP) motor, making it ideal for large-scale drainage tasks. Operating at 460 volts (V) with a three-phase (3Ph) power supply, this pump ensures reliable and consistent operation. Designed with a 6-inch port size, it efficiently manages high flow rates, reducing the time and effort needed to complete drainage projects. Built to save energy, the Gol Pumps High Flow Drainage Pump combines advanced engineering with durable construction, making it a reliable choice for professionals seeking both performance and efficiency. Whether used in industrial, agricultural, or commercial settings, this pump stands out for its capability to handle substantial water volumes while minimizing energy consumption.

What's Included

    (1) Pump

Features + Benefits

  • Top discharge for easy piping on-site, and water cooling design can remove the water to a much lower level.
  • The water-cooling design for longer servicing life.
  • Pump Casing: Rugged SCS13 (#304) stainless investment casting with a smooth surface finish.
  • Impeller: Statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
  • Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) together with a separate Viton Oil Seal.
  • The whole unit is equipped with Viton O-ring.
  • The Motor Casing and outer casing adopt stainless steel sheet material, greatly reduce the pump’s weight, and are easy to carry for the work.
  • Quality IP68 motor with water cooling design, very suitable for continuous duty.
  • UL Approved

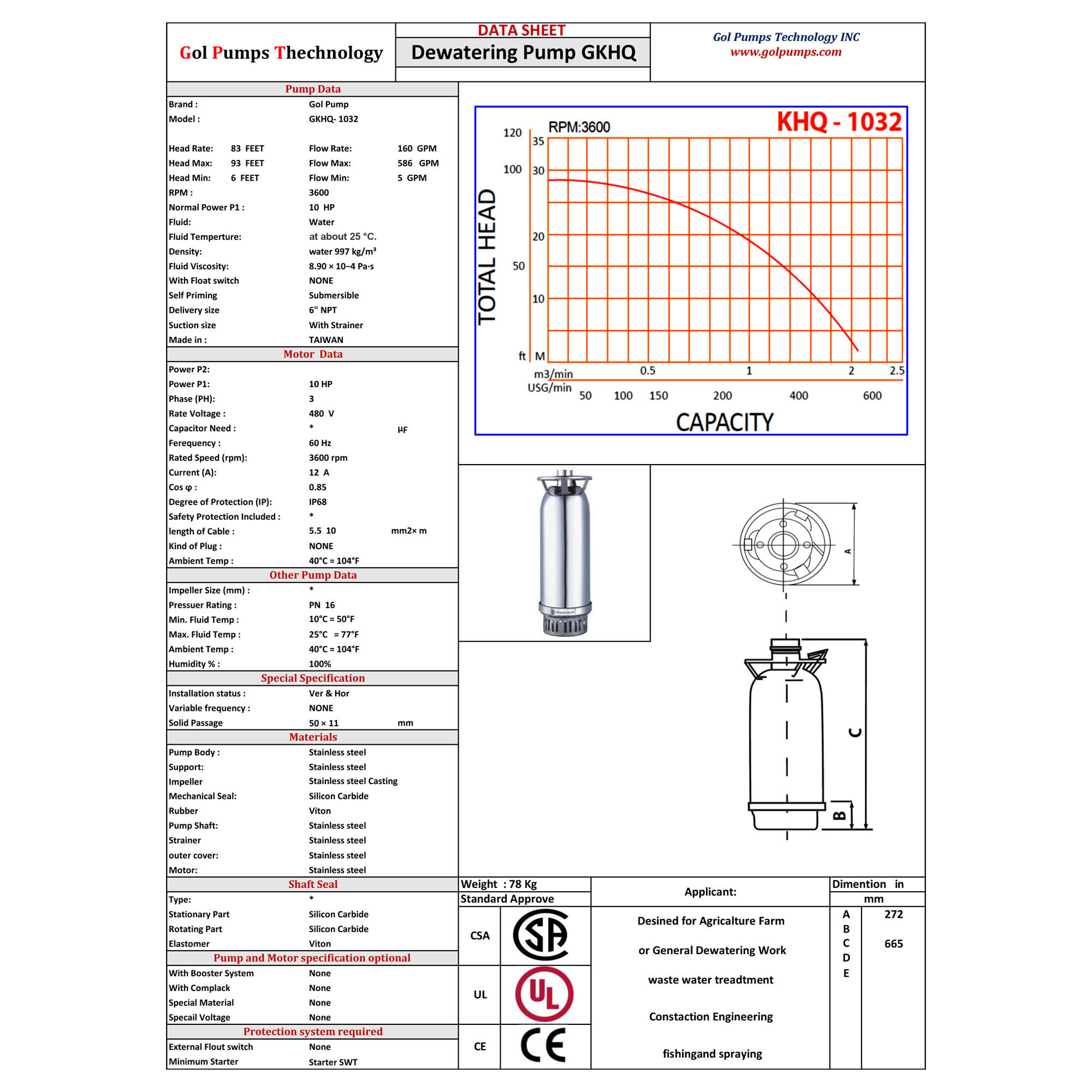

Key Specs

AttributeSpecification

item#

4936199

Brand

Gol Pumps

Manufacturer's Warranty

1 year limited warranty

Ship Weight

197.0 LB

Max. Flow

33,240 GPH

Port Size

6 in

Volts

460

Solar Powered

No
AttributeSpecification

Phase

Three-phase

Max. Head Pressure

92 ft

Amps

12

Power Cord Length

396 in

Housing Material

Stainless Steel

Product Weight

172.0000 lb

Dimensions L x W x H (in.)

11.0 x 11.0 x 26.0 in
