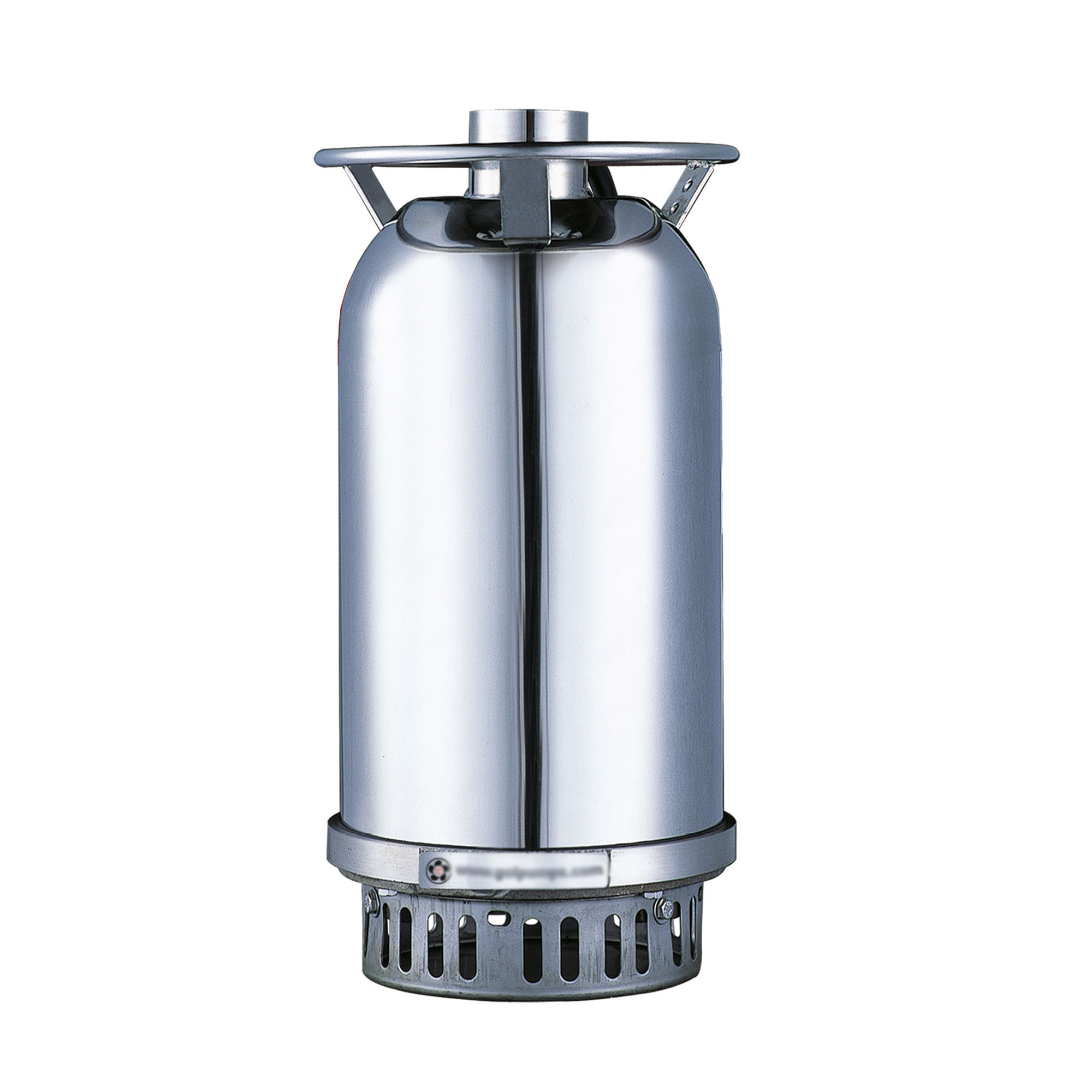

Gol Pumps High Flow Drainage Pump,23,760 GPH,7.5 HP,460V,3Ph, Max. Flow 15840 GPH, Horsepower 7-1/2 HP, Port Size 4 in, Model# GKHQ-732

Item# 4936287
Gol Pumps High Flow Drainage Pump,23,760 GPH,7.5 HP,460V,3Ph, Max. Flow 15840 GPH, Horsepower 7-1/2 HP, Port Size 4 in, Model# GKHQ-732

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps High Flow Drainage Pump,23,760 GPH,7.5 HP,460V,3Ph, Max. Flow 15840 GPH, Horsepower 7-1/2 HP, Port Size 4 in, Model# GKHQ-732

Click or Tap image to Zoom

$8183.19

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Top discharge for easy piping on-site, and water cooling design can remove the water to a much lower level.
  • The water-cooling design for longer servicing life.
  • Pump Casing: Rugged SCS13 (#304) stainless investment casting with a smooth surface finish.
  • Impeller: Statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
  • Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) together with a separate Viton Oil Seal.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Gol Pumps High Flow Drainage Pump is a powerful and efficient solution designed to handle large volumes of water with ease. With a capacity of 23,760 gallons per hour (GPH) and a robust 7.5 horsepower (HP) motor, this pump is ideal for demanding drainage applications. Operating at 460 volts and three-phase power, it ensures reliable performance and energy savings. The maximum flow rate of 15,840 GPH and a port size of 4 inches make it suitable for various industrial and commercial settings. Built to deliver high efficiency and durability, the Gol Pumps High Flow Drainage Pump is the perfect choice for those seeking a dependable and energy-efficient drainage solution.

What's Included

    (1) Pump

Features + Benefits

  • Top discharge for easy piping on-site, and water cooling design can remove the water to a much lower level.
  • The water-cooling design for longer servicing life.
  • Pump Casing: Rugged SCS13 (#304) stainless investment casting with a smooth surface finish.
  • Impeller: Statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
  • Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) together with a separate Viton Oil Seal.
  • The whole unit is equipped with Viton O-ring.
  • The Motor Casing and outer casing adopt stainless steel sheet material, greatly reduce the pump’s weight, and are easy to carry for the work.
  • Quality IP68 motor with water cooling design, very suitable for continuous duty.
  • UL Approved

Key Specs

AttributeSpecification

item#

4936287

Brand

Gol Pumps

Manufacturer's Warranty

1 year limited warranty

Ship Weight

179.0 LB

Max. Flow

15,840 GPH

Port Size

4 in

Volts

460

Solar Powered

No
AttributeSpecification

Phase

Three-phase

Max. Head Pressure

65 ft

Amps

10

Power Cord Length

396 in

Housing Material

Stainless Steel

Product Weight

154.0000 lb

Dimensions L x W x H (in.)

11.0 x 11.0 x 28.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
