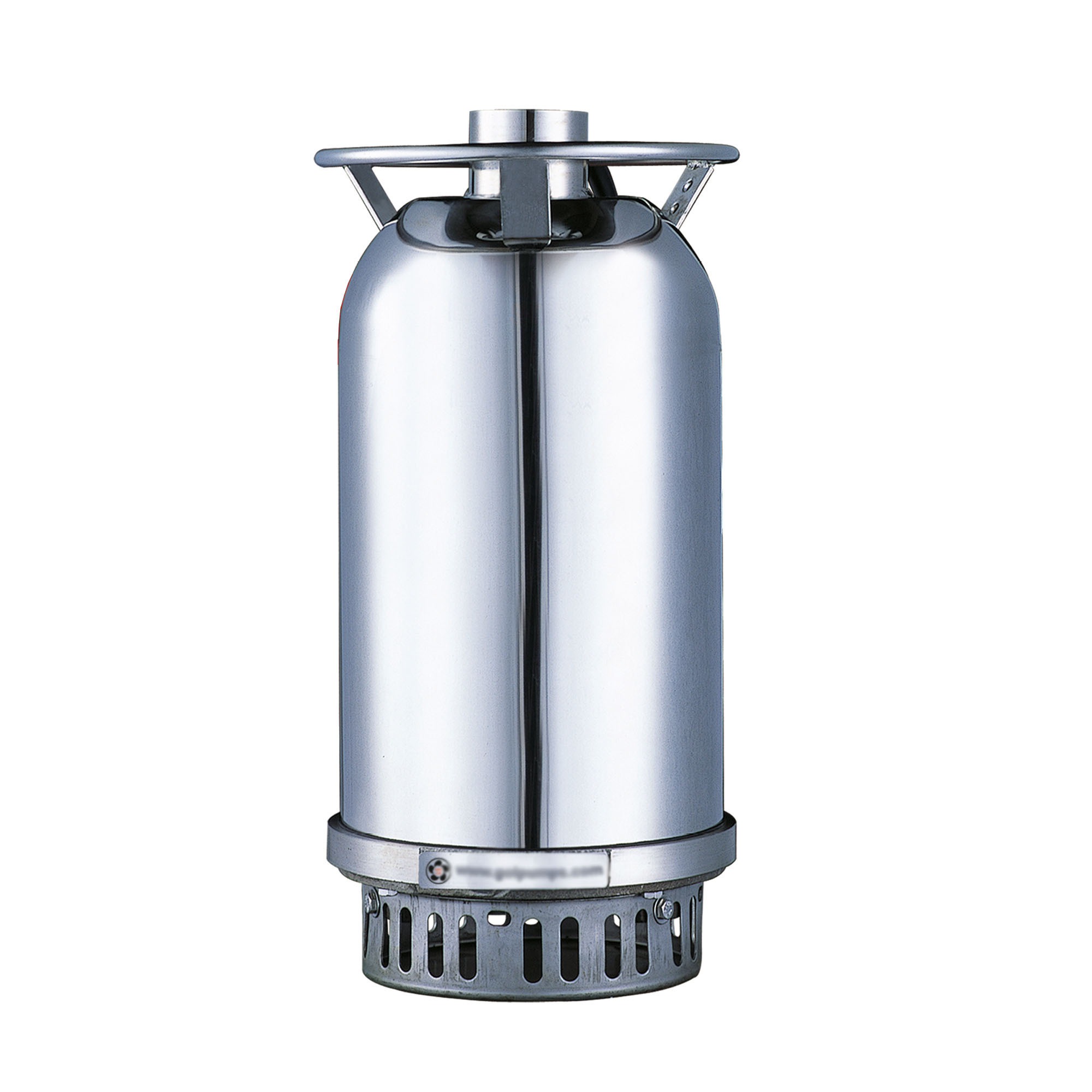

Gol Pumps High Flow Drainage Pump,15,060 GPH,5 HP,460V,3Ph, Max. Flow 15000 GPH, Horsepower 5 HP, Port Size 4 in, Model# GKHQ-532

Item# 4936172
Gol Pumps High Flow Drainage Pump,15,060 GPH,5 HP,460V,3Ph, Max. Flow 15000 GPH, Horsepower 5 HP, Port Size 4 in, Model# GKHQ-532

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps High Flow Drainage Pump,15,060 GPH,5 HP,460V,3Ph, Max. Flow 15000 GPH, Horsepower 5 HP, Port Size 4 in, Model# GKHQ-532

Click or Tap image to Zoom

$5842.73

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Top discharge for easy piping on-site, and water cooling design can remove the water to a much lower level.
  • The water-cooling design for longer servicing life.
  • Pump Casing: Rugged SCS13 (#304) stainless investment casting with a smooth surface finish.
  • Impeller: Statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
  • Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) together with a separate Viton Oil Seal.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Gol Pumps High Flow Drainage Pump is a powerful and efficient solution designed for high-capacity drainage applications. With an impressive maximum flow rate of 15,060 GPH and a robust 5 HP motor, this pump is capable of handling demanding tasks with ease. Operating at 460V and 3-phase, it ensures reliable performance and energy efficiency. The 4-inch port size facilitates smooth and rapid water movement, making it ideal for large-scale drainage projects. Built to save energy while delivering exceptional performance, the Gol Pumps High Flow Drainage Pump is the perfect choice for professionals seeking durability, efficiency, and high flow capacity in their drainage systems.

What's Included

    (1) Pump

Features + Benefits

  • Top discharge for easy piping on-site, and water cooling design can remove the water to a much lower level.
  • The water-cooling design for longer servicing life.
  • Pump Casing: Rugged SCS13 (#304) stainless investment casting with a smooth surface finish.
  • Impeller: Statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
  • Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) together with a separate Viton Oil Seal.
  • The whole unit is equipped with Viton O-ring.
  • The Motor Casing and outer casing adopt stainless steel sheet material, greatly reduce the pump’s weight, and are easy to carry for the work.
  • Quality IP68 motor with water cooling design, very suitable for continuous duty.
  • UL Approved

Key Specs

AttributeSpecification

item#

4936172

Brand

Gol Pumps

Manufacturer's Warranty

1 year limited warranty

Ship Weight

168.0 LB

Max. Flow

15,000 GPH

Port Size

4 in

Volts

460

Solar Powered

No
AttributeSpecification

Phase

Three-phase

Max. Head Pressure

85 ft

Amps

7

Power Cord Length

396 in

Housing Material

Stainless Steel

Product Weight

168.0000 lb

Dimensions L x W x H (in.)

46.0 x 31.0 x 24.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
