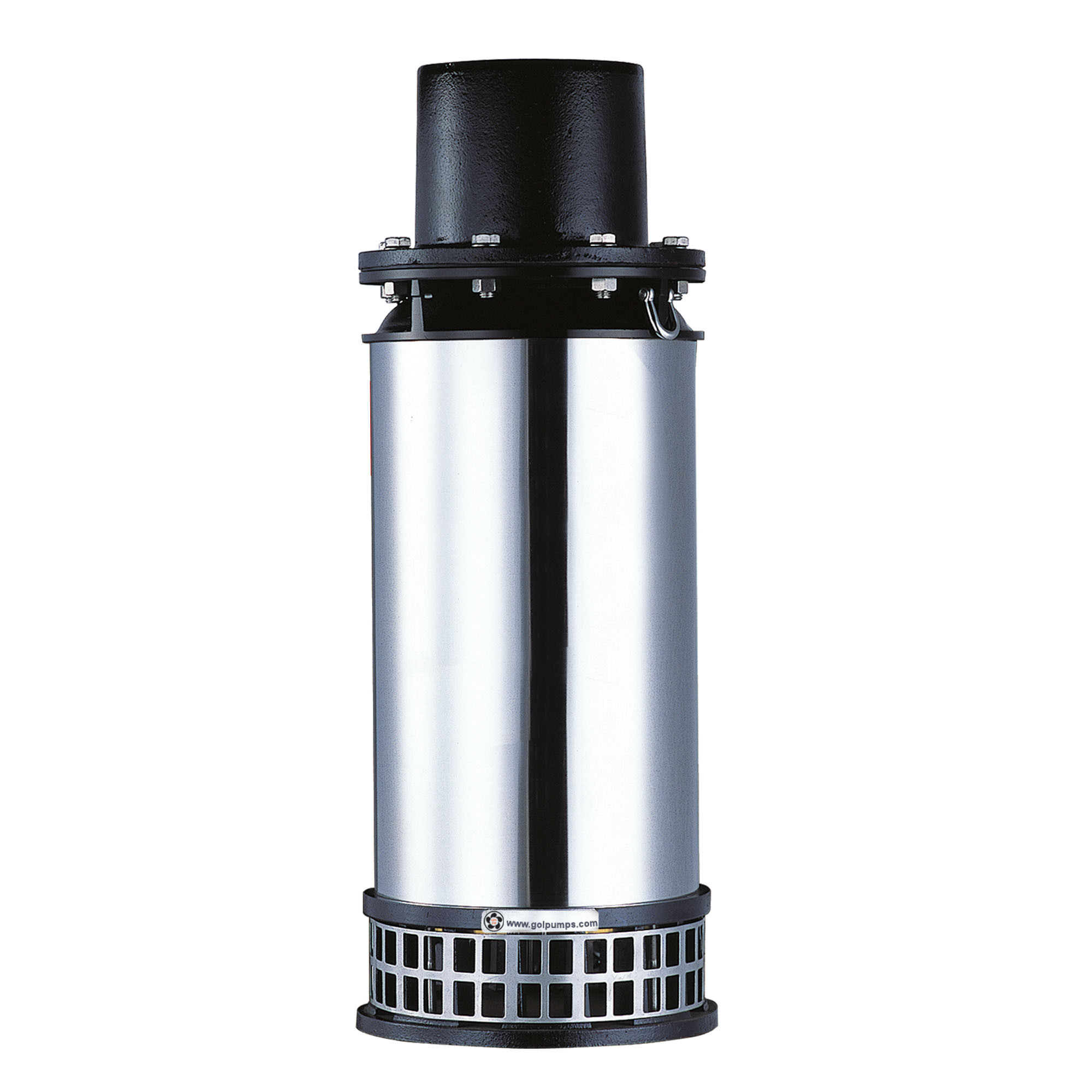

Gol Pumps Axial Flow Drainage Pump,117,300GPH,15HP,460V,3Ph, Max. Flow 117300 GPH, Horsepower 15 HP, Port Size 12 in, Model# GKL-1532L

Item# 4936244
1 of 33 reviewers received a sample product or took part in a promotion
Gol Pumps Axial Flow Drainage Pump,117,300GPH,15HP,460V,3Ph, Max. Flow 117300 GPH, Horsepower 15 HP, Port Size 12 in, Model# GKL-1532L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps Axial Flow Drainage Pump,117,300GPH,15HP,460V,3Ph, Max. Flow 117300 GPH, Horsepower 15 HP, Port Size 12 in, Model# GKL-1532L

Click or Tap image to Zoom

$8778.97

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Turbo Jet-Like impeller designed to improve extra-output water volume with almost no vibration and noise.
  • 3D-design Impeller adopts ALBC3(Aluminum Bronze) which has superior wear resistant and anti corrosion capability while working in the seawater or brine.
  • Motor headcover, upper bracket, motor lower cover and suction cover use BC6 material to endure the erosion of seawater.
  • The unique EPOXY cable sealing base prevents the motor against water penetration.
  • Double Mechanical Seal and separate Sand-Proof Trap or Oil Seal.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Gol Pumps Axial Flow Drainage Pump is a high-performance solution designed for efficient and effective water management in various applications. With a robust 15 HP motor and a maximum flow rate of 117,300 gallons per hour (GPH), this pump ensures rapid and reliable drainage. Operating at 460V and 3-phase power, it is engineered to deliver consistent performance while optimizing energy consumption, making it an eco-friendly choice for large-scale operations. The 12-inch port size facilitates smooth and unobstructed water flow, reducing the risk of clogging and ensuring seamless operation. Built with durability in mind, this axial flow pump is ideal for use in agricultural, industrial, and municipal settings where high-capacity drainage is required. Its efficient design not only saves energy but also reduces operational costs, providing long-term value and reliability. Whether managing floodwaters, irrigation systems, or wastewater, the Gol Pumps Axial Flow Drainage Pump offers a powerful and dependable solution to meet your needs.

What's Included

    (1) Pump

Features + Benefits

  • Turbo Jet-Like impeller designed to improve extra-output water volume with almost no vibration and noise.
  • 3D-design Impeller adopts ALBC3(Aluminum Bronze) which has superior wear resistant and anti corrosion capability while working in the seawater or brine.
  • Motor headcover, upper bracket, motor lower cover and suction cover use BC6 material to endure the erosion of seawater.
  • The unique EPOXY cable sealing base prevents the motor against water penetration.
  • Double Mechanical Seal and separate Sand-Proof Trap or Oil Seal.
  • UL Approved
  • 1800 rpm

Key Specs

AttributeSpecification

item#

4936244

Brand

Gol Pumps

Manufacturer's Warranty

1 year limited warranty

Ship Weight

451.0 LB

Max. Flow

117,300 GPH

Port Size

12 in

Volts

460

Solar Powered

No
AttributeSpecification

Phase

Three-phase

Max. Head Pressure

39 ft

Amps

17

Power Cord Length

396 in

Housing Material

Cast-Iron

Product Weight

421.0000 lb

Dimensions L x W x H (in.)

17.0 x 17.0 x 42.0 in

Reviews

Questions & Answers

33 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
