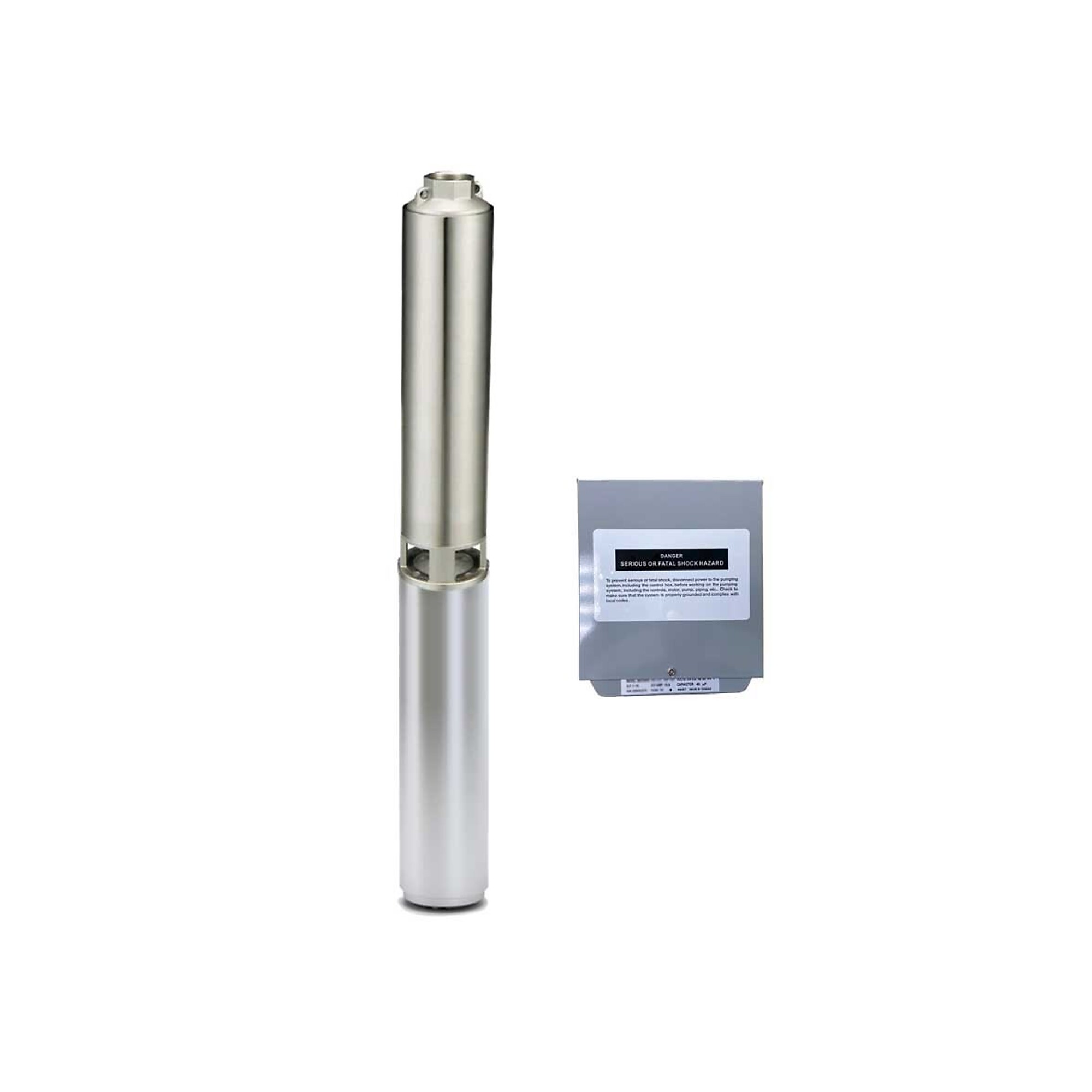

Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 450 GPH, Horsepower 2 HP, Port Size 1.25 in, Model# ST0533

Item# 4477560
Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 450 GPH, Horsepower 2 HP, Port Size 1.25 in, Model# ST0533

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 450 GPH, Horsepower 2 HP, Port Size 1.25 in, Model# ST0533

Click or Tap image to Zoom

$1433.95

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motor shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Save your Money , Save energy , protect your land

What's Included

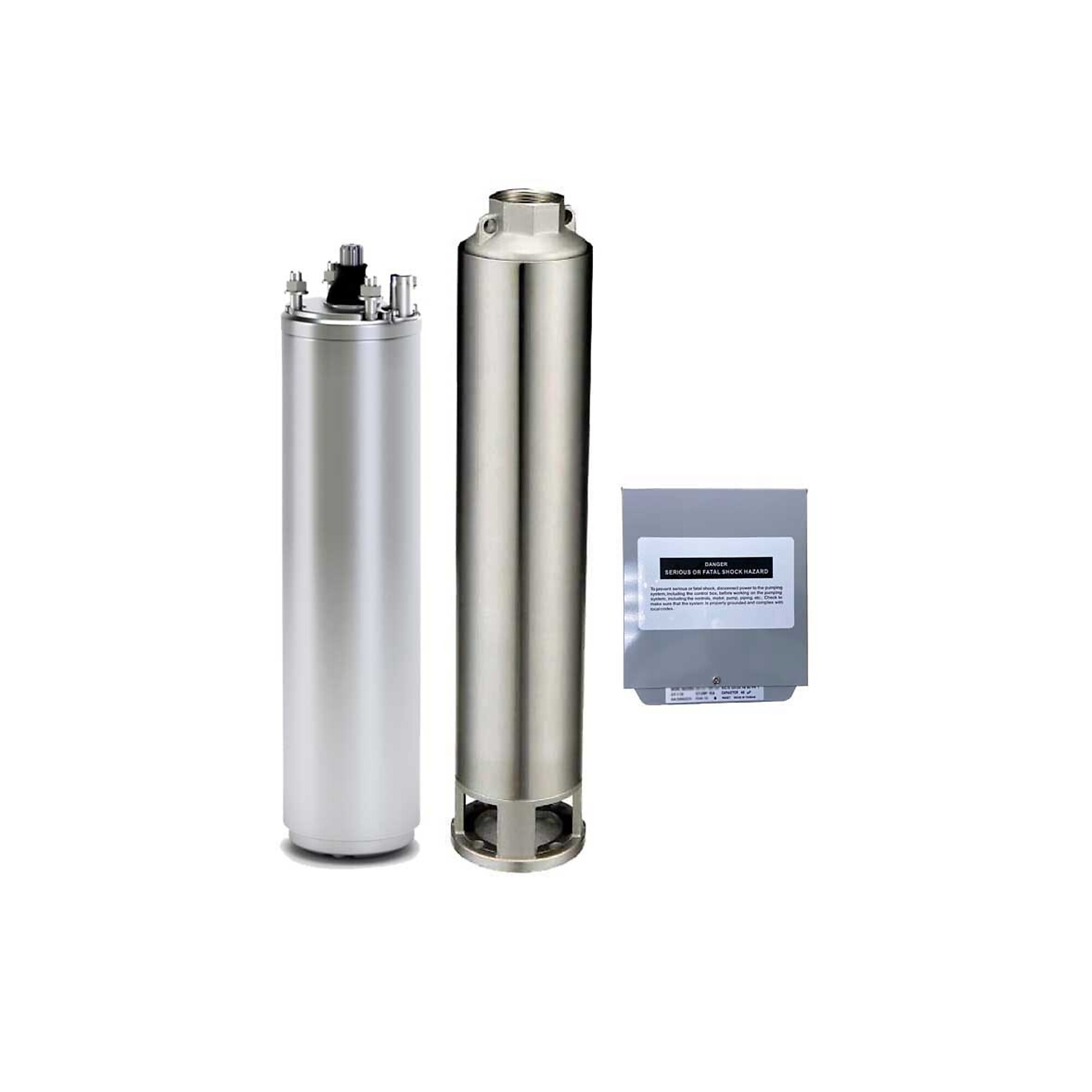

    (1) Pump (1) motor (1) Control box

Features + Benefits

  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motor shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.
  • Pump Shaft is made from hex 304 stainless steel bas material for high corrosion resistance.
  • Beating is made with Polyacetal for strong wear and abrasive resistance.
  • CSA and NSF certified
  • Pump body is covered by a 1.5mm thick 304 polished stainless steel.

Key Specs

AttributeSpecification

item#

4477560

Brand

Gol Pumps

Manufacturer's Warranty

6 month limited warranty

Ship Weight

54.0 LB

Max. Flow

450 GPH

Port Size

1.25 in

Volts

230

Phase

Single-phase
AttributeSpecification

Max. Head Pressure

1,050 ft

Amps

13.9

Max. Working Temperature

104 °F

Housing Material

Stainless Steel

Max. PSI

455

Horsepower

2 HP

Product Weight

48.7000 lb

Dimensions L x W x H (in.)

48.6 x 3.9 x 3.9 in

Reviews

Questions & Answers

Questions

  1. I do not see electrical wires coming out of the pump. is there any? If so, about how long are they? Also, could I see a PDF file of the Manual?

    1 answer

    1. The pump model ST-0533 does not include wiring or motor. The motor (model 4CF3546D) is sold separately. The motor would include 5 feet of 10 gauge wire.
