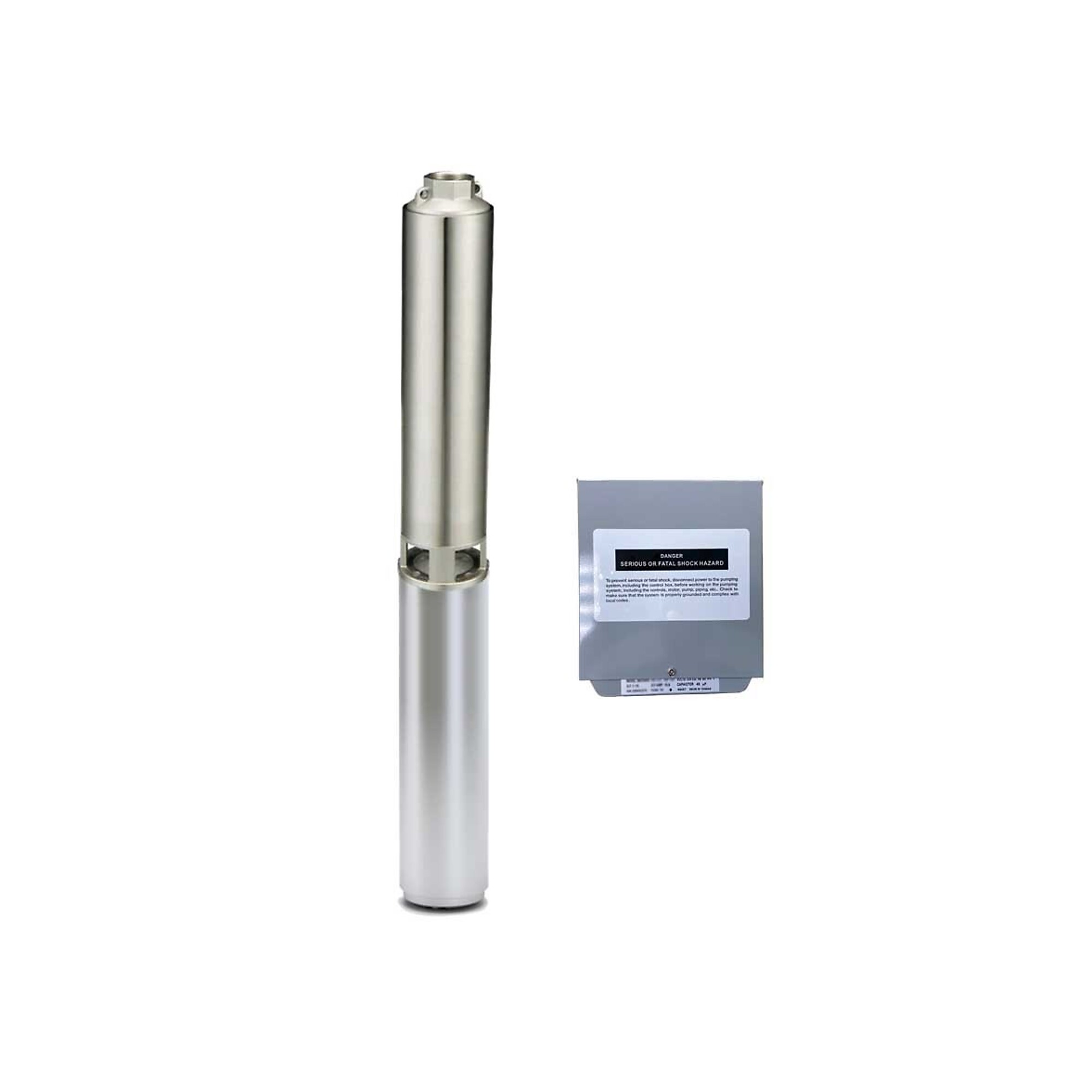

Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 1260 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1328

Item# 4476794
Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 1260 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1328

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 1260 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1328

Click or Tap image to Zoom

$2528.17

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motor shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Gol Pumps 4in. 3-Wire Deep Well Submersible Pump is designed to deliver exceptional performance and efficiency for your water pumping needs. With a maximum flow rate of 1260 gallons per hour and powered by a robust 5 horsepower motor, this pump ensures reliable and consistent water delivery. The 1.25-inch port size allows for optimal water flow and easy connection to your existing plumbing system. Engineered to save energy and reduce operating costs, this submersible pump is an excellent investment for protecting your land and conserving resources. Its durable construction and efficient design make it a dependable solution for deep well applications, providing peace of mind and long-lasting performance.

What's Included

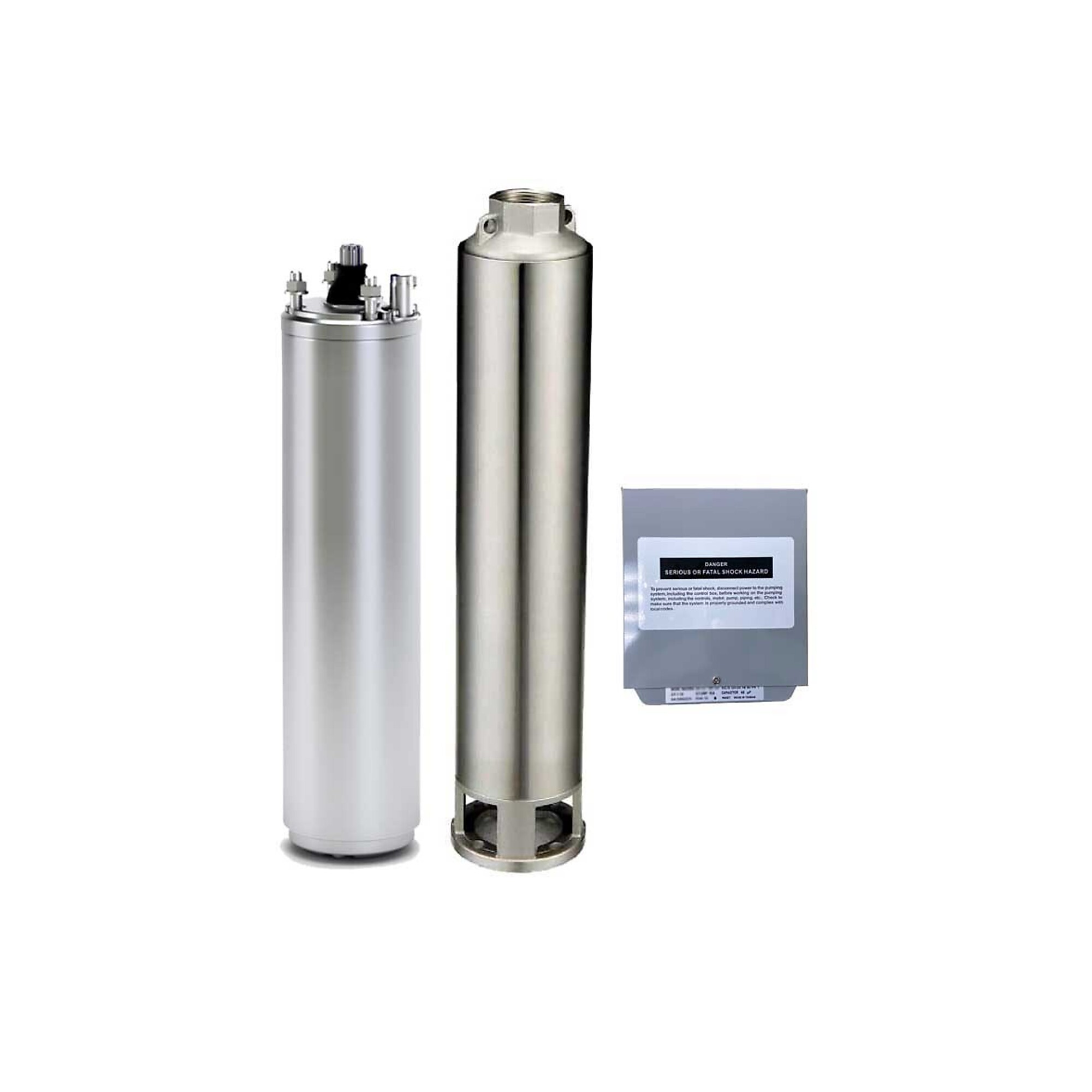

    (1) Pump (1) motor (1) Control box

Features + Benefits

  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motor shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.
  • Pump Shaft is made from hex 304 stainless steel bas material for high corrosion resistance.
  • Beating is made with Polyacetal for strong wear and abrasive resistance.
  • CSA and NSF certified
  • Pump body is covered by a 1.5mm thick 304 polished stainless steel.

Key Specs

AttributeSpecification

item#

4476794

Brand

Gol Pumps

Manufacturer's Warranty

6 month limited warranty

Ship Weight

180.0 LB

Max. Flow

1,260 GPH

Port Size

1.25 in

Volts

230
AttributeSpecification

Phase

Single-phase

Max. Head Pressure

882 ft

Amps

27.2

Max. Working Temperature

104 °F

Housing Material

Stainless Steel

Product Weight

180.0000 lb

Dimensions L x W x H (in.)

50.6 x 3.9 x 3.9 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

6 month limited warranty
