The manufacturer offers a 6 month limited warranty.

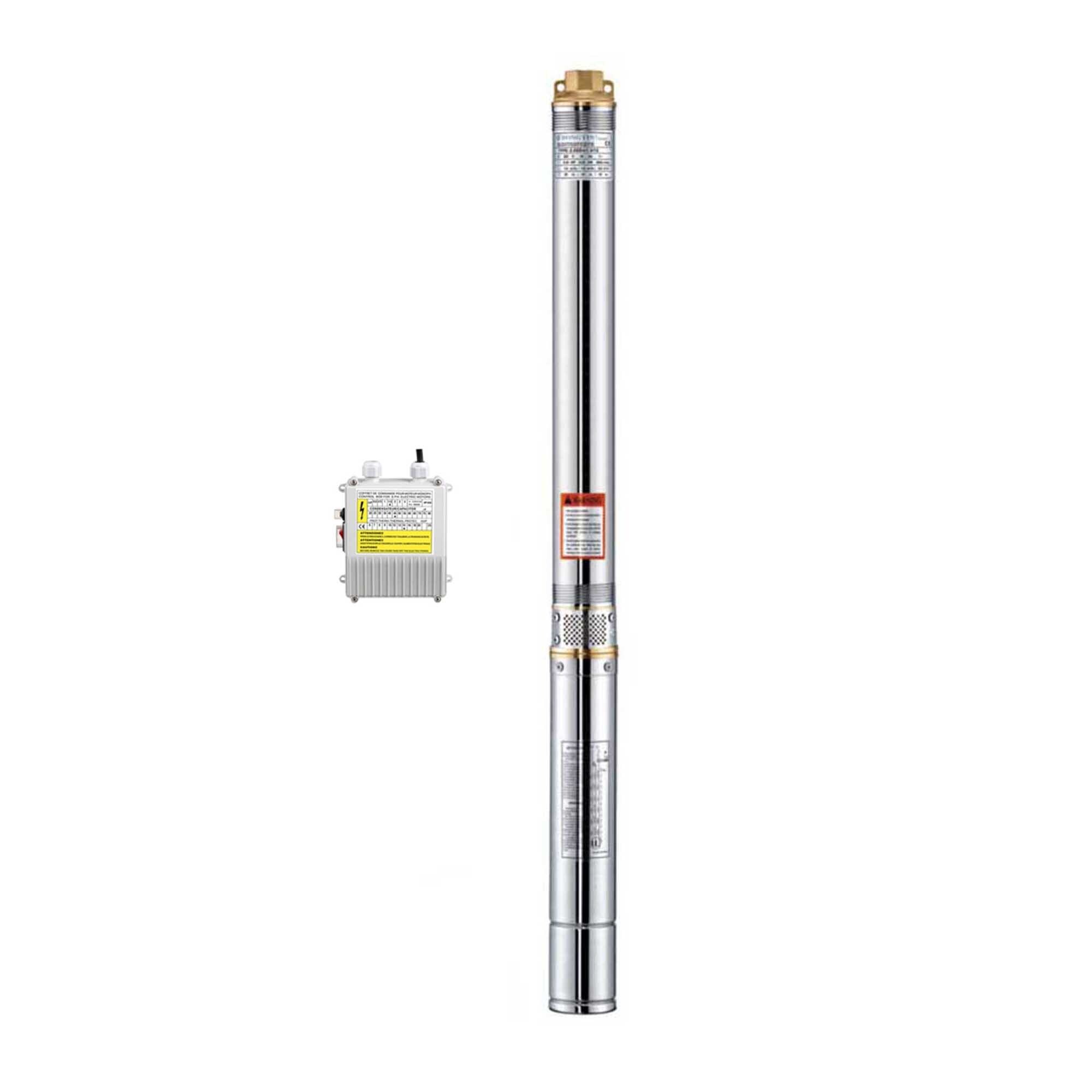

Gol Pumps, 3in. 3-Wire Deep Well Submersible Pump, Max. Flow 1080 GPH, Horsepower 2 HP, Port Size 1.25 in, Model# 3SDM3/23
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$550.12
- Maximum fluid temperature up to + 95F
- Maximum sand content: 0.25%
- Equip with start control box or digital-auto control box
- Pump external casing AISI 304 SS
- Motor external casing AISI 304 SS
See full description
See All Deep Well Pumps
See All Gol Pumps Deep Well Pumps
Currently Viewing This Product
Specifications
Specifications
Gol Pumps, 3in. 3-Wire Deep Well Submersible Pump, Max. Flow 1080 GPH, Horsepower 2 HP, Port Size 1.25 in, Model# 3SDM3/23
Gol Pumps, 4in. Stainless steel 3-Wire Deep Well Submersible Pump, Max. Flow 3180 GPH, Horsepower 5 HP, Port Size 2 in, Model# SP 4015
Gol Pumps, 6in. Stainless steel Deep Well Submersible Pump, Max. Flow 22500 GPH, Horsepower 30 HP, Port Size 4 in, Model# A6X60CR30/08
GOL Pumps 3-Wire Submersible 4in. Deep Well Pump, 7260 GPH, 5 HP, Model# SP-8
Max. Flow
Same
1,080 GPH
3,180 GPH
22,500 GPH
7,260 GPH
Port Size
Same
1.25 in
2 in
4 in
-
Volts
Same
110
230
460
230
Phase
Same
Single-phase
Single-phase
Three-phase
Single-phase
Max. Head Pressure
Same
443 ft
410 ft
558 ft
-
Amps
Same
21.3
24
-
25.8
Max. Working Temperature
Same
104 °F
104 °F
104 °F
-
Housing Material
Same
Other
Stainless Steel
Stainless Steel
Stainless Steel
Max. PSI
Same
192
-
242
70.52
Horsepower
Same
2 HP
-
30 HP
5 HP
Product Weight
Same
32.0000 lb
168.0000 lb
249.0000 lb
73.46 lb
Dimensions L x W x H (in.)
Same
54.0 x 2.95 x 2.95 in
28.0 x 8.0 x 4.0 in
81.0 x 5.0 x 5.0 in
51 5/8 x 3 7/8
