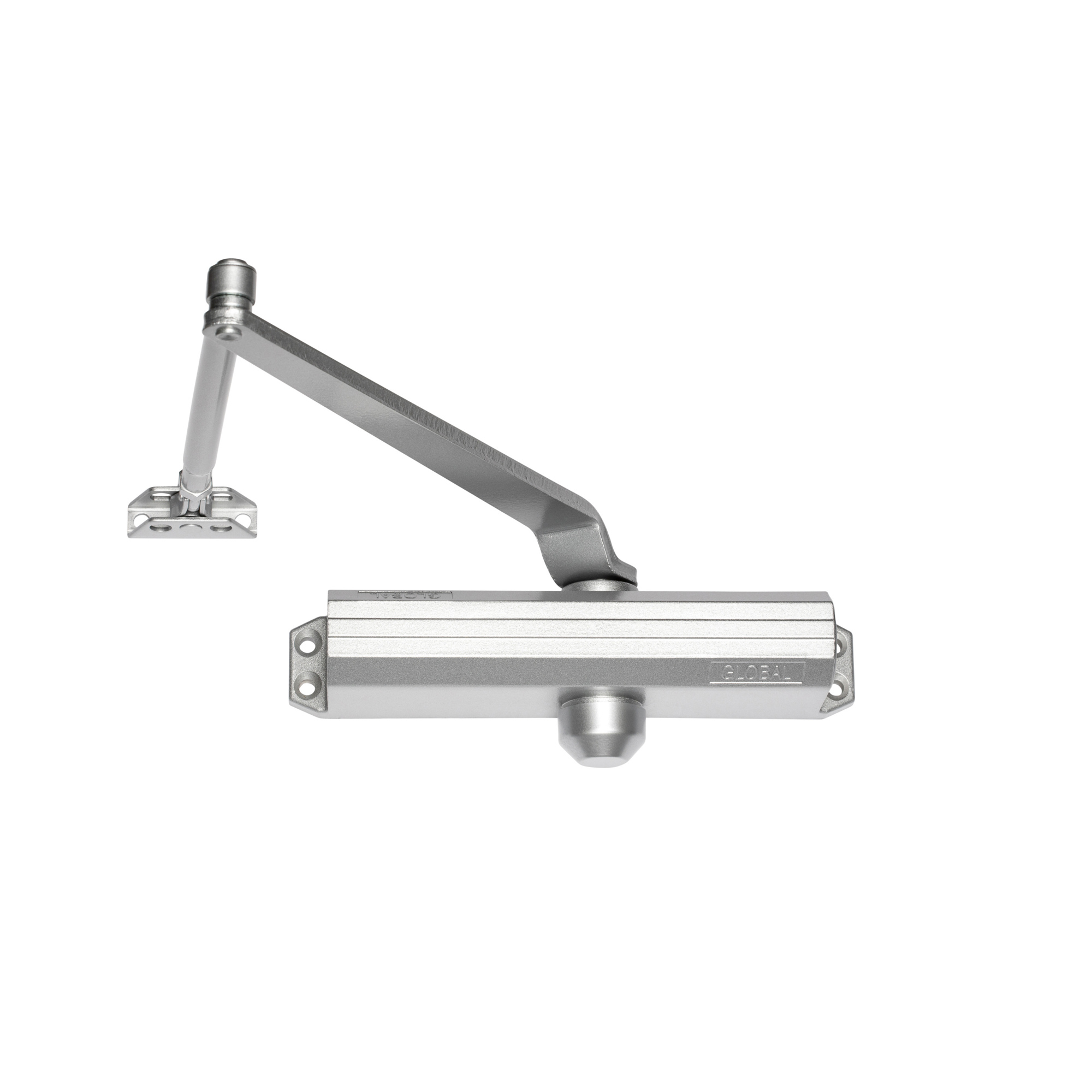

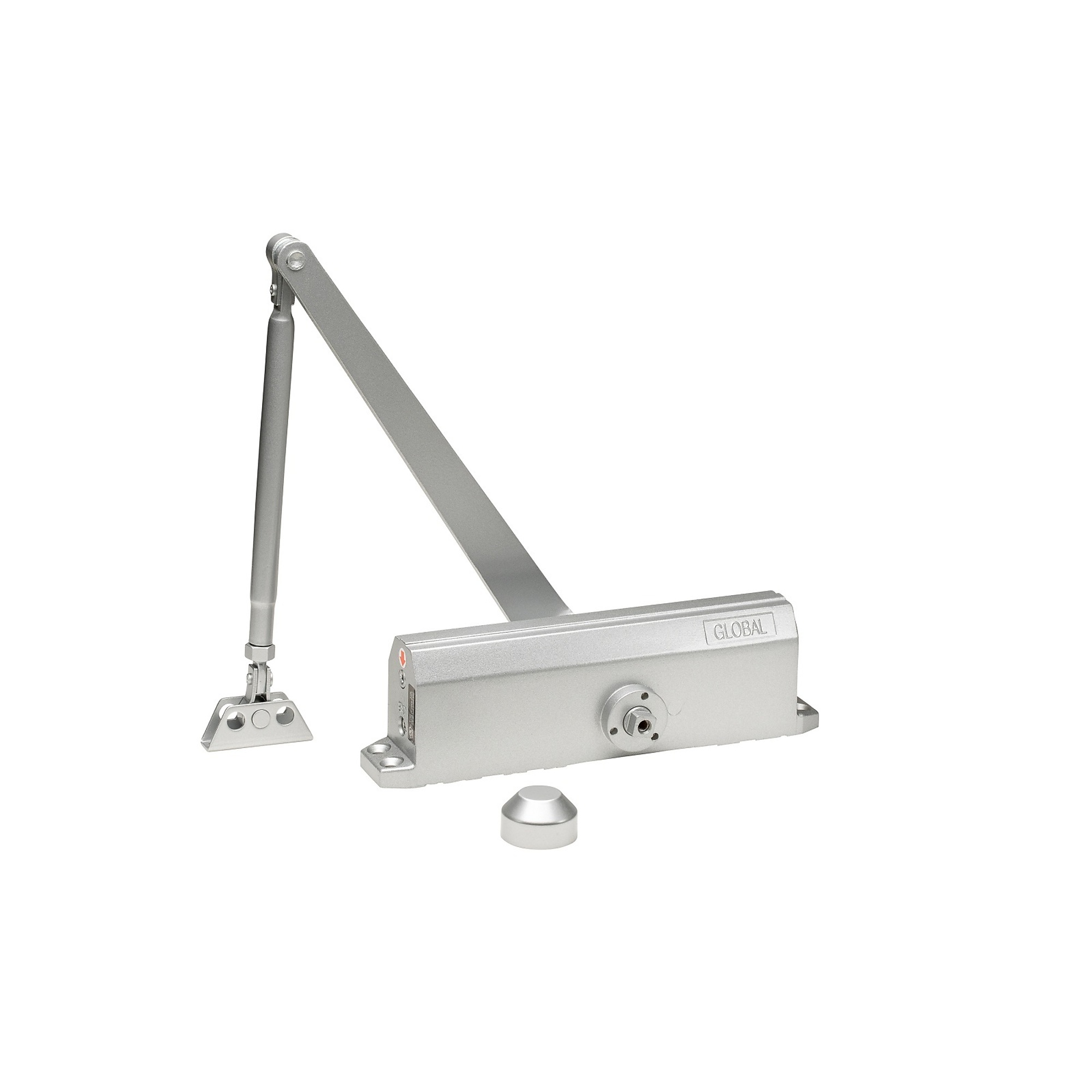

Global Door Controls Standard Streamline Commercial Door Closer — Grade 1, Size 3, Aluminum, Backcheck, Model# 83694

Item# 83694
Global Door Controls Standard Streamline Commercial Door Closer — Grade 1, Size 3, Aluminum, Backcheck, Model# 83694

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls Standard Streamline Commercial Door Closer — Grade 1, Size 3, Aluminum, Backcheck, Model# 83694

Click or Tap image to Zoom

$65.52

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy-duty aluminum construction
  • Control sweep, latch and backcheck closing speeds
  • Meets the performance standards Grade 1 and ANSI/BHMA A156.4

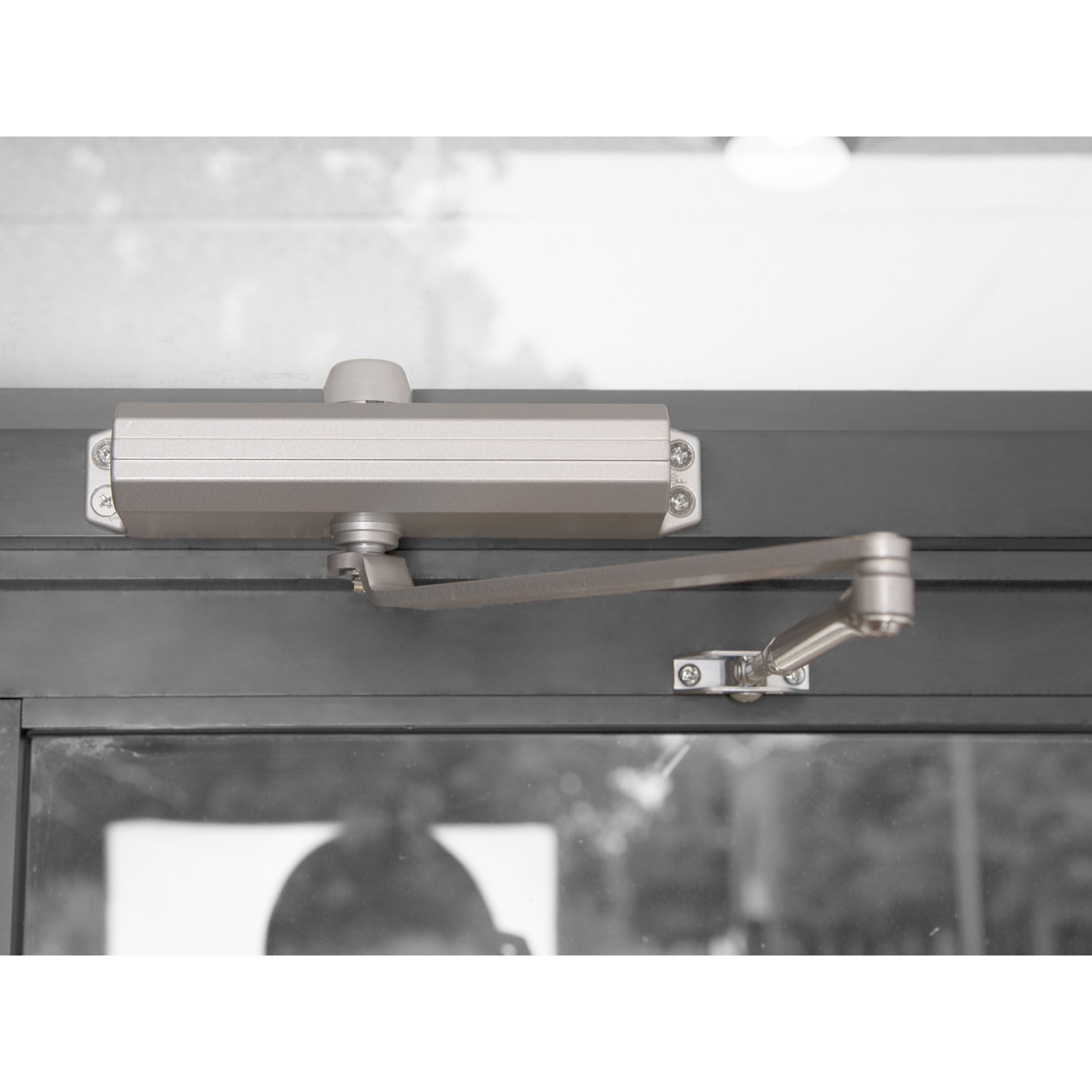

  • Recommended for use on aluminum storefront, wooden or hollow metal commercial doors
  • Made from aluminum alloy body

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Global Door Controls TC200 series is our most versatile closer that provides narrow styling and has a full selection of accessories to accommodate the requirements of any field application. In this series, we offer fixed spring sizes 2-5. All models will retrofit most full-size closers with a 9-1/16in. industry standard hole pattern.

What's Included

    (1) Door Closer

Downloads

Product Manual

Features + Benefits

  • Heavy-duty aluminum construction
  • Control sweep, latch and backcheck closing speeds
  • Meets the performance standards Grade 1 and ANSI/BHMA A156.4
  • Recommended for use on aluminum storefront, wooden or hollow metal commercial doors
  • Made from aluminum alloy body
  • Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door

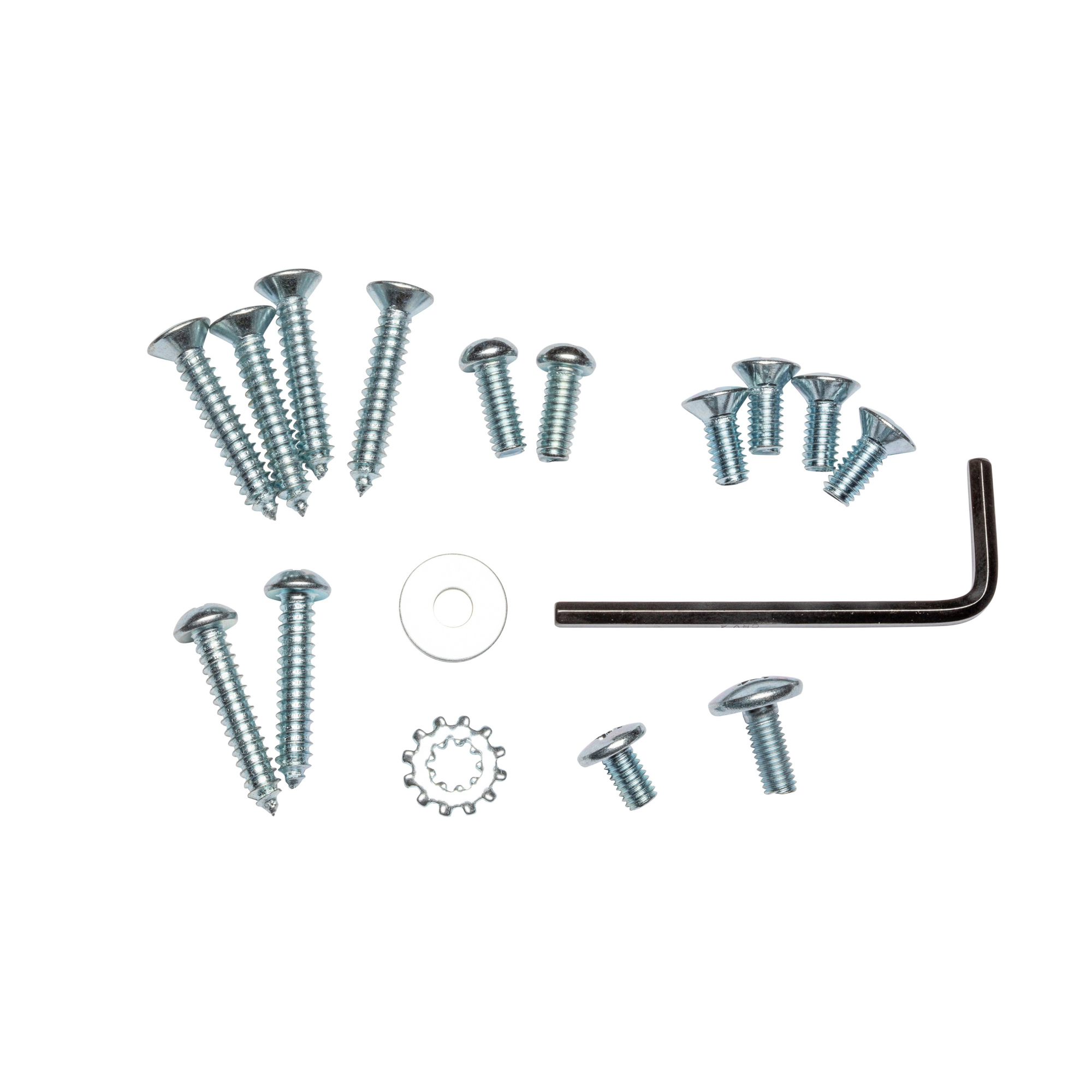

  • Supplied with both wood and machine screws
  • Packed for standard and top jamb mounting
  • Includes three independent valves control sweep, latch closing speeds and backcheck
  • Rack and pinion operation
  • 5-year mechanical warranty
  • Aluminum finish
  • UL /cUL listed R13255
  • UL10C listed for positive pressure fire test

Key Specs

AttributeSpecification

item#

83694

Brand

Global Door Controls

Manufacturer's Warranty

5 year limited warranty

Ship Weight

7.39 LB

Size

Size 3

Load Capacity

155 lb

Closer Type

Non-Hold Open
AttributeSpecification

Product Type

Door Closer

Material

Aluminum

Finish

Aluminum

Mounting Type

Flat Surface

Hand Orientation

Non Handed

Product Weight

7.3930 lb

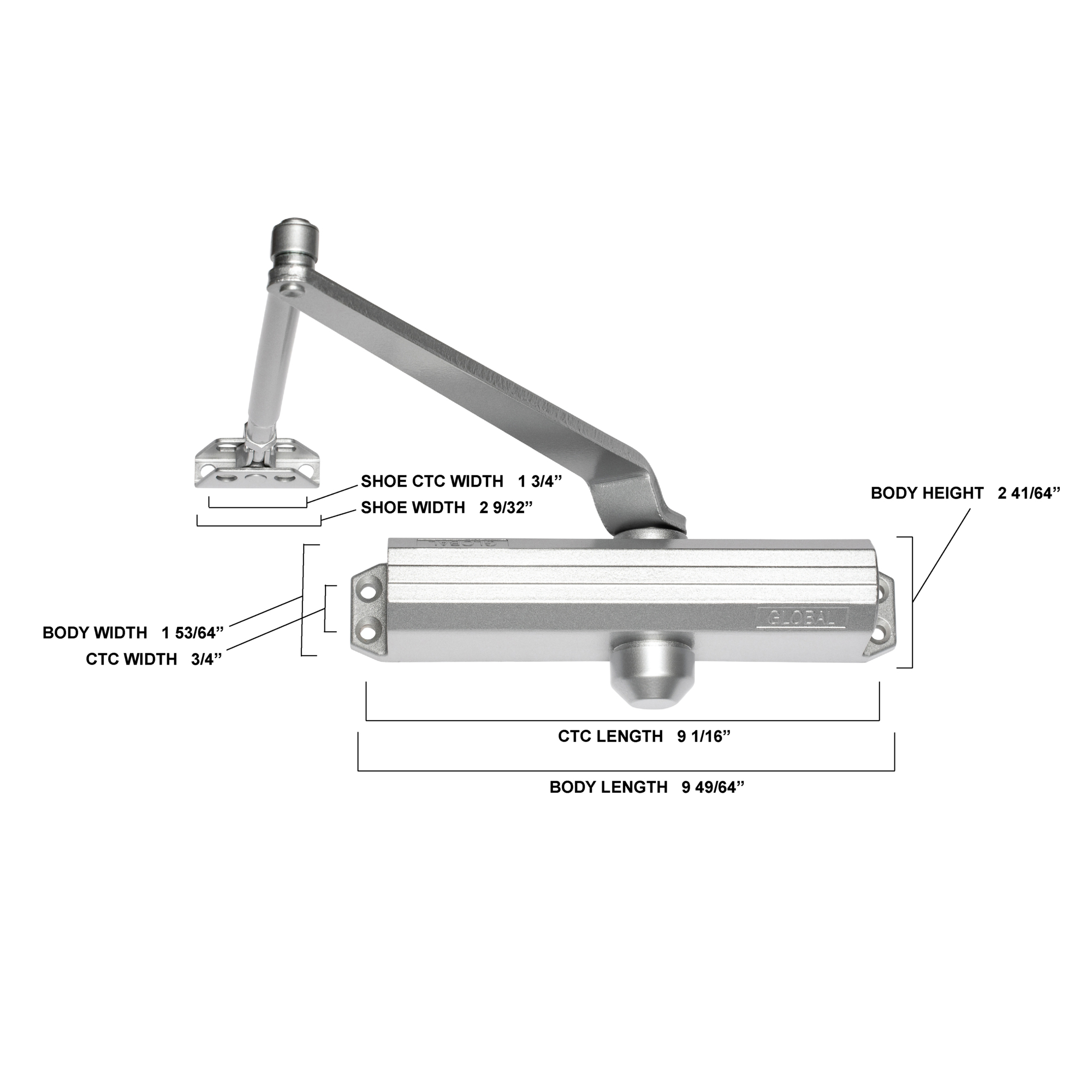

Dimensions L x W x H (in.)

2.5 x 10.75 x 4.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
