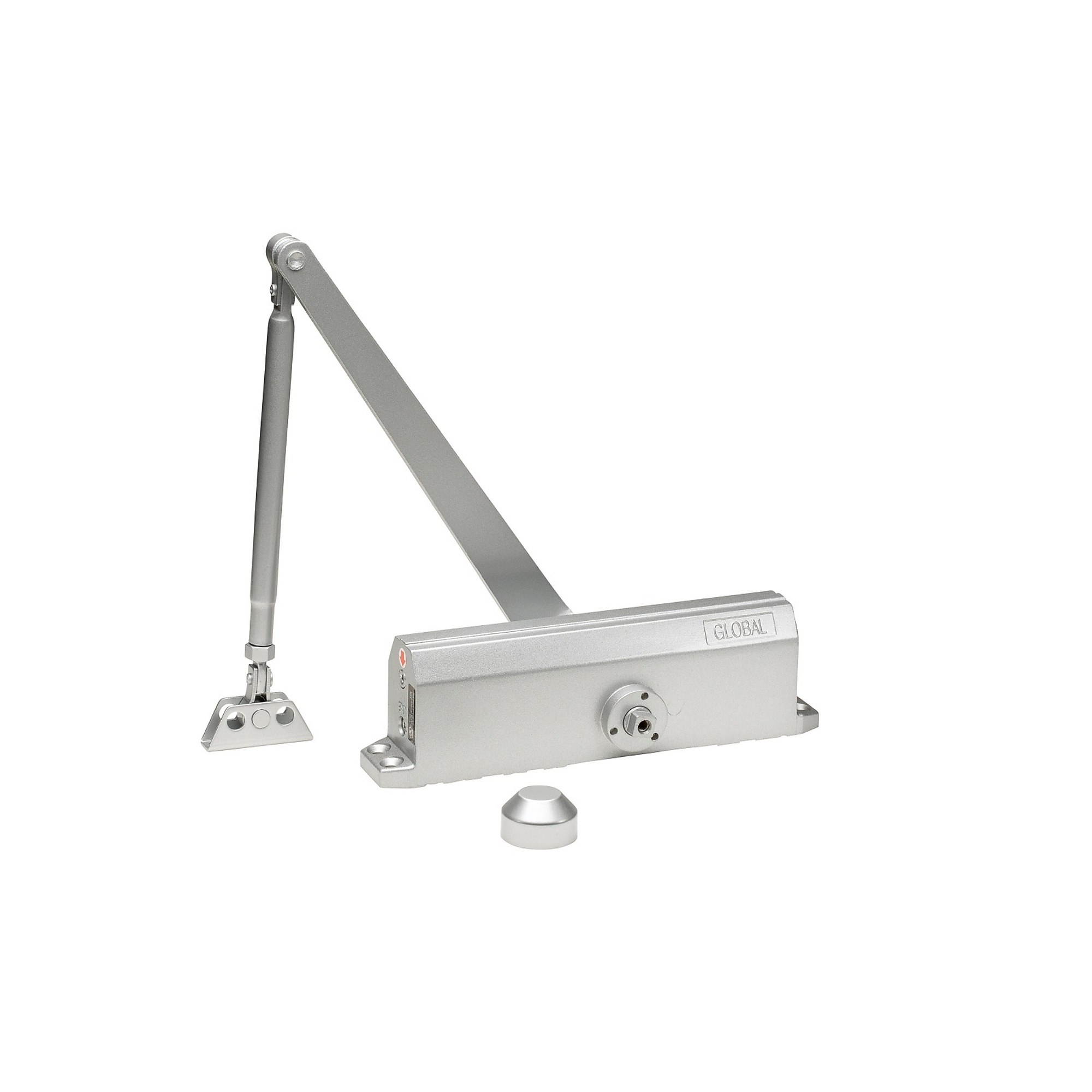

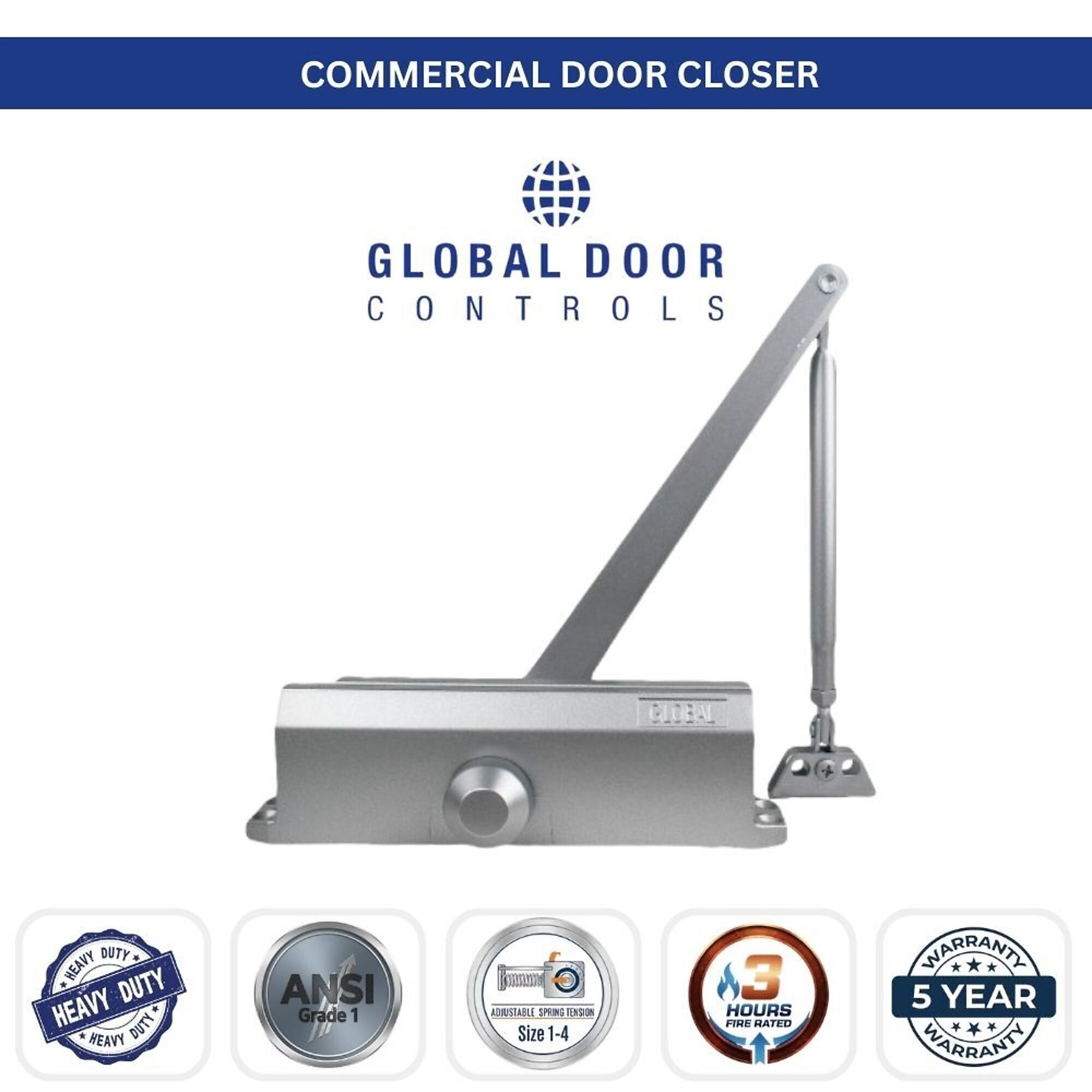

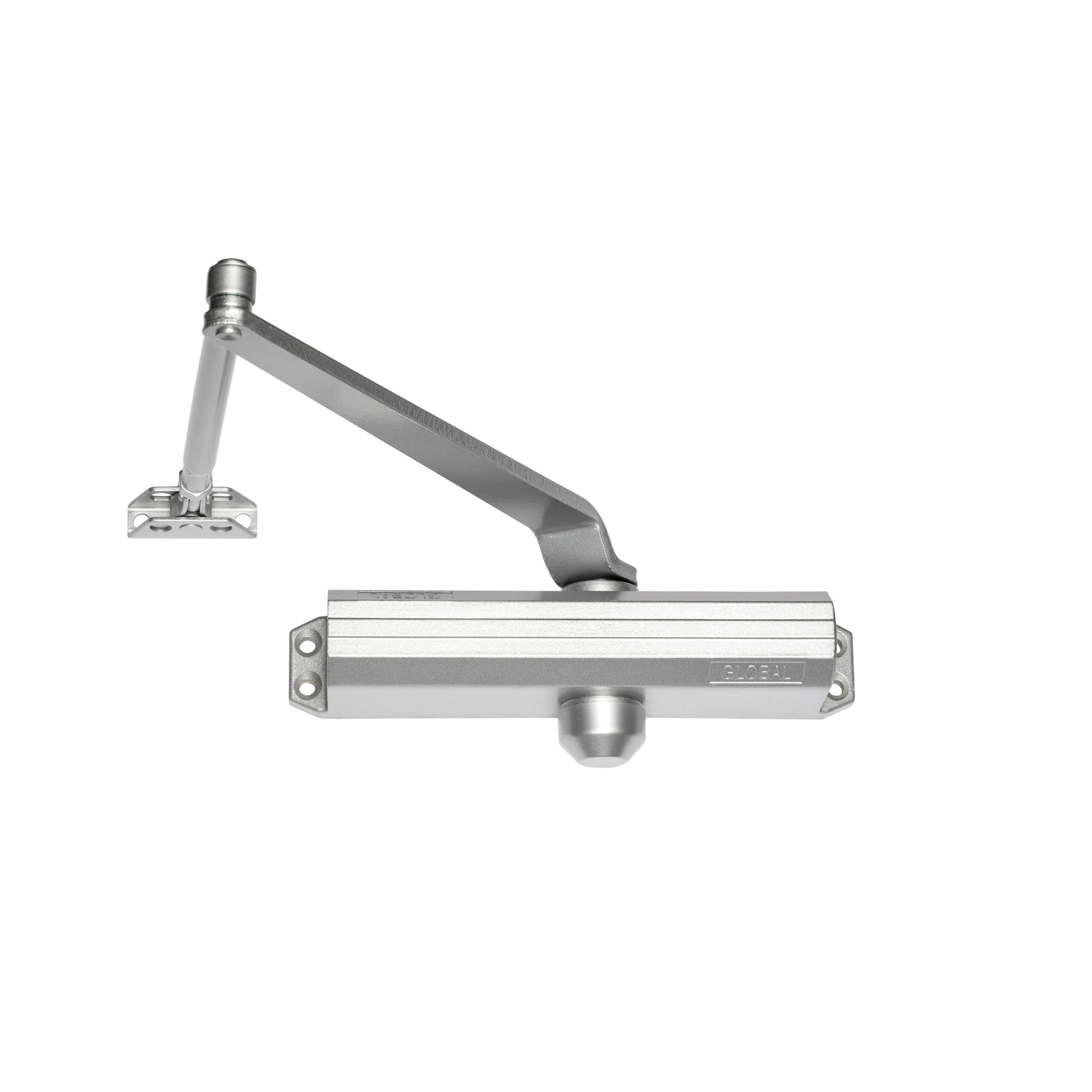

Global Door Controls, Standard Streamline Commercial ADA Grade 1 Door Closer in Aluminum with Adjustable Spring Tension - Sizes 1-4, #TC201ADA-AL

Item# 84422
Global Door Controls, Standard Streamline Commercial ADA Grade 1 Door Closer in Aluminum with Adjustable Spring Tension - Sizes 1-4, #TC201ADA-AL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls, Standard Streamline Commercial ADA Grade 1 Door Closer in Aluminum with Adjustable Spring Tension - Sizes 1-4, #TC201ADA-AL

Click or Tap image to Zoom

  • Heavy-duty aluminum construction
  • Control sweep, latch and backcheck closing speeds
  • Meets the performance standards of Grade 1, ADA and ANSI A117.1

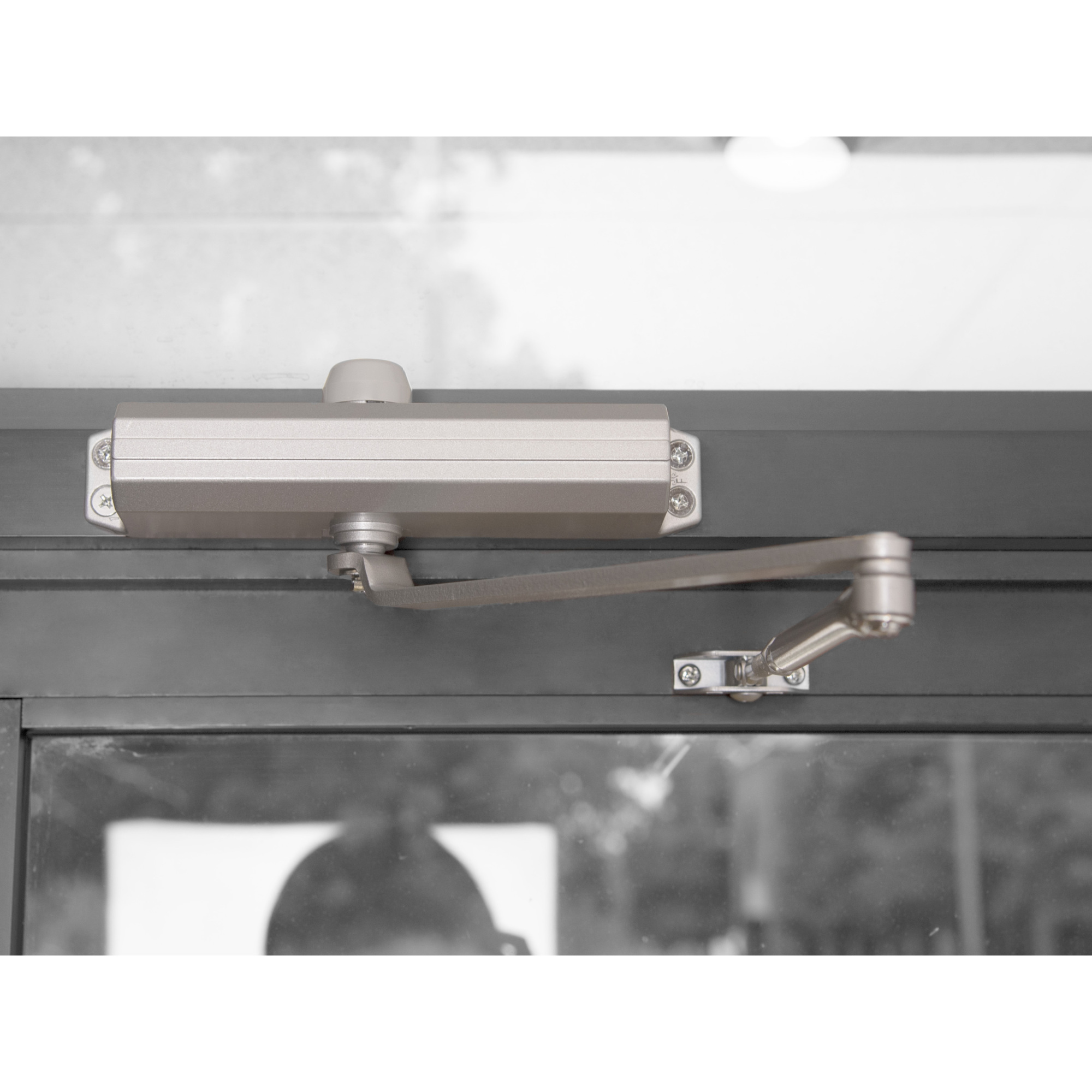

  • Recommended for use on aluminum storefront, wooden or hollow metal commercial doors
  • Made from aluminum alloy body

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Global Door Controls TC200 series is our most versatile closer that provides narrow styling and has a full selection of accessories to accommodate the requirements of any field application. In this series, we offer fixed spring sizes 2-5. Our TC201ADA model offers adjustable spring power sizes 1-4 for use on interior doors requiring less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. and is ADA compliant. All models will retrofit most full size closers with a 9-1/16in. industry standard hole pattern.

What's Included

    (1) Door Closer

Downloads

Product Manual

Features + Benefits

  • Heavy-duty aluminum construction
  • Control sweep, latch and backcheck closing speeds
  • Meets the performance standards of Grade 1, ADA and ANSI A117.1
  • Recommended for use on aluminum storefront, wooden or hollow metal commercial doors
  • Made from aluminum alloy body
  • Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door

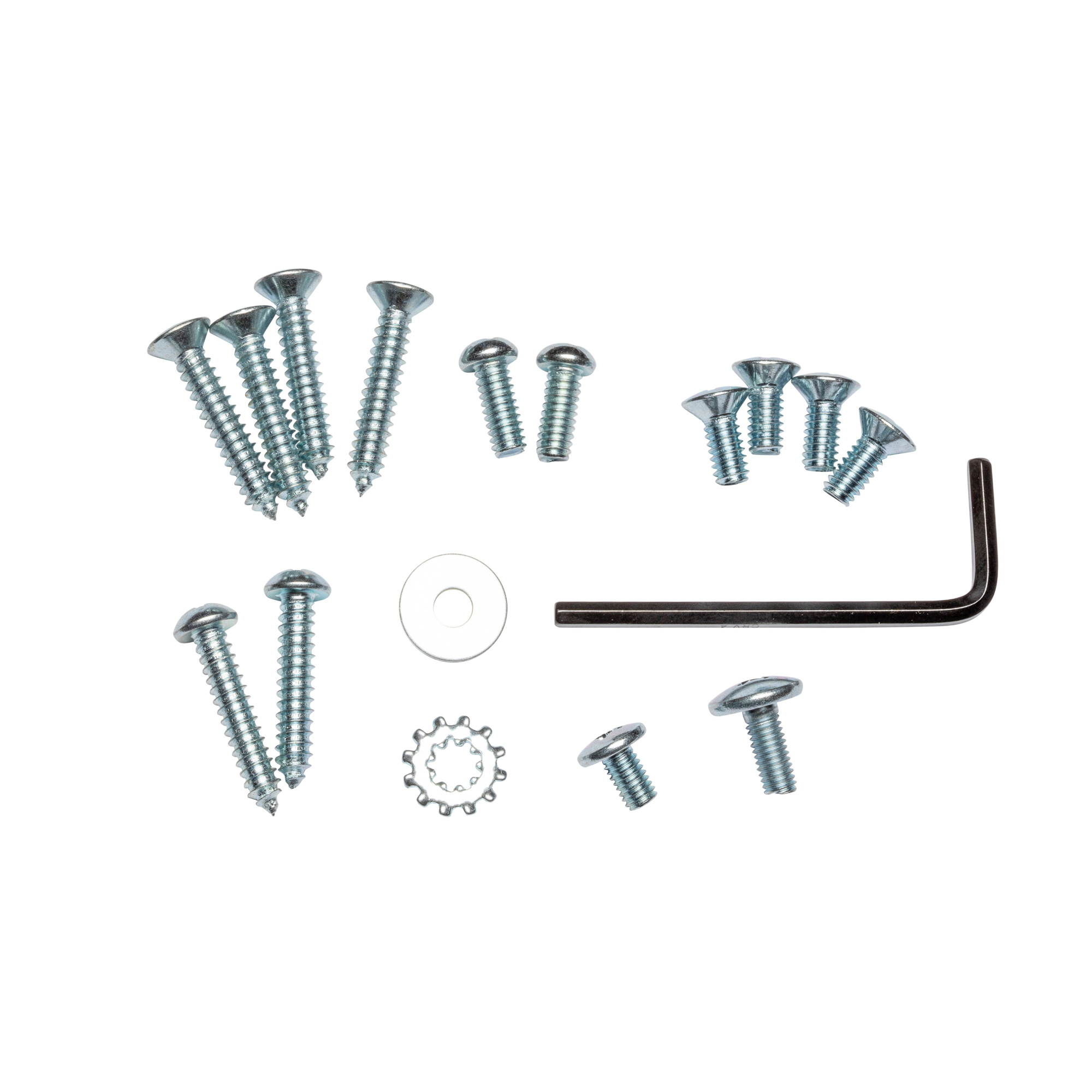

  • Supplied with both wood and machine screws
  • Packed for standard and top jamb mounting
  • Includes three independent valves control sweep, latch closing speeds and backcheck
  • Rack and pinion operation
  • 5-year mechanical warranty
  • Aluminum finish
  • UL /cUL listed R13255
  • UL10C listed for positive pressure fire test
  • ADA compliant

Key Specs

AttributeSpecification

item#

84422

Brand

Global Door Controls

Manufacturer's Warranty

5 year limited warranty

Ship Weight

6.39 LB

Size

Adjustable

Load Capacity

243 lb

Closer Type

Non-Hold Open

Product Type

Door Closer
AttributeSpecification

Material

Aluminum

Finish

Other

Mounting Type

Flat Surface

Hand Orientation

Non Handed

Product Weight

7.3930 lb

Dimensions L x W x H (in.)

10.75 x 10.75 x 4.0 in

Dimensions L x W x H (in.)

2.5 x 10.75 x 4.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
