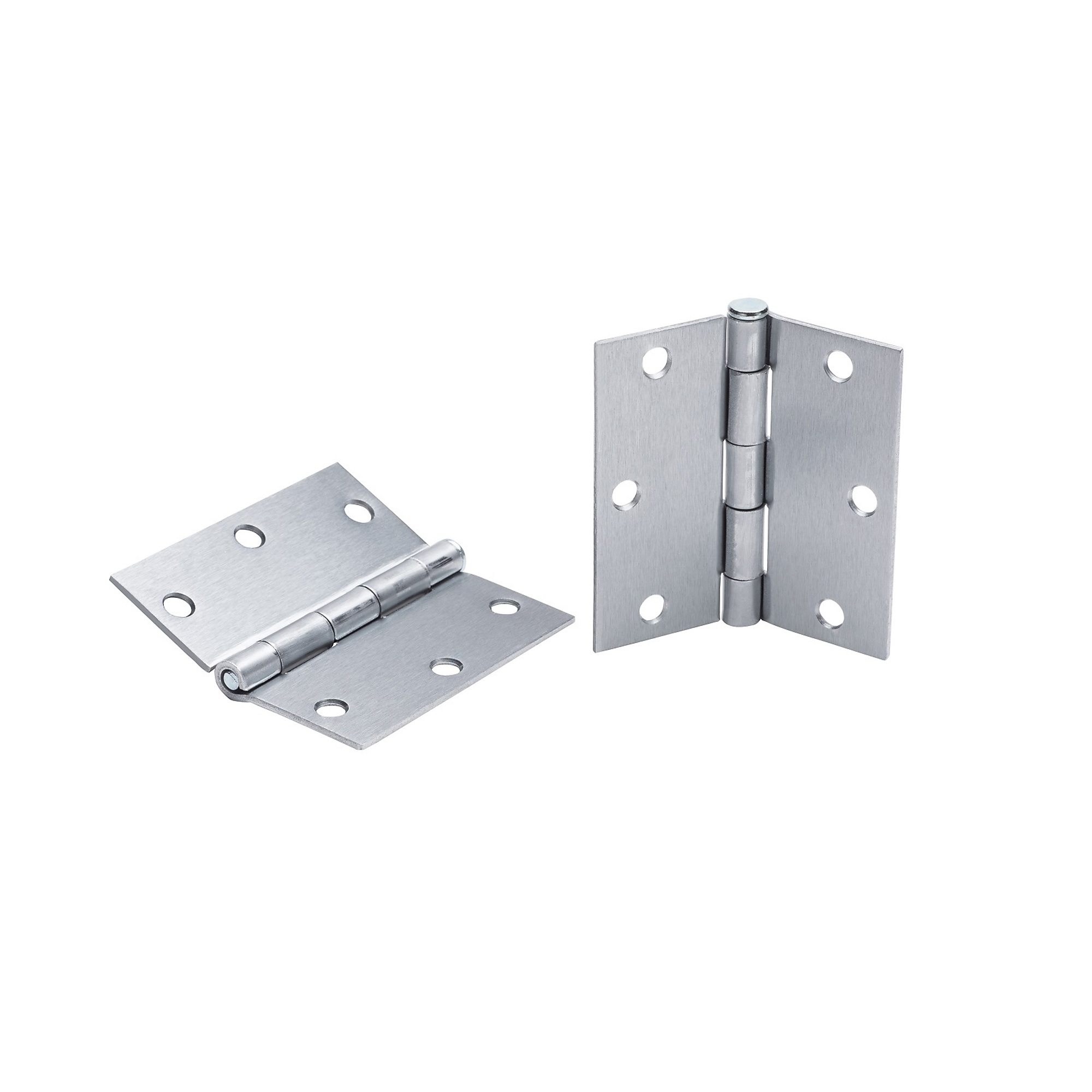

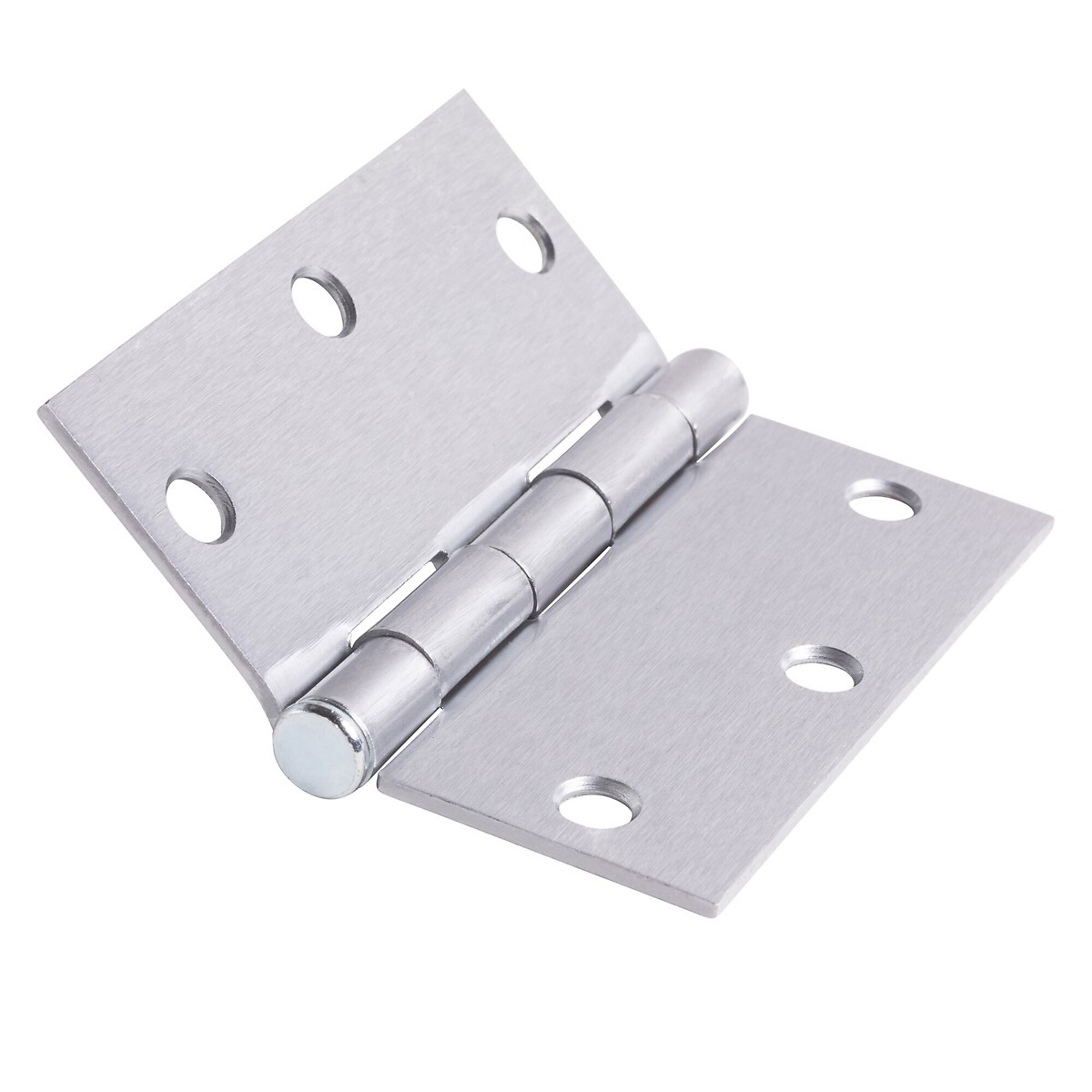

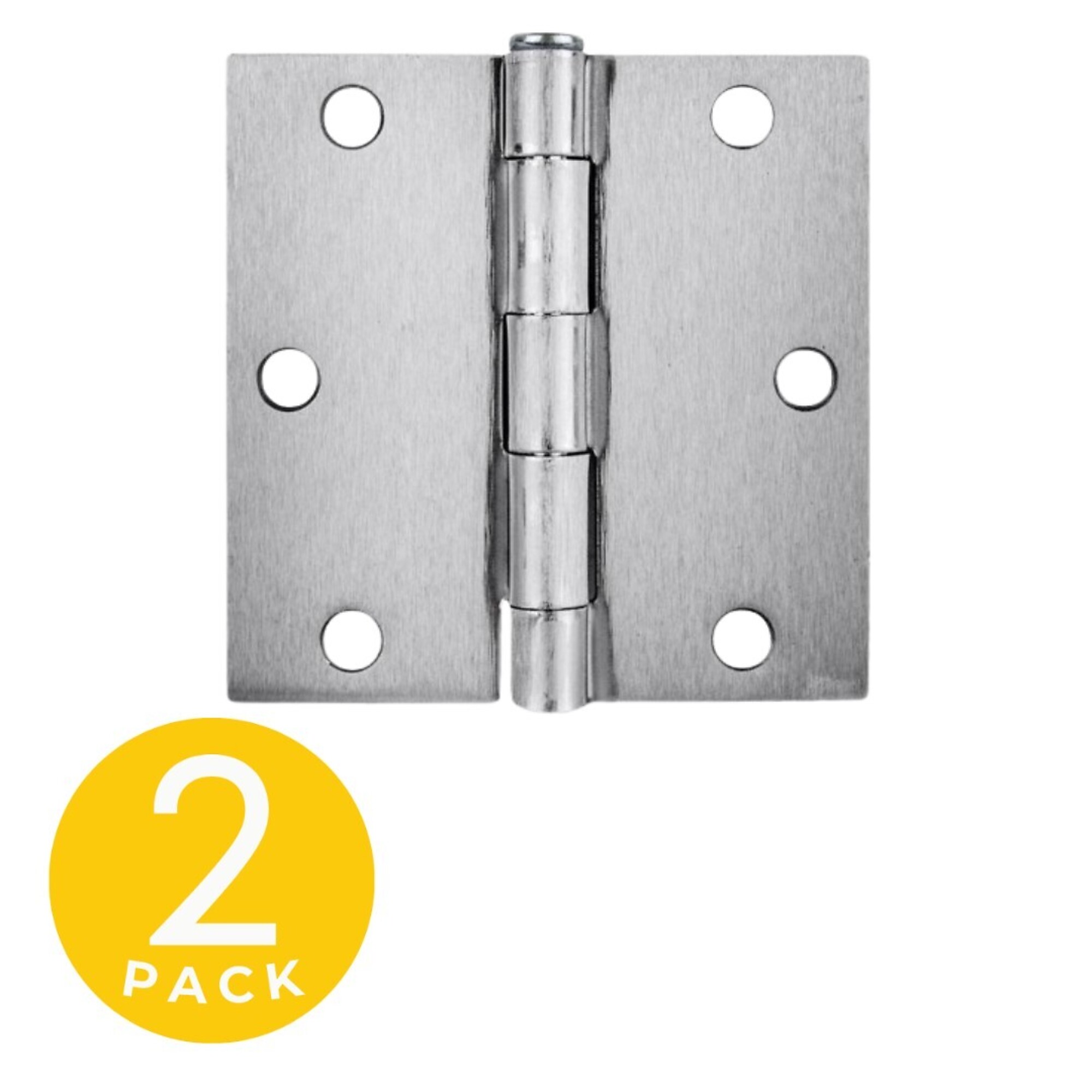

Global Door Controls Full Mortise Residential Door Hinge — 3.5in. x 3.5in., Brushed Chrome, Removable Pin, 2 Pcs, Model# CP3535-26D

Item# 83574
Global Door Controls Full Mortise Residential Door Hinge — 3.5in. x 3.5in., Brushed Chrome, Removable Pin, 2 Pcs, Model# CP3535-26D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls Full Mortise Residential Door Hinge — 3.5in. x 3.5in., Brushed Chrome, Removable Pin, 2 Pcs, Model# CP3535-26D

Click or Tap image to Zoom

$3.30

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Residential door hinge for light to medium weight doors
  • Made from solid steel for more durability and hardness
  • Square radius hinge with removable pin - pack of 2
  • Residential full mortise hinge
  • Intended for light to medium weight doors

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This model of Global Door Controls is considered as a plain bearing full mortise residential door hinge. It's highly recommended for use on non-commercial interior and exterior door applications. Moreover, it's advised for light to medium weight doors requiring intermediate frequency service. This type sized 3.5 x 3.5in. comes with a squared radius in its corner, bundled with a removable pin. Item is available in many finishes: Satin Nickel, Satin Brass, Polished Chrome and Brushed Chrome.

What's Included

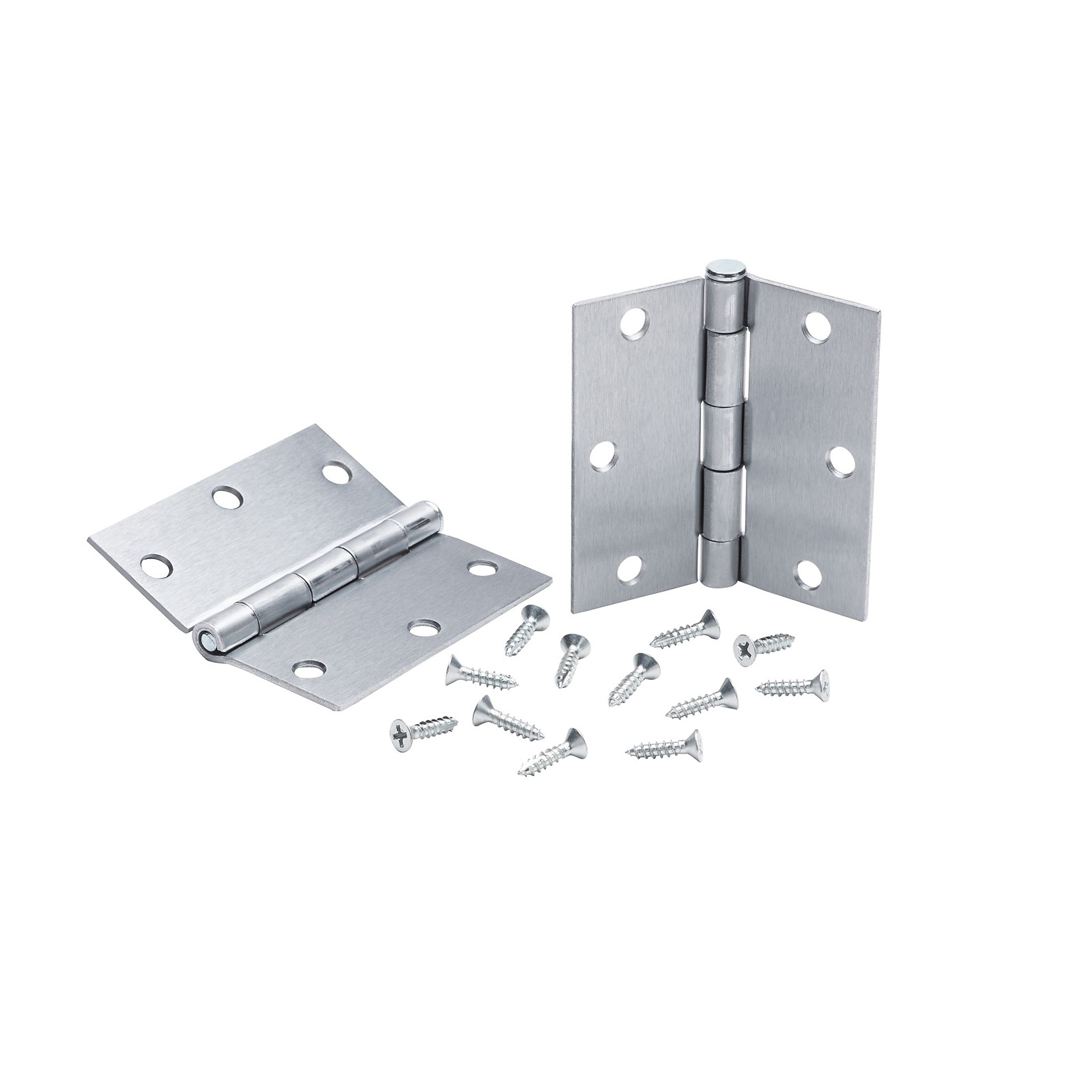

    (2) Hinges, each with screws

Features + Benefits

  • Residential door hinge for light to medium weight doors
  • Made from solid steel for more durability and hardness
  • Square radius hinge with removable pin - pack of 2
  • Residential full mortise hinge
  • Intended for light to medium weight doors
  • Recommended for use on non-commercial interior and exterior door applications
  • Suitable for 3/8 in. hollow or solid core interior doors
  • Plain bearing removable pin, reversible
  • Steel base material with steel pin
  • Corner: Squared radius
  • Thickness: 0.085 in.
  • Installation: standard template hole locations
  • Easy installation
  • Packed with wood screws only
  • Conforms to ANSI-A156.1 and ANSI-A156.17
  • Brushed Chrome finish
  • Sold as a set of 2 hinges
  • 1 Year mechanical and finish warranty

Key Specs

AttributeSpecification

item#

83574

Brand

Global Door Controls

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.81 LB

Product Type

Hinge
AttributeSpecification

Material

Steel

Finish

Chrome

Mounting Type

Screw

Product Weight

0.8100 lb

Dimensions L x W x H (in.)

4.75 x 4.75 x 0.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
