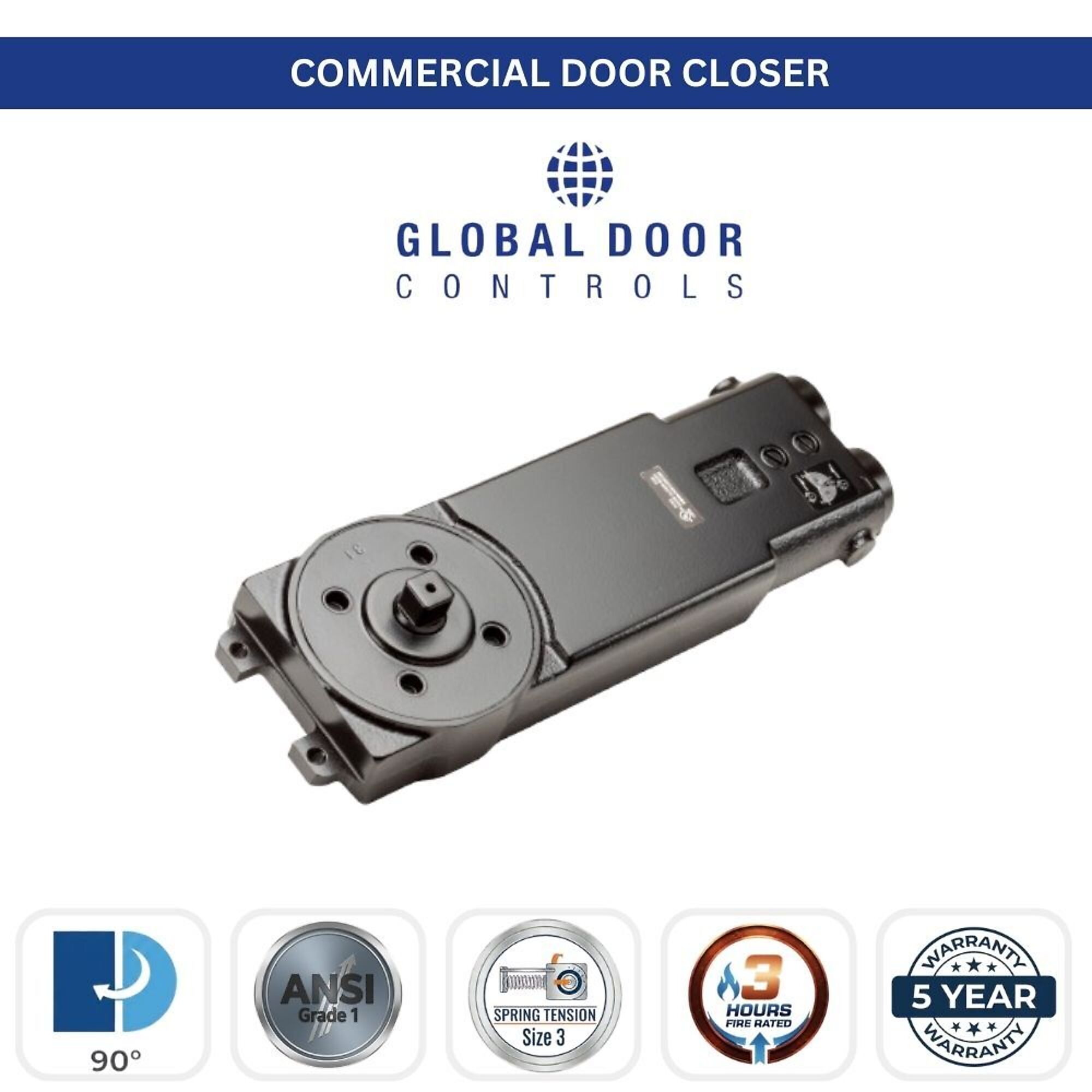

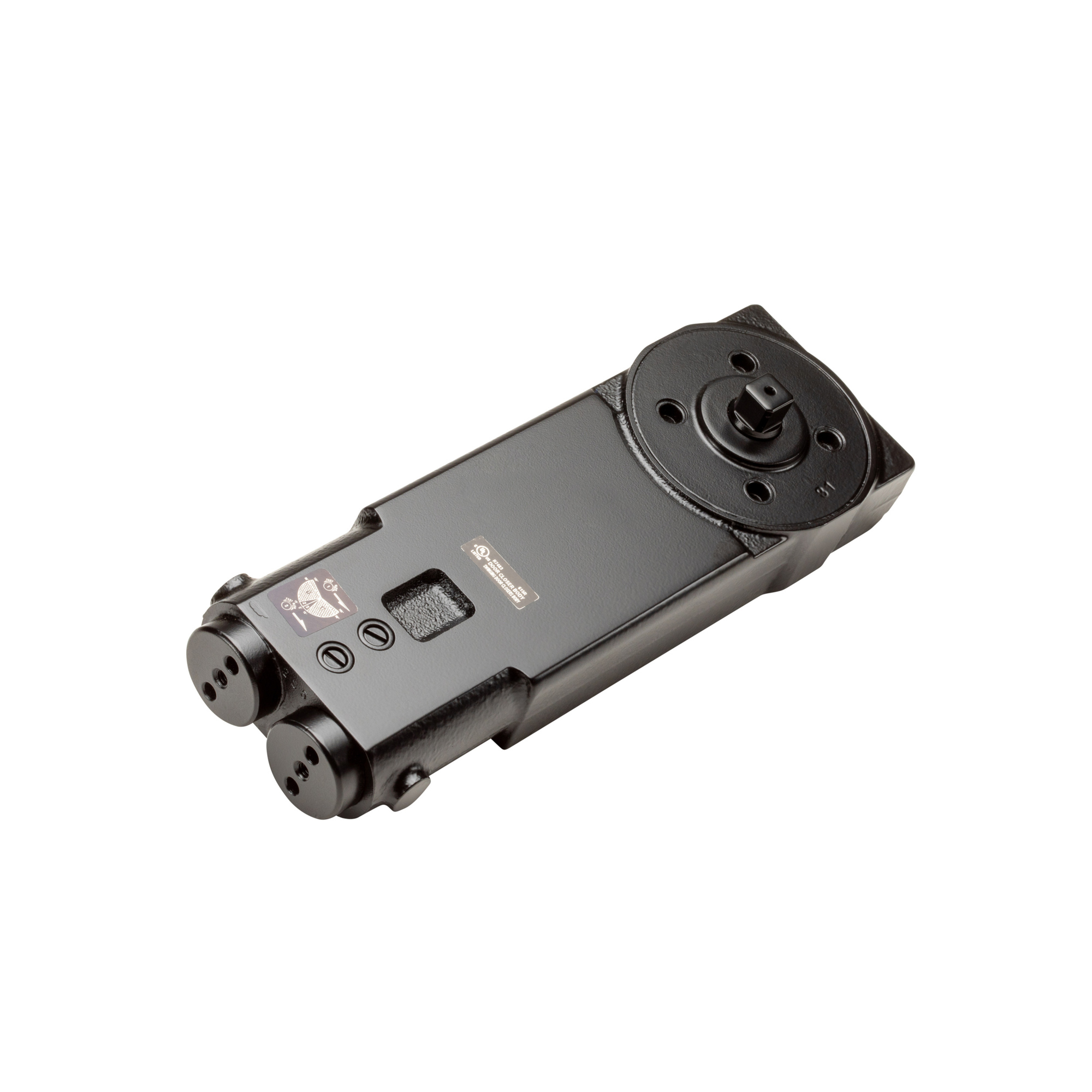

Global Door Controls, Duronodic Grade 1 Overhead Concealed Medium Duty Door Closer with 105 Degree Swing Radius - Size 3, #TC7031LP

Item# 5690995
Global Door Controls, Duronodic Grade 1 Overhead Concealed Medium Duty Door Closer with 105 Degree Swing Radius - Size 3, #TC7031LP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls, Duronodic Grade 1 Overhead Concealed Medium Duty Door Closer with 105 Degree Swing Radius - Size 3, #TC7031LP

Click or Tap image to Zoom

$129.71

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Cast iron housing, high tensile steel camshaft and pistons
  • Independent valves for latch and closing speed adjustment
  • Meets the performance standards of Grade 1 and ANSI A156.2
  • Recommended for installation in aluminum door frame applications
  • Center-pivoted for single and double acting doors

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Global Door Controls TC7000 series are suitable for those who prefer the visual advantages of a concealed door closer that offers a compact design with an excellent “hidden” solution. This model features multiple spring tensions available to match any door size and weight. Consistent closure speed is assured with its temperature-sensitive hydraulic fluid.

What's Included

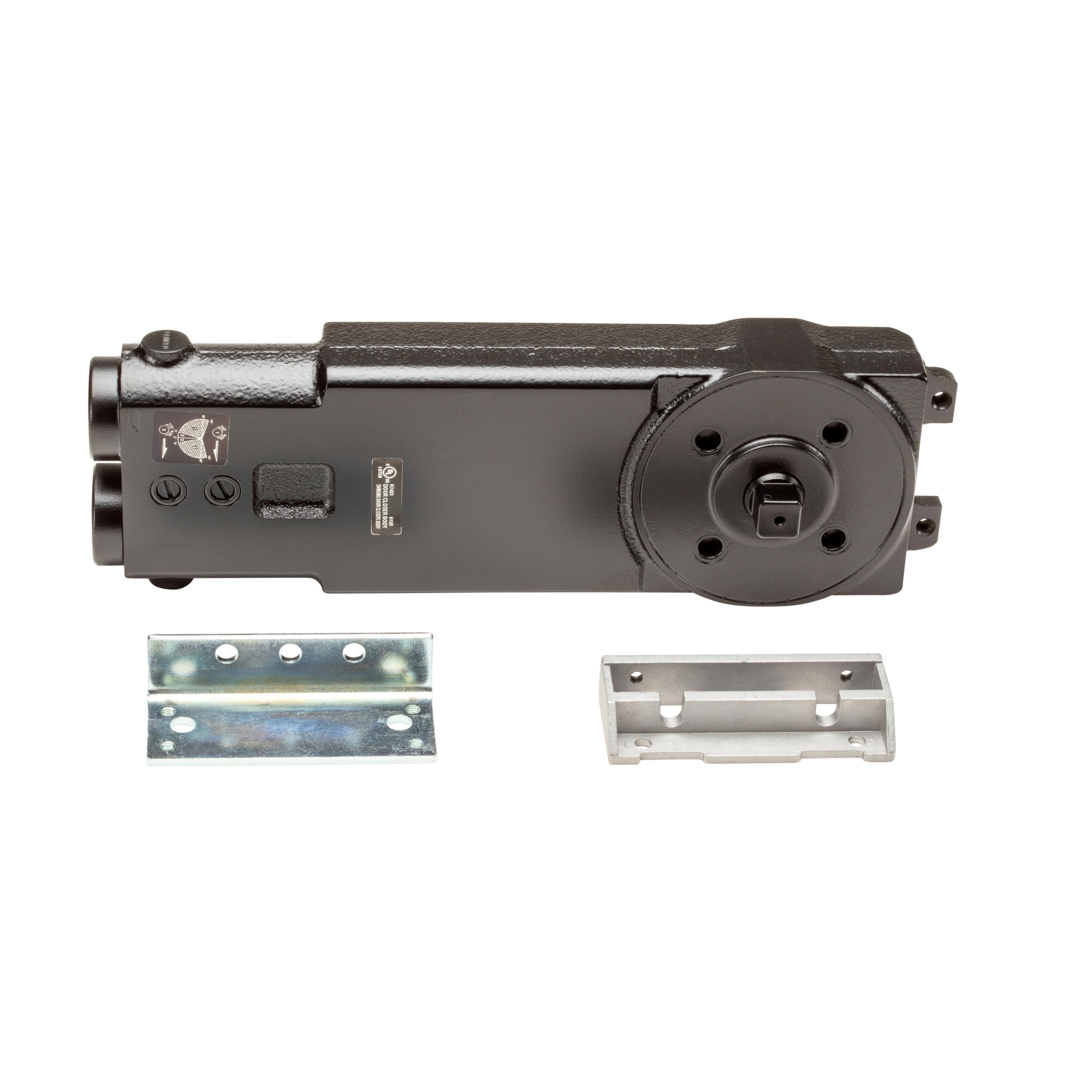

    (1) Door Closer

Features + Benefits

  • Cast iron housing, high tensile steel camshaft and pistons
  • Independent valves for latch and closing speed adjustment
  • Meets the performance standards of Grade 1 and ANSI A156.2
  • Recommended for installation in aluminum door frame applications
  • Center-pivoted for single and double acting doors
  • Made from cast iron housing
  • Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door
  • Mounting fits in an aluminum header or transom bar as small as 1-3/4 in x 4 in stocked LP less parts
  • Includes two independent regulated valves for latch and closing speed adjustment
  • 5-year mechanical warranty
  • Duronodic finish
  • 105 degree back stop with non-hold open closer
  • ADA compliant
  • UL listed R

Key Specs

AttributeSpecification

item#

5690995

Brand

Global Door Controls

Manufacturer's Warranty

5 year limited warranty

Ship Weight

10.0 LB

Load Capacity

175 lb

Closer Type

Non-Hold Open
AttributeSpecification

Product Type

Door Closer

Material

Aluminum

Finish

Other

Automatic or Manual

Automatic

Product Weight

10.0000 lb

Dimensions L x W x H (in.)

3.0 x 3.0 x 3.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
