Global Door Controls Heavy-Duty Full Surface Continuous Door Hinge — 95in., Limited Frame, Aluminum, Model# THY-1195LFHD-AL

Item# 5898403
Global Door Controls Heavy-Duty Full Surface Continuous Door Hinge — 95in., Limited Frame, Aluminum, Model# THY-1195LFHD-AL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls Heavy-Duty Full Surface Continuous Door Hinge — 95in., Limited Frame, Aluminum, Model# THY-1195LFHD-AL

Click or Tap image to Zoom

$300.91

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 95in. full surface limited frame heavy duty continuous hinge
  • Made from anodized Aluminum for higher degree of security

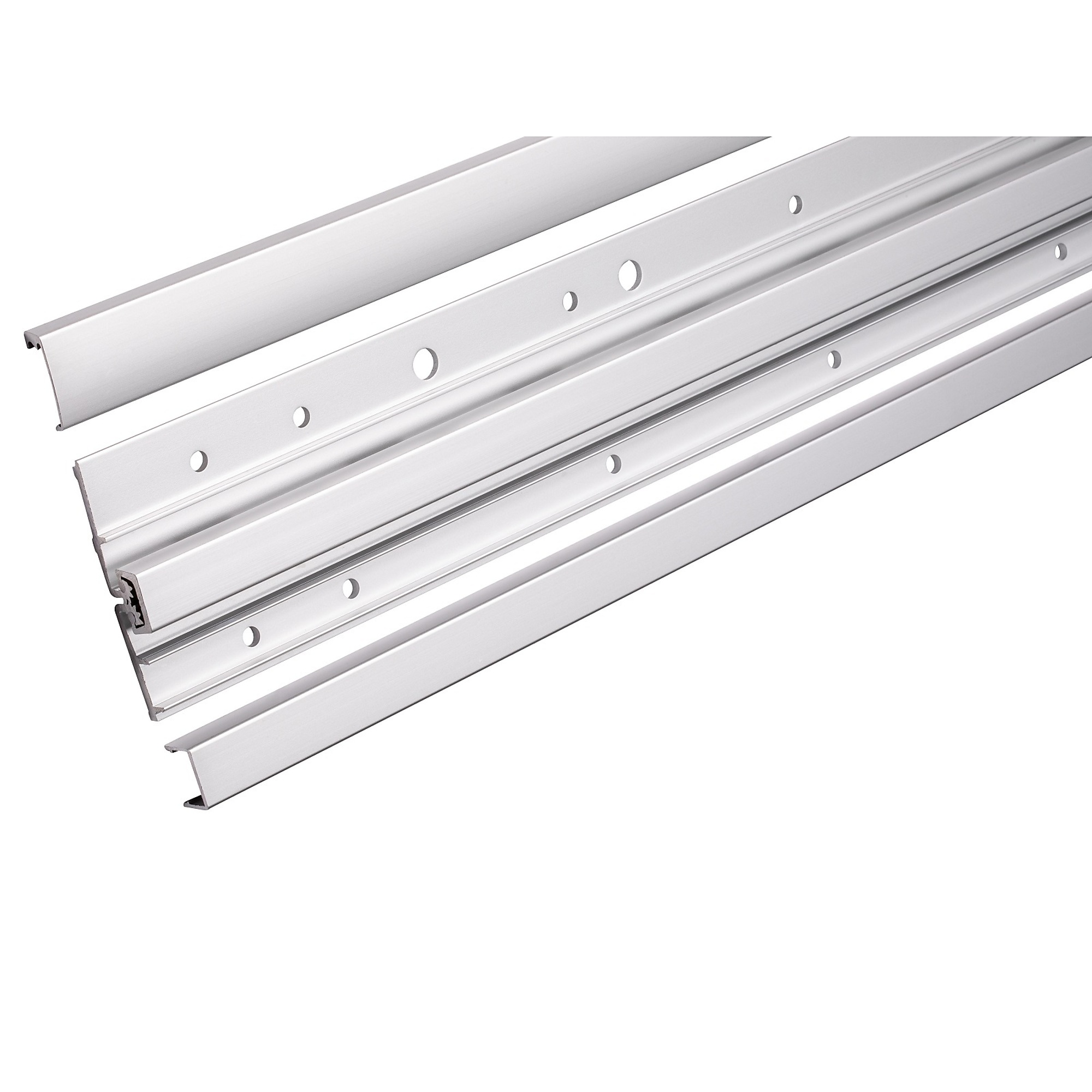

  • Comes with a tamper resistant removable cover
  • Full surface limited frame hinge

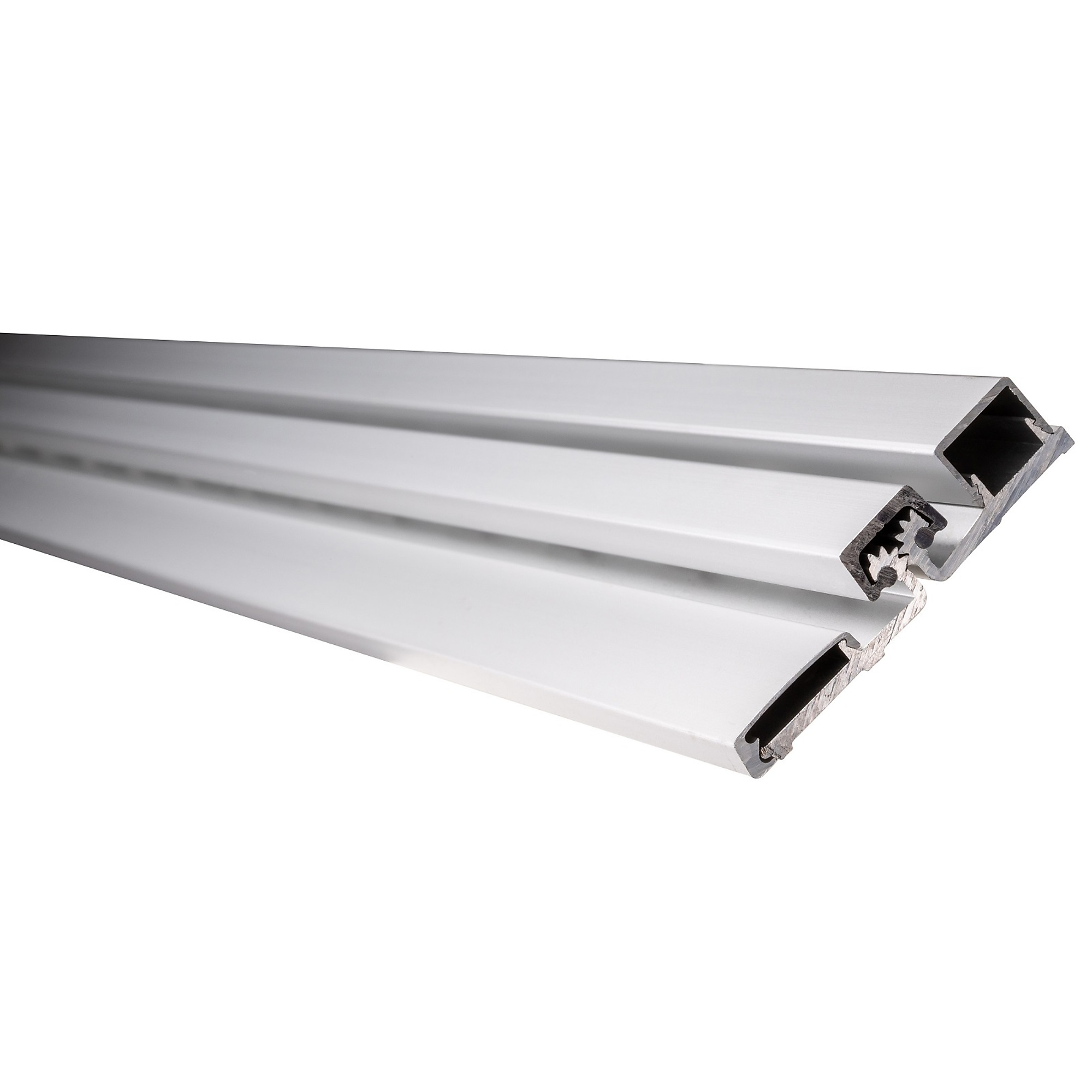

  • Anodized aluminum alloy construction with interlocking extrusions

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This model of Global Door Controls continuous door hinge is a type of hinge that extends the full length of the door, providing continuous support along its entire length. This type sized 95in. long comes non-handed with screw holes. With its heavy duty full surface limited frame design and rigid construction, it provides a remarkable level of security. It's mostly used for narrow limited frame applications. Item is available in two finishes: Aluminum and Duronodic.

What's Included

    (1) Hinges

Features + Benefits

  • 95in. full surface limited frame heavy duty continuous hinge
  • Made from anodized Aluminum for higher degree of security
  • Comes with a tamper resistant removable cover
  • Full surface limited frame hinge
  • Anodized aluminum alloy construction with interlocking extrusions
  • Heavy duty design with 32 thrust type self-lubricating concealed bearings per hinge
  • Non-handed design with high degree of security
  • Supplied with tamper resistant removable cover

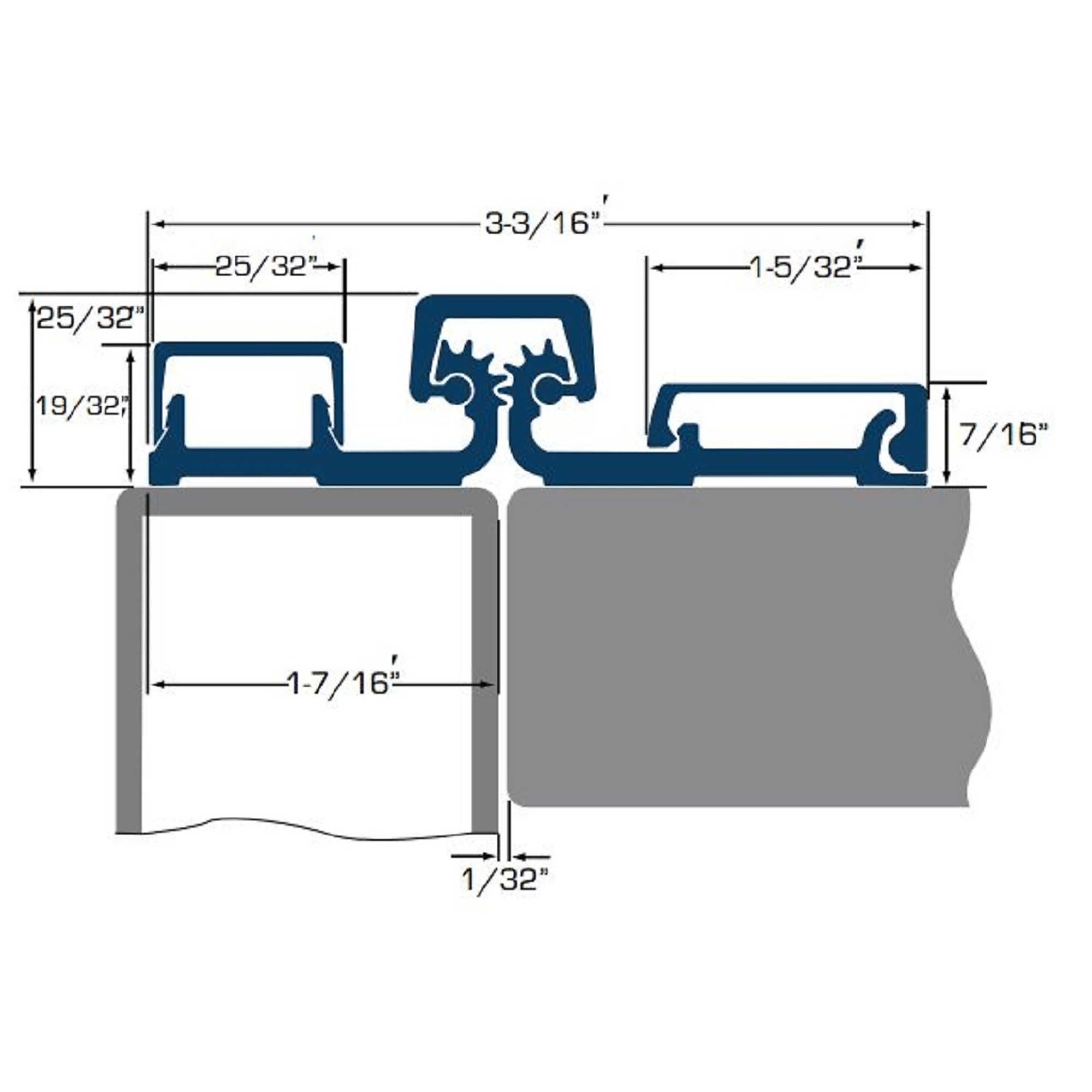

  • 1/32 in. clearance between door and frame
  • Used for narrow limited frame applications
  • Length: 95 in.
  • Easy installation

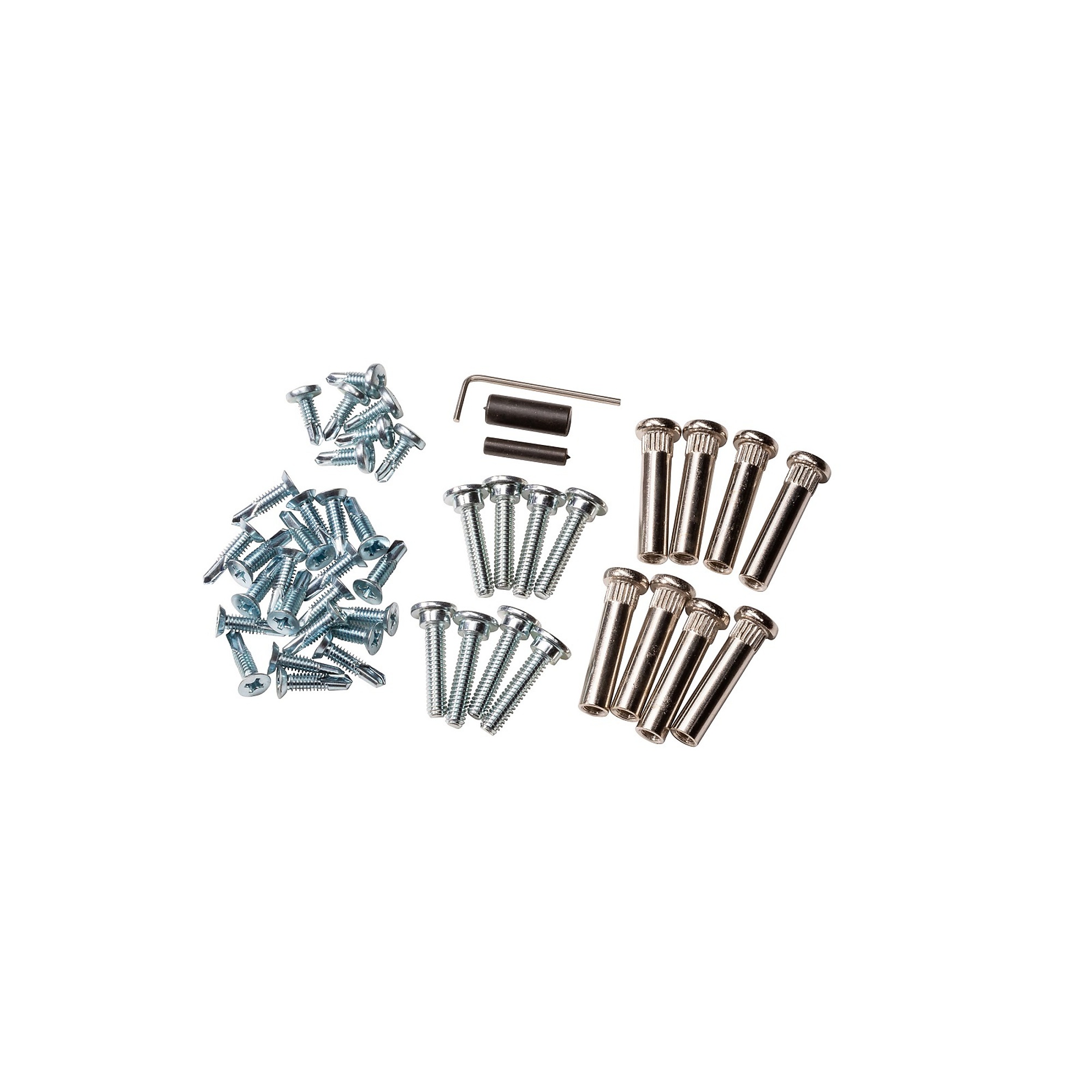

  • Through bolt and machine screws
  • Templated hole patterns
  • Aluminum finish
  • Sold individually not in packs
  • 1 Year mechanical and finish warranty

Key Specs

AttributeSpecification

item#

5898403

Brand

Global Door Controls

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.8 LB
AttributeSpecification

Hinge Type

Other

Product Type

Hinge

Product Weight

12.8000 lb

Dimensions L x W x H (in.)

4.0 x 4.0 x 2.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
