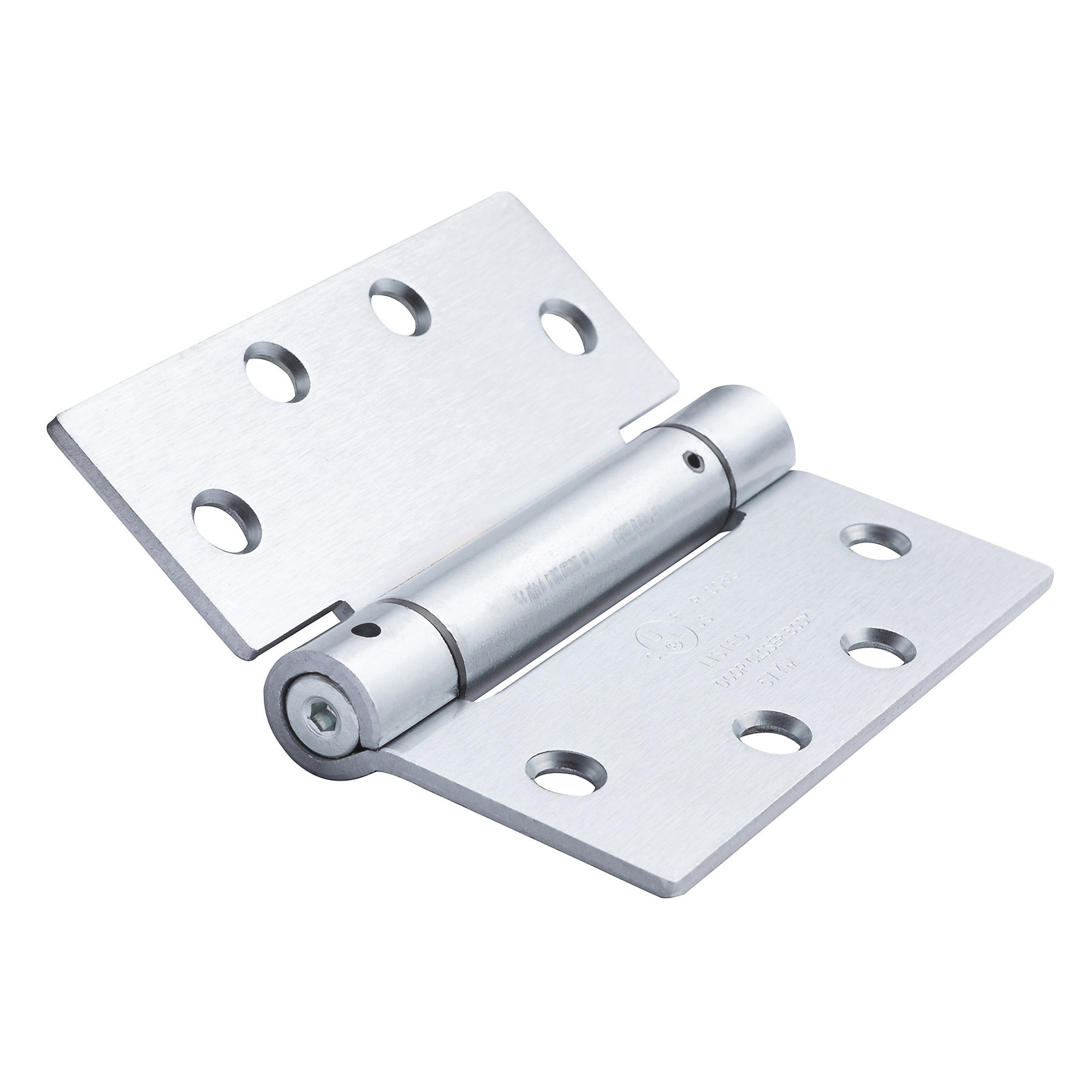

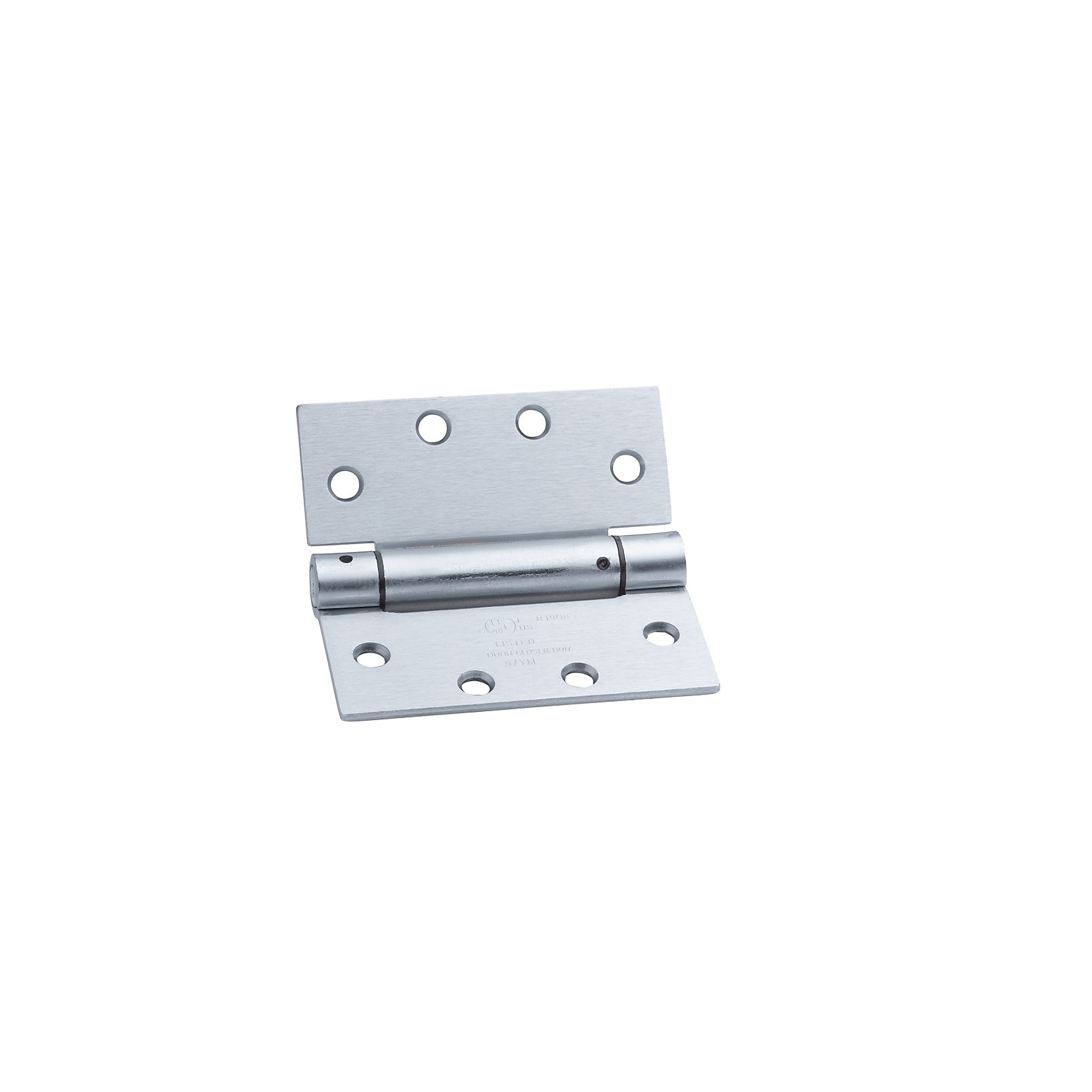

Global Door Controls Full Mortise Spring Hinges — 4.5in. x 4.5in., Brushed Chrome, Non-Removable Pin, Set of 3, Model# CPS4545-26D-3

Item# 83569
"Global Door Controls, 4.5 in. x 4.5 in. Brushed Chrome Full Mortise Spring Squared Hinge with Non-Removable Pin - Set of 3, #CPS4545-26D-3"
Global Door Controls Full Mortise Spring Hinges — 4.5in. x 4.5in., Brushed Chrome, Non-Removable Pin, Set of 3, Model# CPS4545-26D-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls Full Mortise Spring Hinges — 4.5in. x 4.5in., Brushed Chrome, Non-Removable Pin, Set of 3, Model# CPS4545-26D-3

Click or Tap image to Zoom

$30.09

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Adjustable spring hinge for commercial and residential use
  • Made from solid steel for more durability and hardness
  • Square radius hinge with fixed pin - pack of 3
  • Full mortise single acting spring hinge, plain bearing
  • Recommended for use on commercial and residential door applications

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

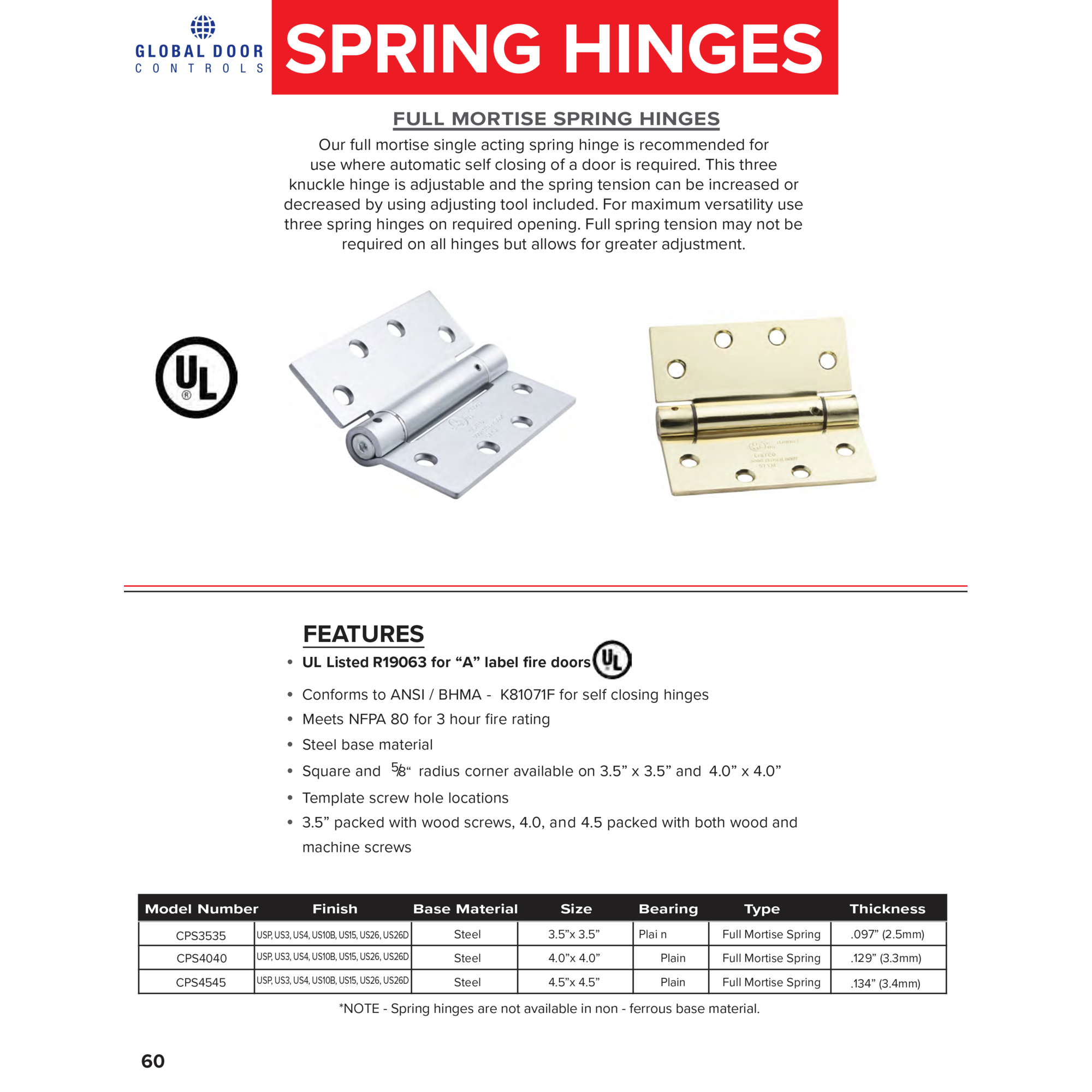

This model of Global Door Controls is considered as a plain bearing full mortise single acting spring hinge. It's highly recommended for use on commercial and residential door applications. Moreover, it's advised for use where automatic self closing of a door is required. The knuckle hinge is adjustable and the spring tension can be increased or decreased by using adjusting tool included. For maximum versatility use three spring hinges on required opening. Full spring tension may not be required on all hinges but allows for greater adjustment. This type sized 4.5 x 4.5in. comes with a squared radius in its corner, bundled with a fixed pin. Item is available in many finishes: Oil Rubbed Bronze, Bright Brass, Satin Brass, Brushed Chrome, Polished Chrome, and Prime Coat.

What's Included

    (3) Hinges

Downloads

Product Manual

Features + Benefits

  • Adjustable spring hinge for commercial and residential use
  • Made from solid steel for more durability and hardness
  • Square radius hinge with fixed pin - pack of 3
  • Full mortise single acting spring hinge, plain bearing
  • Recommended for use on commercial and residential door applications
  • Intended for use where automatic self closing of a door is required
  • Steel base material with fixed steel pin
  • Corner: Squared radius
  • Thickness: 0.134 in.
  • Installation: template screw hole locations
  • Easy installation

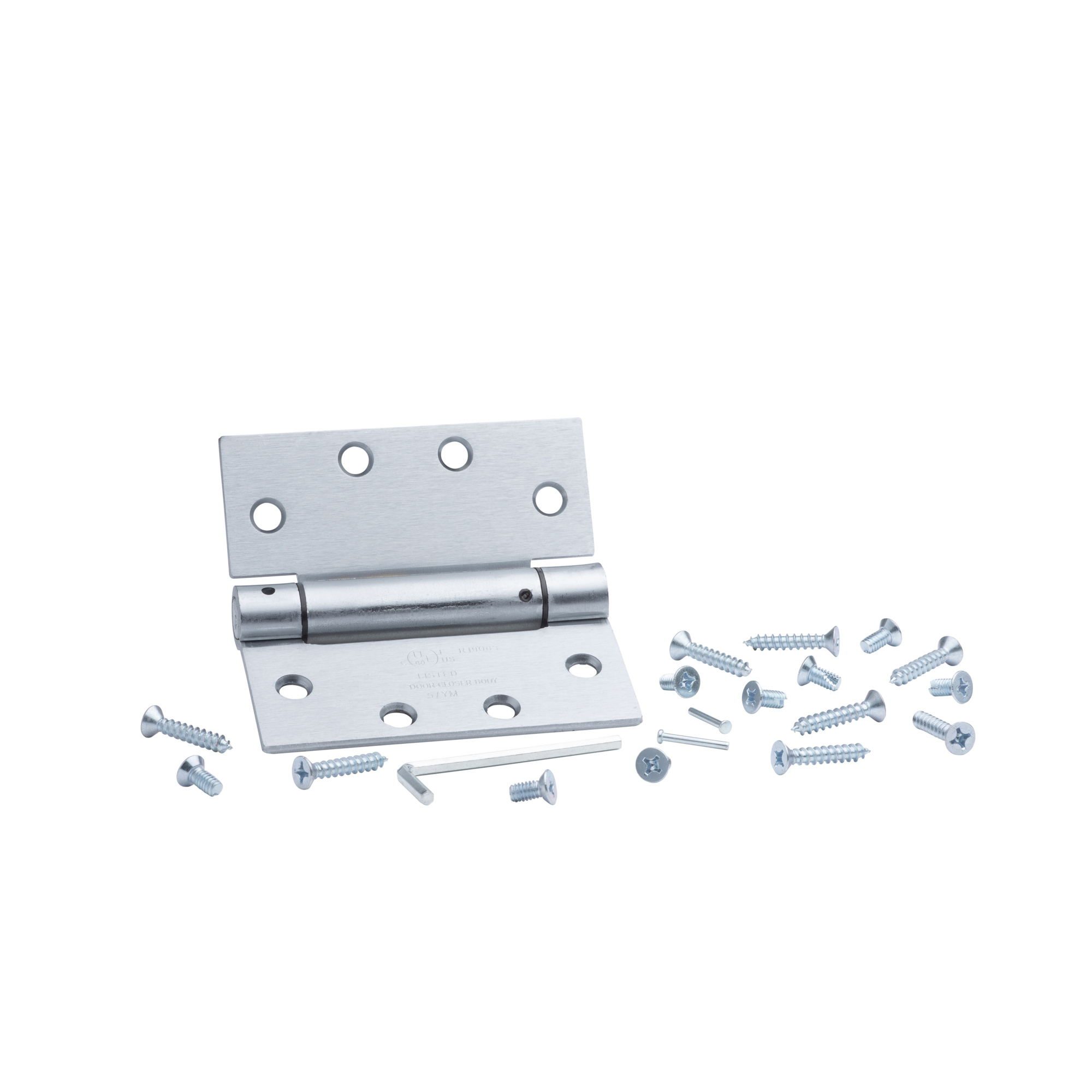

  • Packed with both wood and machine screws
  • Conforms to ANSI / BHMA - K81071F for self closing hinges
  • Meets NFPA 80 for 3 hour fire rating
  • UL Listed R19063 for “A” label fire doors
  • Brushed Chrome finish
  • Sold as a set of 3 hinges
  • 1 Year mechanical and finish warranty

Key Specs

AttributeSpecification

item#

83569

Brand

Global Door Controls

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.24 LB

Product Type

Hinge
AttributeSpecification

Material

Steel

Finish

Chrome

Mounting Type

Screw

Product Weight

3.2400 lb

Dimensions L x W x H (in.)

4.5 x 4.5 x 4.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
