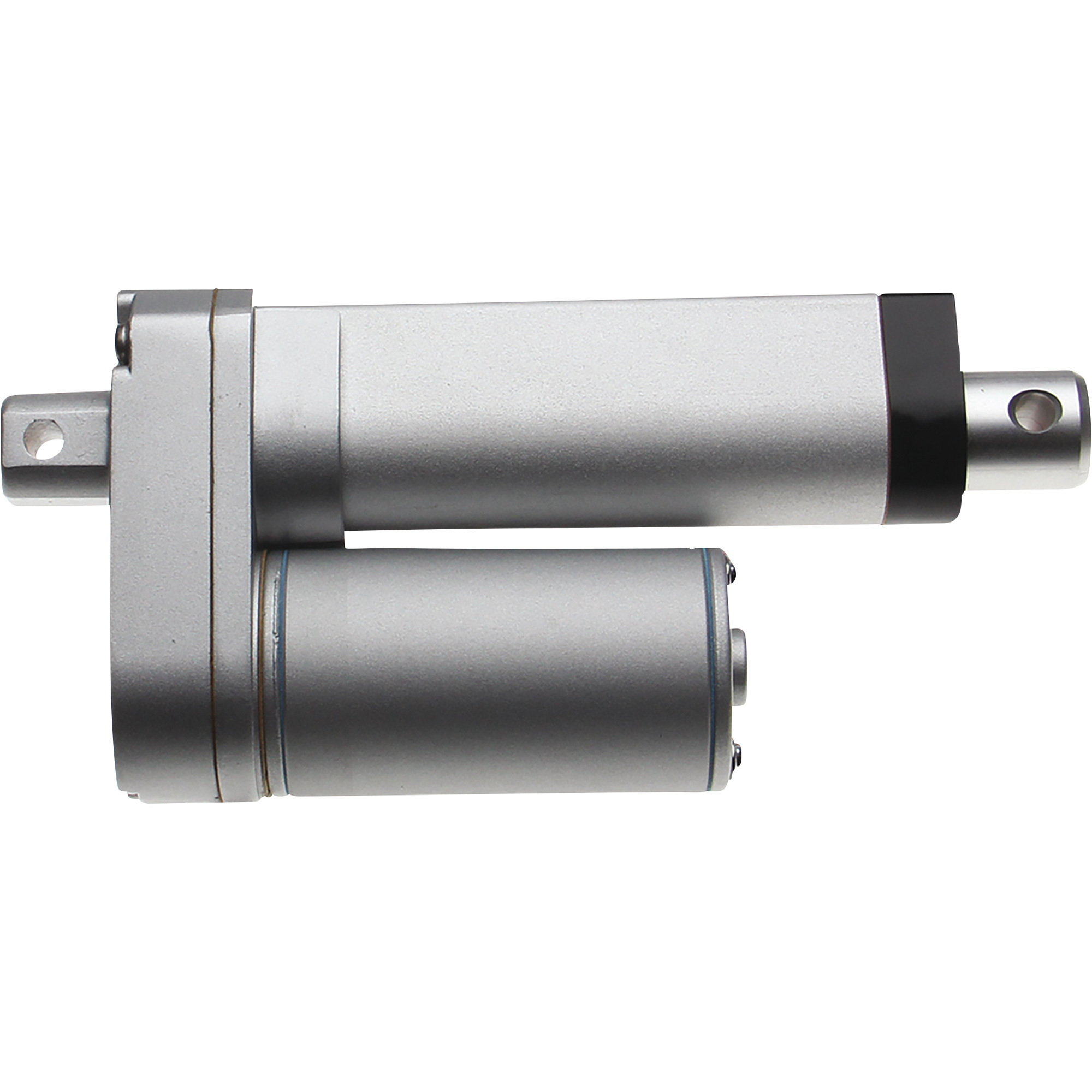

Glideforce 110-Lb. Capacity Linear Actuator, 2in. Stroke, Model# LACT2P-24V

Item# 99698
Glideforce 110-Lb. Capacity Linear Actuator, 2in. Stroke, Model# LACT2P-24V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 110-Lb. Capacity Linear Actuator, 2in. Stroke, Model# LACT2P-24V

Click or Tap image to Zoom

$159.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2in. nominal/1.97in. actualstroke
  • 24V motor
  • 20:1 reduction gearbox
  • 110-lb. dynamic load rating
  • 500-lb. static load rating

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Glideforce Linear Actuator features an all-metal housing and is water-resistant and sealed against dust for rugged durability. 24V motor has 20:1 reduction gearbox that gives actuator a dynamic load rating of 110 lbs. and is rated to hold up to 500 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm. Unit can be controlled with a double pole, double throw switch or with the built-in position sensor and optional linear actuator programmable controller.

What's Included

    (1) Linear actuator

Downloads

Product Manual

Features + Benefits

  • 2in. nominal/1.97in. actualstroke
  • 24V motor
  • 20:1 reduction gearbox
  • 110-lb. dynamic load rating
  • 500-lb. static load rating
  • IP65 enclosure
  • 10in.L x 3 1/2in.W x 2 1/2in.H overall size
  • Can be controlled with a double pole, double throw switch
  • Can be controlled with built-in position sensor and optional linear actuator programmable controller

Key Specs

AttributeSpecification

item#

99698

Brand

Glideforce

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.6 LB

Stroke Length

2 in

Dynamic Load Capacity

110 lb
AttributeSpecification

Static Load Capacity

500 lb

Product Type

Linear Actuator

Gear Ratio

20:1

Volts

24 DC

Product Weight

2.6 lb
