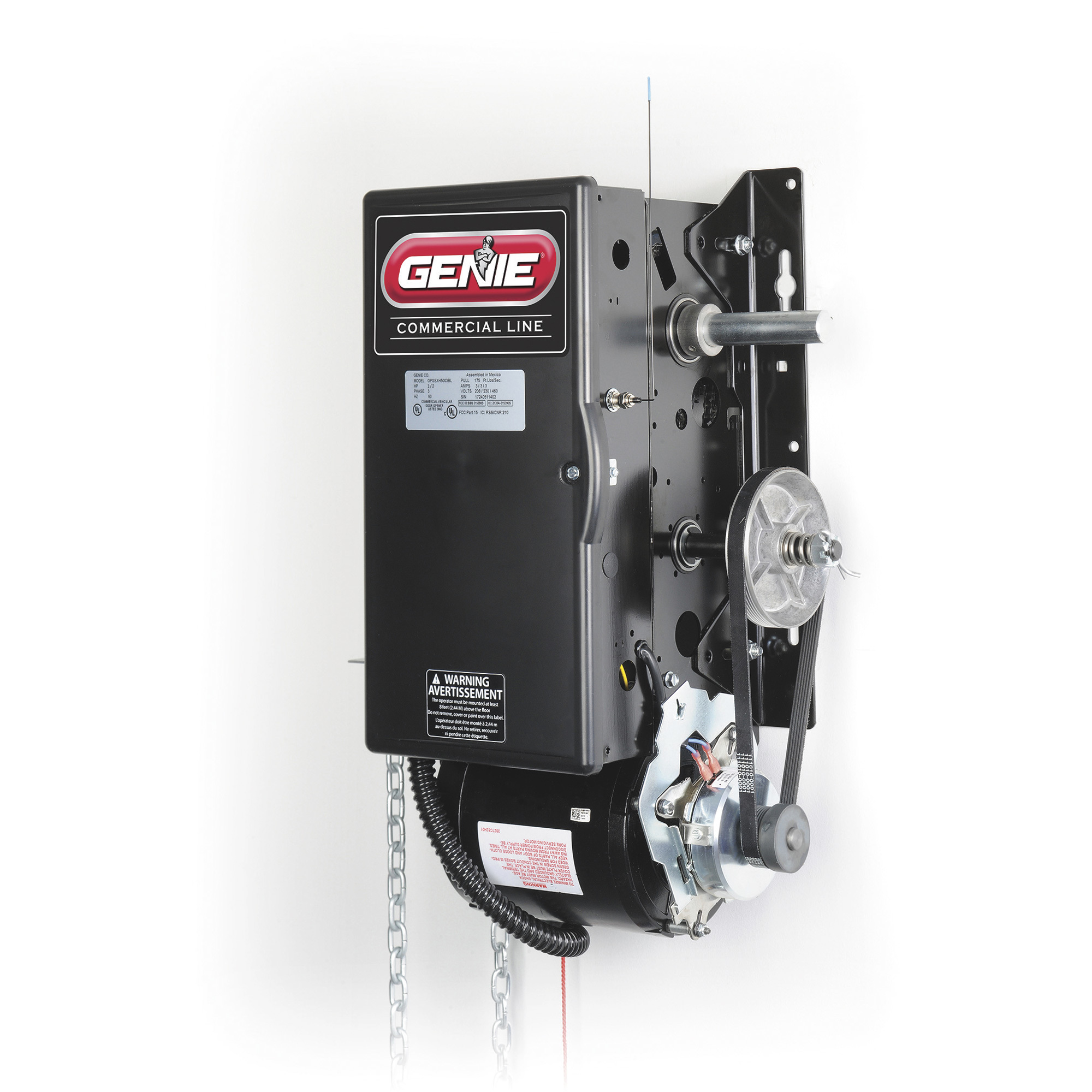

Genie GCL-H Standard-Duty 1/2 HP Hoist Operator, Single Phase, Model# OPGSXH5001BR

Item# 110747
"Genie GCL-H Standard-Duty 1/2 HP Hoist Operator, Single Phase, Model# OPGSXH5001BR"
Genie GCL-H Standard-Duty 1/2 HP Hoist Operator, Single Phase, Model# OPGSXH5001BR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Genie GCL-H Standard-Duty 1/2 HP Hoist Operator, Single Phase, Model# OPGSXH5001BR

Click or Tap image to Zoom

$1149.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed for high- or full-lift sectional doors or rolling doors with a 30 cycle per hour or less duty requirement
  • Operator can handle doors up to 24 feet high
  • Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality
  • 16-character LCD display with intuitive setup menu
  • Provides current status and trouble-shooting assistance

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Genie GCL-H standard-duty 1/2 HP hoist operator is designed for high- or full-lift sectional doors or rolling doors with a 30 cycle per hour or less duty requirement. The operator is versatile enough to handle doors up to 24ft. high, making it suitable for many industrial applications. Genie operators are loaded with a variety of features that make them ideal for most applications. The operators are safe and easy to use, and each unit includes a pull cord release for emergency manual operation. A simple 3-button control station allows any user to open, stop and close the door, while individual transmitters allow authorized users remote access. An intuitive 16-character LCD display makes it easy to add and delete individual transmitters from the system. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.

What's Included

    (1) Standard Duty Hoist Operator with Brake (1) Intellicode Receiver (1) 30ft. Hoist Chain (1) 1in. Bore Sprocket (1) Set Photo Eyes (1) 3-Button Wall Console (1) Wall Mount Kit (1) Manual, Warranty and Installation Instructions

Downloads

Product Manual Product Manual2
Additional Product Info Additional Product Info2

Features + Benefits

  • Designed for high- or full-lift sectional doors or rolling doors with a 30 cycle per hour or less duty requirement
  • Operator can handle doors up to 24 feet high
  • Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality
  • 16-character LCD display with intuitive setup menu
  • Provides current status and trouble-shooting assistance
  • Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display
  • EZ Limit® provides for push-to-set limits that stay synchronized with door through a long-term loss of power
  • MultiVolt® voltage simplification
  • Max run timer automatically adjusts to up and down run time
  • TensiBelt® primary drive reduction eliminates the need to adjust belt tension
  • Delay on reverse
  • Open/close/stop and setup keys included on the control board
  • Keeps all controls near the LCD display convenient for set up
  • UL 325 2010 approved
  • Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen
  • 3-button control station
  • 2-year/20,000 cycle warranty
  • Programmable mid-stop
  • Emergency hoist for manual operation; available in right or left hand

Key Specs

AttributeSpecification

item#

110747

Brand

Genie Company

Manufacturer's Warranty

2 year limited warranty

Ship Weight

94.0 LB

Remote Included

No

Batteries Required

No
AttributeSpecification

Battery Included

No

Product Type

Other

Weather Resistant

No

Mounting Hardware Included

Yes

Product Weight

94.0000 lb

Dimensions L x W x H (in.)

29.75 x 18.75 x 14.0 in
