Product Summary

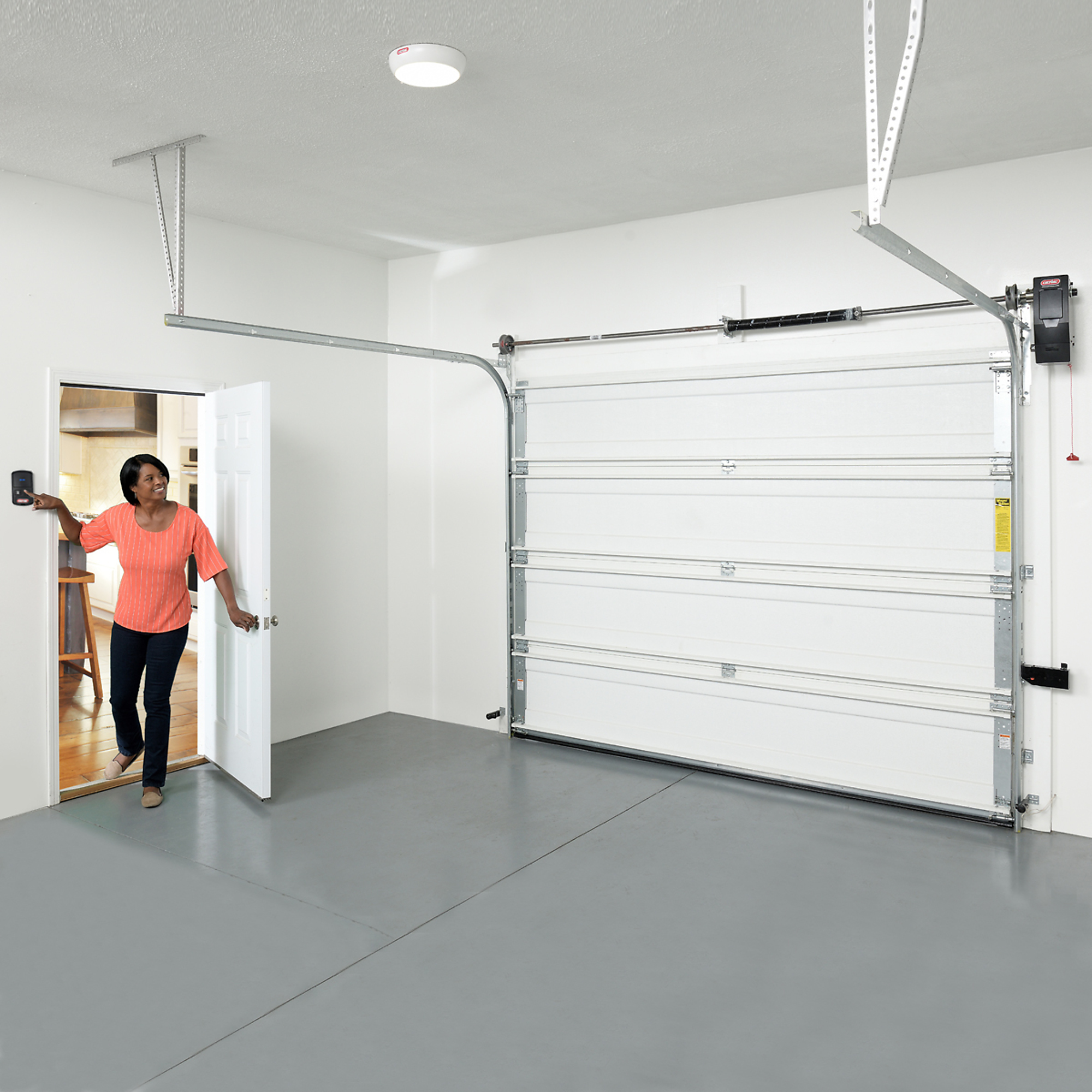

The Genie 6172 wall mounted smart garage door opener eliminates the traditional rail design. This Genie wall mount garage door opener features the Aladdin Connect smart home control and works with Alexa and Google Assistant. The Enhanced safety features on the 6172 wall mount garage door opener includes exclusive Safe-T-Pulse cable tension monitoring technology, which tests and confirms there is sufficient cable tension before lowering the door. The 6172 wall mount garage door opener easily attaches directly to the garage door's spring tube mounted high and to the side of the garage door. This design opens the space above where cars would park in your garage. Often referred to as a residential jackshaft garage door opener, this wall mount model also features a Genie wireless wall console, Bluetooth LED light, and remote garage door lock.

What's Included

    (1) (1)    Smart wall mount opener, (1) wall console, (1) LED light, (1) pre-programmed remote, (1) door lock

Features + Benefits

  • 24-Volt DC motor provides quiet yet exceptional power to lift heavy doors quickly
  • Aladdin Connect smart home technology allows you to control your garage door opener with your smartphone; compatible with Alexa and Google Assistant. Aladin Connect is available on the App Store and Google Play. Compatible with iPhone 14, Samsung Galaxy S23, and Google Pixel 7.
  • Features Safe-T-Pulse internal slack cable detection system developed by Genie to insure safe door travel
  • For use on doors up to 850 lbs. balance weight, and up to 18' wide, 14' tall or 180 sq. ft. maximum. It will also will work with standard lift, vertical lift and high lift up to 84".
  • Not for use on 1-piece swing style garage doors. Not compatible with reverse-wound, outside pick up spring cables, or with rear-mounted torsion springs

Key Specs

AttributeSpecification

item#

5734433

Brand

Genie Company

Manufacturer's Warranty

12 years limited

Ship Weight

30.0 LB

Remote Type

3-button

Remote Included

Yes

Batteries Required

Yes
AttributeSpecification

Battery Included

Yes

Product Type

Opener

Weather Resistant

No

Mounting Hardware Included

Yes

Product Weight

30.0000 lb

Dimensions L x W x H (in.)

17.0 x 15.5 x 12.0 in

Warranty

Manufacturer's Warranty

12 years limited
