Genie Company, Wall Mount Garage Door Opener, Model# 6072H-O

Item# 5734484
Top Seller
Genie Company, Wall Mount Garage Door Opener, Model# 6072H-O

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Genie Company, Wall Mount Garage Door Opener, Model# 6072H-O

Click or Tap image to Zoom

$464.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 24V DC motor provides quiet, fast, yet powerful opening performance

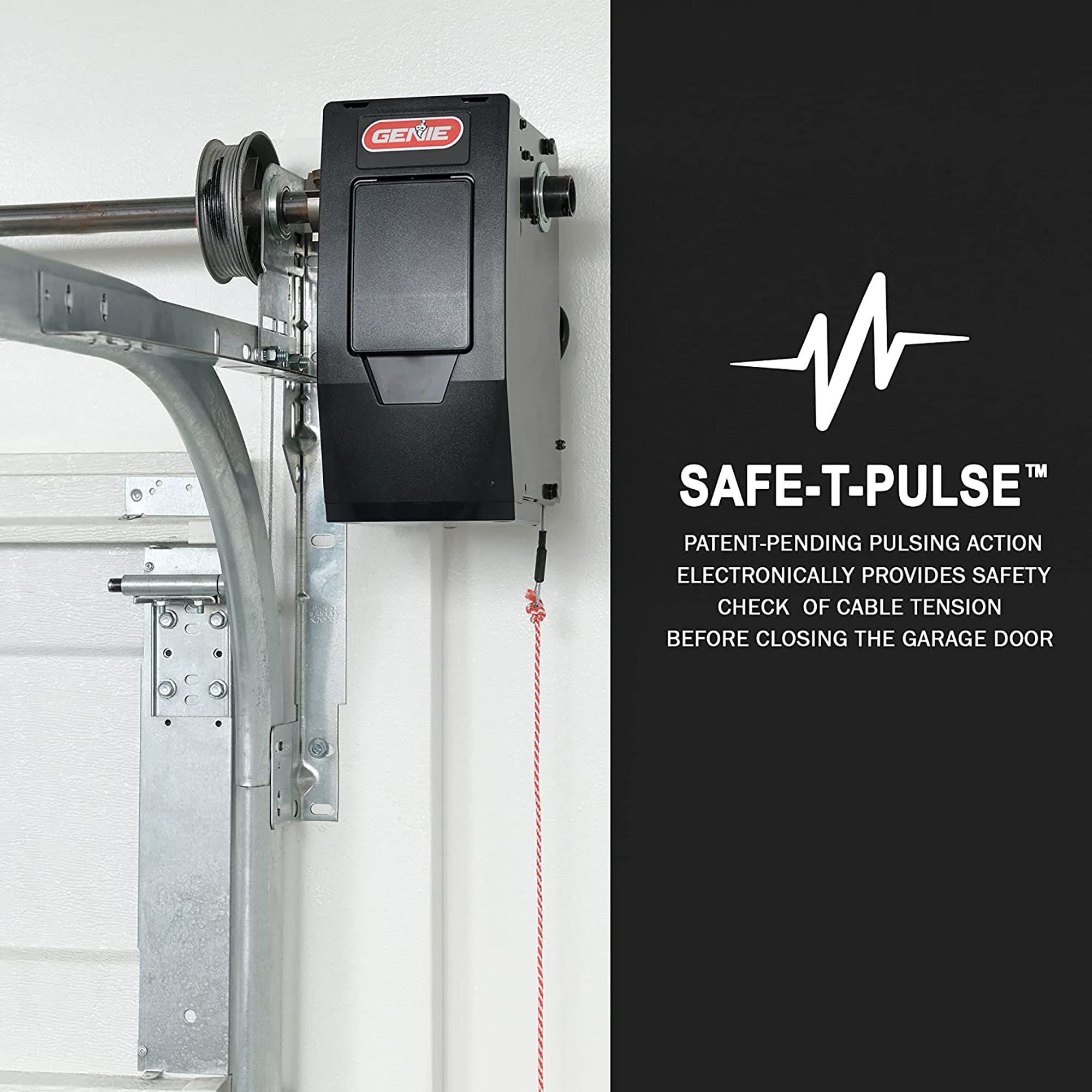

  • Safe-T-pulse internal slack cable detection system developed by Genie to insure safe door travel
  • Only 2.5 in. above and 7 in. to the side of the spring tube required for installation

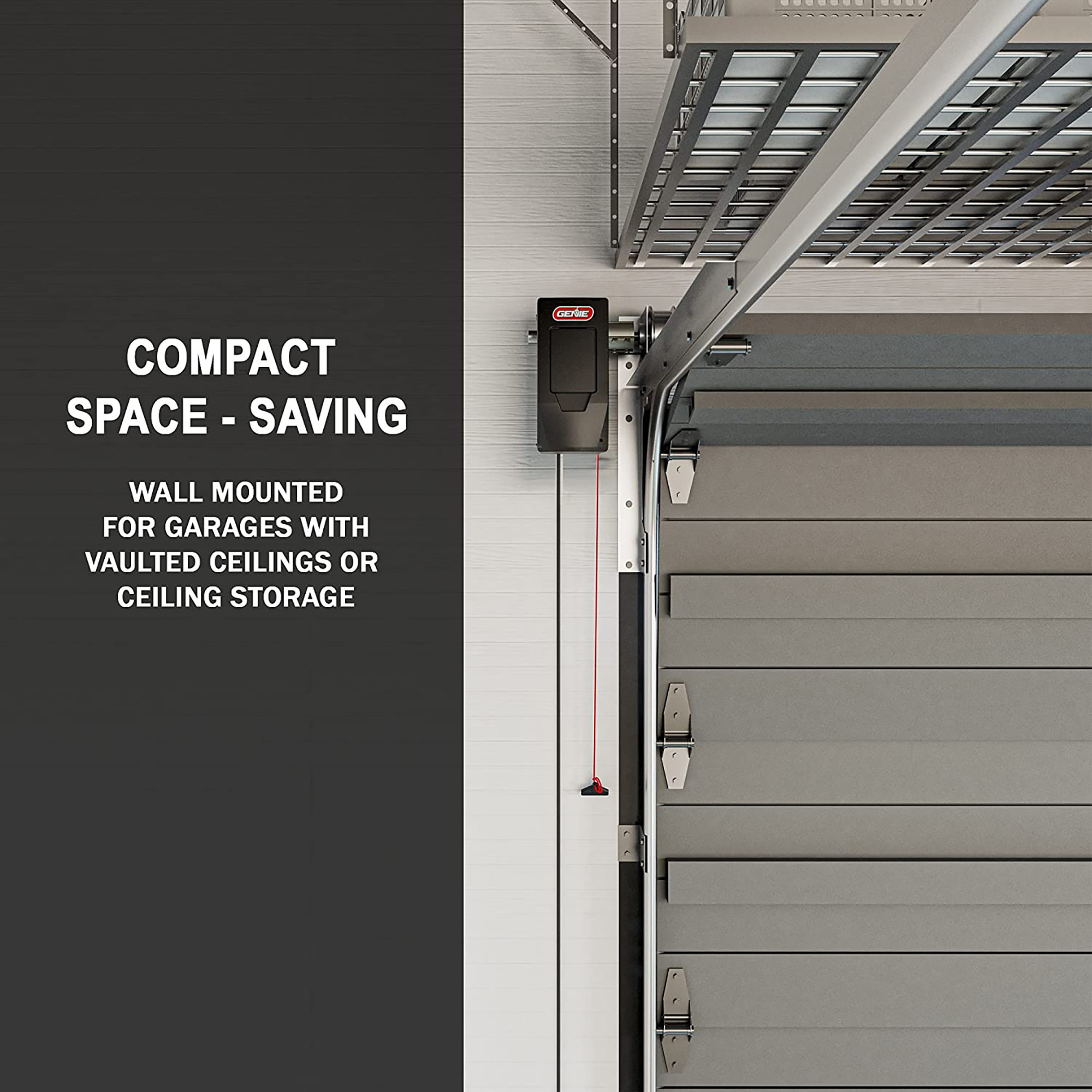

  • Compact design measuring 6.8 in. W x 14.5 in. L x 9 in. D making the Genie wall mount garage door opener the smallest available
  • Not for use on one piece swing style garage doors

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Genie Wall Mount Garage Door Opener eliminates the traditional rail design. This wall mount garage door opener easily attaches directly to the garage door's spring tube mounted high and to the side of the garage door. Open all the space above where cars would park in your garage with this wall mount garage door opener. with a compact, space-saving design that can lift an 850 lb. door, this door opener is a no brainer.

What's Included

    (1) (1)    Wall mount opener, (1) wall console, (1) LED light, (1) pre-programmed remote, (1) door lock

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • 24V DC motor provides quiet, fast, yet powerful opening performance
  • Safe-T-pulse internal slack cable detection system developed by Genie to insure safe door travel
  • Only 2.5 in. above and 7 in. to the side of the spring tube required for installation
  • Compact design measuring 6.8 in. W x 14.5 in. L x 9 in. D making the Genie wall mount garage door opener the smallest available
  • Not for use on one piece swing style garage doors

Key Specs

AttributeSpecification

item#

5734484

Brand

Genie Company

Manufacturer's Warranty

12 years limited

Ship Weight

27.2 LB

Remote Type

3-button

Remote Included

Yes

Batteries Required

Yes
AttributeSpecification

Battery Included

Yes

Product Type

Opener

Weather Resistant

No

Mounting Hardware Included

Yes

Product Weight

27.2000 lb

Dimensions L x W x H (in.)

17.0 x 15.5 x 12.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Will thus lift a double wide garage door (for a 2 car garage)?

    1 answer

    1. The Genie 6072H-O can lift a typical double-wide 2-car sectional garage door, provided the door is no more than 18 feet wide and weighs no more than 850 pounds.

      Helpful?

  2. What power is required? I know it has battery backup. So it must have a battery charger requiring minimum 120VAC requirement. Can I operate two of these units on a 15amp circuit in a residential installation?

    1 answer

    1. The garage door opener will require a 115 volt power outlet with in 5 feet from the bottom of the opener. If a longer distance is needed, a low voltage power kit model 40984R.S will need to be purchased through the manufacturer separately.

      Helpful?

  3. What purpose do the cable keepers serve?

    1 answer

    1. The cable keepers are needed to insure that the cables are adjusted and safe to open and close the garage door. The cable keepers are required to be used per the manufacturer. Non use of the cable keepers will void the manufacturer warranty.

      Helpful?

  4. Can this unit be used to open a 10x10 roll up door?

    1 answer

    1. The garage door opener will not work with a 10 x 10 roll up door.

      Helpful?

  5. what is the pull rope hook to?

    1 answer

    1. The red pull rope is an emergency release. You will pull this to disconnect the opener to rotate the output shaft for ease of coupler installation. Pull down to toggle door engagement. Also, pull the emergency release cable and manually operate door to inspect for binding. Pull cable until it clicks and locks into place. Pull again to release and lock opener to door.

      Helpful?

Warranty

Manufacturer's Warranty

12 years limited
