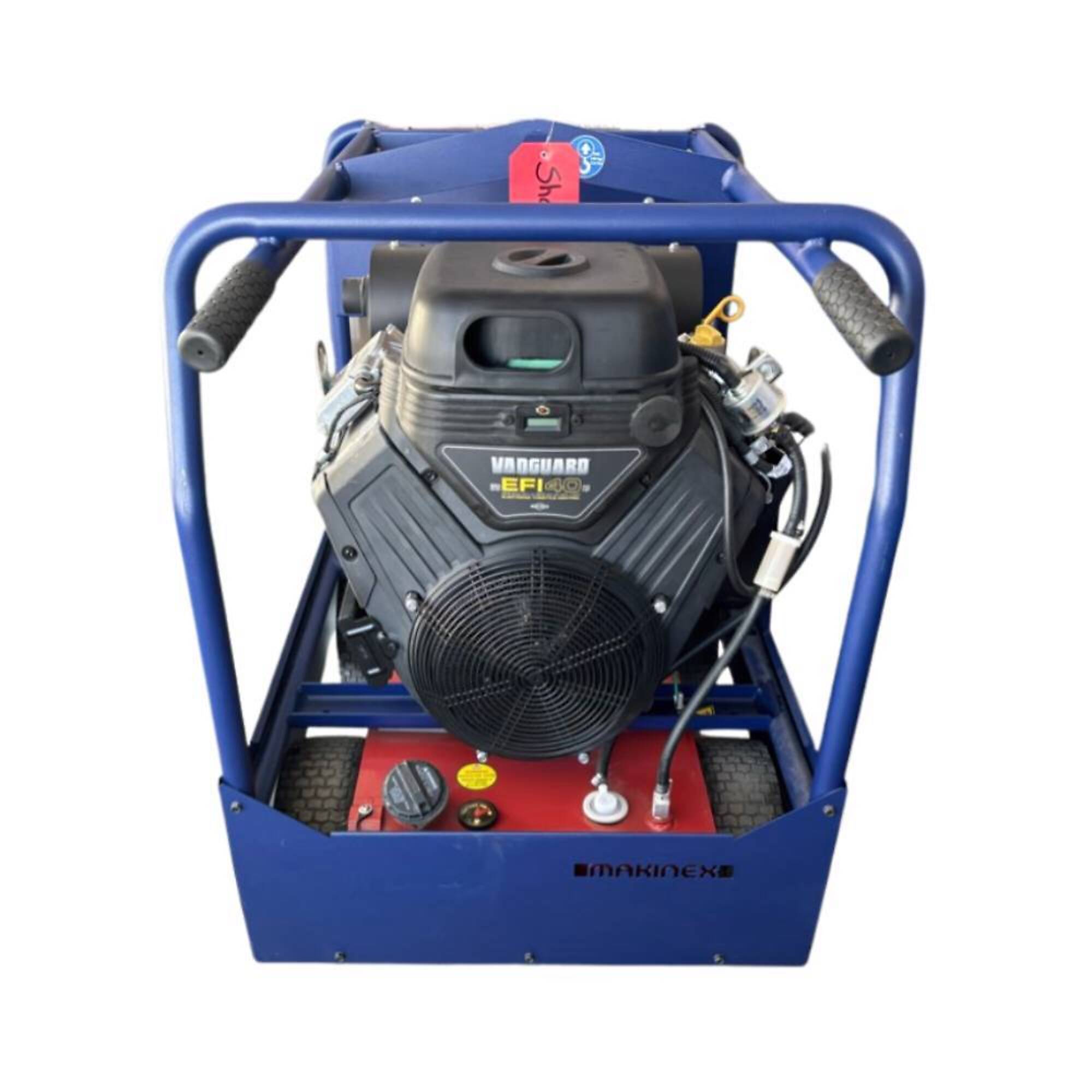

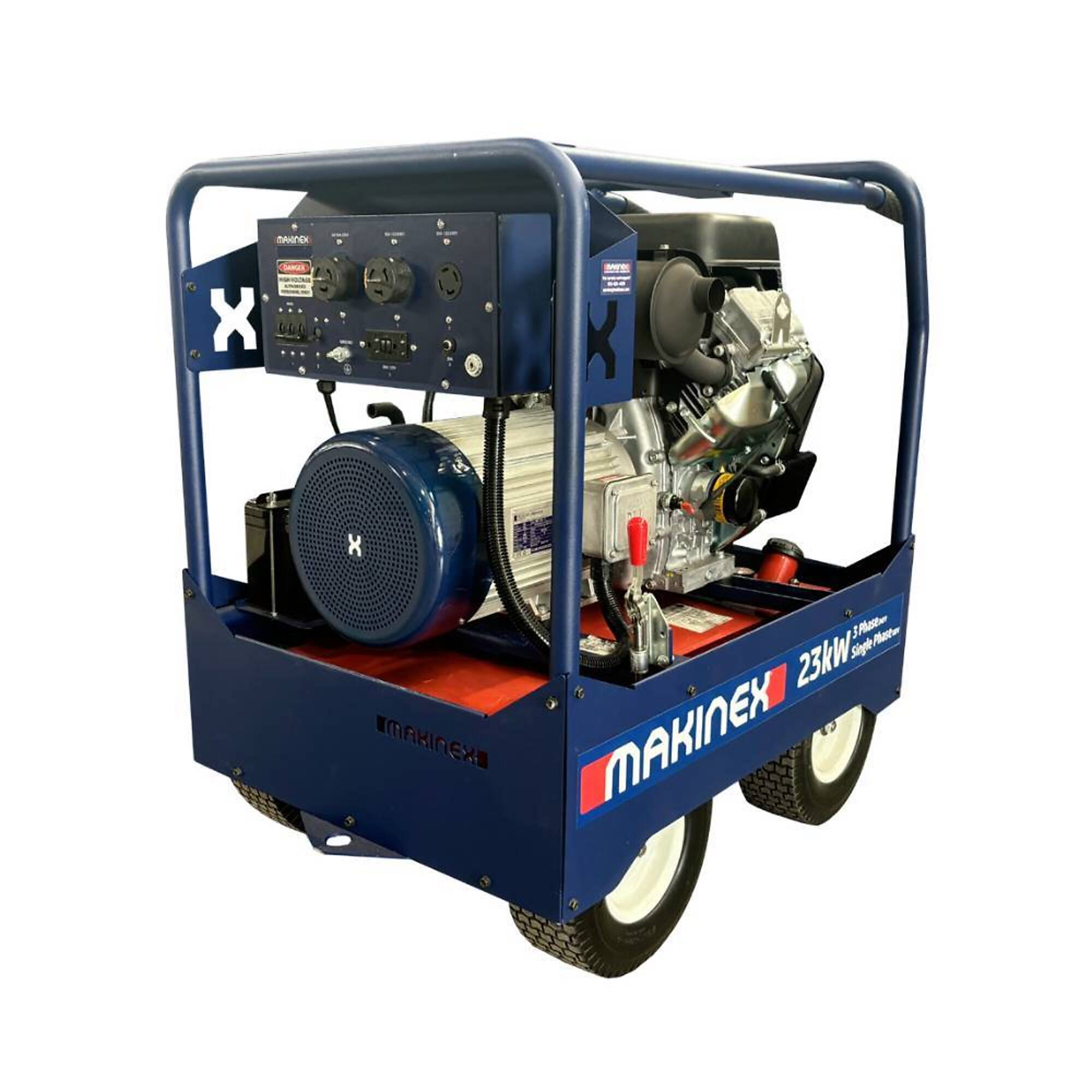

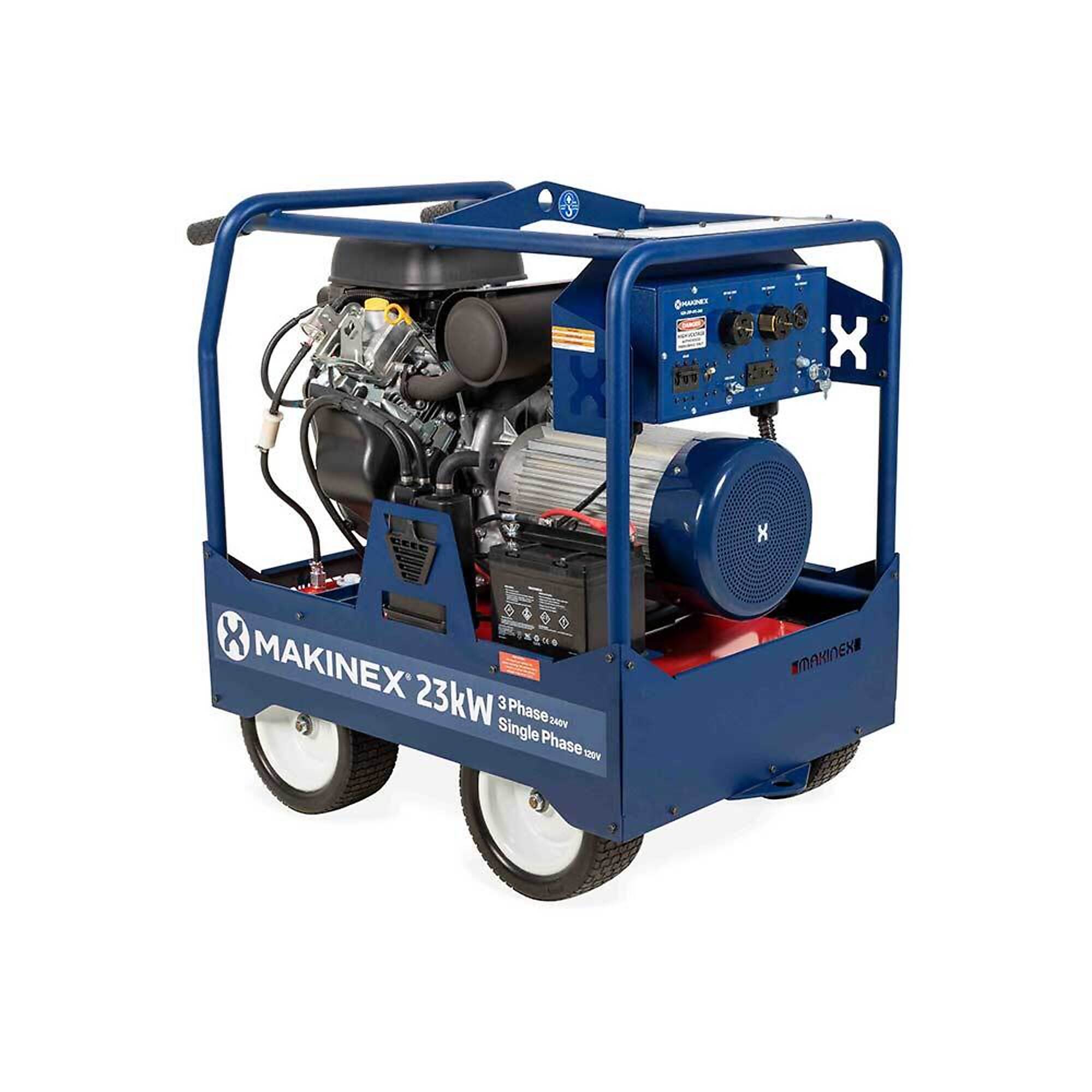

Generator 23kW | VanGuard | 240V

Item# 7243380
Generator 23kW | VanGuard | 240V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Generator 23kW | VanGuard | 240V

Click or Tap image to Zoom

$19,999.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The Makinex 23kW 240V portable generator provides compact power for single phase and three phase powered equipment. The dual phase outlets allow both single and three phase equipment to be run from a single generator, perfect for floor grinders, welders, compressors, and more. This generator also uses a radial flux alternator, which not only provides more consistent power output with fewer peaks and valleys, but also draws 15% more power out of the Briggs & Stratton Vanguard V-Twin OHV engine. The generator is less than a third of the size of a comparable towable or skid generator, able to provide power in tight spaces, where a larger unit would lose power over distance. This generator also features RCD and RCBO protection for keeping operators safe.
  • 23kW power output from a Honda GX690 engine
  • Radial flux alternator with rare earth magnets keeps power consistent
  • Dual phase outlets allow single and three phase equipment to be run from one generator at the same time
  • Provides consistent power for floor grinders, welders, compressors, brick saws, and more

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Makinex 23kW 240V portable generator provides compact power for single phase and three phase powered equipment. The dual phase outlets allow both single and three phase equipment to be run from a single generator, perfect for floor grinders, welders, compressors, and more. This generator also uses a radial flux alternator, which not only provides more consistent power output with fewer peaks and valleys, but also draws 15% more power out of the Briggs Stratton Vanguard V-Twin OHV engine. The generator is less than a third of the size of a comparable towable or skid generator, able to provide power in tight spaces, where a larger unit would lose power over distance. This generator also features RCD and RCBO protection for keeping operators safe.

What's Included

    (1) Generator

Downloads

Product Manual

Features + Benefits

  • The Makinex 23kW 240V portable generator provides compact power for single phase and three phase powered equipment. The dual phase outlets allow both single and three phase equipment to be run from a single generator, perfect for floor grinders, welders, compressors, and more. This generator also uses a radial flux alternator, which not only provides more consistent power output with fewer peaks and valleys, but also draws 15% more power out of the Briggs & Stratton Vanguard V-Twin OHV engine. The generator is less than a third of the size of a comparable towable or skid generator, able to provide power in tight spaces, where a larger unit would lose power over distance. This generator also features RCD and RCBO protection for keeping operators safe.
  • 23kW power output from a Honda GX690 engine
  • Radial flux alternator with rare earth magnets keeps power consistent
  • Dual phase outlets allow single and three phase equipment to be run from one generator at the same time
  • Provides consistent power for floor grinders, welders, compressors, brick saws, and more
  • Single phase outlets: 20A GFCI outlet, 30A L16-30R outlet
  • Three phase outlets: 50A CS8369 twist lock outlet, 30A L22-30R twist lock outlet
  • RCD and RCBO protection to keep equipment operators safe
  • Vanguard V-twin OHV engine with electric key start and 13.2 gallon fuel tank
  • Consumes 1.5 gallons of fuel per hour at 50% load

Key Specs

AttributeSpecification

item#

7243380

Brand

Makinex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

576.0 LB

Surge Watts

24,100

Rated Watts

23,000

Fuel Type

Gasoline

Voltage

120/240

Engine Displacement

993 cc

Engine Brand

Briggs & Stratton

Engine Model

VanGuard 61G277

Noise Level

72 dB

Start Type

Electric
AttributeSpecification

Fuel Capacity

13.2 Gal

Half-Load Run Time

8.8 hr

Number of Outlets

4

Outlet Type

Multiple

Battery Required

Yes

Battery Included

No

Overload Protection

Yes

Hertz

60

Engine Cooling

Air

CARB Compliant

No

Horsepower

40

Product Weight

573.0000 lb

Dimensions L x W x H (in.)

43.0 x 25.0 x 40.0 in
