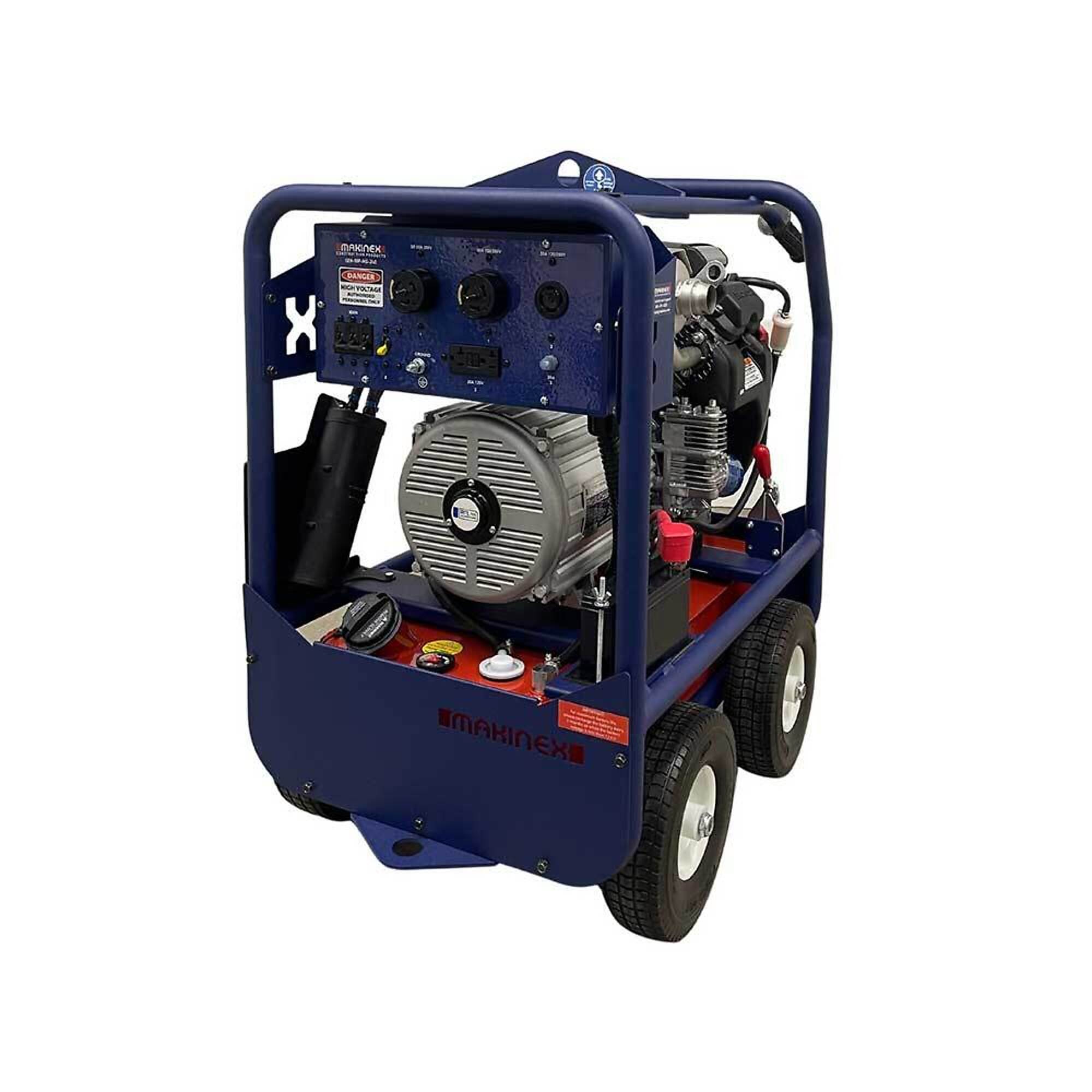

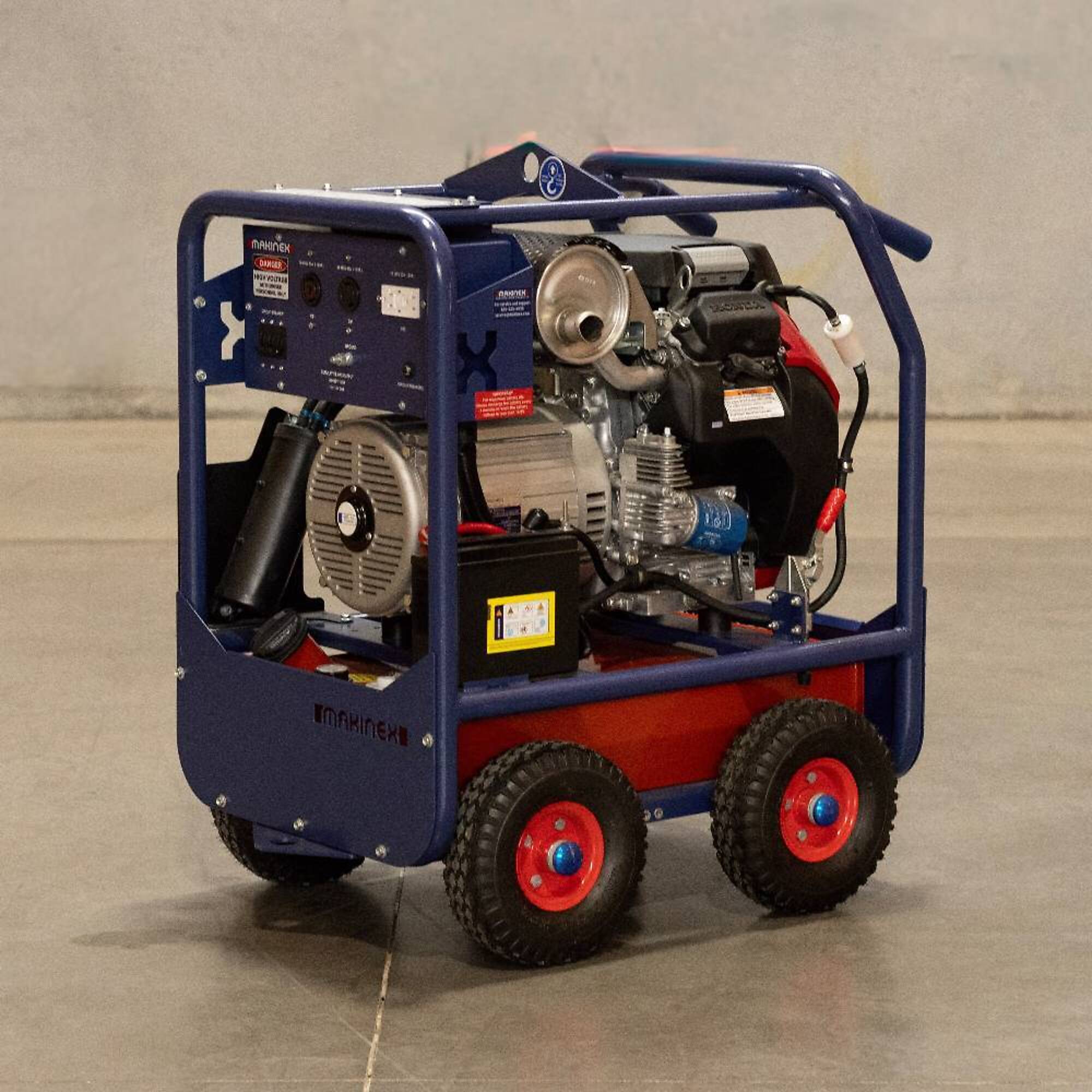

Generator 16kW | Honda | 480V USA-Spec

Item# 7243363
Generator 16kW | Honda | 480V USA-Spec

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Generator 16kW | Honda | 480V USA-Spec

Click or Tap image to Zoom

$10,799.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The Makinex 16kW 480V portable generator provides compact power for single phase and three phase powered equipment. The dual phase outlets allow both single and three phase equipment to be run from a single generator, perfect for floor grinders, welders, compressors, and more. This generator also uses a radial flux alternator, which not only provides more consistent power output with fewer peaks and valleys, but also draws 15% more power out of the Honda GX690 engine. The generator is also highly portable, able to provide power in tight spaces, where a tow-behind unit would lose power from the amount of cable required. This generator also features RCD and RCBO protection for keeping operators safe.
  • 16kW power output from a Honda GX690 engine
  • Radial flux alternator with rare earth magnets keeps power consistent
  • Dual phase outlets allow single and three phase equipment to be run from one generator at the same time
  • Provides consistent power for floor grinders, welders, compressors, brick saws, and more

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Makinex 16kW 480V portable generator provides compact power for single phase and three phase powered equipment. The dual phase outlets allow both single and three phase equipment to be run from a single generator, perfect for floor grinders, welders, compressors, and more. This generator also uses a radial flux alternator, which not only provides more consistent power output with fewer peaks and valleys, but also draws 15% more power out of the Honda GX690 engine. The generator is also highly portable, able to provide power in tight spaces, where a tow-behind unit would lose power from the amount of cable required. This generator also features RCD and RCBO protection for keeping operators safe.

What's Included

    (1) Generator

Downloads

Product Manual

Features + Benefits

  • The Makinex 16kW 480V portable generator provides compact power for single phase and three phase powered equipment. The dual phase outlets allow both single and three phase equipment to be run from a single generator, perfect for floor grinders, welders, compressors, and more. This generator also uses a radial flux alternator, which not only provides more consistent power output with fewer peaks and valleys, but also draws 15% more power out of the Honda GX690 engine. The generator is also highly portable, able to provide power in tight spaces, where a tow-behind unit would lose power from the amount of cable required. This generator also features RCD and RCBO protection for keeping operators safe.
  • 16kW power output from a Honda GX690 engine
  • Radial flux alternator with rare earth magnets keeps power consistent
  • Dual phase outlets allow single and three phase equipment to be run from one generator at the same time
  • Provides consistent power for floor grinders, welders, compressors, brick saws, and more
  • Single phase outlets: 20A GFCI outlet, 30A L16-30R outlet
  • Three phase outlets: 30A L22-30R twist lock outlet
  • RCD and RCBO protection to keep equipment operators safe

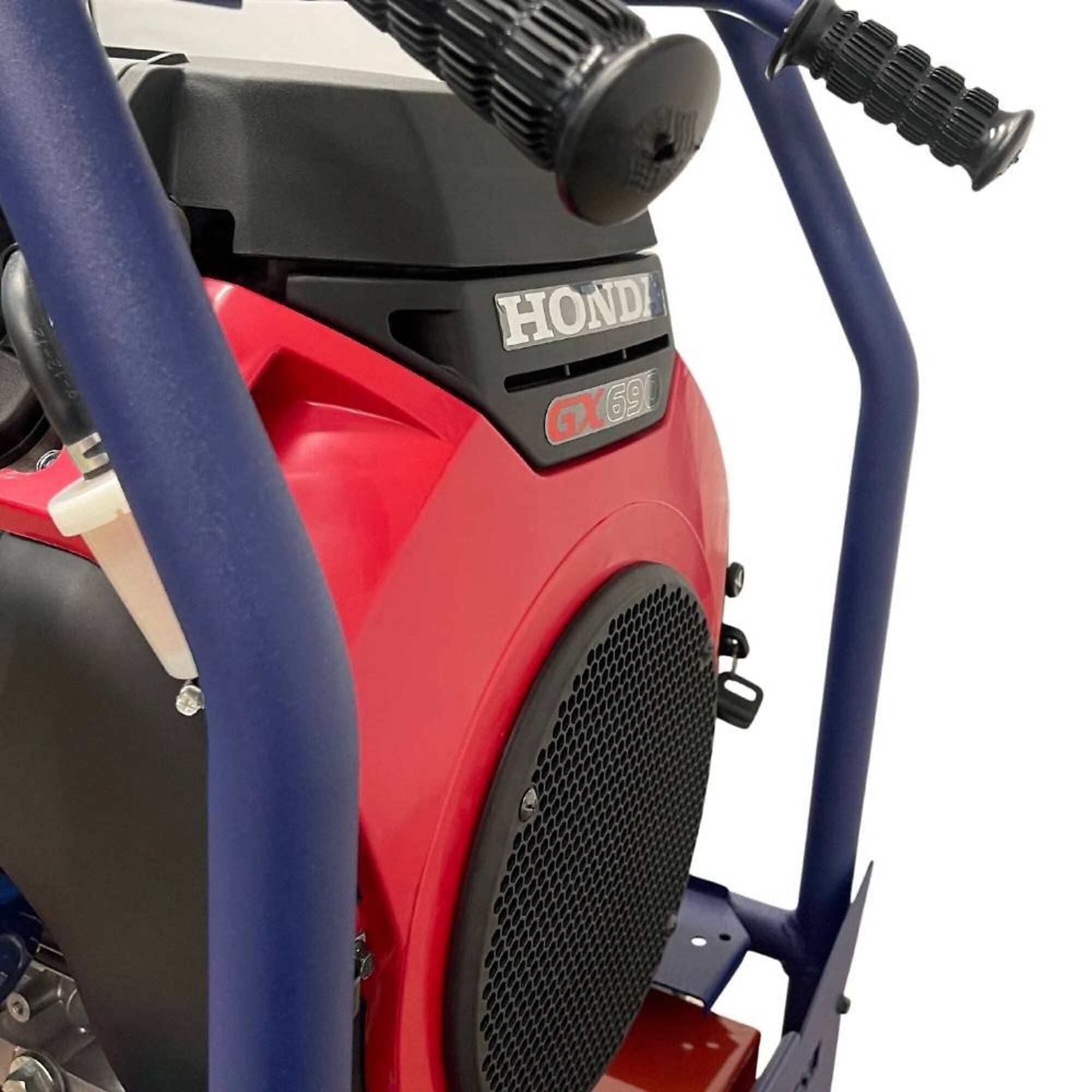

  • Honda GX690 engine with electric key start and 9 gallon fuel tank
  • Consumes 0.92 gallons of fuel per hour at 50% load

Key Specs

AttributeSpecification

item#

7243363

Brand

Makinex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

432.0 LB

Surge Watts

15,200

Rated Watts

13,500

Fuel Type

Gasoline

Voltage

480

Engine Displacement

688 cc

Engine Brand

Honda

Engine Model

GX690

Noise Level

72 dB

Enclosure Material

Galvanized Steel

Start Type

Electric
AttributeSpecification

Fuel Capacity

9 Gal

Half-Load Run Time

9.78 hr

Number of Outlets

3

Outlet Type

Multiple

Battery Required

Yes

Battery Included

No

Overload Protection

Yes

Hertz

60

Engine Cooling

Air

CARB Compliant

No

Horsepower

22.1

Product Weight

342.0000 lb

Dimensions L x W x H (in.)

36.0 x 21.0 x 30.4 in
