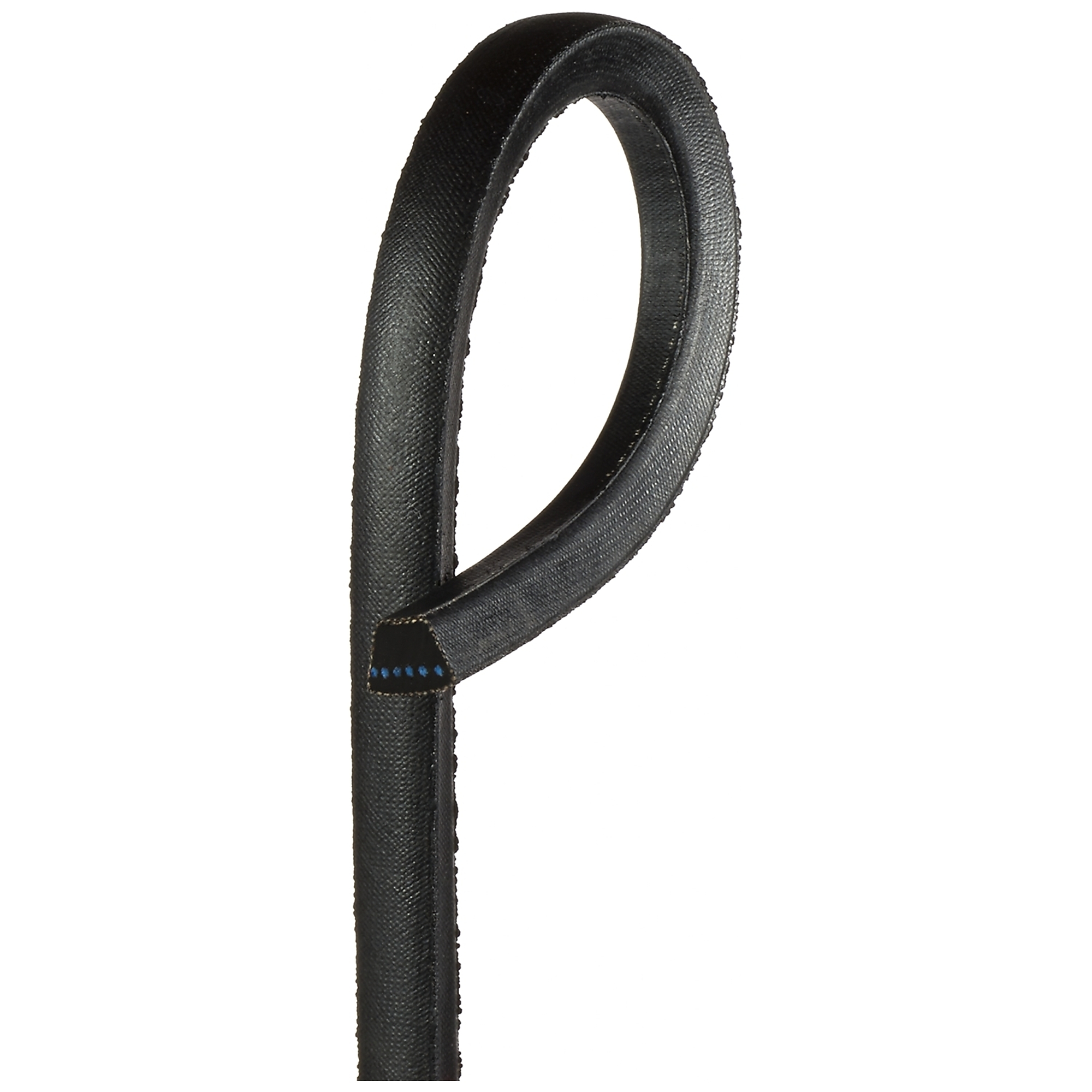

Gates Belts, Hi-Power II V-Belt 90032087 Length 90 in, Width 21/32 in, Model# B87

Item# 5840156
"Gates Belts, Hi-Power II V-Belt 90032087 Length 90 in, Width 21/32 in, Model# B87"
Gates Belts, Hi-Power II V-Belt 90032087 Length 90 in, Width 21/32 in, Model# B87

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gates Belts, Hi-Power II V-Belt 90032087 Length 90 in, Width 21/32 in, Model# B87

Click or Tap image to Zoom

$34.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load. Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather, and aging.

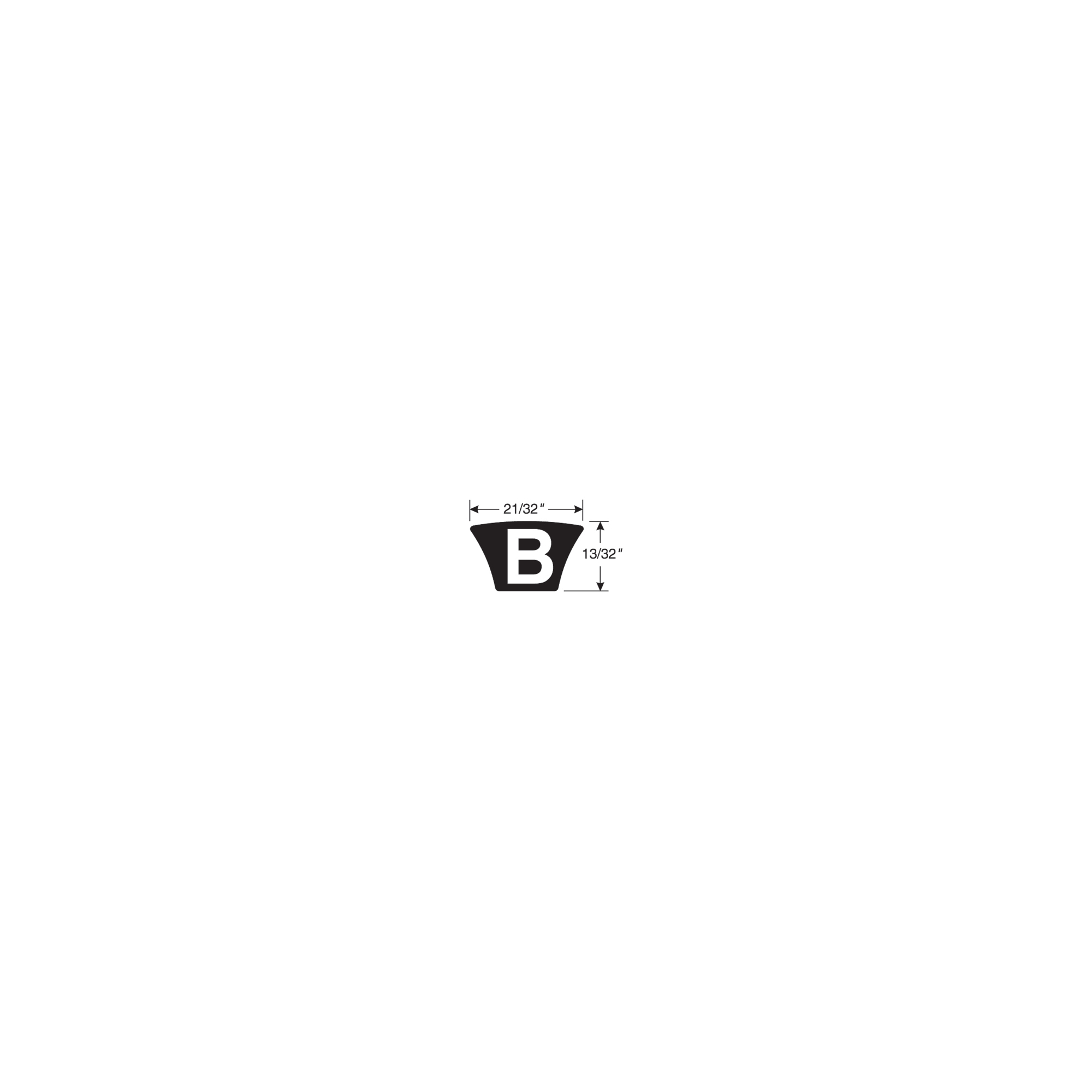

  • Top Width: 21/32 in.; Thickness: 13/32 in.; Outside Circumference: 90 in.; Angle: 38°; Section: B
  • Gates® Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life.

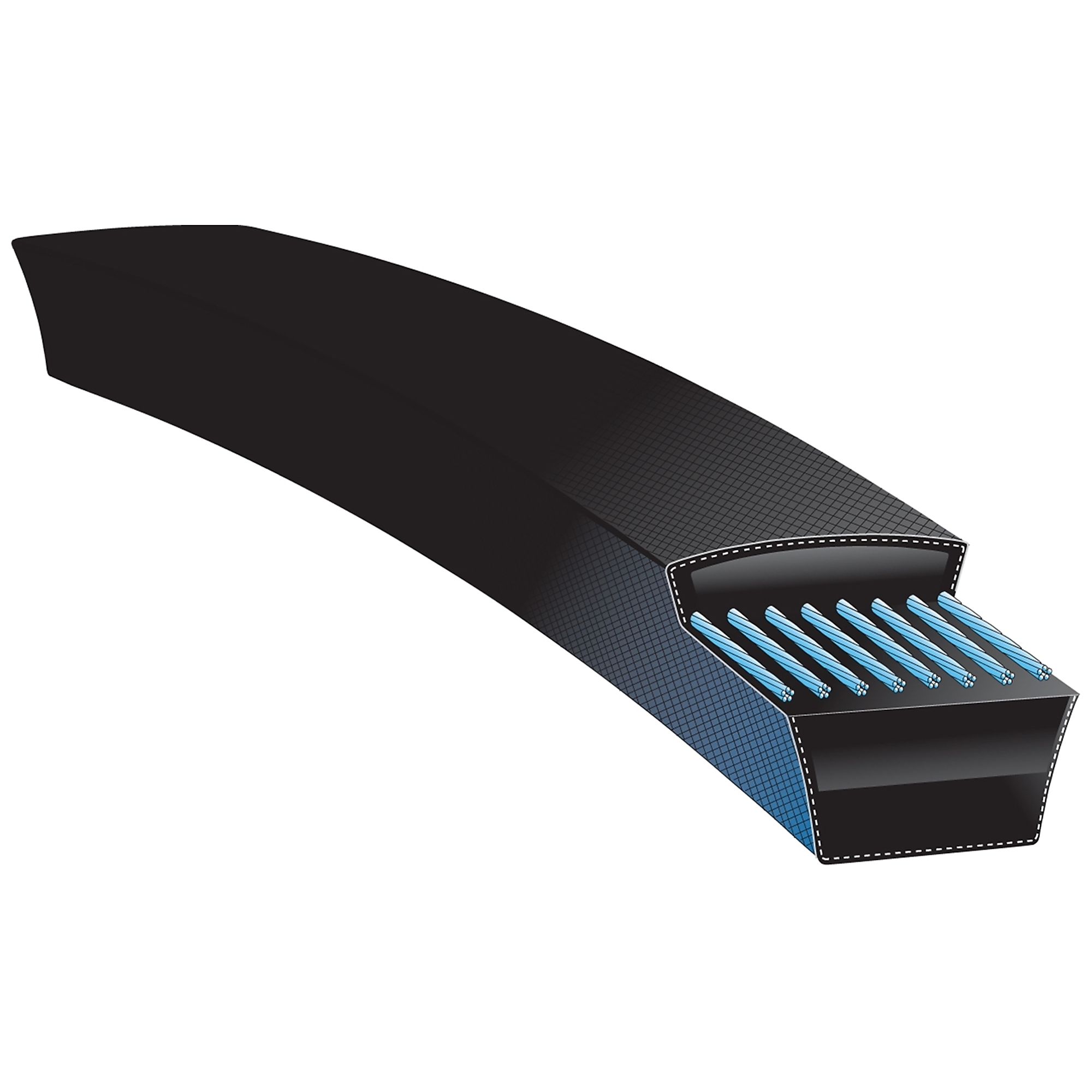

  • Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.
  • Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The wrapped classical section Hi-Power V-belt has a long reputation for reliability on agricultural and industrial applications. From the largest agricultural seed planters to the smallest backyard leaf blowers, Gates has developed OE parts and equipment components with top brands in the outdoor equipment industry from around the world. When you equip your lawn and garden tools with Gates, you can trust your aftermarket solutions to have the same quality, function, and performance as the OEM assembly line.

What's Included

    (1) Gates Hi-Power II B Section Belt 21/32" x 13/32" x 90"

Downloads

Product Manual

Features + Benefits

  • The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load. Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather, and aging.
  • Top Width: 21/32 in.; Thickness: 13/32 in.; Outside Circumference: 90 in.; Angle: 38°; Section: B
  • Gates® Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life.
  • Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.
  • Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.
  • Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments and is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt, and heat.
  • Flex-Bonded Cords are strongly bound to the body of the belt, resulting in equal load distribution and absorption of bending stress without cord deterioration.
  • All sizes meet Gates V80® system matching tolerances.
  • Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.
  • Applications: Suitable for all industrial applications, including v-flat drives.
  • Material: SBR (Styrene Butadiene Rubber)
  • Cord type: Polyester

Key Specs

AttributeSpecification

item#

5840156

Brand

Gates Belts

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

0.97 LB

Length

90 in
AttributeSpecification

Width

21/32 in

Material

Fabric-Reinforced Rubber

Product Type

Belt

Product Weight

0.9700 lb

Dimensions L x W x H (in.)

90.0 x 0.66 x 0.43 in
