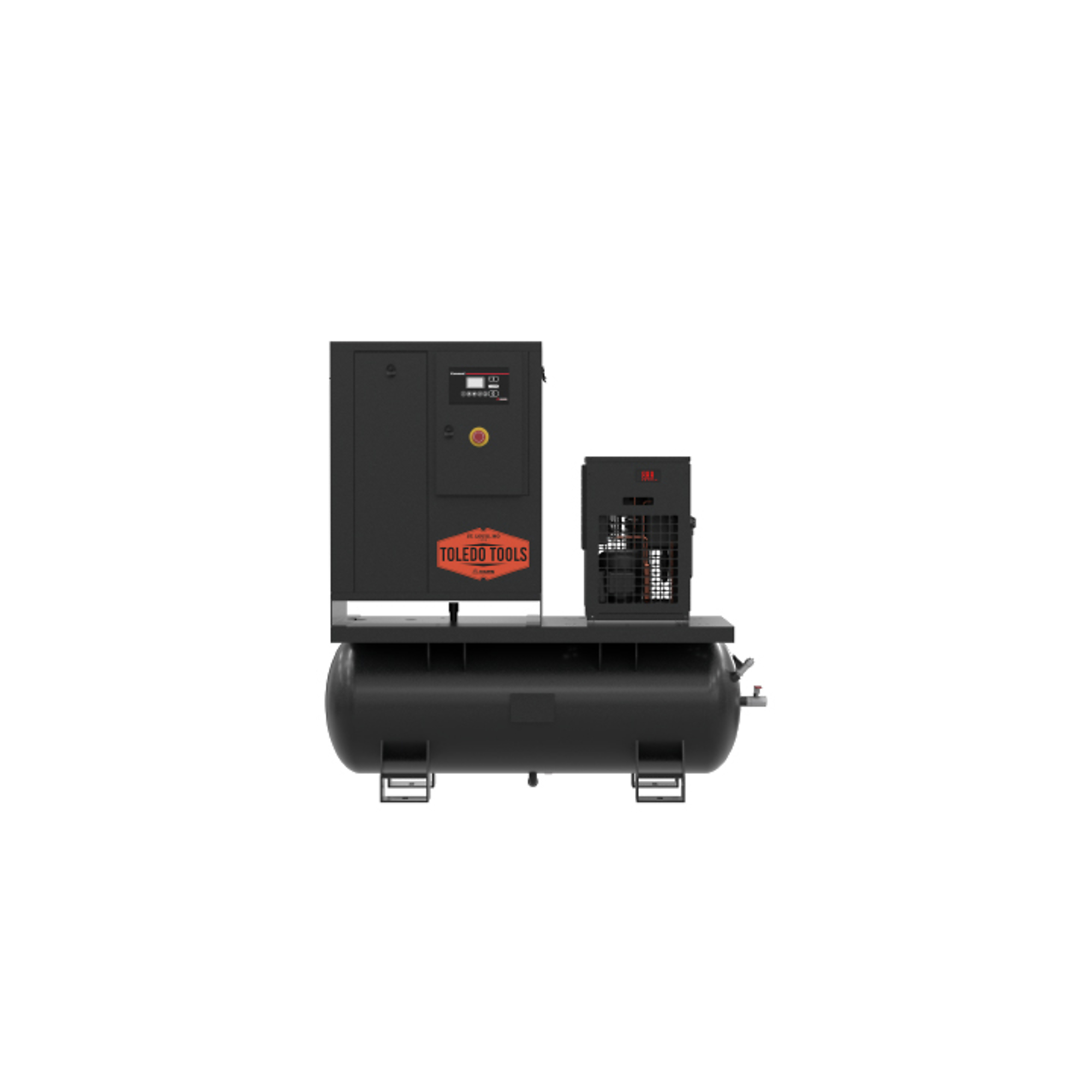

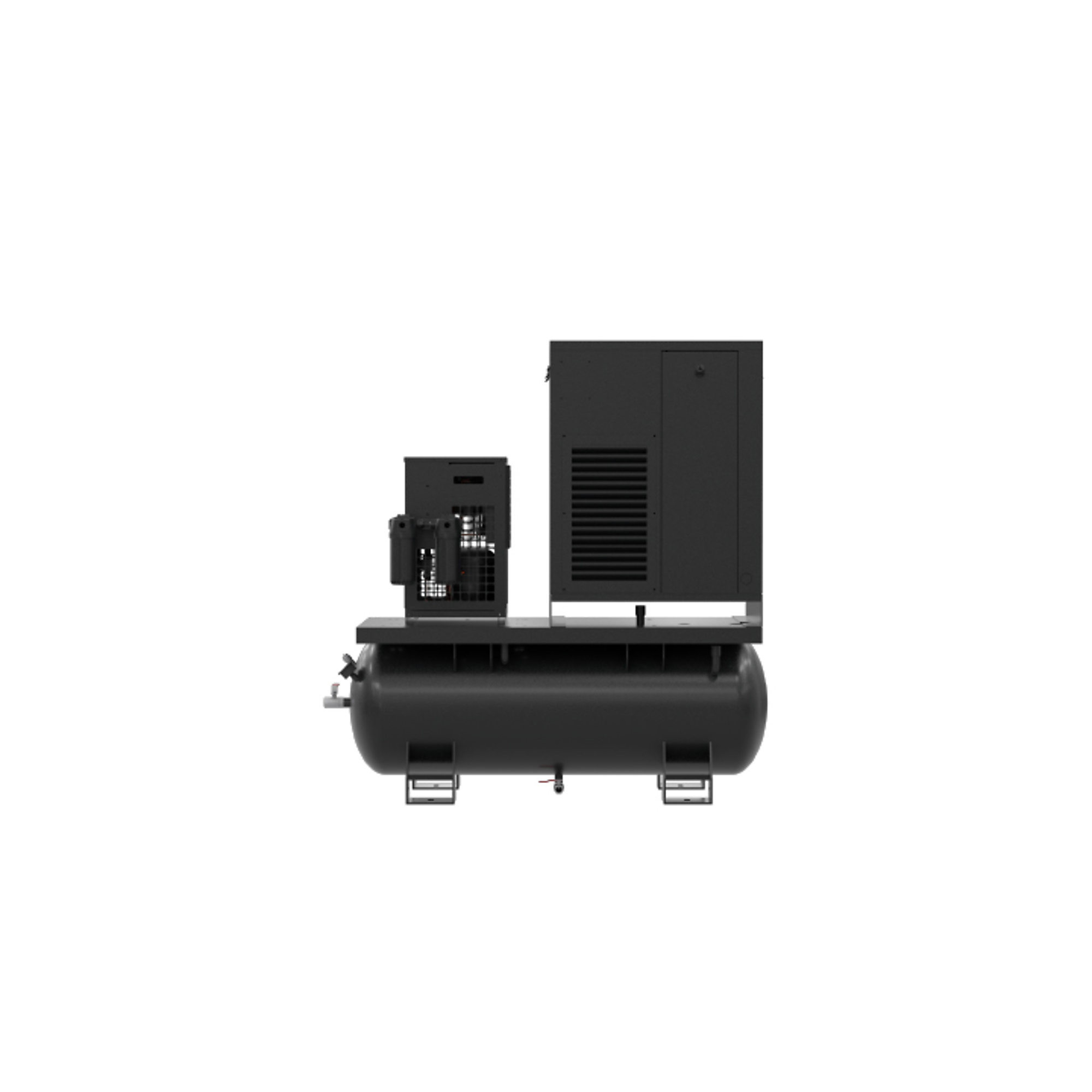

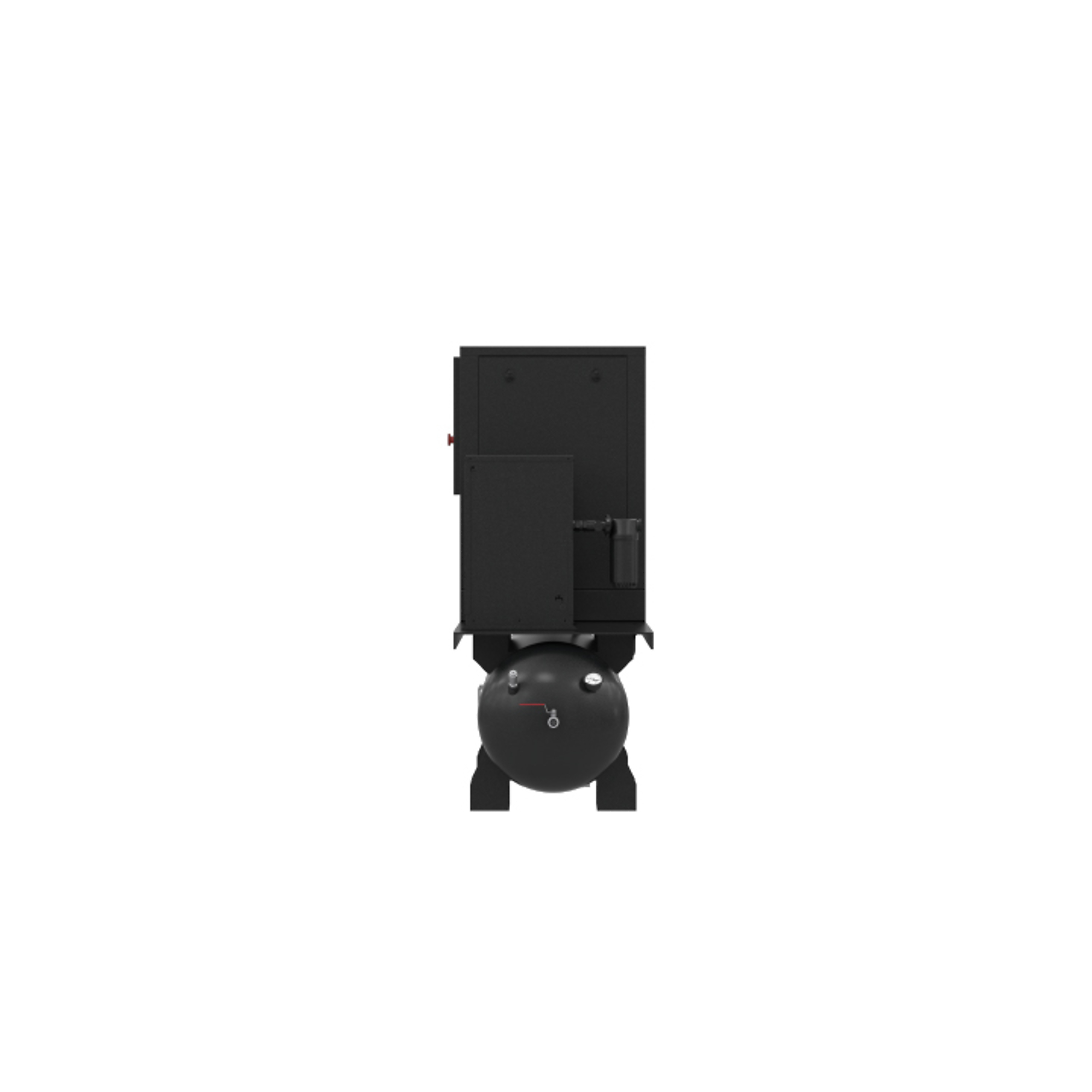

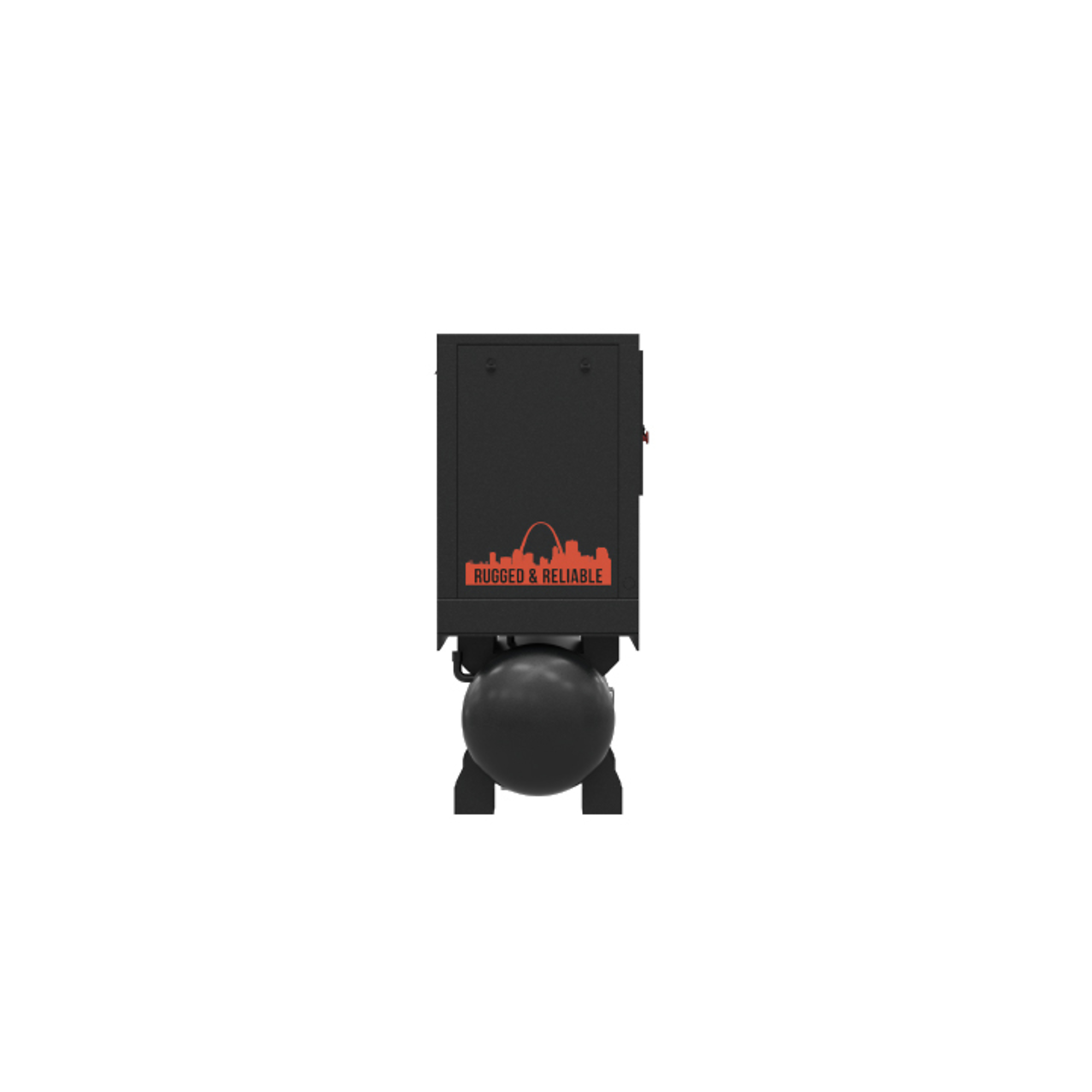

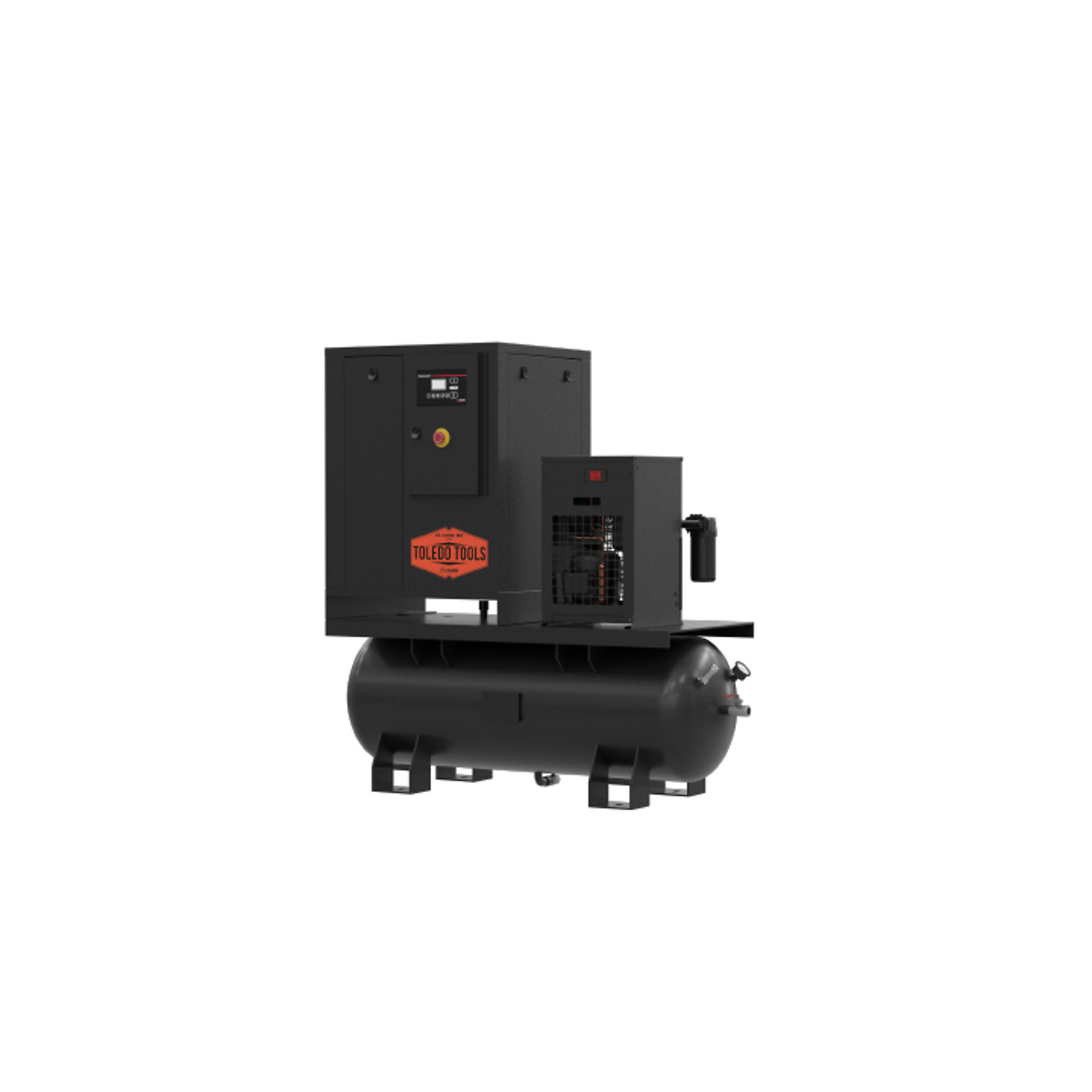

FS Curtis UltraPack Rotary Screw Air Compressor — 7.5 HP, 230V Single Phase, 23.7 CFM, 150 PSI, Model# FTT07A6U2KXXX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- Compact and Easy Installation
- Proven Technology for High Volume Flow
- Designed for High Loads and Energy Efficiency
- Adaptable to Varies Conditions
- Cost-Effective and Reliable
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Air Compressor

Features + Benefits
- Compact and Easy Installation
- Proven Technology for High Volume Flow
- Designed for High Loads and Energy Efficiency
- Adaptable to Varies Conditions
- Cost-Effective and Reliable
- Durable and Energy-Saving Operation
- Powerful and energy-efficient IE3 Motor
- Industry Leading Performance Airend
- Low-friction rotor design helps reduce energy consumption and vibration
- Easy Maintenance for minimal downtime
- Sump Tank for Superior Oil Management
- iCommand Controller, designed to enhance performance through advanced control and monitoring capabilities
- UltraPack Includes: tank-mounted air compressor, particulate-type pre-filter, refrigerated air dryer, and a colalescing oil removal filter, all mounted and piped as one complete package
Key Specs
| Attribute | Specification |
|---|---|
item# | 7320234 |
Brand | FS Curtis |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 1034.0 LB |
Horsepower | 7.5 HP |
Air Tank Size | 53 Gal |
Volts | 230 |
Max. PSI | 150 |
Stage | 1 |
Air Outlets (qty.) | 1 |
Amps | 22.9 |
Duty Cycle | 100 % |
Motor RPM | 3,515 |
Working Pressure | 150 PSI |
Motor Phase | 1 |
| Attribute | Specification |
|---|---|
Pump Drive | Belt |
Air Outlet Size | 1/2 in. NPT |
CFM at Max. PSI | 23.7 |
Noise Level | 65 dB |
Oil Required | Yes |
Low Oil Shutdown | Yes |
Lubrication System | Pressure |
Pressure Gauge | Yes |
Electronic Drain Valve | No |
After Cooler Included | Yes |
Air Dryer | Integral |
Drain Type | Manual |
Tank Orientation | Horizontal |
Product Weight | 1034.0000 lb |
Dimensions L x W x H (in.) | 54.0 x 24.0 x 57.0 in |
Reviews
Questions & Answers
Questions
Warranty
Manufacturer's Warranty
1 year limited warranty
