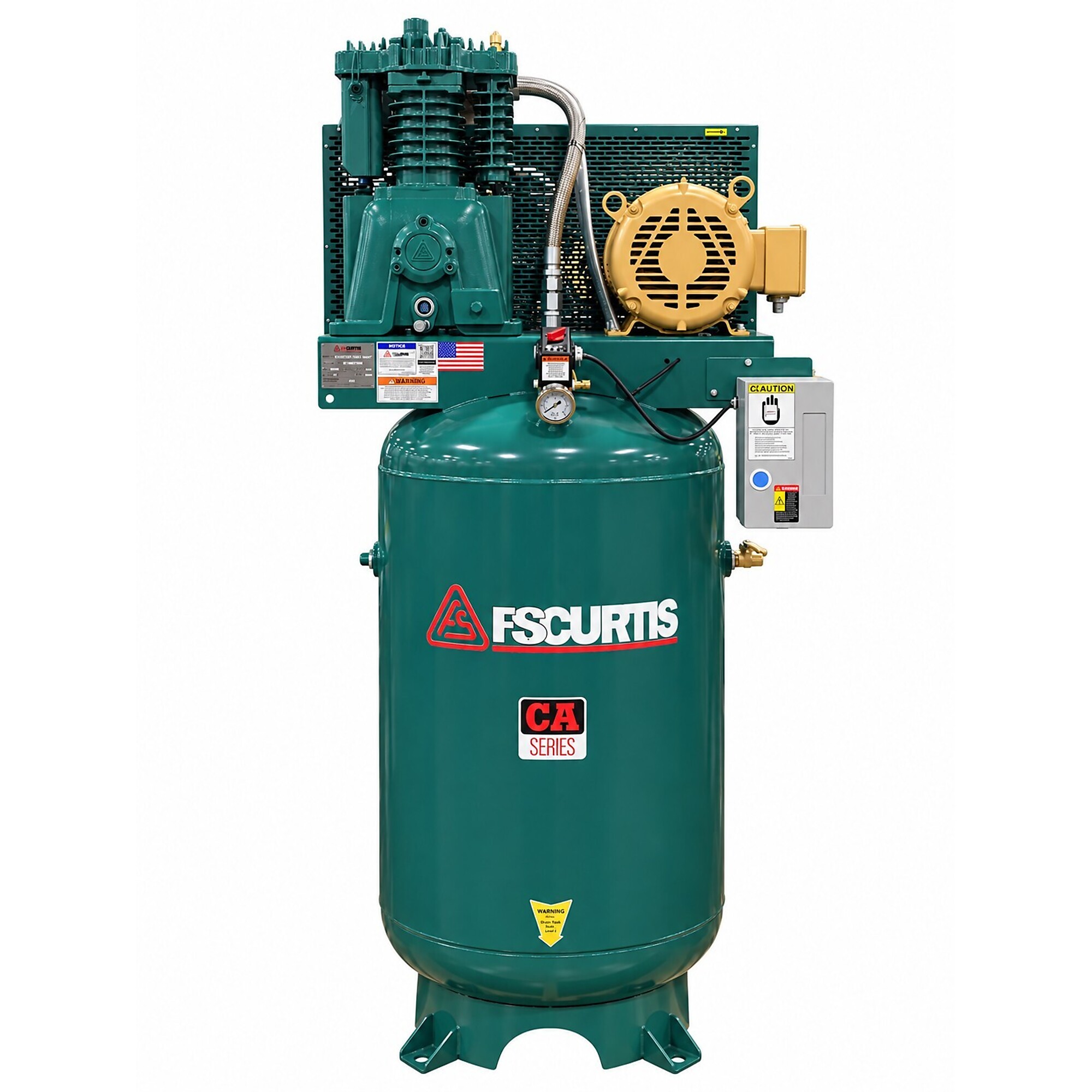

FS-Curtis CA7 Standard 3-Phase 460V, 7.5HP, 2 Stage Electric Air Compressor, 60 Gallon, 175PSI, 23.2CFM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only

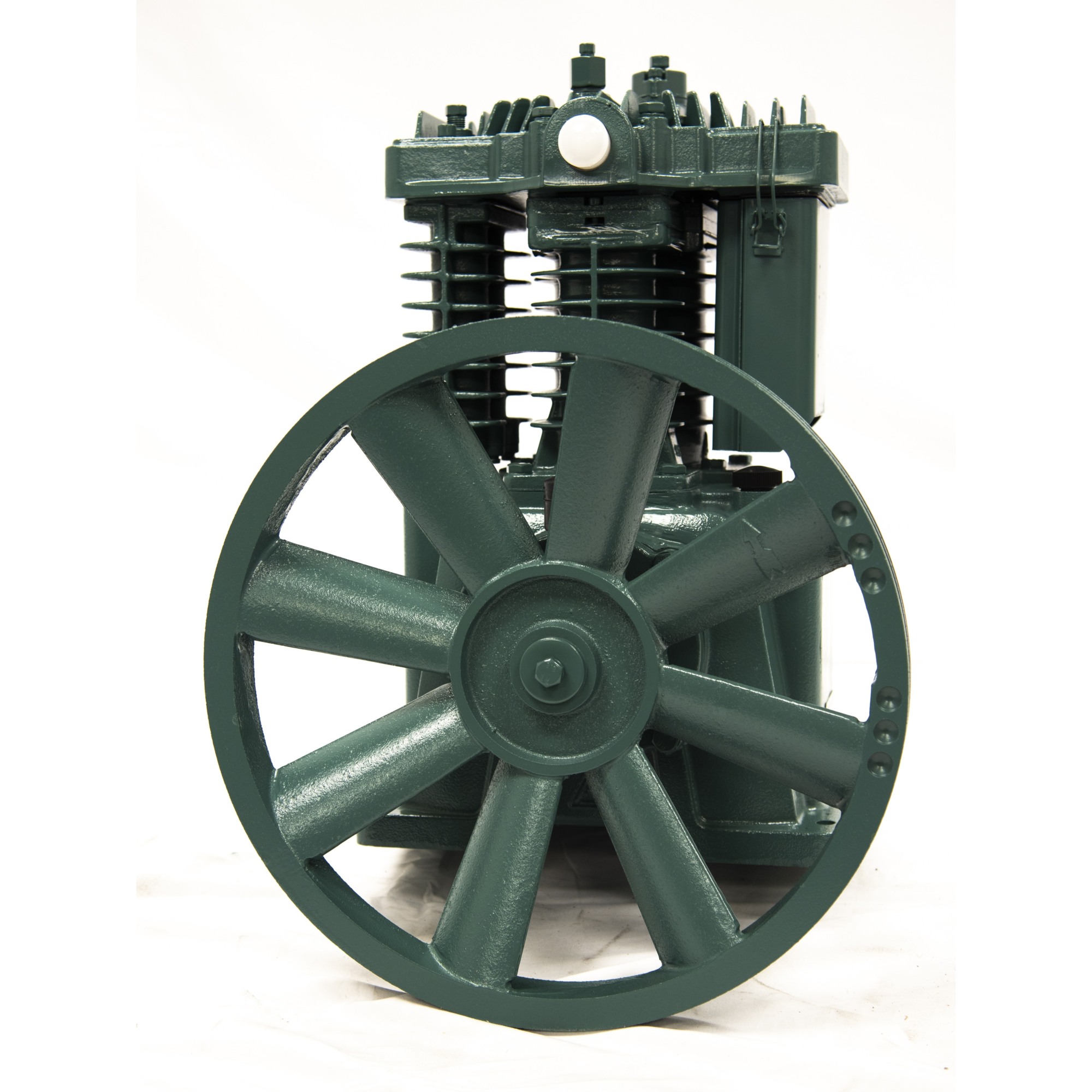

- 100% cast-iron cylinders and cylinder heads – Superior heat dissipation and structural integrity
- Long-lasting, corrosion-resistant crankshaft – Engineered for years of continuous operation
- Deep-finned cast-iron cylinders and cylinder head – Cool operation even under heavy loads
- Slow-turning pump design – Lower RPM operation extends pump life and reduces wear
- Industrial-grade main roller bearings – Precision fit for support of all rotating parts
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Air Compressor
Features + Benefits
- 100% cast-iron cylinders and cylinder heads – Superior heat dissipation and structural integrity
- Long-lasting, corrosion-resistant crankshaft – Engineered for years of continuous operation
- Deep-finned cast-iron cylinders and cylinder head – Cool operation even under heavy loads
- Slow-turning pump design – Lower RPM operation extends pump life and reduces wear
- Industrial-grade main roller bearings – Precision fit for support of all rotating parts
- High-flow, heavy-duty stainless-steel valve system – Delivers more CFM per horsepower with superior corrosion resistance
- Robust intercooler – Increases compressor efficiency and reduces thermal load
- Metal intake filter/silencer – Superior durability compared to plastic alternatives
- ASME air receiver – Certified pressure vessel construction
- Air-cooled aftercooler
- ASME approved safety relief valve – Critical overpressure protection
Key Specs
| Attribute | Specification |
|---|---|
item# | 7511751 |
Brand | FS Curtis |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 580.0 LB |
Horsepower | 7.5 HP |
Air Tank Size | 80 Gal |
Volts | 460 |
Max. PSI | 175 |
Stage | 2 |
Air Outlets (qty.) | 1 |
Amps | 9.7 |
Duty Cycle | 65 % |
Motor RPM | 1,770 |
Working Pressure | 175 PSI |
Motor Phase | 3 |
Pump Material | Cast Iron |
| Attribute | Specification |
|---|---|
Pump Drive | Belt |
Air Outlet Size | 1/2 in. NPT |
CFM at Max. PSI | 23.2 |
Noise Level | 84 dB |
Oil Required | Yes |
Low Oil Shutdown | No |
Lubrication System | Splash |
Pressure Gauge | Yes |
Electronic Drain Valve | No |
After Cooler Included | No |
Air Dryer | None |
Drain Type | Manual |
Tank Orientation | Vertical |
Product Weight | 580.0000 lb |
Dimensions L x W x H (in.) | 39.0 x 37.0 x 77.0 in |
Reviews
Questions & Answers
Questions
Warranty
Manufacturer's Warranty
1 year limited warranty
Compare with Most Popular in Stationary Electric Air Compressors
See All Stationary Electric Air Compressors
See All FS Curtis Stationary Electric Air Compressors
Currently Viewing This Product
Item # 7511751
$4142.76Shipping:
Factory shippedStore Pickup:
Not available - online only
Item # 5778284
$4882.00Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
Item # 5745837
$6018.00Shipping:
Free shipping (lower 48 states) - Factory shippedStore Pickup:
Not available - online only
Item # 5778428
$5299.99Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
Specifications
7.5 HP
5 HP
10 HP
7.5 HP
80 Gal
80 Gal
120 Gal
80 Gal
460
230
200
230
175
175
175
175
2
2
2
2
1
1
1
1
9.7
15.2
32.2
40
65 %
100 %
100 %
100 %
1,770
658
682
896
175 PSI
135-175 PSI
135-175 PSI
135-175 PSI
3
3
3
1
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Belt
-
-
-
1/2 in. NPT
3/4 in. NPT
1 in. NPT
3/4 in. NPT
23.2
17.4
35
23.6
84 dB
-
-
-
Yes
Yes
Yes
Yes
No
Yes
No
-
Splash
Splash
Splash
Pressure
Yes
Yes
Yes
Yes
No
Yes
No
-
No
Yes
No
-
None
-
-
-
Manual
Automatic
Manual
Manual
Vertical
Horizontal
Vertical
Horizontal
580.0000 lb
680.0000 lb
979.0000 lb
720.0000 lb
39.0 x 37.0 x 77.0 in
67.0 x 30.0 x 49.0 in
42.0 x 30.0 x 78.0 in
67.0 x 30.0 x 49.0 in
-
18.1
36
24.4
-
50,000 hr
50,000 hr
60,000 hr
-
-
Electric
-
