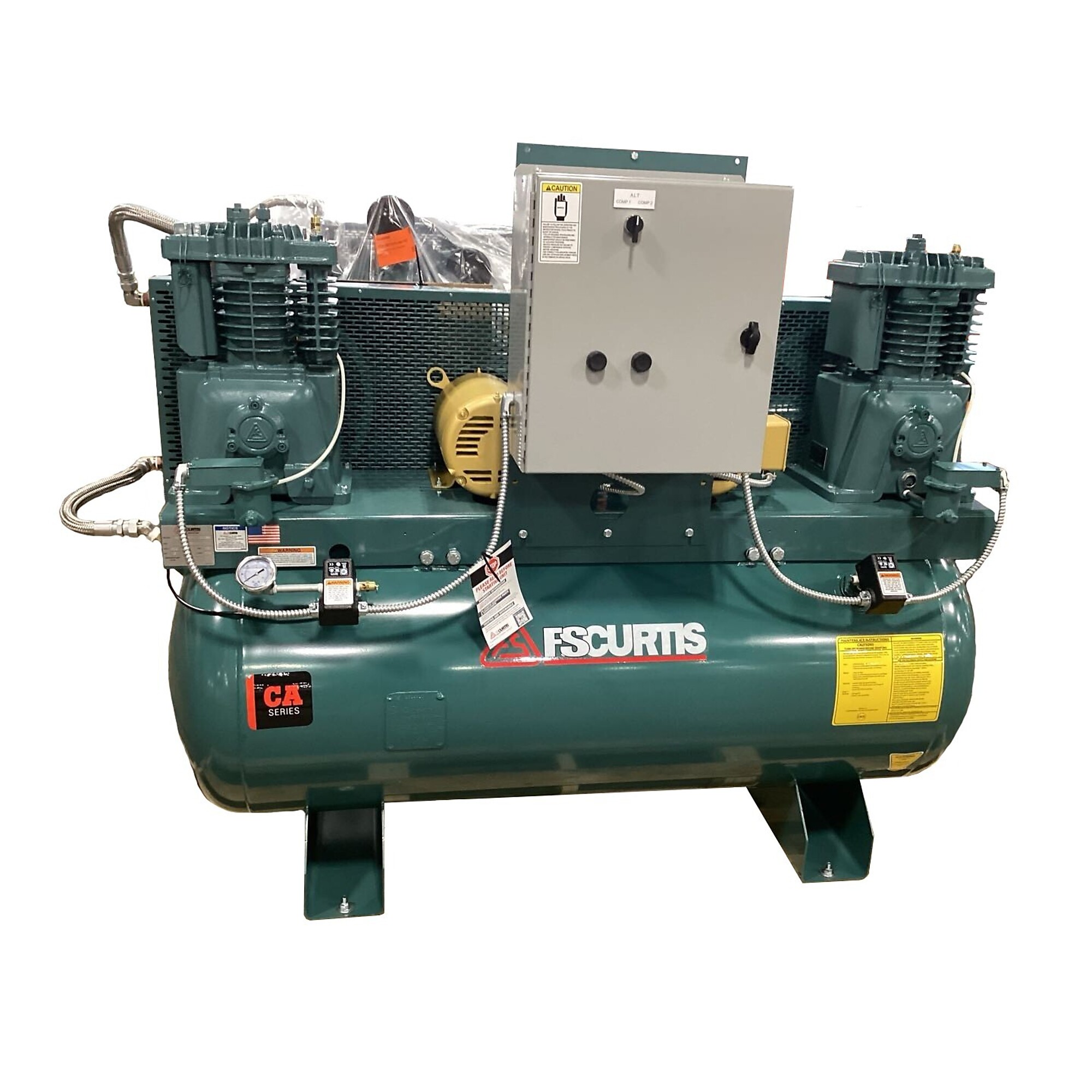

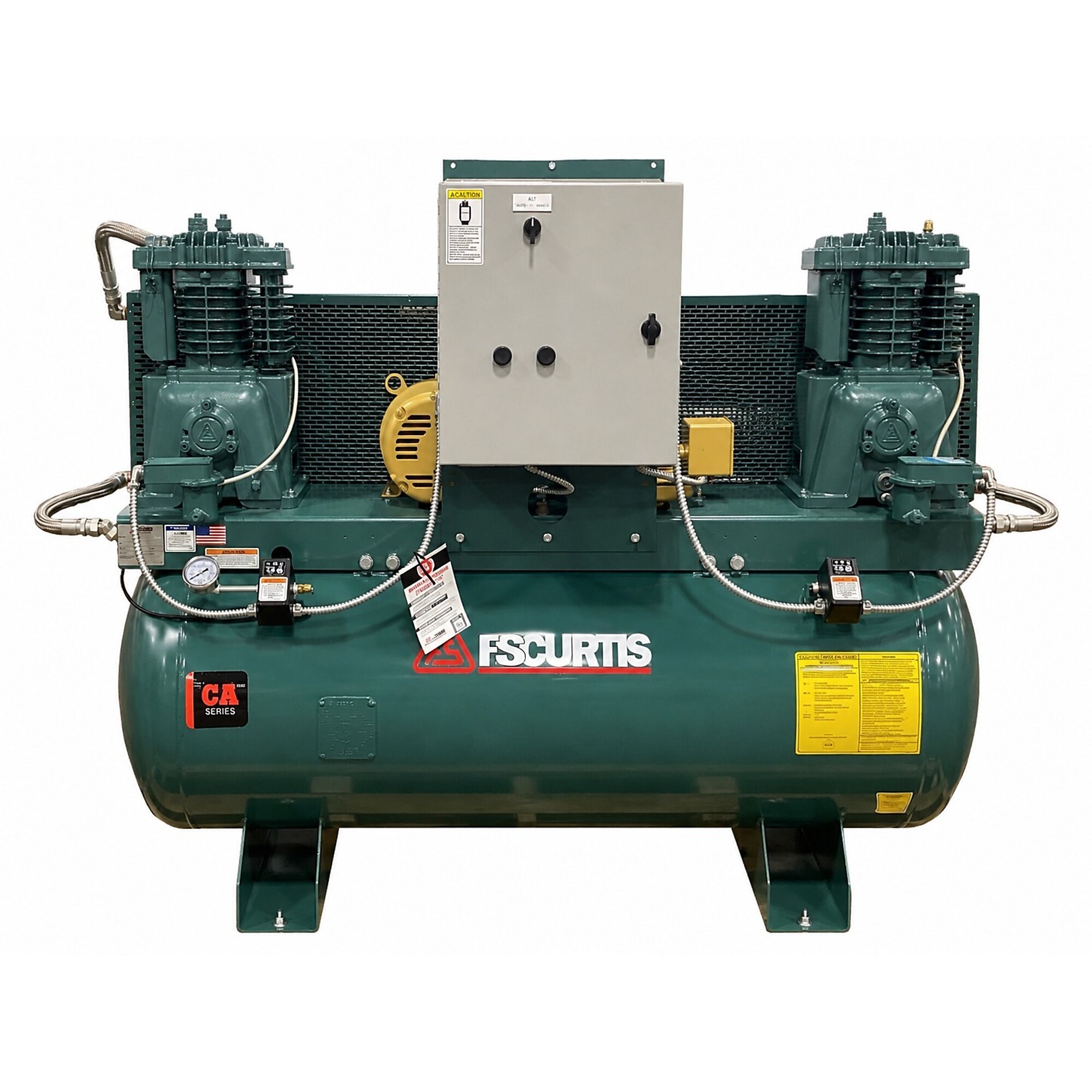

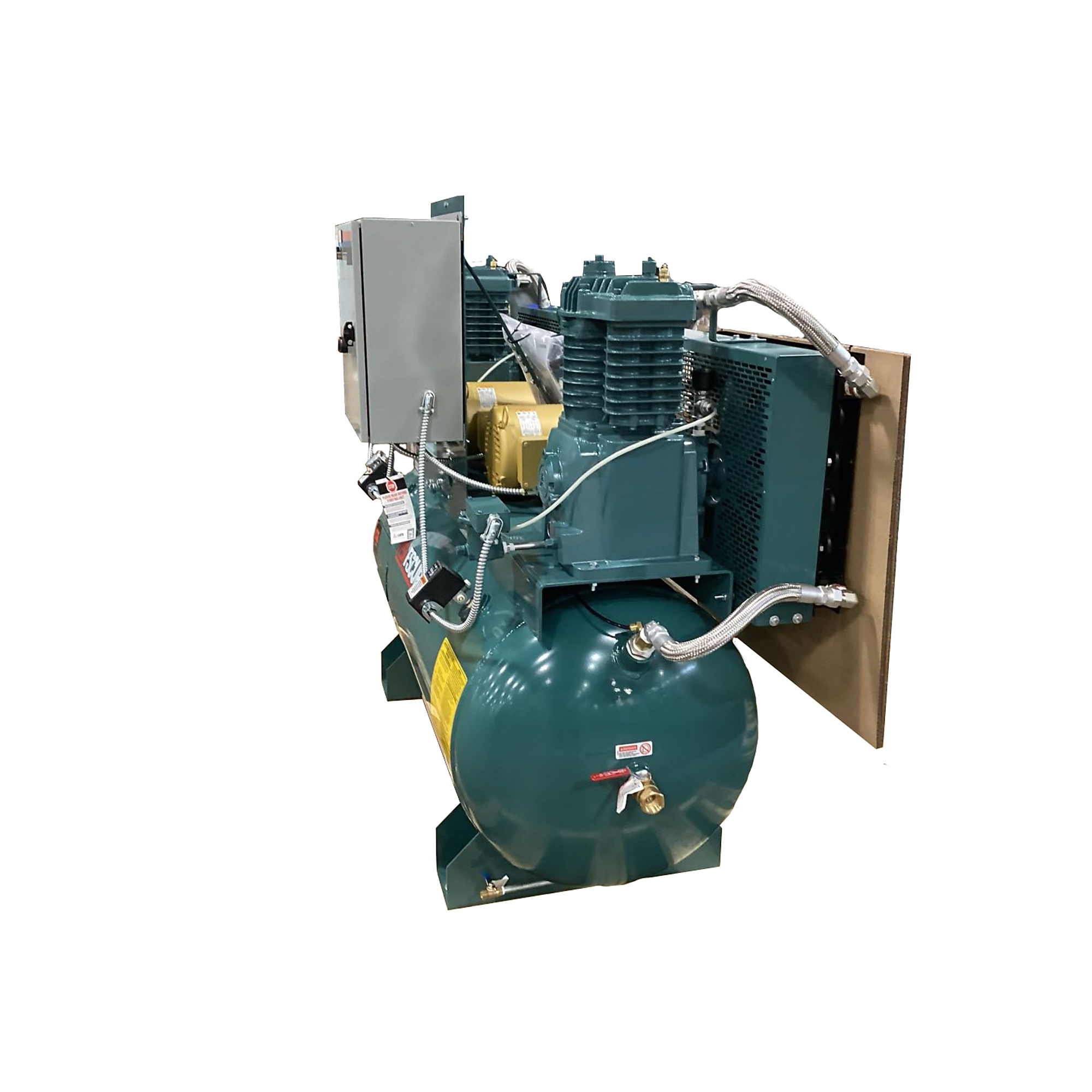

FS Curtis Duplex UltraPack Electric Air Compressor — 230V, 3-Phase, 5 HP x 2, 2-Stage, 120-Gallon, 175 PSI, 18.5 CFM, Model# FCA05E57D1U-A3L1XX

Item# 7320111
FS Curtis Duplex UltraPack Electric Air Compressor — 230V, 3-Phase, 5 HP x 2, 2-Stage, 120-Gallon, 175 PSI, 18.5 CFM, Model# FCA05E57D1U-A3L1XX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

FS Curtis Duplex UltraPack Electric Air Compressor — 230V, 3-Phase, 5 HP x 2, 2-Stage, 120-Gallon, 175 PSI, 18.5 CFM, Model# FCA05E57D1U-A3L1XX

Click or Tap image to Zoom

$11,381.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Duplex design reduces electrical cost and eliminates downtime
  • 100% cast-iron cylinders and cylinder heads – Superior heat dissipation and structural integrity
  • Deep-finned cast-iron cylinders and cylinder head – Cool operation even under heavy loads
  • Slow-turning pump design – Lower RPM operation extends pump life and reduces wear
  • Industrial-grade main roller bearings – Precision fit for support of all rotating parts

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The FS-Curtis CA 5HP Duplex UltraPack delivers reliable compressed air for demanding work environments that need durable performance and added convenience in one complete package. The duplex design is ideal for redundancy, alternating two pumps during constant demand periods. Built on the proven CA Series platform, it combines rugged industrial construction with factory installed features that help save time, reduce maintenance, and improve air quality. It is a strong choice for users who want dependable air power and a compressor package that is ready to get to work. Designed for tough conditions and everyday use, the CA UltraPack brings together the long lasting performance of the CA Series with practical upgrades that make operation easier and more efficient. Its factory packaged design helps simplify installation, while features like the air cooled aftercooler, automatic tank drain, and low oil level shutdown help protect the system and support cleaner, more reliable air delivery. With added components already included, users get more value and less hassle from day one. Built for the kind of work that does not slow down, the CA UltraPack is ready to deliver dependable air power day after day. Its rugged design and factory packaged convenience make it a smart choice for users who need a compressor that can keep up with the demands of the job. It provides the durability, value, and performance professionals expect. FS-Curtis, trusted and dependable since 1854.

What's Included

    (1) Air Compressor

Downloads

Product Manual
Additional Product Info Additional Product Info2

Features + Benefits

  • Duplex design reduces electrical cost and eliminates downtime
  • 100% cast-iron cylinders and cylinder heads – Superior heat dissipation and structural integrity
  • Deep-finned cast-iron cylinders and cylinder head – Cool operation even under heavy loads
  • Slow-turning pump design – Lower RPM operation extends pump life and reduces wear
  • Industrial-grade main roller bearings – Precision fit for support of all rotating parts
  • High-flow, heavy-duty stainless-steel valve system – Delivers more CFM per horsepower with superior corrosion resistance
  • Robust intercooler – Increases compressor efficiency and reduces thermal load
  • Metal intake filter/silencer – Superior durability compared to plastic alternatives
  • Heavy-duty stamped-steel belt guard – OSHA approved totally enclosed design
  • Suction valve head unloaders – For continuous running air compressors
  • Magnetic motor starter – Reliable electrical control for smooth operation
  • Oil sight glass – Quick visual inspection of lubricant level
  • Horizontal tank configuration – Space-saving design with 120-gallon capacity
  • Factory oil filled and splash lubricated – Ready to run out of the box
  • Long-lasting, corrosion-resistant crankshaft – Engineered for years of continuous operation
  • Automatic tank drain – Easy maintenance and moisture removal
  • Air-cooled aftercooler
  • UL approved pressure switch – Safety-certified electrical components
  • ASME approved safety relief valve – Critical overpressure protection
  • Slow V-belt drive – Reduces wear and extends component life

Key Specs

AttributeSpecification

item#

7320111

Brand

FS Curtis

Manufacturer's Warranty

1 year limited warranty

Ship Weight

975.0 LB

Air Tank Size

120 Gal

Volts

230

Motor Phase

3

Stage

2

Tank Orientation

Horizontal

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

13.2

Duty Cycle

70 %

Motor RPM

1,750

Working Pressure

175 PSI
AttributeSpecification

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

37

Noise Level

84 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Air Dryer

None

Drain Type

Automatic

Product Weight

975.0000 lb

Dimensions L x W x H (in.)

78.0 x 31.0 x 53.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
