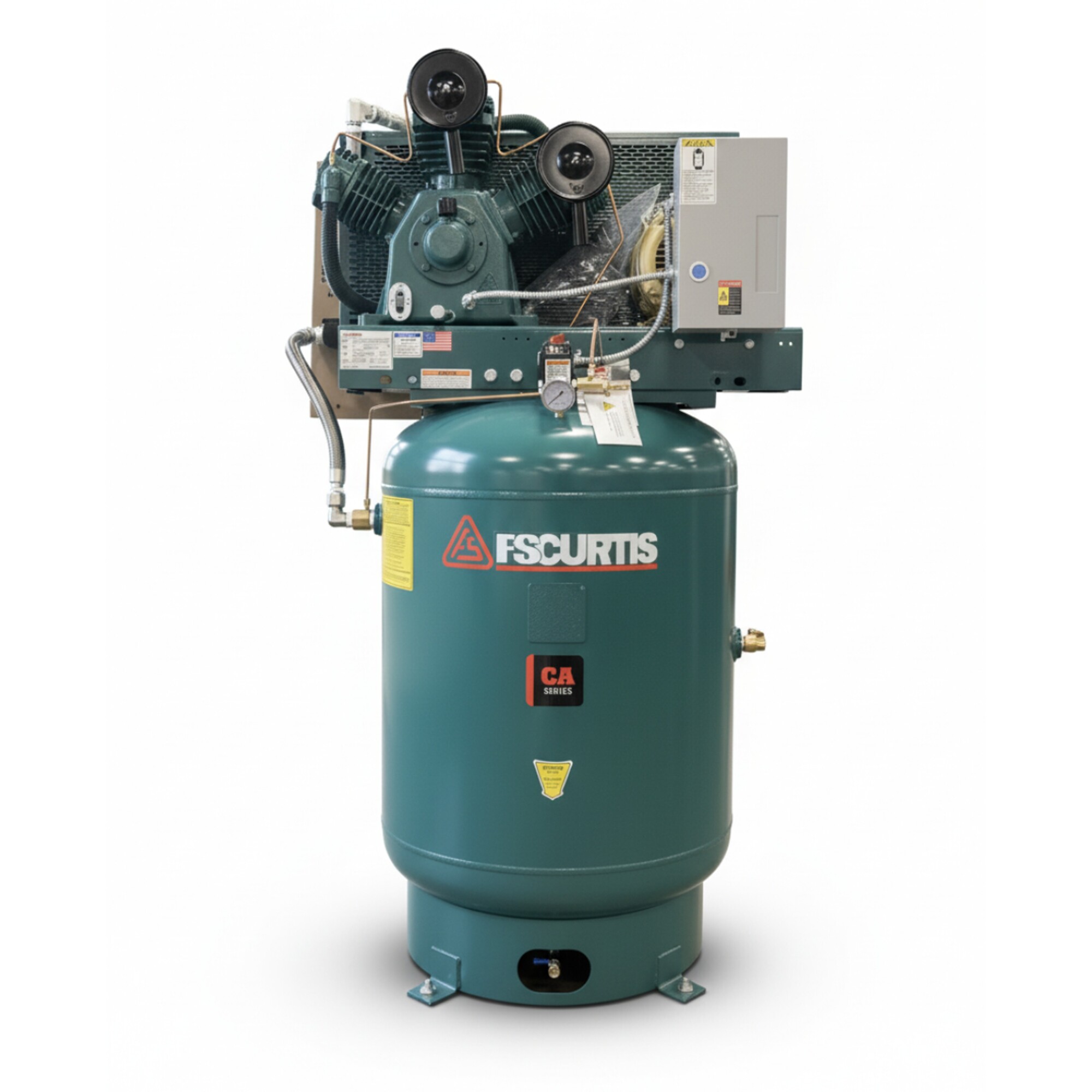

FS Curtis CA10 UltraPack 2-Stage Electric Air Compressor — 10 HP, 230V, 3-Phase, 120-Gallon, 175 PSI, 34.2 CFM, Model# FCA10E71V1U-D3L1XX

Item# 7320154
FS Curtis CA10 UltraPack 2-Stage Electric Air Compressor — 10 HP, 230V, 3-Phase, 120-Gallon, 175 PSI, 34.2 CFM, Model# FCA10E71V1U-D3L1XX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

FS Curtis CA10 UltraPack 2-Stage Electric Air Compressor — 10 HP, 230V, 3-Phase, 120-Gallon, 175 PSI, 34.2 CFM, Model# FCA10E71V1U-D3L1XX

Click or Tap image to Zoom

$7058.12

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 100% cast-iron cylinders and cylinder heads – Superior heat dissipation and structural integrity
  • Long-lasting, corrosion-resistant crankshaft – Engineered for years of continuous operation
  • Deep-finned cast-iron cylinders and cylinder head – Cool operation even under heavy loads
  • Slow-turning pump design – Lower RPM operation extends pump life and reduces wear
  • Industrial-grade main roller bearings – Precision fit for support of all rotating parts

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The FS-Curtis CA 10HP UltraPack delivers reliable compressed air for demanding work environments that need durable performance and added convenience in one complete package. Built on the proven CA Series platform, it combines rugged industrial construction with factory installed features that help save time, reduce maintenance, and improve air quality. It is a strong choice for users who want dependable air power and a compressor package that is ready to get to work. Designed for tough conditions and everyday use, the CA UltraPack brings together the long lasting performance of the CA Series with practical upgrades that make operation easier and more efficient. Its factory packaged design helps simplify installation, while features like the air cooled aftercooler, automatic tank drain, and low oil level shutdown help protect the system and support cleaner, more reliable air delivery. With added components already included, users get more value and less hassle from day one. Built for the kind of work that does not slow down, the CA UltraPack is ready to deliver dependable air power day after day. Its rugged design and factory packaged convenience make it a smart choice for users who need a compressor that can keep up with the demands of the job. It provides the durability, value, and performance professionals expect. FS-Curtis, trusted and dependable since 1854.

What's Included

    (1) Air Compressor

Downloads

Additional Product Info Additional Product Info2

Features + Benefits

  • 100% cast-iron cylinders and cylinder heads – Superior heat dissipation and structural integrity
  • Long-lasting, corrosion-resistant crankshaft – Engineered for years of continuous operation
  • Deep-finned cast-iron cylinders and cylinder head – Cool operation even under heavy loads
  • Slow-turning pump design – Lower RPM operation extends pump life and reduces wear
  • Industrial-grade main roller bearings – Precision fit for support of all rotating parts
  • High-flow, heavy-duty stainless-steel valve system – Delivers more CFM per horsepower with superior corrosion resistance
  • Robust intercooler – Increases compressor efficiency and reduces thermal load
  • Metal intake filter/silencer – Superior durability compared to plastic alternatives
  • Heavy-duty stamped-steel belt guard – OSHA approved totally enclosed design
  • Suction valve head unloaders – For continuous running air compressors
  • Magnetic motor starter – Reliable electrical control for smooth operation
  • Automatic tank drain – Easy maintenance and moisture removal
  • Oil sight glass – Quick visual inspection of lubricant level
  • Vertical tank configuration – Space-saving design with 120-gallon capacity
  • Factory oil filled and splash lubricated – Ready to run out of the box
  • ASME air receiver – Certified pressure vessel construction
  • Air-cooled aftercooler
  • ASME approved safety relief valve – Critical overpressure protection
  • ASME approved discharge air service valve – Industrial-grade air outlet
  • Slow V-belt drive – Reduces wear and extends component life

Key Specs

AttributeSpecification

item#

7320154

Brand

FS Curtis

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1026.0 LB

Horsepower

10 HP

Air Tank Size

120 Gal

Volts

230

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Amps

25

Duty Cycle

65 %

Motor RPM

1,770

Working Pressure

175 PSI

Motor Phase

3

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

CFM at Max. PSI

34.2

Noise Level

86 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Air Dryer

None

Drain Type

Automatic

Tank Orientation

Vertical

Product Weight

1026.0000 lb

Dimensions L x W x H (in.)

45.0 x 34.0 x 80.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
