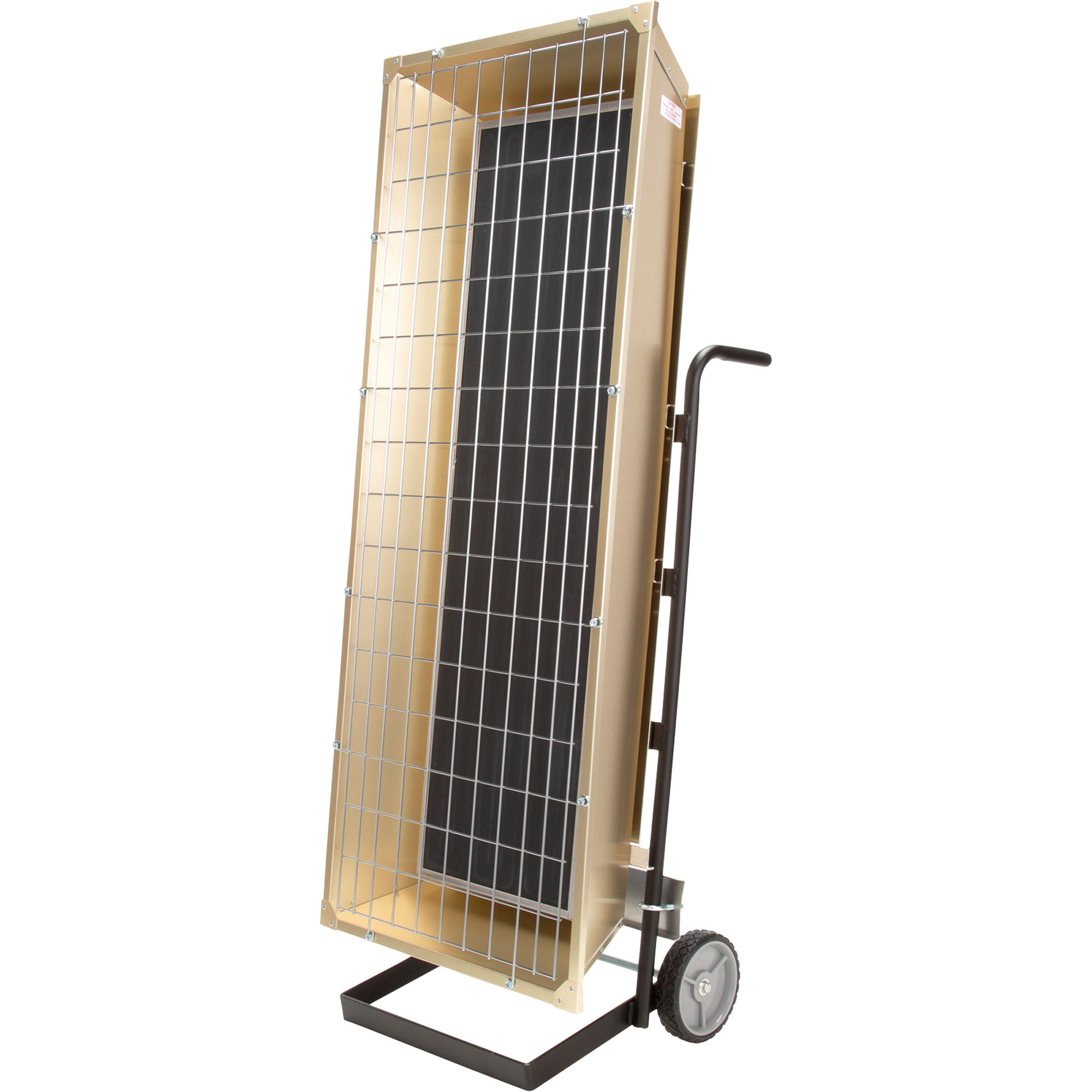

Fostoria Portable Electric Heater, 32,414 BTU, Model# FSP-9524-3

Item# 52488
Fostoria Portable Electric Heater, 32,414 BTU, Model# FSP-9524-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Portable Electric Heater, 32,414 BTU, Model# FSP-9524-3

Click or Tap image to Zoom

$2226.56

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 32,414 BTU output
  • Gold anodized aluminum housing with protected guards
  • 60° symmetrical heat distribution of infrared energy
  • Electrical enclosure for direct wire installation
  • Wired for 3-phase electrical service but can be converted to single phase

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Fostoria Portable Electric Heater by TPI is a powerful flat panel unit designed to warm people and objects comfortably from overhead. Ideal for use indoors or in protected outdoor environments, including spot heating for steel mills and other high-bay industrial facilities, warehouses, workstations and material handling areas. This unit features gold anodized aluminum housing with protected guards, 60° symmetrical heat distribution of infrared energy and electrical enclosure for direct wire installation. Wired for 3-phase electrical service but can be converted to single phase. Elements are designed without glass for rugged environments and have a life expectancy of 25,000 hours. Operates at 78.5% efficiency to cover 400–500 sq. ft. 17-1/2in.W x 20in.D x 53in.H. Includes wheeled cart for easy transport. Made in the U.S.A.

What's Included

    (1) Heater (1) Wheeled cart

Downloads

Product Manual

Features + Benefits

  • 32,414 BTU output
  • Gold anodized aluminum housing with protected guards
  • 60° symmetrical heat distribution of infrared energy
  • Electrical enclosure for direct wire installation
  • Wired for 3-phase electrical service but can be converted to single phase
  • 25,000-hour element life expectancy
  • Operates at 78.5% efficiency to cover 400–500 sq. ft.
  • 17-1/2in.W x 20in.D x 53in.H
  • Includes wheeled cart for easy transport

Key Specs

AttributeSpecification

item#

52488

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

60.0 LB

Heat Type

Radiant

Heat Output

32,414 Btu/hour

Heating Capability

400 ft²

Hardwired

No

Indoor-Outdoor Use

Indoor and Outdoor

Volts

240
AttributeSpecification

Watts

9,500

Amps

22.9

Assembled Width

17.5 in

Assembled Height

53 in

Assembled Depth

20 in

Remote Included

No

Blower Included

No

Product Weight

lb

Dimensions L x W x H (in.)

17.5 x 20.0 x 53.0 in

Reviews

Questions & Answers

Questions

  1. Can this be run on 208V 3Ph?

    1 answer

    1. This Fostoria electric heater would need to be run on 240 volt in the 3 phase power. The manufacturer offers model # FSP-9520-3 which is run on 208 volt in the 3 phase power but we do not currently offer this model in our inventory.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
