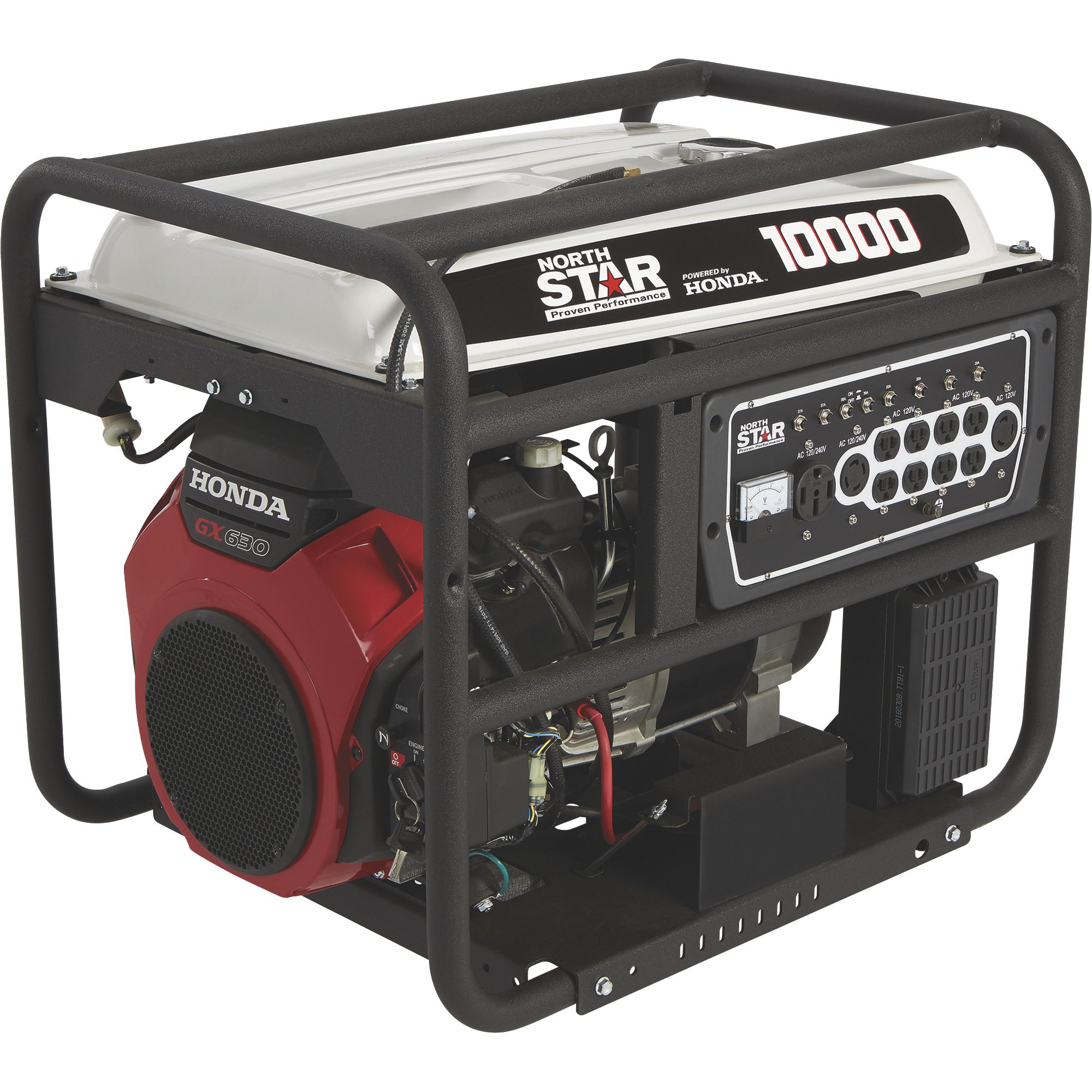

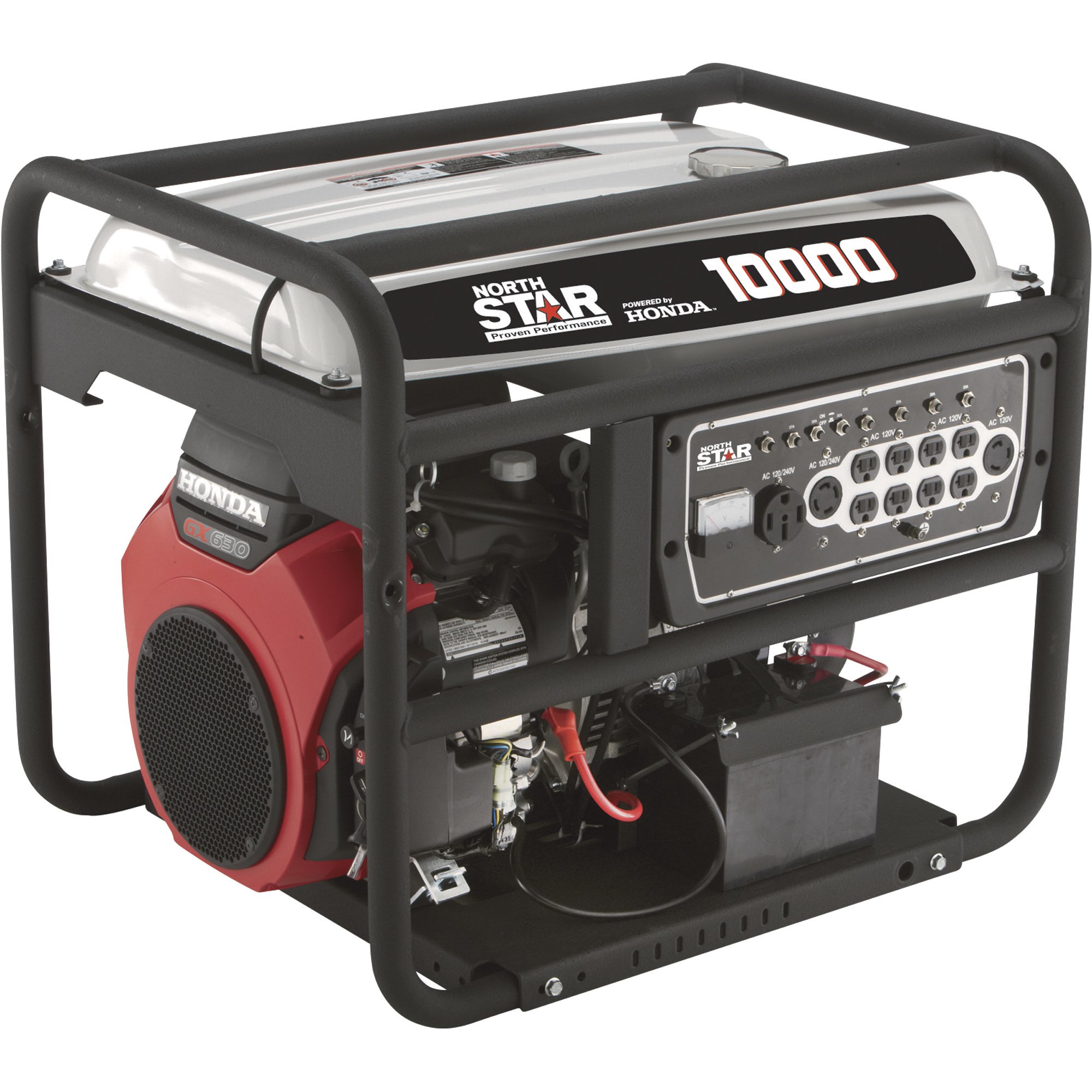

For Sale in California Only — NorthStar Portable Generator — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

Item# C165605
For Sale in California Only — NorthStar Portable Generator — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

For Sale in California Only — NorthStar Portable Generator — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

Click or Tap image to Zoom

  • Variable Timing Digital CDI ignition offers excellent starting and high-power output
  • Low oil shutdown protects engine
  • Volt and hour meters allow for convenient monitoring
  • Full roll cage protection with antirip mounts
  • Solid base prevents grass, dirt and dust from getting into the engine and alternator

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Rugged, newly designed NorthStar® 10,000 Watt Generator features a smaller footprint and the latest Honda V-Twin engine to deliver more power, use less fuel and run quieter.

What's Included

  • (1) Generator

Features + Benefits

  • Variable Timing Digital CDI ignition offers excellent starting and high-power output
  • Low oil shutdown protects engine
  • Volt and hour meters allow for convenient monitoring
  • Full roll cage protection with antirip mounts
  • Solid base prevents grass, dirt and dust from getting into the engine and alternator
  • V-mount vibration isolation system extends generator life
  • High-quality 100% copper-wound head with low THD for safe use with sensitive equipment
  • CARB compliant
  • Requires battery (sold separately)

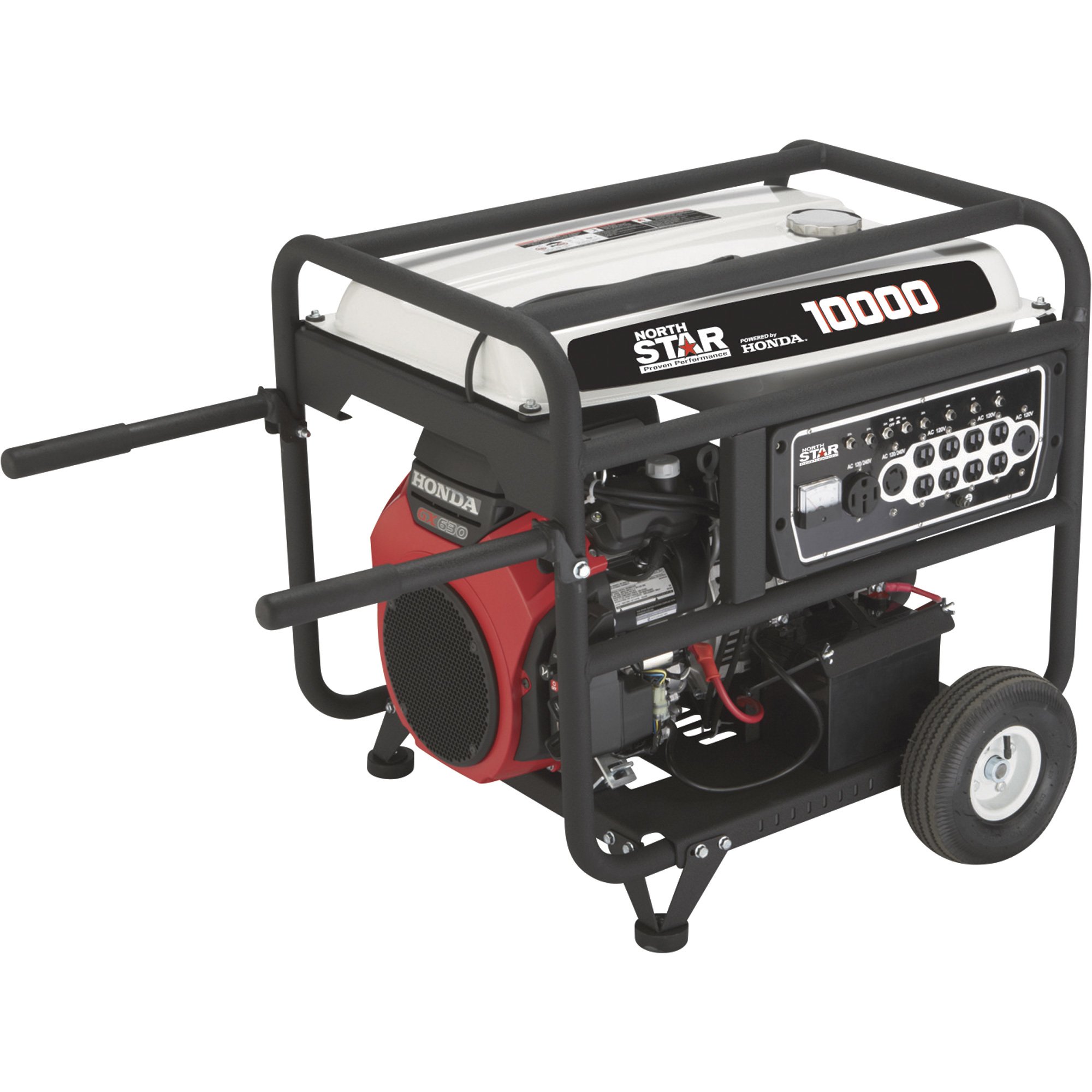

  • Optional wheel kit, Item# 165621, adds convenient portability

Key Specs

AttributeSpecification

item#

C165605

Brand

NorthStar

Manufacturer's Warranty

24 months parts / 24 months labor

Ship Weight

355.0 LB

Surge Watts

10,000

Rated Watts

8,500

Fuel Type

Gasoline

Engine Displacement

688 cc

Noise Level

79 dB
AttributeSpecification

Start Type

Electric

Fuel Capacity

11 Gal

Half-Load Run Time

11 hr

Battery Required

Yes

Battery Included

No

Low Oil Shutdown

Yes

CARB Compliant

Yes

Dimensions L x W x H (in.)

32 3/8 x 24 3/8 x 26 7/8

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–10 of 29 Questions
Sort by:

  1. Can this unit be "jump started" if the battery is dead, from a motor vehicle?

    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. Yes, it is a 12 Volt System

      Helpful?

    2. Any charged 12 volt battery in or out of a vehicle can jump start this generator. Jumper cables need to be removed as soon as the generator starts.

      Helpful?

  2. Can the 120/250v 50 amp outlet and the 120/240v 30 amp outlet be used simultaneously?

    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. yes, you can use every port simultaneously UP TO the the highest load rating for the generator

      Helpful?

    2. You can use both the 30 amp and 50 amp outlets at the same time as long as you are not drawing more than the generators capacity.

      Helpful?

  3. Is this generator safe for running sensitive electronic equipment

    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. It is best to place a surge protector in line. The power is very clean for this type of unit.

      Helpful?

    2. Our NorthStar generator is safe to use with sensitive equipment.

      Helpful?

  4. Without idle control will this engine go directly to 3,600 rpm without a chance to warm up?

    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. Yes, it goes directly to the higher RPM at the start.

      Helpful?

    2. Yes, this NorthStar generator will operate at 3600 RPM at all times.

      Helpful?

  5. Are the outlets Ground fault protected?

    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. Mine are not. I have an older model, but I would not suspect they are.

      I see no way to test or reset them on the new unit.

      Helpful?

    2. This NorthStar Generator does not have ground fault protected outlets, we recommend using a ground fault circuit interrupter (GFCI) protected extension cord.

      Helpful?

  6. What is the battery SKU# for this generator

    1 answer
    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. The item number for the battery is 48737.

      Helpful?

  7. When using the four(4) 120v 20amp outlets, which outlets are on which hot leg of the power circuits? For the sake of keeping the load as balanced as possible, is it 'X' on the left & 'Y' on the right? or perhaps every other one? Thanks!

    1 answer
    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. On the generator panel the four 120 volt 20 amps outlets on the left are 1 leg and the 4 outlets on the right are 1 leg.

      Helpful?

  8. Is there voltage from neutral to ground

    When measuring voltage with a multimeter from ground to neutral is there any voltage.

    1 answer
    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. When measuring voltage from ground to neutral, you would have some resistance but should not have any voltage.

      Helpful?

  9. How do you check how many hours are used on this generator.

    1 answer
    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

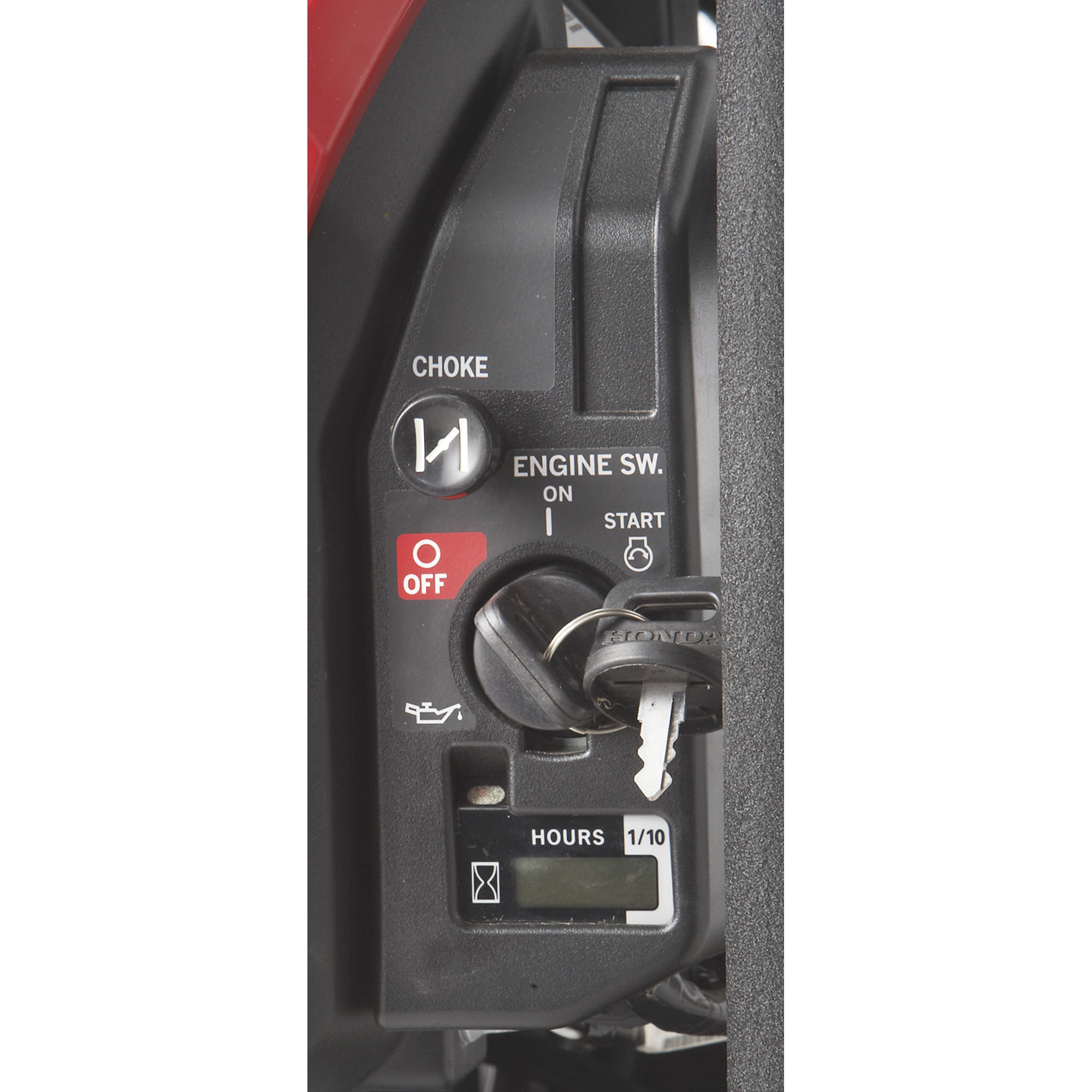

    1. This unit will include an hour meter on the engine switch box.

      Helpful?

  10. Engine question?

    Does the GX630 engine use cast iron cylinder sleeves?

    1 answer
    Originally posted on NorthStar Portable Generator with Honda GX630 OHV Engine — 10,000 Surge Watts, 8500 Rated Watts, Electric Start, CARB Compliant

    1. This engine has cast iron cylinder liners/sleeves.

      Helpful?
