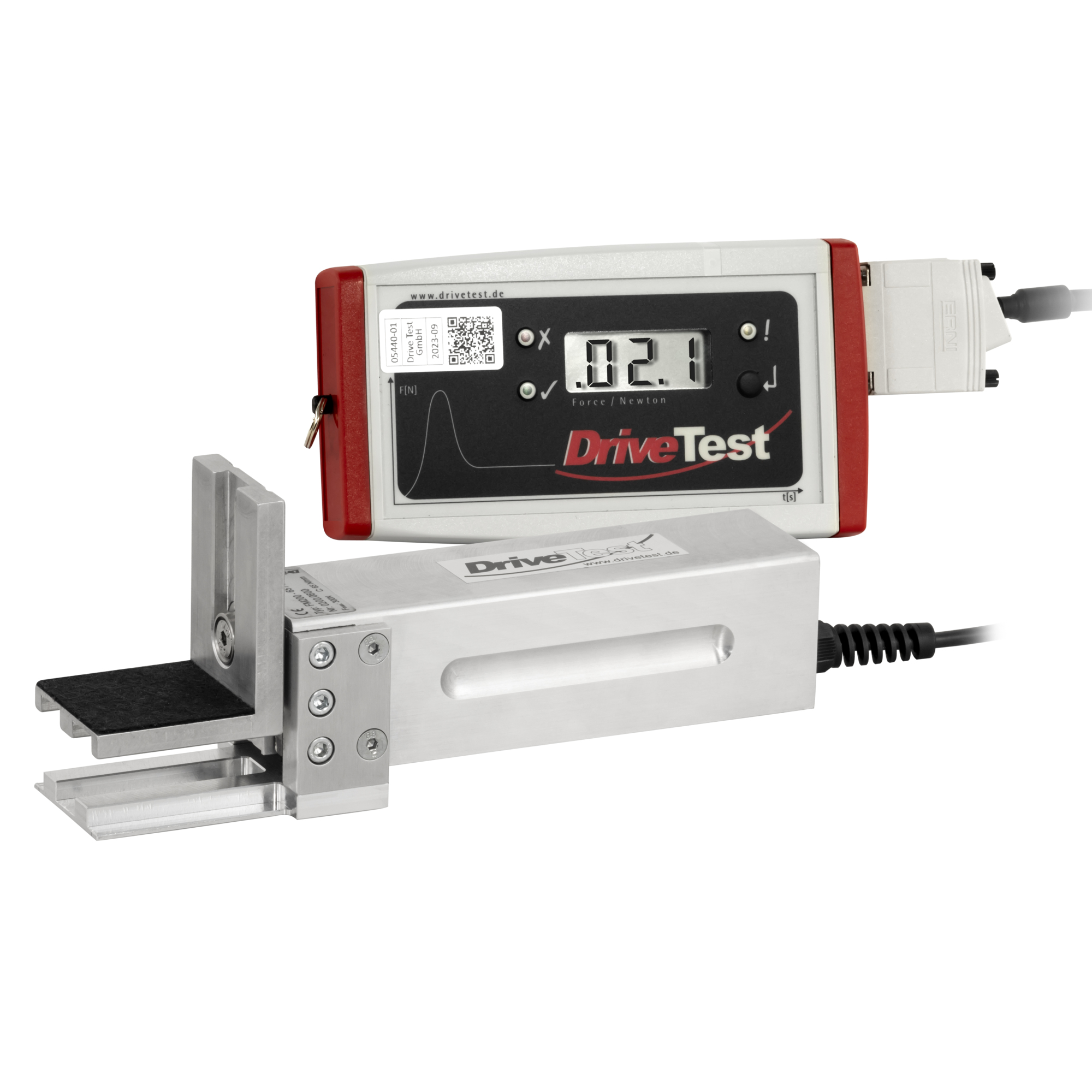

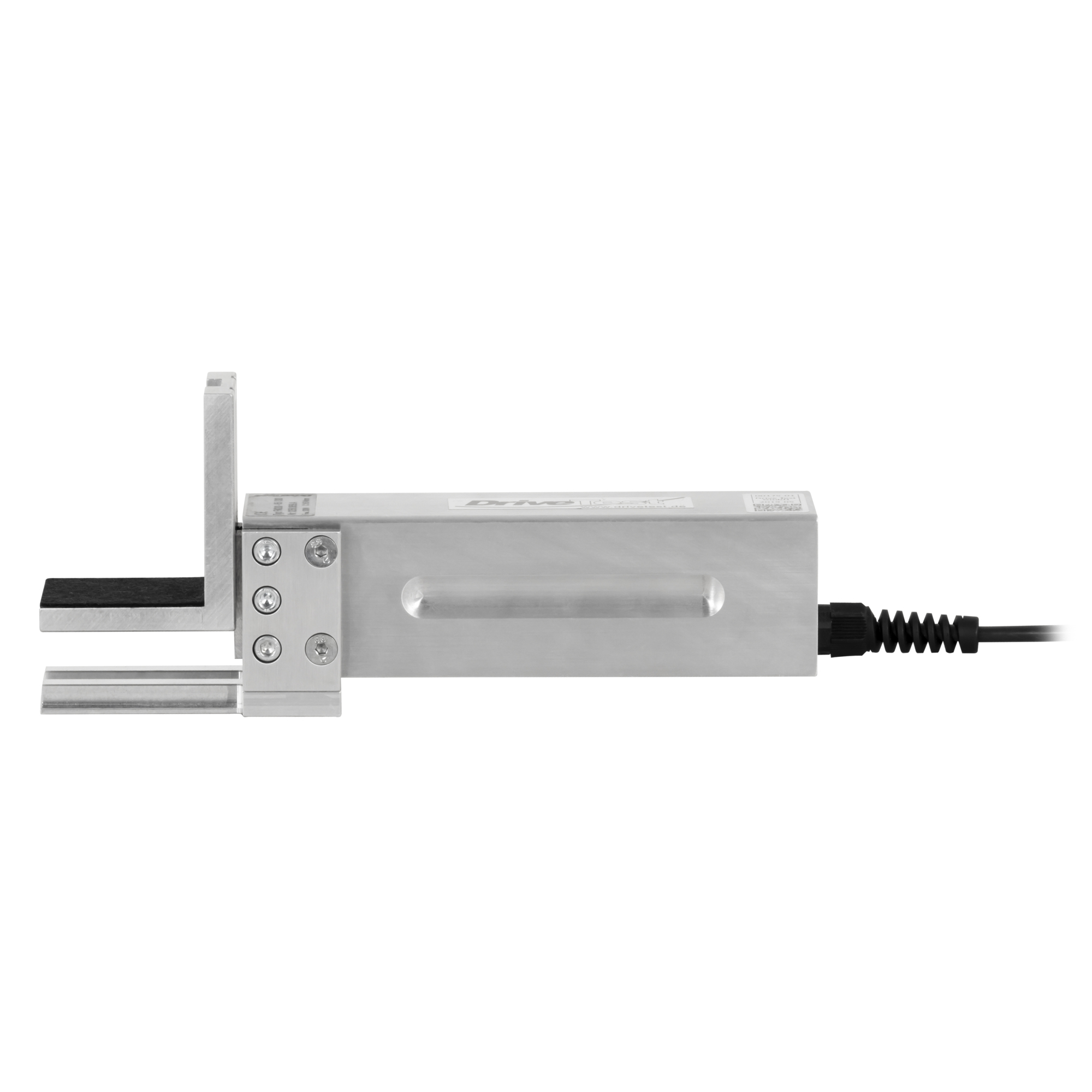

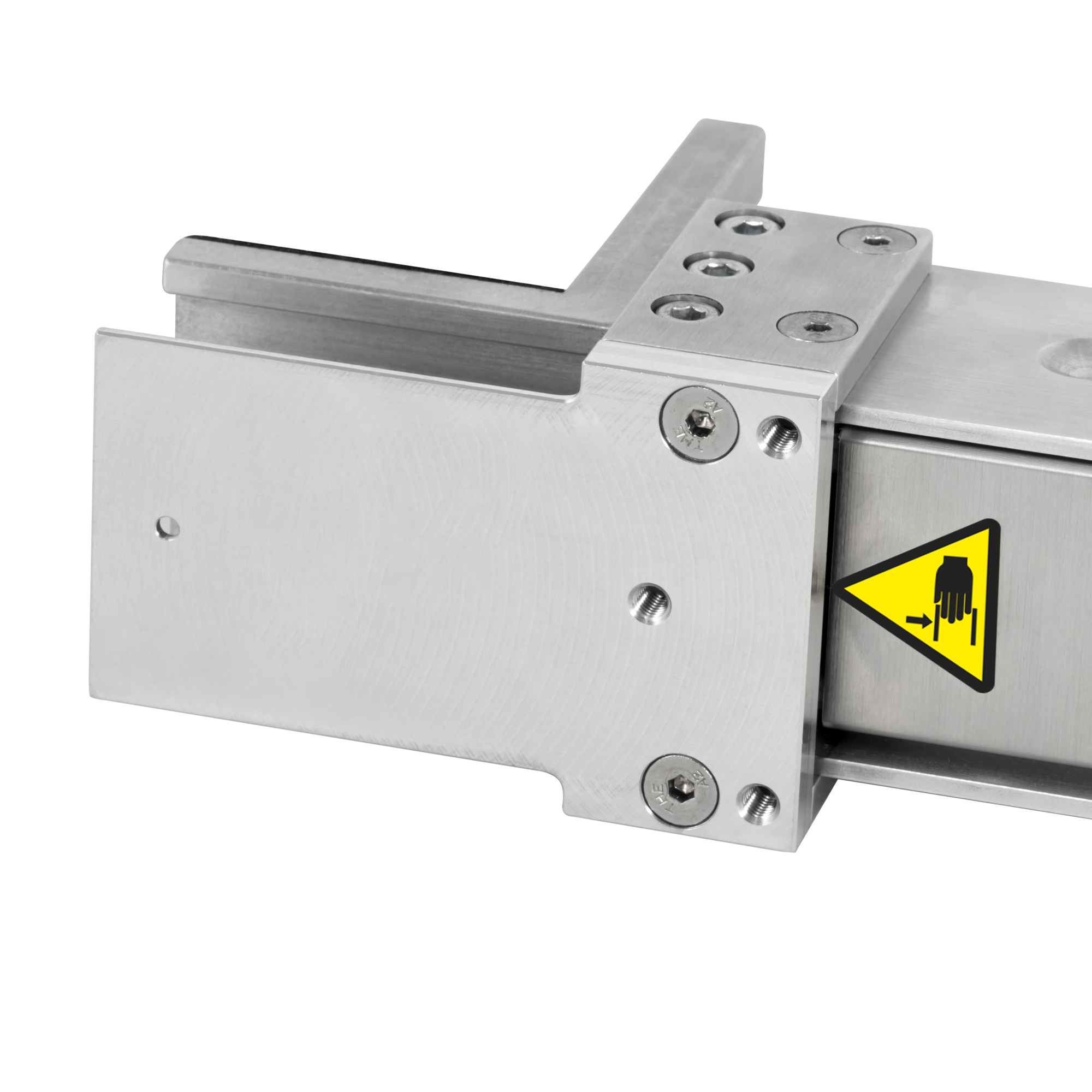

PCE FM200 Electronic Force Transducer — For Power-Operated Windows, Sunroofs, Tailgates, Model# FM200-SU-SY-10-200
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom

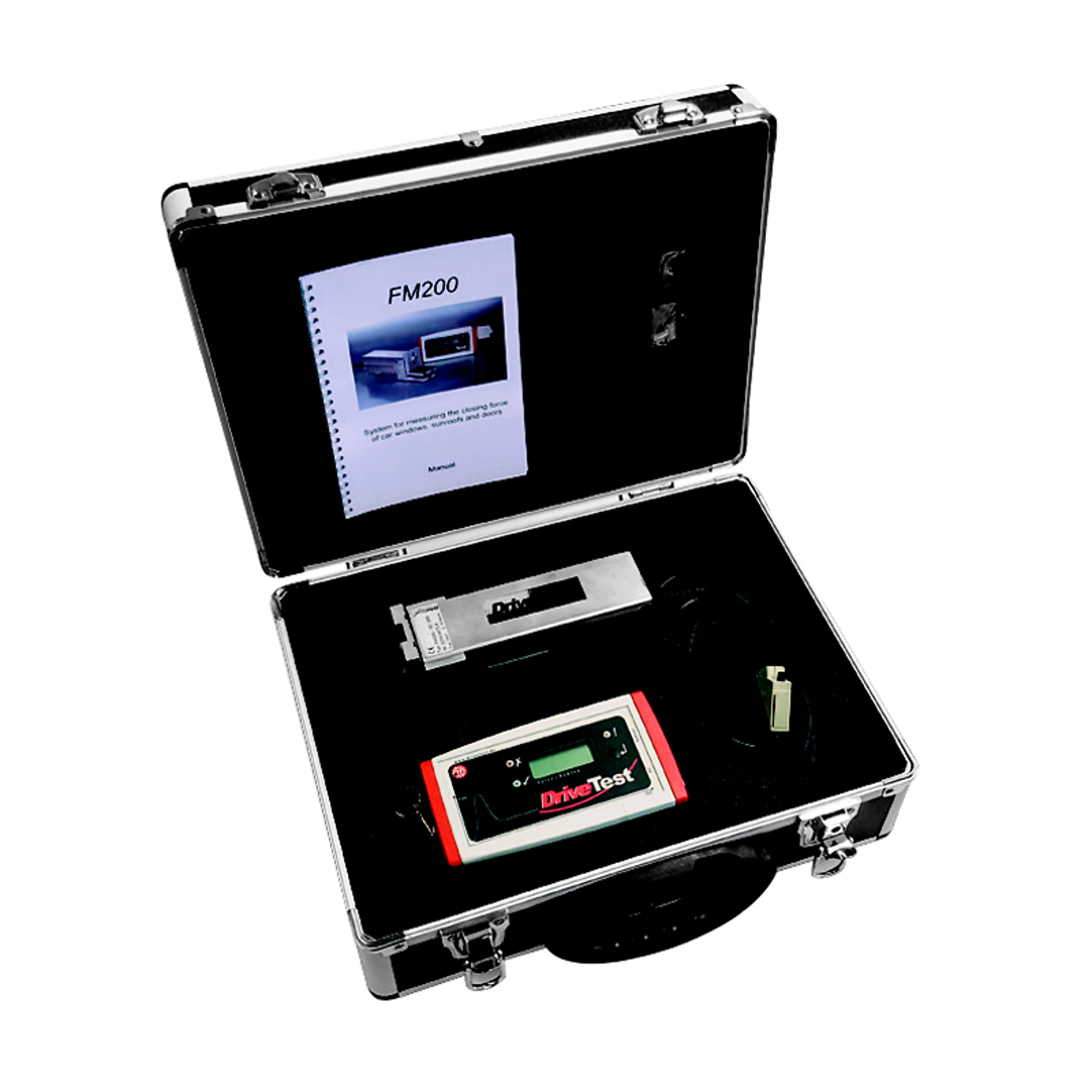

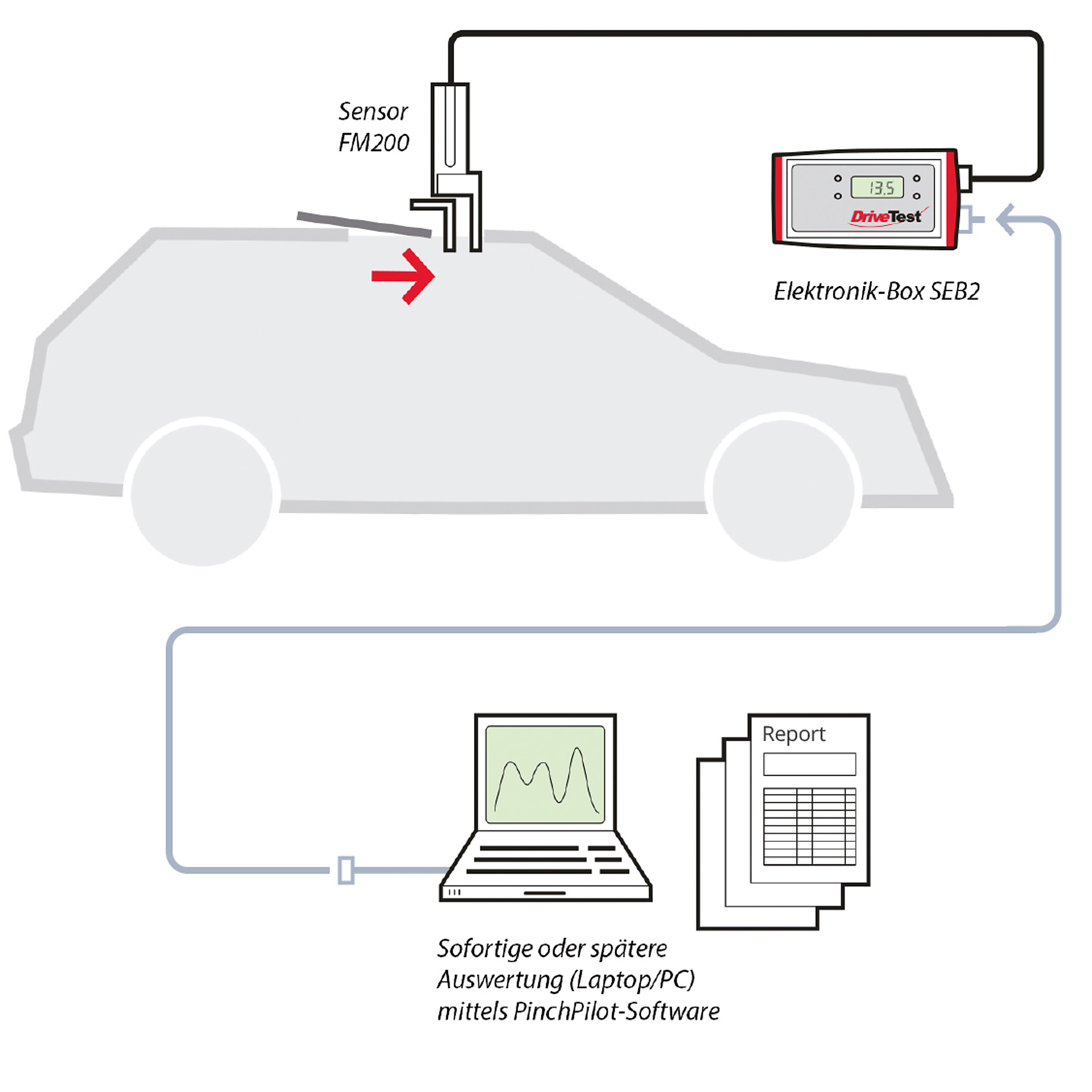

- Support of relevant standards – 2000/4 EG, US Standard FMVSS 118 Precise measurements due to friction-free guidance and platform load cell Robust design Ease of use – single button operation or remote via Microsoft® DLL interface or National Instruments ® LabVIEW library Complete scope of delivery including high-quality transport case and software Professional, comprehensive PC software – PinchPilot Comprehensive user support calibration service, standard change service ensures the application of the latest version of the standard Flexible adjustment made possible by a variety of available force introductions: Customizations also available from DriveTest
- Measuring range: 0 ... 200 N
- Resolution: 1 N
- Accuracy: ±3 N or 3% of the value
- Stiffness: 10 N/mm
See full description
