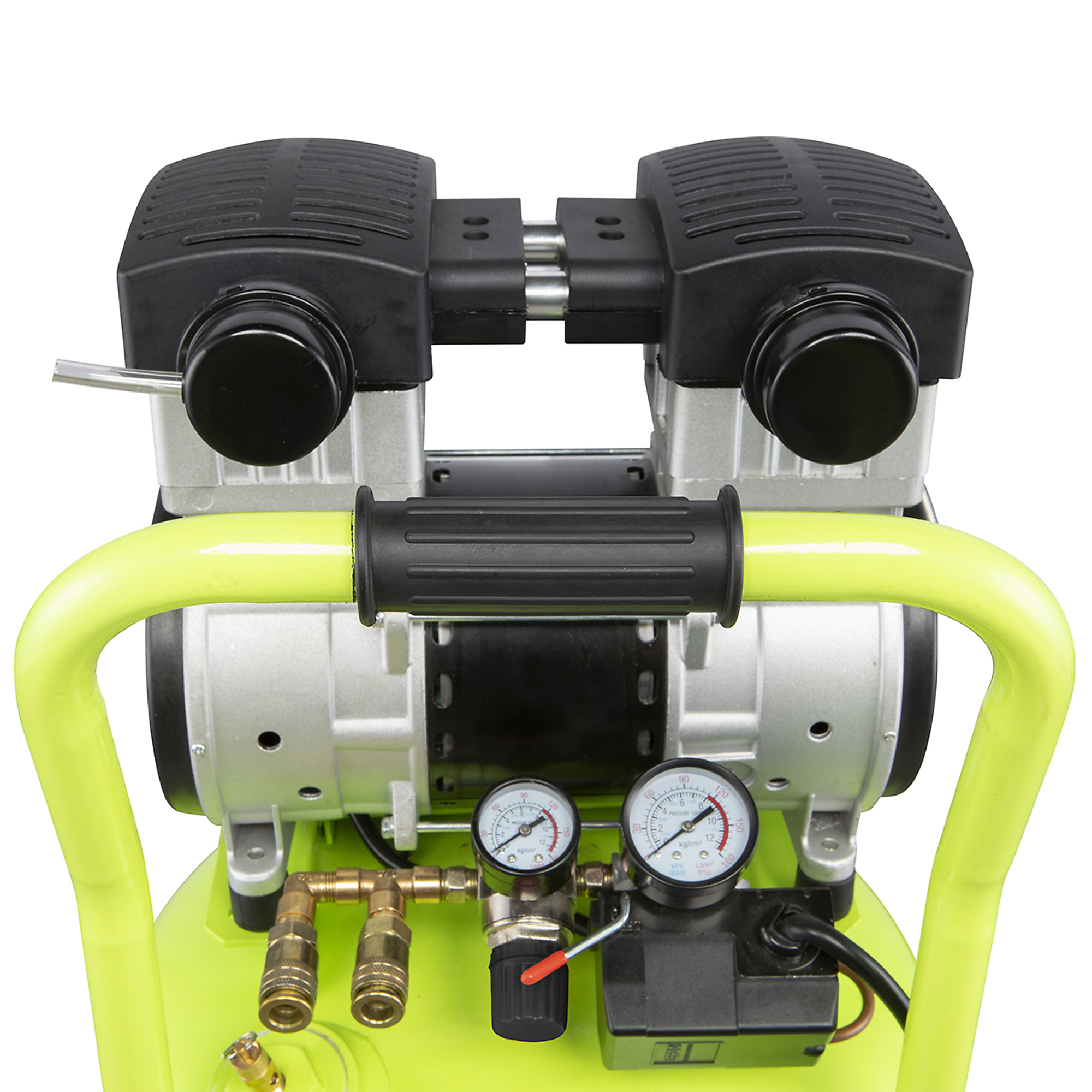

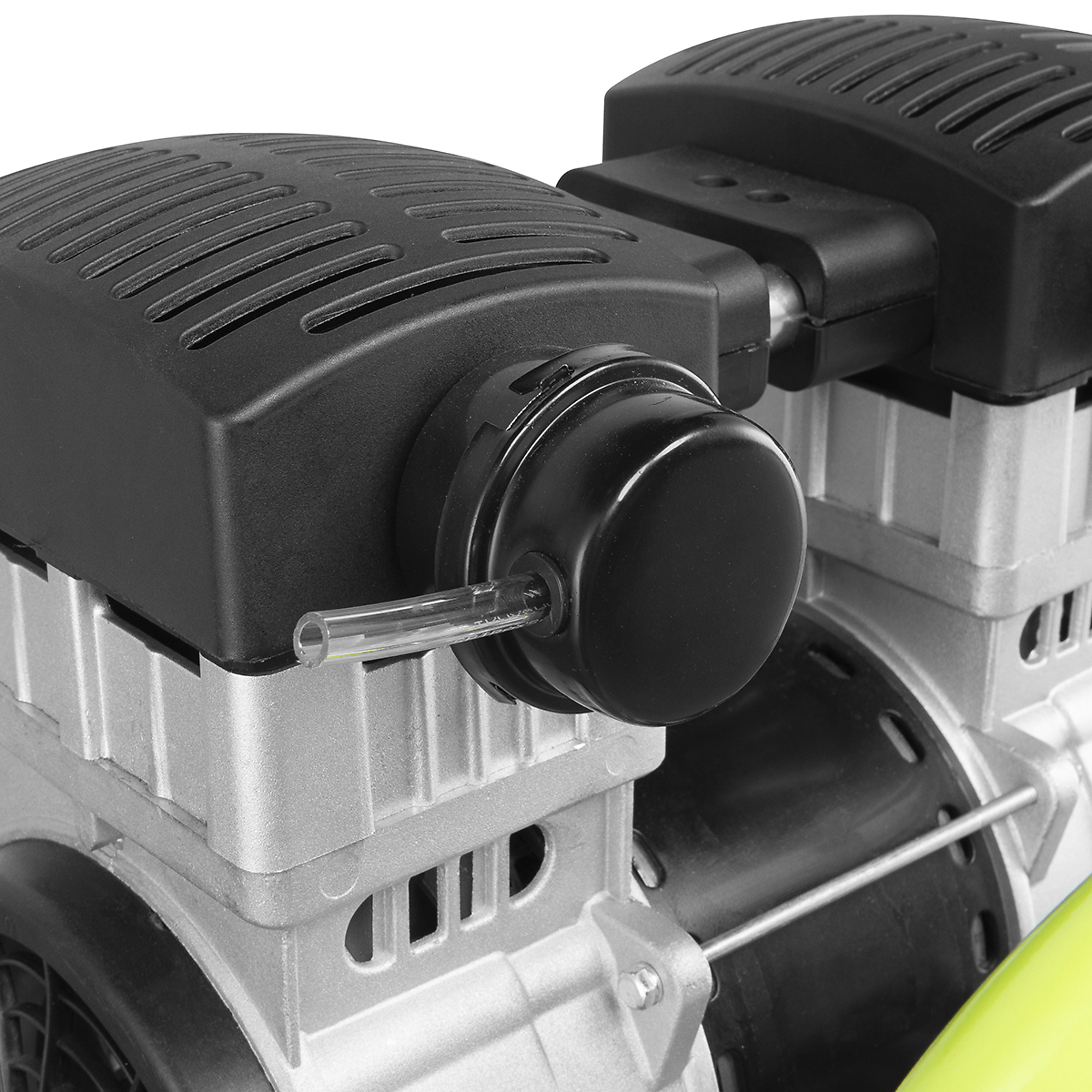

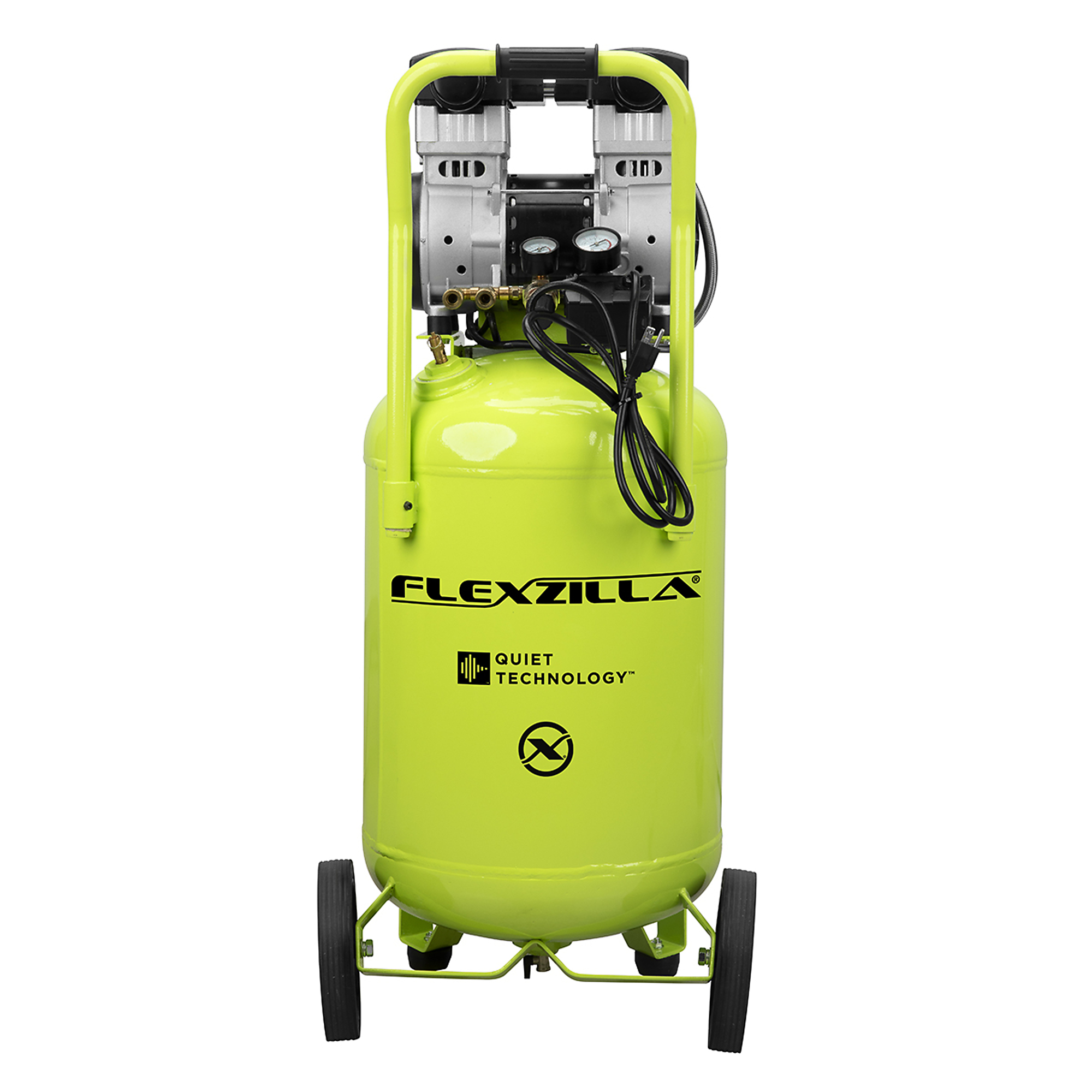

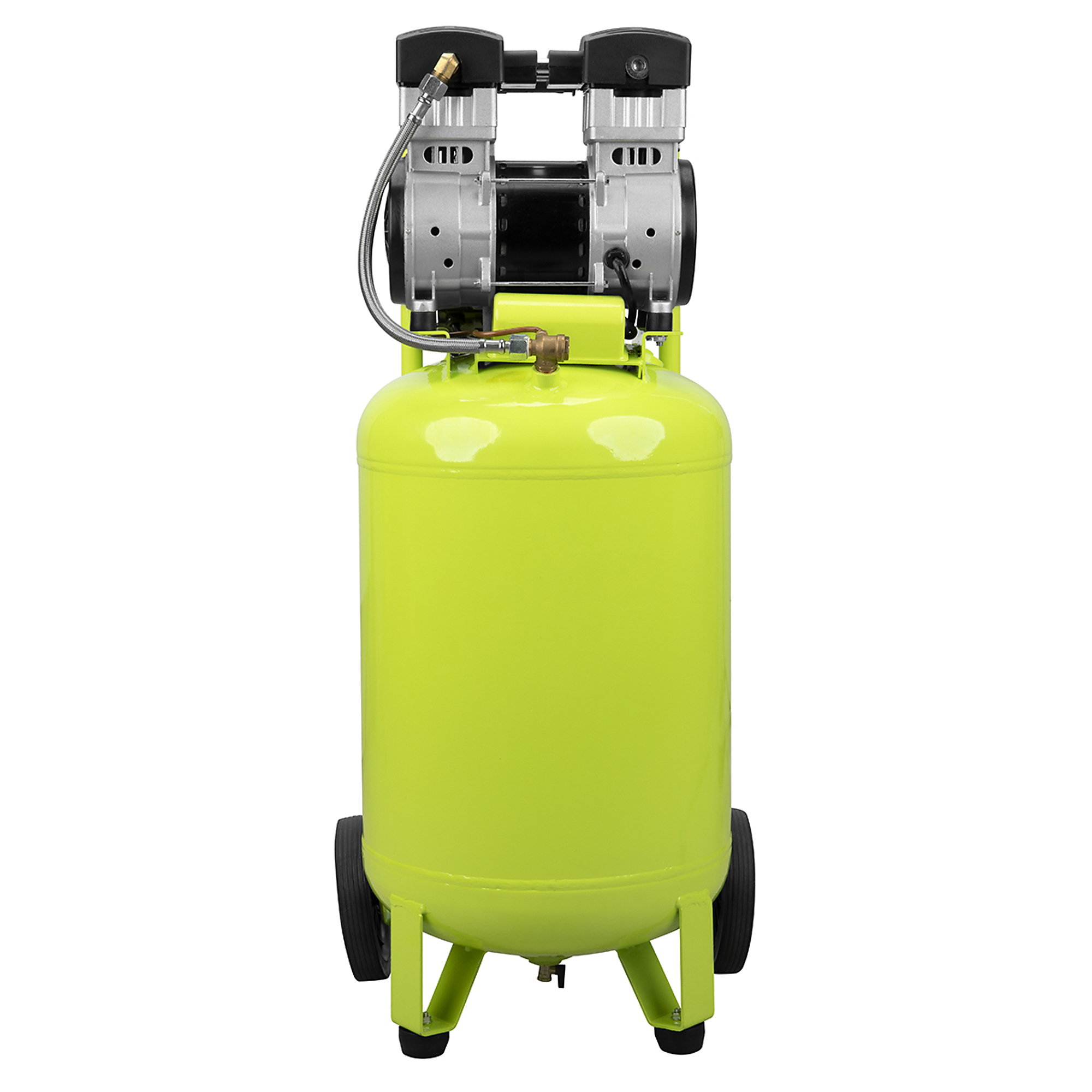

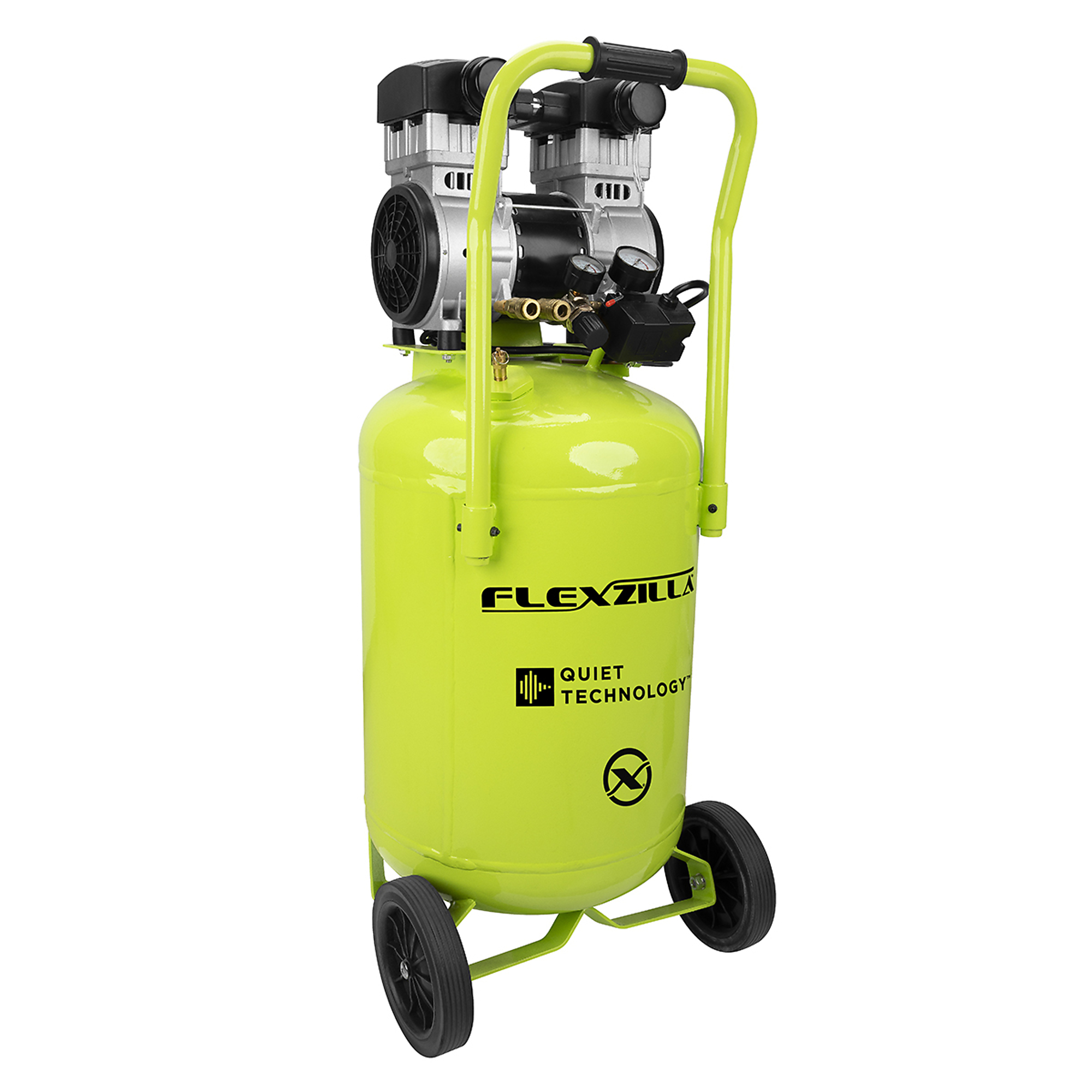

Flexzilla, Air Compressor, Portable, 2 HP, 20 Gal. Ind. Pump, Horsepower 2 HP, Air Tank Size 20 Gal, Volts 115 Model# CB20200F

Item# 6541166
Flexzilla, Air Compressor, Portable, 2 HP, 20 Gal. Ind. Pump, Horsepower 2 HP, Air Tank Size 20 Gal, Volts 115 Model# CB20200F

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Flexzilla, Air Compressor, Portable, 2 HP, 20 Gal. Ind. Pump, Horsepower 2 HP, Air Tank Size 20 Gal, Volts 115 Model# CB20200F

Click or Tap image to Zoom

$749.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Industrial Grade Pump - Premium components and copper windings that outlast aluminum
  • Direct Drive Pump
  • Oil-Free Pump - Reduces Maintenance
  • Two Quick-Connect Universal Brass Couplers
  • Pressure Regulator and Gauge

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Flexzilla Air Compressors are the quietest on the market, emitting operating noise no louder than a normal conversation. Flexzilla Air Compressors feature low RPM twin cylinder pumps and motors that reduce high frequency noise levels

What's Included

    (1) Air Compressor 2 HP, 20 Gal. (2) Quick-connect universal brass couplers (1) Pressure regulator and gauge (1) Tank pressure gauge (1) Manual tank drain (1) 8 in. over-sized wheels (1) Elastomeric ergonomic grip (1) Power cord - 6ft., 14/3, SJT, cETLus Lister (1) User Manual

Features + Benefits

  • Industrial Grade Pump - Premium components and copper windings that outlast aluminum
  • Direct Drive Pump
  • Oil-Free Pump - Reduces Maintenance
  • Two Quick-Connect Universal Brass Couplers
  • Pressure Regulator and Gauge
  • Tank Pressure Gauge
  • Manual Tank Drain
  • Elastomeric Ergonomic Grip
  • FRONT MOUNTED CONTROLS

Key Specs

AttributeSpecification

item#

6541166

Brand

Flexzilla

Manufacturer's Warranty

2 year limited warranty

Ship Weight

123.0 LB

Horsepower

2 HP

Air Tank Size

20 Gal

Volts

115

CFM at 90 PSI

5.8

Max. PSI

125

Air Outlets (qty.)

2

Amps

14

Duty Cycle

0.5 %

Motor RPM

1,740

Engine Start Type

Electric

Motor Phase

1
AttributeSpecification

Pump Life

3,000 hr

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

8.39

Oil Required

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

4 min

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

123.0000 lb

Dimensions L x W x H (in.)

16.0 x 15.5 x 42.25 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. if need be can i lay this on its side and not hurt the pump

    1 answer

    1. This air compressor is equipped with an oil free pump. It can lay down for transport, but should only be in the upright position when operating.

      Helpful?

  2. 1) What is the recovery rate? 2) What is the operating decibel level? 3) What is the air delivery rate?

    1 answer

    1. The air compressor has 70% duty cycle. It is rated ad 5.8 CFM at 90 PSI. The decibel rating is 70 DB.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
