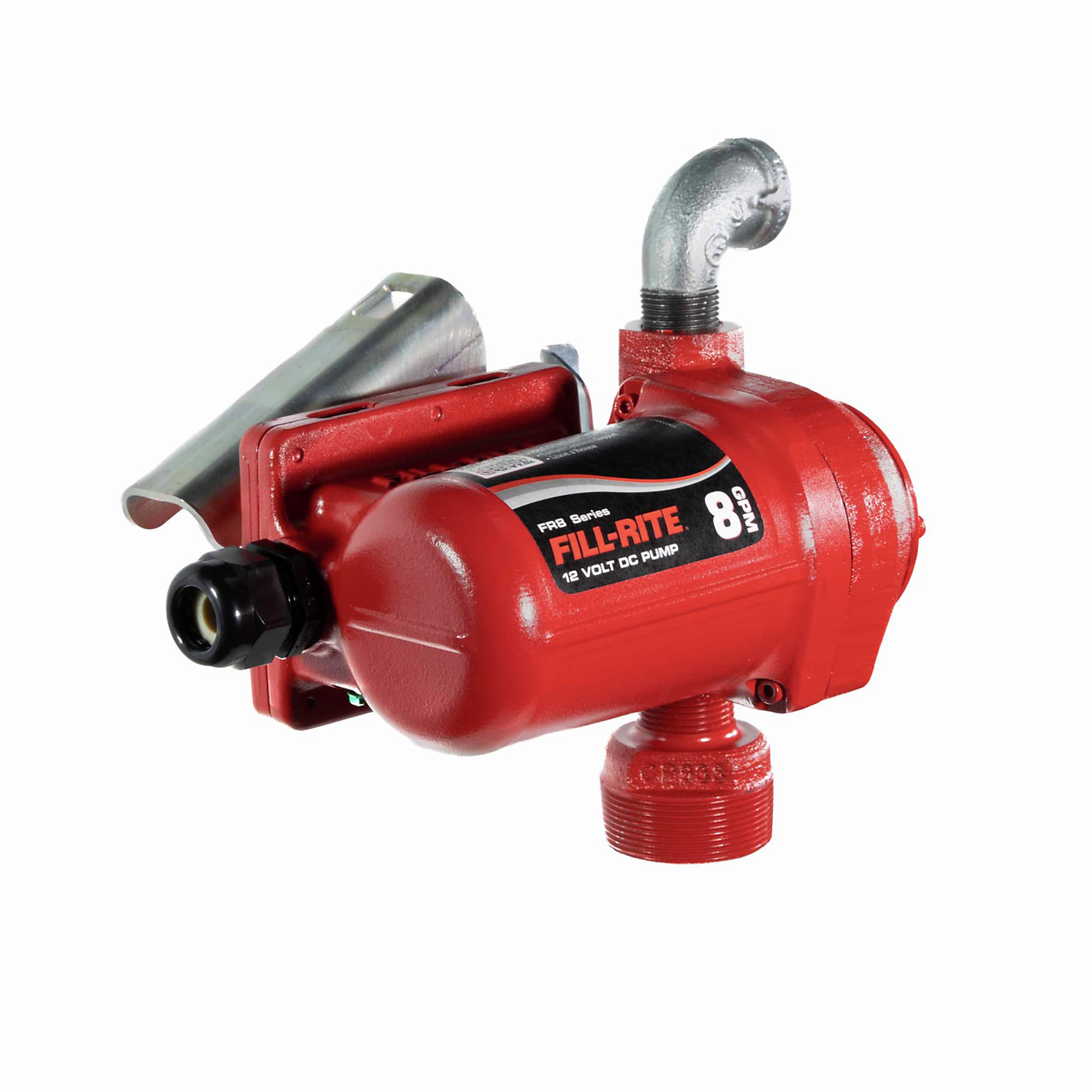

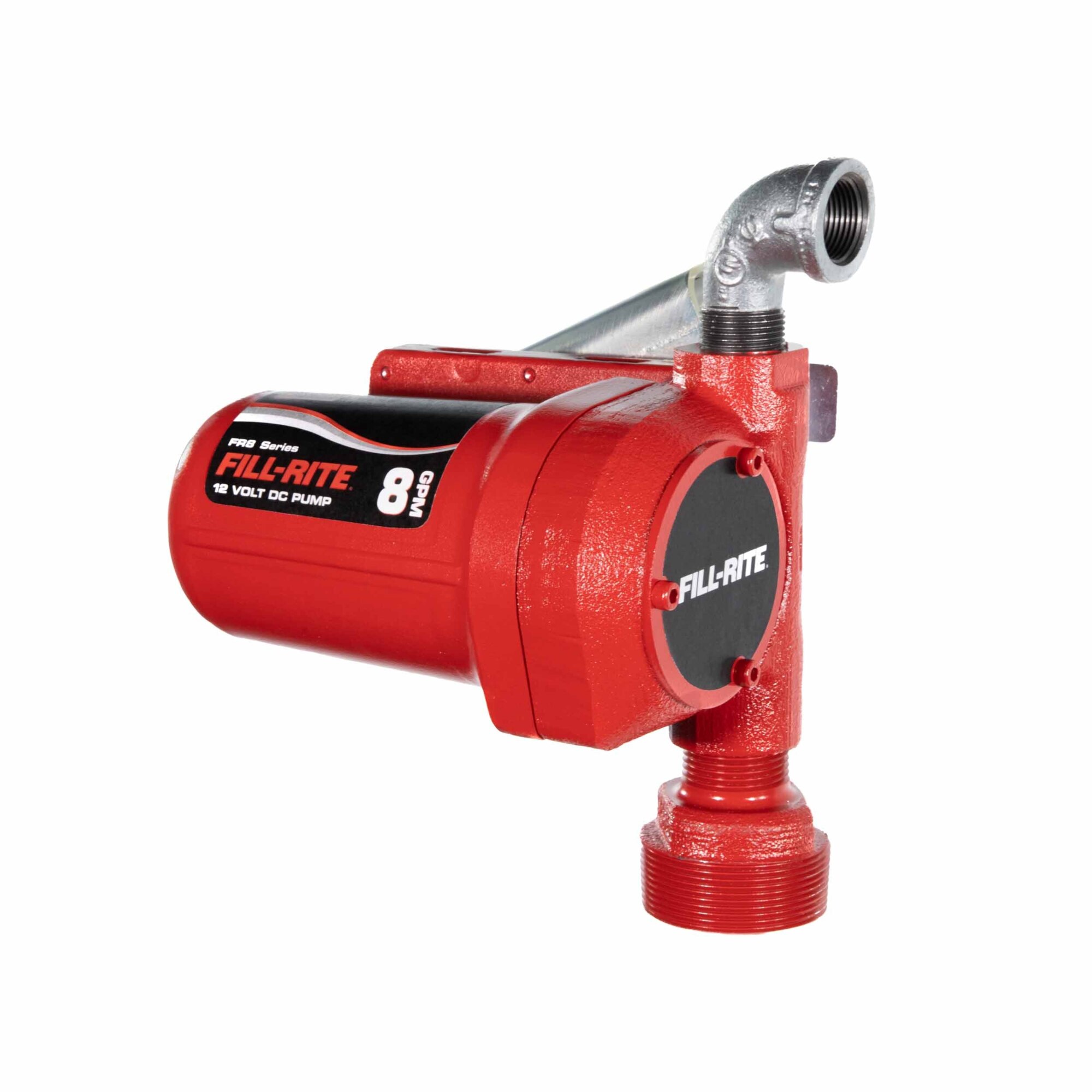

Fill-Rite FR8-PX Fuel Transfer Pump - 12V, 8 GPM, Cast Iron, Model# FR8-PX
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$224.99
- True 8 GPM Performance that delivers the same performance as gas stations pumps, making it ideal for filling equipment with 2–25-gallon fuel tanks.
- Fill-Rite's reliable sliding vane technology maintains perfect clearances and consistent performance over the entire life of the pump.
- Refueling with the FR8 eliminates the hassle, spills, and wasted time caused by clunky and inefficient gas cans.
- Under 13 pounds, the FR8's compact and lightweight design reduces stress on your transfer tank.
- The FR8 has a 15 minutes on, 15 minutes off duty cycle, so you can pump TWICE as much as the competition in 45 minutes.
Prop 65 Warning: See Details
See full description

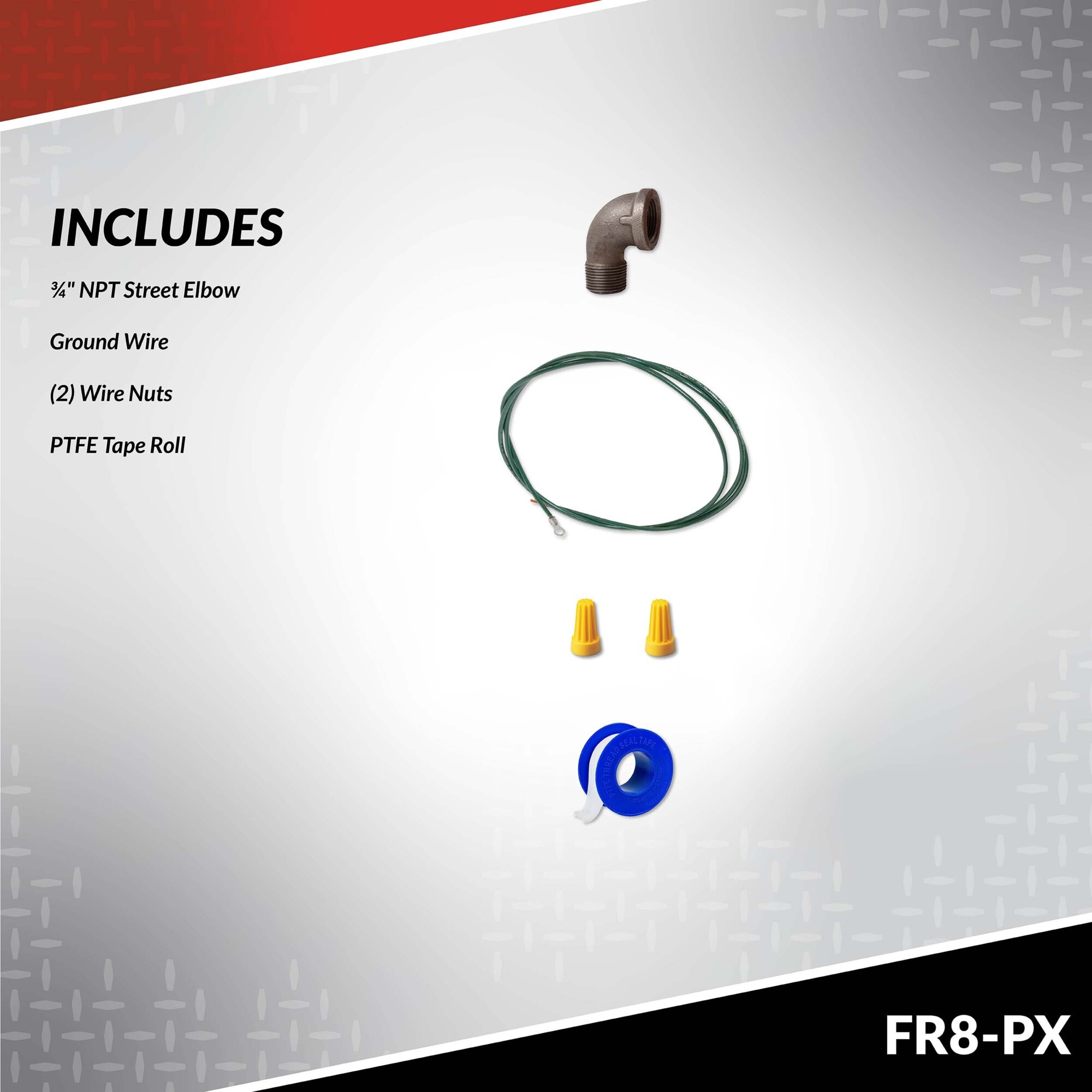

What's Included
- (5) 8GPM 12V DC Pump, ¾” NPT Street Elbow, Ground Wire, (2) Wire Nuts, PTFE Tape Roll
Features + Benefits
- True 8 GPM Performance that delivers the same performance as gas stations pumps, making it ideal for filling equipment with 2–25-gallon fuel tanks.
- Fill-Rite's reliable sliding vane technology maintains perfect clearances and consistent performance over the entire life of the pump.
- Refueling with the FR8 eliminates the hassle, spills, and wasted time caused by clunky and inefficient gas cans.
- Under 13 pounds, the FR8's compact and lightweight design reduces stress on your transfer tank.
- The FR8 has a 15 minutes on, 15 minutes off duty cycle, so you can pump TWICE as much as the competition in 45 minutes.
- The FR8's thermally protected motor shuts down if it gets too hot, so you never have to worry about it overheating.
- Heavy-duty, cast-iron construction outlasts daily wear and tear in harsh weather.
- Lockable power switch deters theft when leaving your pump unattended at the trailhead or on the side of the road (Master Lock® #140DLH recommended).
- Designed for daily use with gasoline, diesel, kerosene, biodiesel blends up to B20, and ethanol blends up to E10.
See All DC Powered Fuel Pumps
See All Fill-Rite DC Powered Fuel Pumps
Currently Viewing This Product
$359.99
Specifications
Specifications
Fill-Rite FR8-PX Fuel Transfer Pump - 12V, 8 GPM, Cast Iron, Model# FR8-PX
Fill-Rite Fuel Pump - 12V, 8 GPM, Manual Nozzle, Hose, Suction Pipe, Model# FR8
Fill-Rite Heavy-Duty Fuel Transfer Pump - 12V, 15 GPM, Automatic Nozzle, Model# FR1210HA1
GPM
Same
8
8
15
Volts
Same
12
12
12
Max. Suction Lift
Same
6 ft
6 ft
8 ft
Max. Total Head
Same
32 ft
32 ft
37 ft
Amps
Same
10
10
26
Inlet Port
Same
1 in
1 in
1 in
Outlet Port
Same
3/4 in
3/4 in
3/4 in
Discharge
Same
32 ft
32 ft
37 ft
Self-Priming
Same
Yes
Yes
Yes
Hose Length
Same
12 ft
-
12 ft
Duty Cycle
Same
30 min
30 min
30 min
Bypass Valve
Same
Yes
Yes
Yes
Product Weight
Same
12.3000 lb
12.3000 lb
30.0000 lb

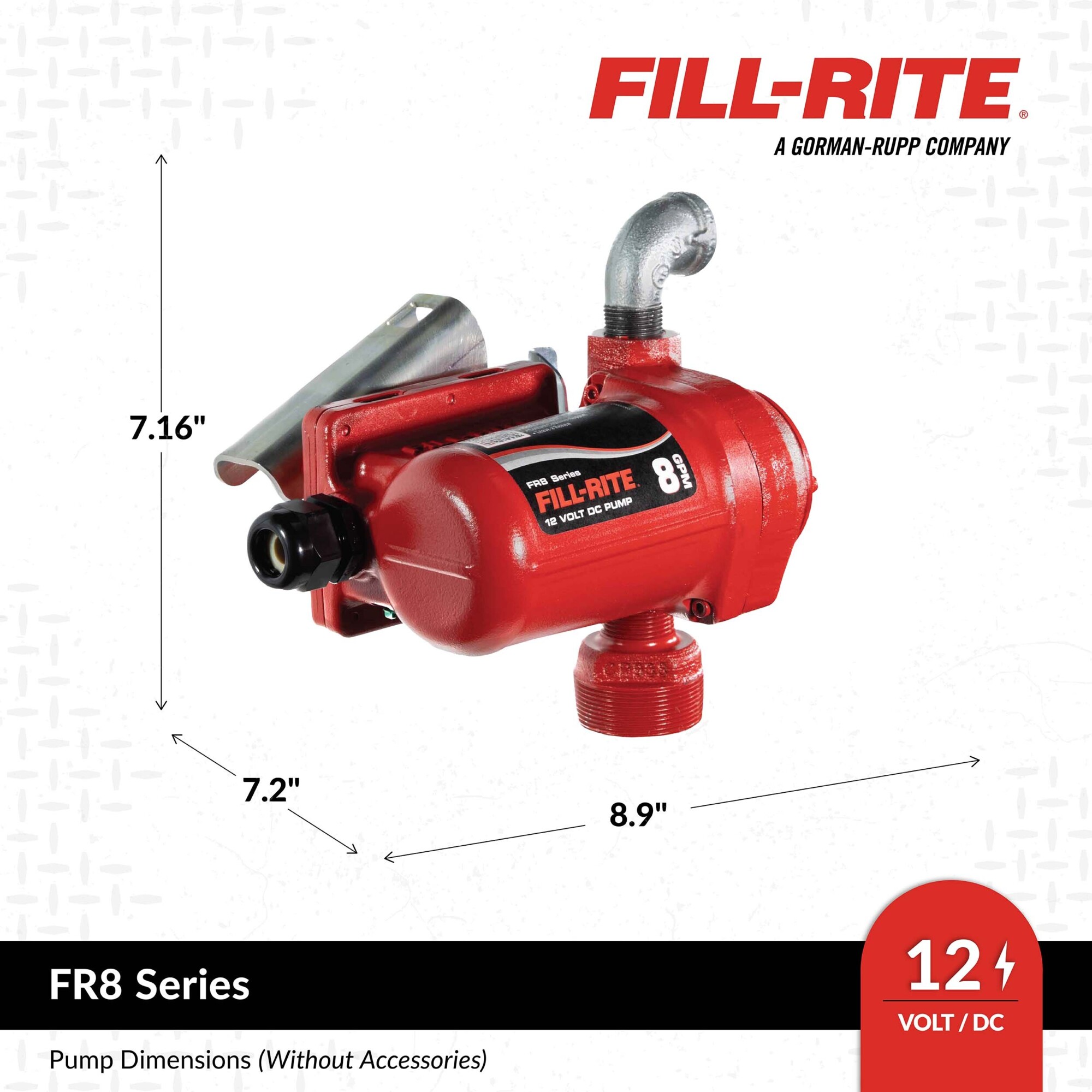

Dimensions L x W x H (in.)
Same
8.9 x 7.2 x 7.16 in
8.9 x 7.2 x 7.16 in
6.5 x 13.0 x 8.4 in
Nozzle Type
Same
-
Manual
Automatic
