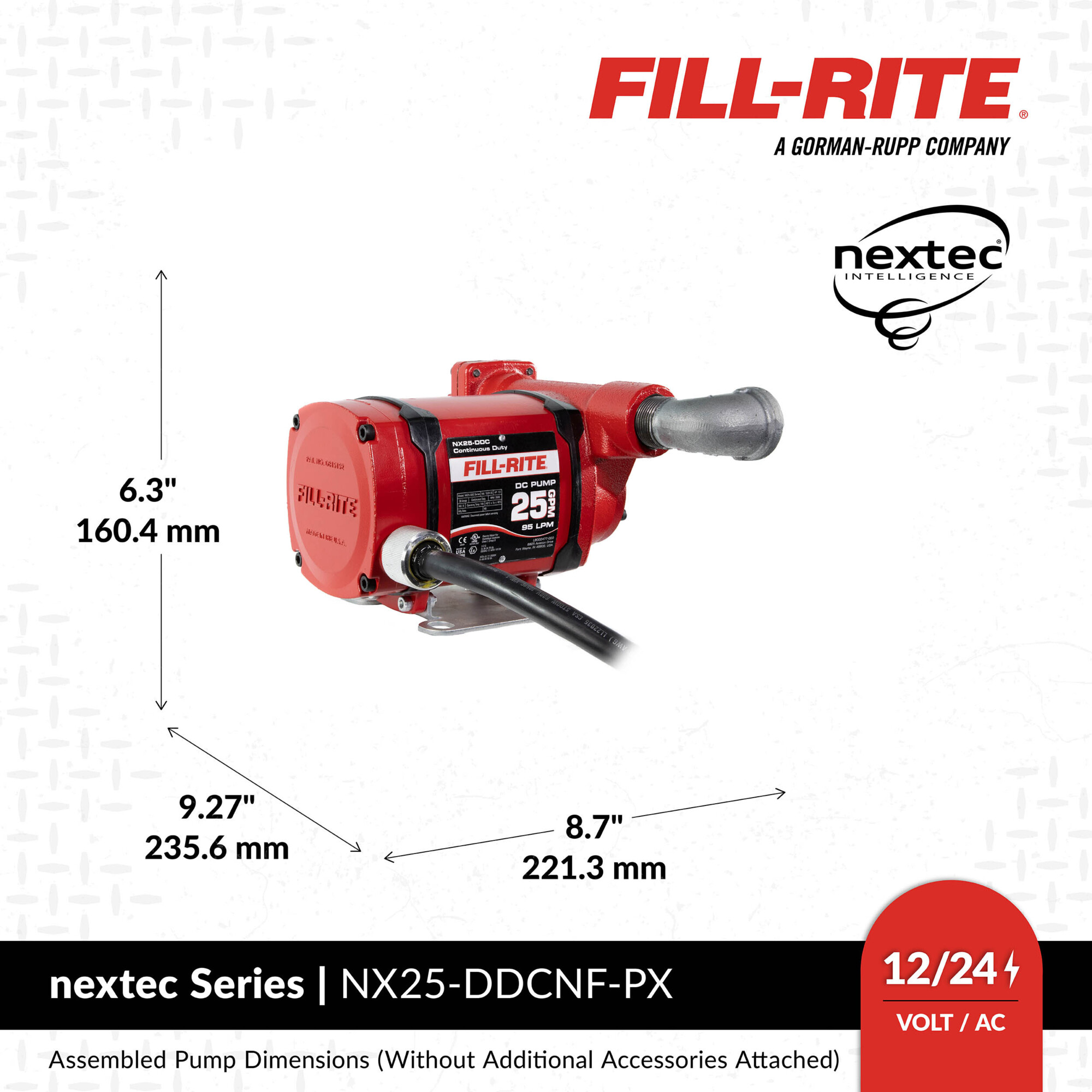

Fill-Rite 12/24V DC Ultra-High-Flow Foot Mount Fuel Transfer Pump, 25 GPM, Model# NX25-DDCNF-PX

Item# 99203
Fill-Rite 12/24V DC Ultra-High-Flow Foot Mount Fuel Transfer Pump, 25 GPM, Model# NX25-DDCNF-PX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite 12/24V DC Ultra-High-Flow Foot Mount Fuel Transfer Pump, 25 GPM, Model# NX25-DDCNF-PX

Click or Tap image to Zoom

$1279.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Extra-fast pumping speeds
  • Slashes energy costs by using significantly less electricity than comparable DC pumps
  • Exclusive Nextec Intelligence technology dramatically extends pump and motor life while delivering unmatched performance in even the harshest applications
  • Continuous duty provides nonstop performance that allows for all-day fuel transfer, saving money by eliminating downtime
  • 12/24V DC Operation is designed for heavy-duty applications on mobile tanks

See full description

Complete Your Solution

  • Fill-Rite 12/24V DC Ultra-High-Flow Foot Mount Fuel Transfer Pump, 25 GPM, Model# NX25-DDCNF-PX
  • Strongway Spring-Rewind Fuel and Oil Hose Reel, 3/4in. x 25ft. NBR Rubber Hose, 1250 PSI
Price for all two:

$1679.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The industry-leading Fill-Rite 12/24V DC Continuous-Duty Foot Mount Fuel Transfer Pump with automatic nozzle and hose is an ultra-high flow pump designed with a proprietary combination of technologies and user functionalities that take pump performance to unprecedented levels. The pump is equipped with a variable speed motor and Fill-Rite's exclusive Nextec Intelligence technology, which dramatically extends pump and motor life while delivering unmatched performance in even the harshest applications. Its sleek, ultra-lightweight construction eases installation while still moving fuel efficiently. The transfer pump talks to users by using Intelligent Tones to audibly inform users when and where troubleshooting attention is needed. The variable speed motor is preprogrammed to automatically adjust for peak performance in every application and configuration. The variable speed motor also substantially increases the life of the motor and pumping components like rotor and vanes, resulting in less downtime and maintenance for users. This foot mount pump can transfer almost any fuel and is compatible with diesel, gasoline, and mineral spirits. Designed for true durability and reliability in the field, ultimately reducing installation time, repair costs, energy consumption, and downtime.

What's Included

    (1) Foot mount pump equipped with Nextec Intelligence
Play Item Video

Features + Benefits

  • Extra-fast pumping speeds
  • Slashes energy costs by using significantly less electricity than comparable DC pumps
  • Exclusive Nextec Intelligence technology dramatically extends pump and motor life while delivering unmatched performance in even the harshest applications
  • Continuous duty provides nonstop performance that allows for all-day fuel transfer, saving money by eliminating downtime
  • 12/24V DC Operation is designed for heavy-duty applications on mobile tanks
  • Intelligent Tones™ simplify troubleshooting with audible alerts that indicate when and where attention is needed
  • Variable speed motor actively adjusts the pump's RPM speed for optimal performance while improving suction lift
  • Equipped with an ultra-high-flow nozzle that delivers a true 25 GPM flow rate at the nozzle to fill equipment faster
  • Built-in remote on/off switching capability makes this the perfect pump for mobile tanks
  • Auto power down feature automatically prompts the pump to turn itself off after 20 minutes of inactivity, slashing energy costs and reducing wear on internal components
  • Next generation engineering with field replaceable magnetic switch helps to drastically reduce maintenance costs
  • Proprietary variable suction lift technology eliminates vapor lock and keeps your operation running in the harshest summer temperatures
  • Bypass Slowdown reduces energy consumption by slowing down motor speed in bypass mode, while also extending the life of wetted pump components
  • Ultralight design weighs in at less than 23 pounds, allowing for a rapid, hassle-free and strain-free installation
  • Compatible with Diesel, Gasoline and Mineral Spirits
  • Foot mount pump only

Key Specs

AttributeSpecification

item#

99203

Brand

Fill-Rite

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

34.0 LB

GPM

25

Max. Total Head

48 ft

Amps

29

Inlet Port

1-1/4 in

Outlet Port

1 in
AttributeSpecification

Inlet Port (in.)

1 1/4 NPT

Self-Priming

Yes

Outlet Port (in.)

1 NPT

Speed

3,500 rpm

Bypass Valve

Yes

Horsepower

0.33 HP

Product Weight

lb

Dimensions L x W x H (in.)

18.5 x 15.5 x 11.0 in

Speed (RPM)

400–3,500

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. What is the height of "suction" for diesel fuel? Which of your 12v pumps have the highest "suction lift"

    1 answer

    1. The max suction lift is 12 feet.

      Helpful?

  2. How does it connect & pick up fuel from transfer tank?

    1 answer

    1. This has a 2" NPT bung mount on the bottom. It also has a 1-1/4" inet on the backside if not connecting directly to the tank.
