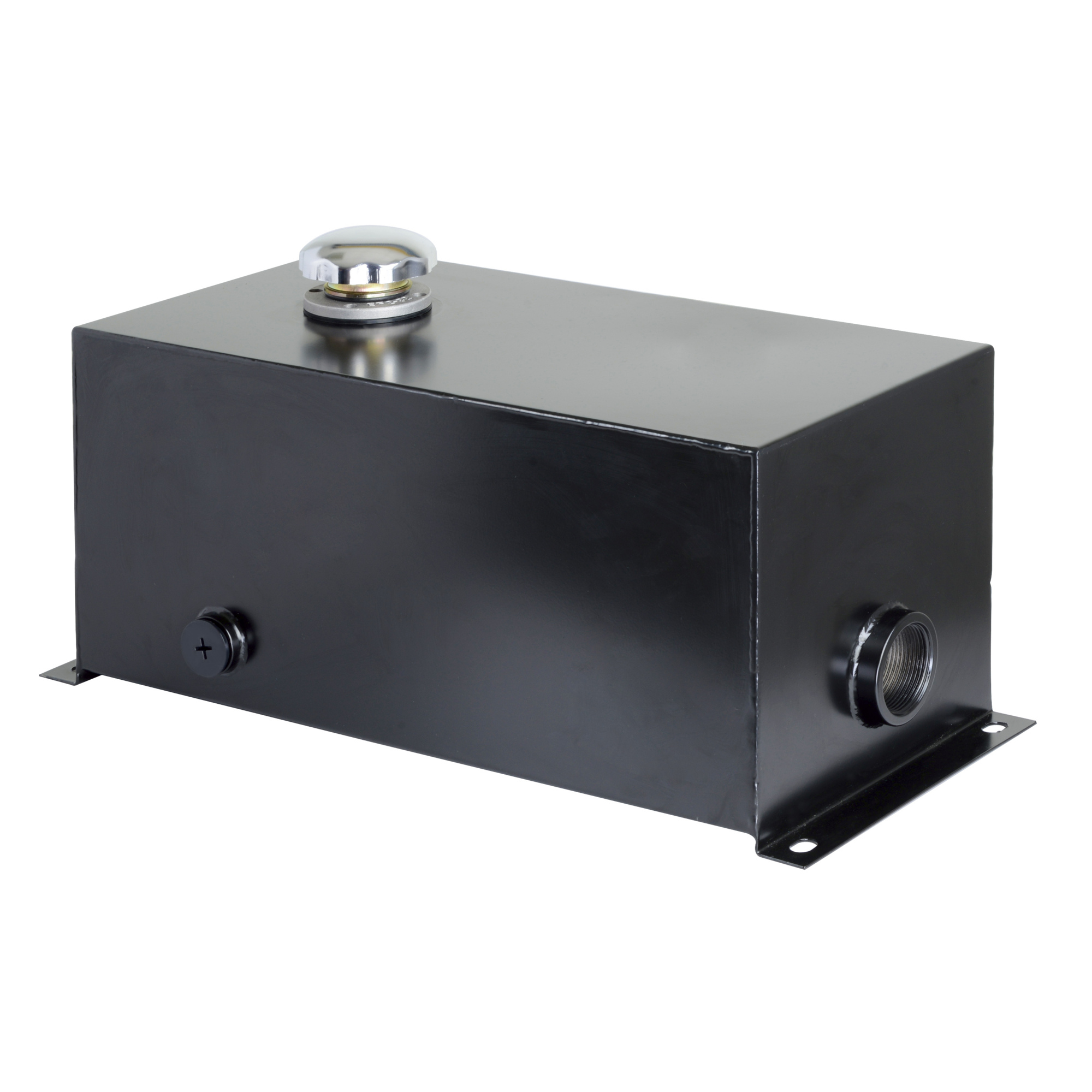

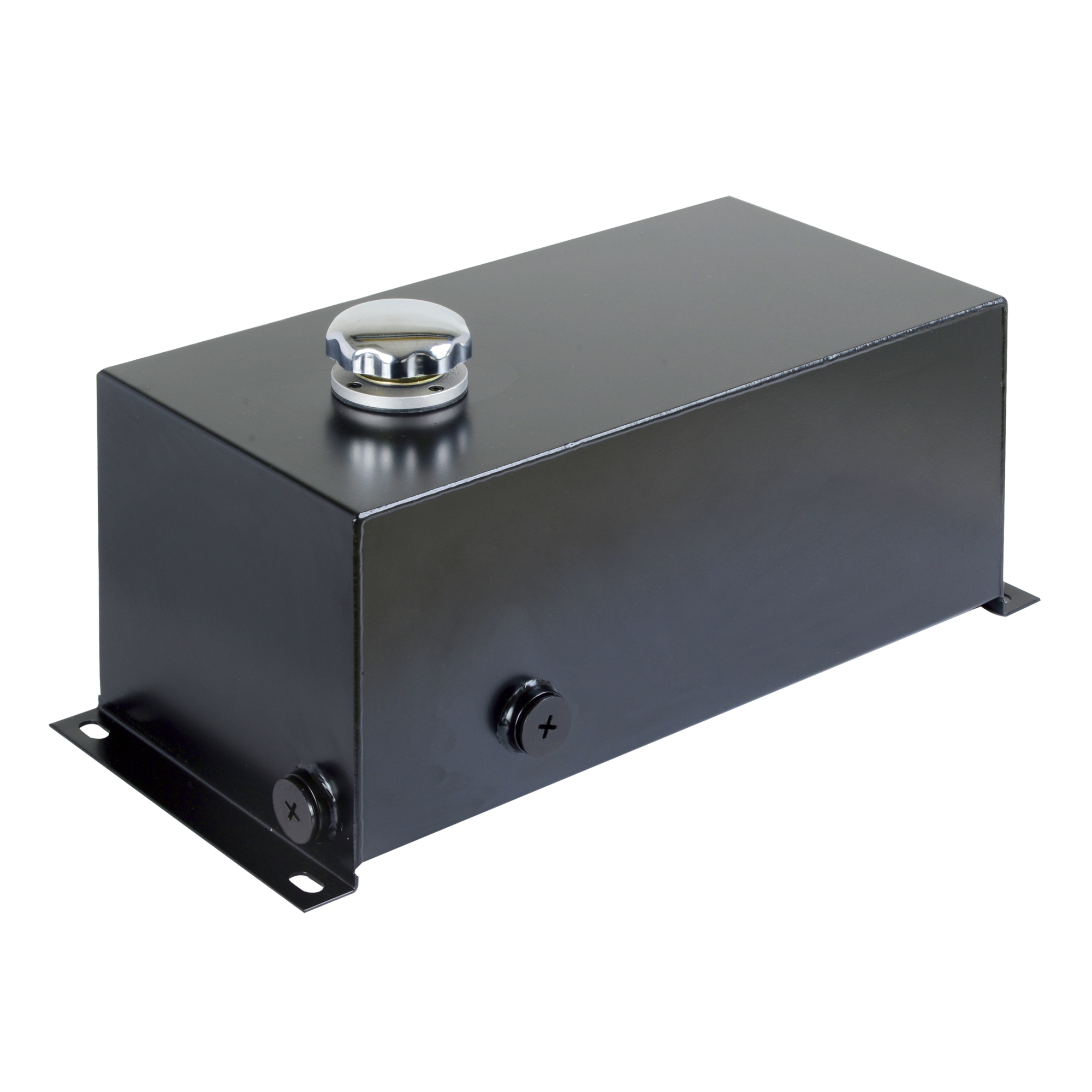

Field Tuff Hydraulic Reservoir - 5-Gallon Capacity, 1 1/2in. Suction Port, 3/4in. Return Port, 14-Gauge Steel, Model# FTF-05GOR

Item# 5109515
Field Tuff Hydraulic Reservoir - 5-Gallon Capacity, 1 1/2in. Suction Port, 3/4in. Return Port, 14-Gauge Steel, Model# FTF-05GOR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Field Tuff Hydraulic Reservoir - 5-Gallon Capacity, 1 1/2in. Suction Port, 3/4in. Return Port, 14-Gauge Steel, Model# FTF-05GOR

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Capacity of tank: 5 gallons
  • Port sizes: suction port 1 ½” NPT, return port ¾” NPT, and drain port ¾” NPT
  • Contains an inlet port with breather cap
  • Features a 150-micron filter to prevent oil contamination, lengthening the life of your equipment
  • Constructed of 14-gauge welded steel with a durable, powder-coat finish

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Field Tuff’s 5-Gallon Hydraulic Reservoir has a capacity of 5 gallons. This reservoir has a 1 1/2” NPT suction port, a 3/4” NPT return port, and a 3/4” NPT drain port. It also has an inlet port with a breather cap. It features a 150-micron filter to prevent oil contamination, extending the life of your equipment. The Hydraulic Reservoir is constructed of 14-gauge welded steel with a durable, powder-coat finish to give you a long-lasting product. The included mounting flange on both ends allows for secure and easy transportation for the reservoir. This Field Tuff product provides a secure holding tank for hydraulic fluid. The reservoir measures 19.9” x 8.75” x 8.25” overall and can be used for a wide variety of applications including a log splitter and other mobile applications.

What's Included

    (1) 5-Gallon Hydraulic Reservoir

Features + Benefits

  • Capacity of tank: 5 gallons
  • Port sizes: suction port 1 ½” NPT, return port ¾” NPT, and drain port ¾” NPT
  • Contains an inlet port with breather cap
  • Features a 150-micron filter to prevent oil contamination, lengthening the life of your equipment
  • Constructed of 14-gauge welded steel with a durable, powder-coat finish
  • Includes a mounting flange on both ends for secure and easy transportation
  • Provides a secure holding tank for hydraulic fluid
  • Measures 19.9” x 8.75” x 8.25” overall
  • Can be used for a wide variety of applications including a log splitter and other mobile applications
  • 1 year limited Manufacturer’s parts warranty

Key Specs

AttributeSpecification

item#

5109515

Brand

Field Tuff

Manufacturer's Warranty

1 year limited warranty

Ship Weight

18.0 LB

Capacity

5 Gal

Suction Port Size

1-1/2 in

Return Port Size

3/4 in

Oil Level Gauge

No
AttributeSpecification

Temperature Gauge

No

Mount Position

Bottom

Mounting Hardware Included

No

Material

Steel

Removable Cover

Yes

Thread Type

NPT

Product Weight

18.0000 lb

Dimensions L x W x H (in.)

19.9 x 8.25 x 8.75 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. We have used 15 of these tanks for Aircraft Cowl Pumps. Do tank caps available ? What is part number ?

    1 answer

    1. Replacement parts for this tank would be available through the manufacturer.

      Helpful?

  2. Is this okay to hold coolant?

    1 answer

    1. It is not recommended to use the tank for coolant. It is designed for hydraulic oil only.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
