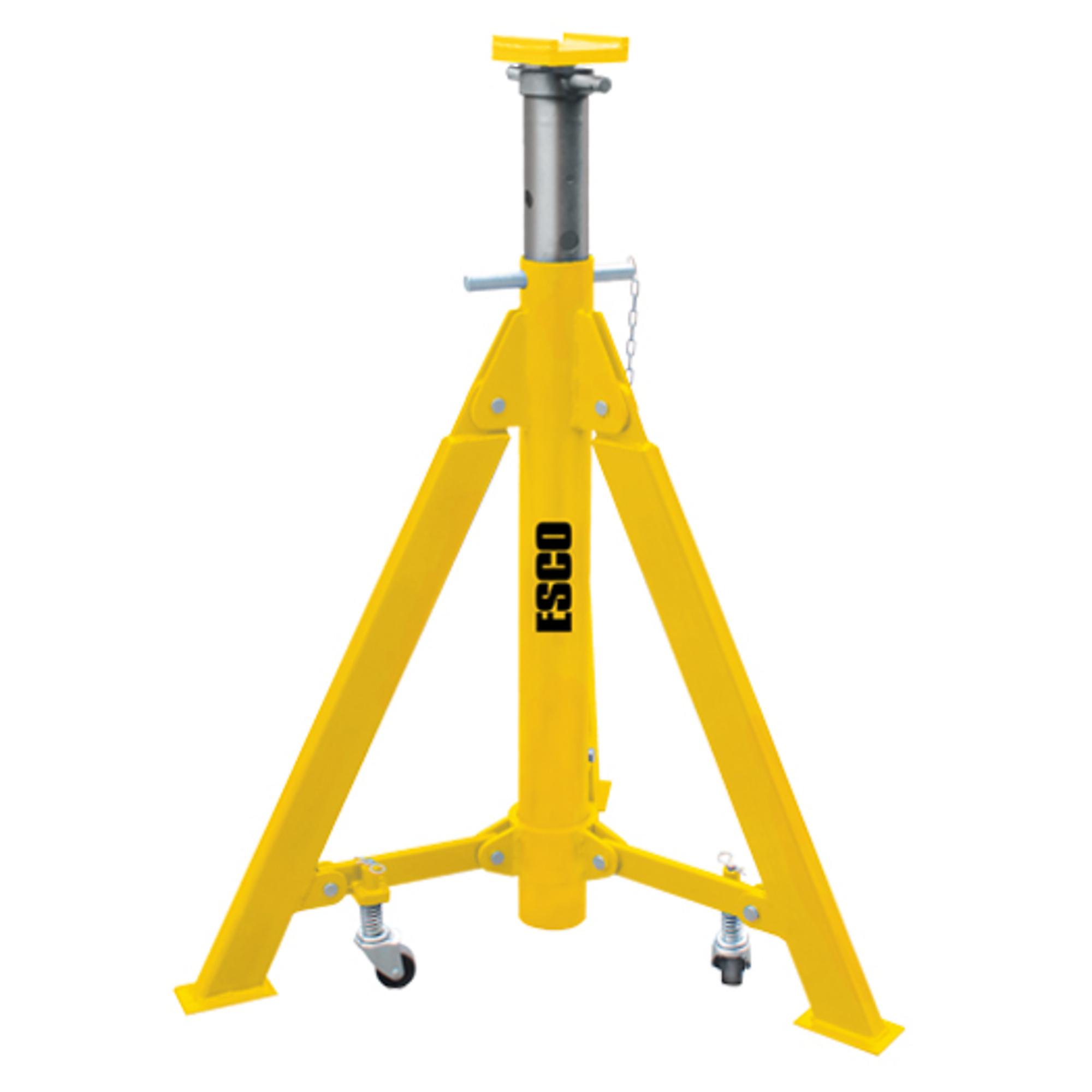

ESCO 9 Ton High-Lift Jack Stand

Item# 7482541
New1 Included
ESCO 9 Ton High-Lift Jack Stand

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESCO 9 Ton High-Lift Jack Stand

Click or Tap image to Zoom

$974.95

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

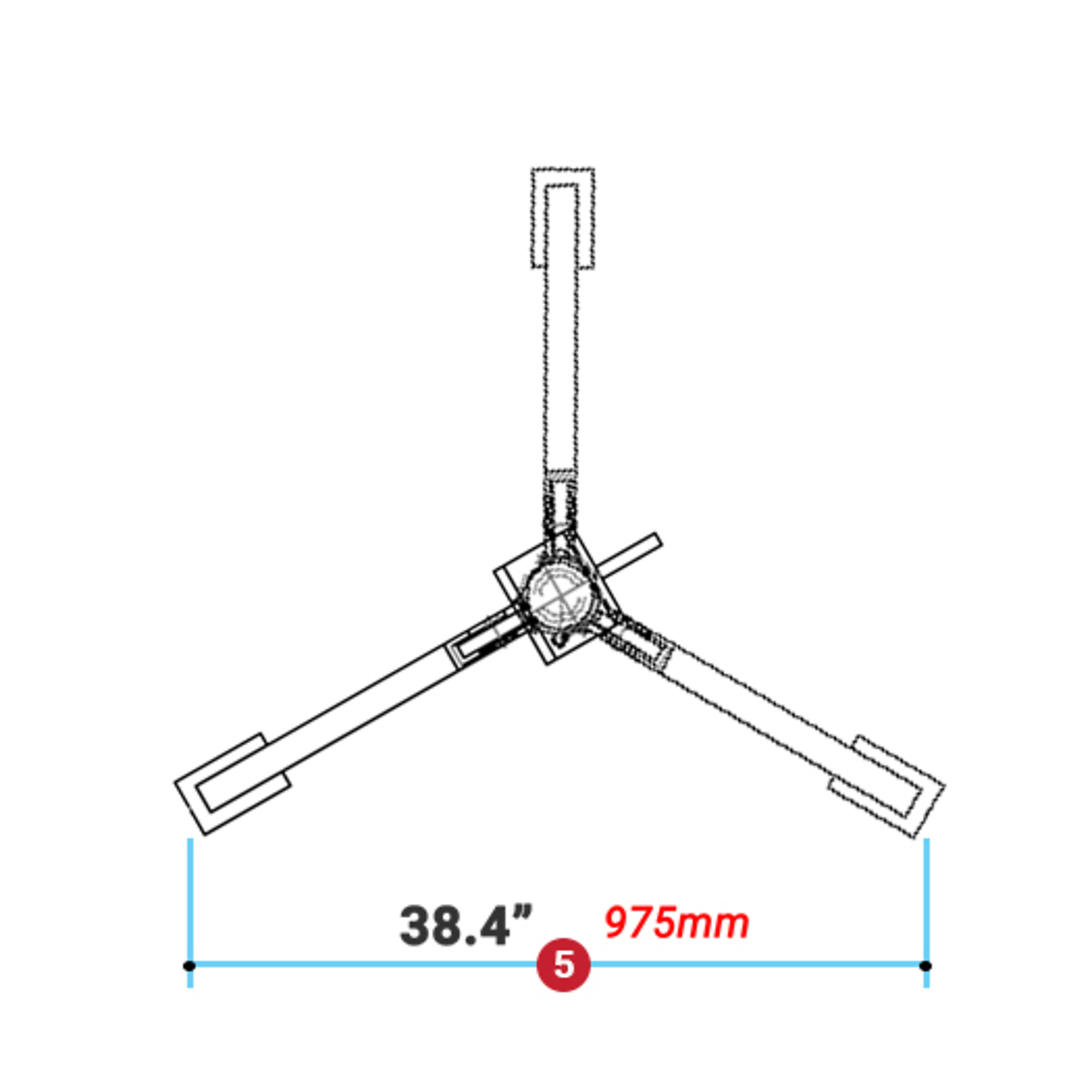

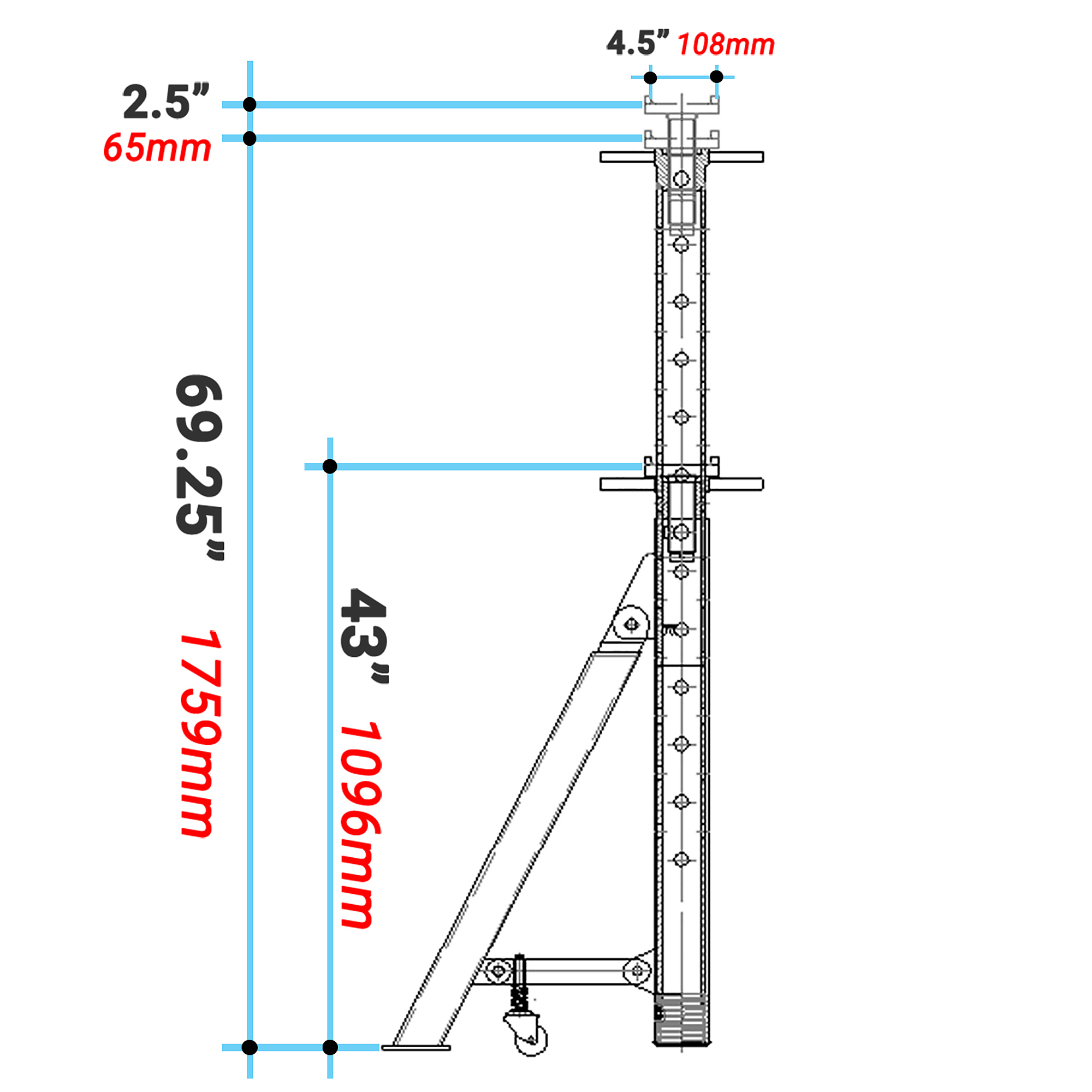

  • Lifting Capacity 9 Ton Min. Height 47 in. | 1195mm Max. Height 68.1 in. | 1730mm Height Positions 11 Adjustable Pin Positions Saddle Height 2.75 in. | 70mm Saddle Width 4.5 in. | 108mm Overall Width 38.4 in. | 975mm

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

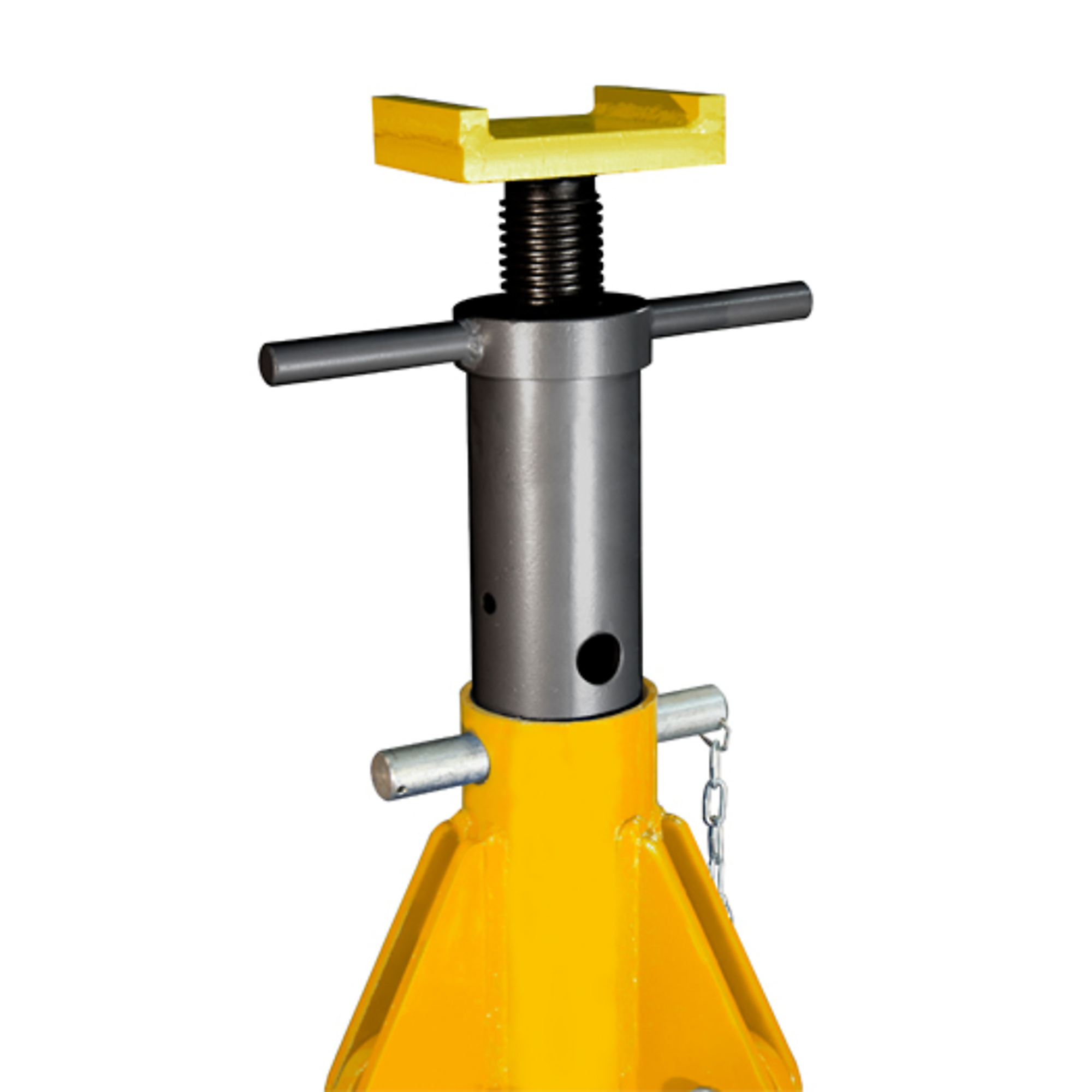

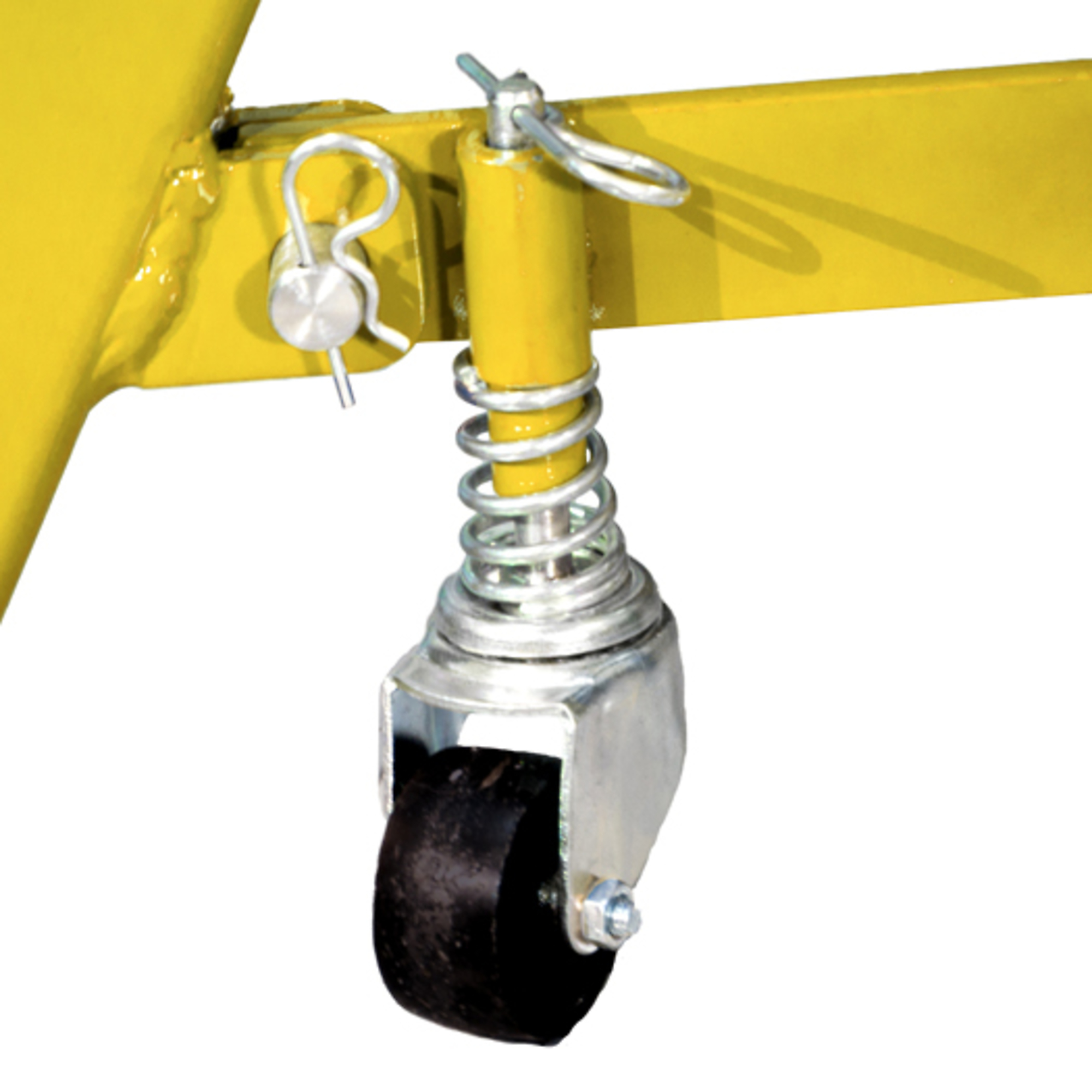

9 TON HIGH-LIFT JACK STAND Model #10493 The ESCO 9 Ton High-Lift Jack Stand [Model #10493] is designed to provide extra heavy-duty support on raised vehicles. The High-Lift Jack Stand has a spring-assisted shaft and up to 11 total adjustable pin positions for precise height. Also included is an adjustable lifting pad to support the load. With three spring-loaded caster wheels, movability is simple and easy. The folding tripod design makes for easy storage. Foldable tripod stand Three-spring-loaded wheels make it easy to move Adjustable Pin for precise height (11 positions) Adjustable lifting pad for precise height Spring-assisted main shaft for safe and easy positioning

What's Included

    (1) 1

Features + Benefits

  • Lifting Capacity 9 Ton Min. Height 47 in. | 1195mm Max. Height 68.1 in. | 1730mm Height Positions 11 Adjustable Pin Positions Saddle Height 2.75 in. | 70mm Saddle Width 4.5 in. | 108mm Overall Width 38.4 in. | 975mm

Key Specs

AttributeSpecification

item#

7482541

Brand

ESCO

Manufacturer's Warranty

1 year limited warranty

Ship Weight

240.0 LB

Lift Capacity

9 Tons

Max. Lift Height

68.1 in
AttributeSpecification

Min. Lift Height

47 in

Material

Alloy Steel

Included (qty.)

1

Jack Type

Pin Type

Product Weight

240.0000 lb

Dimensions L x W x H (in.)

28.0 x 28.0 x 47.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
