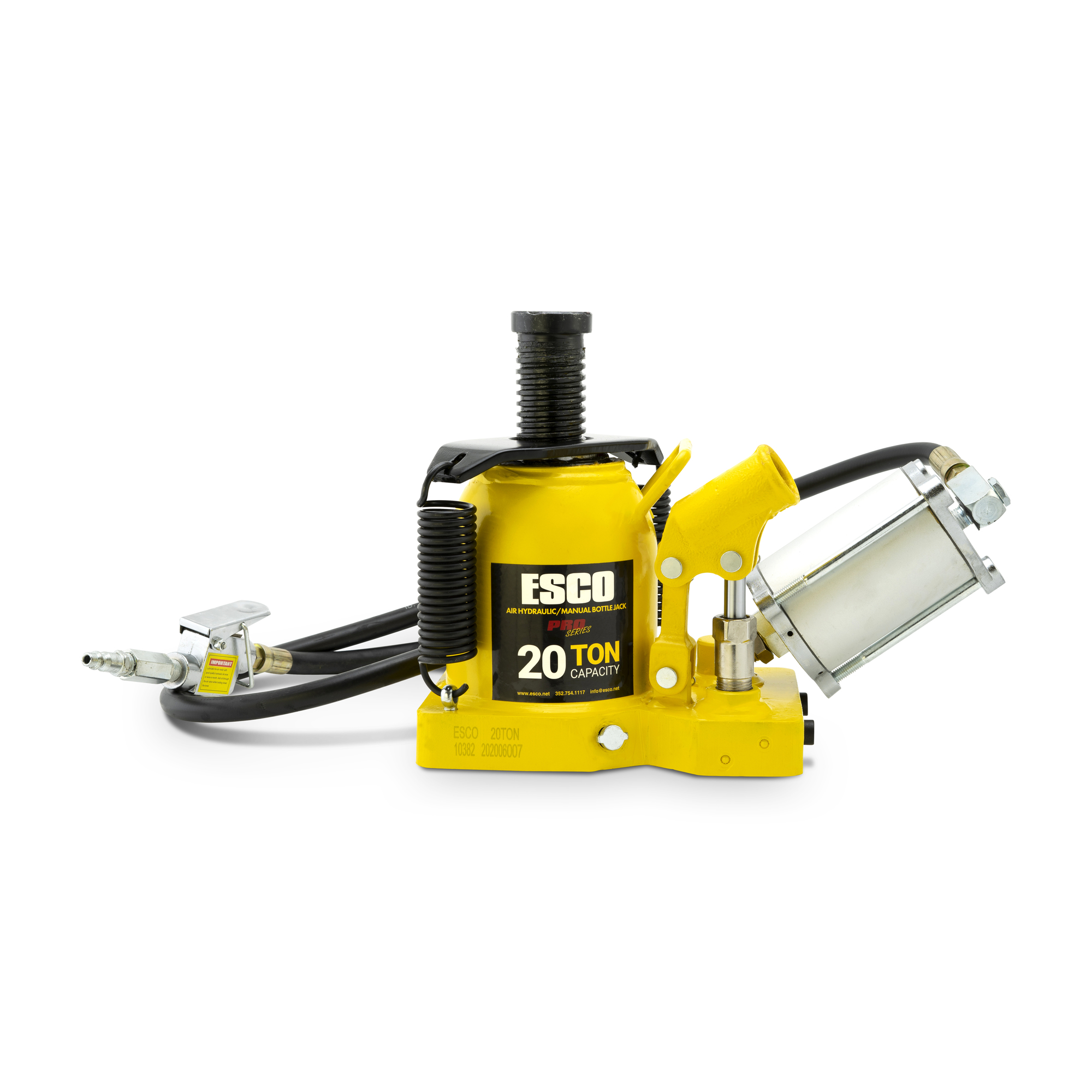

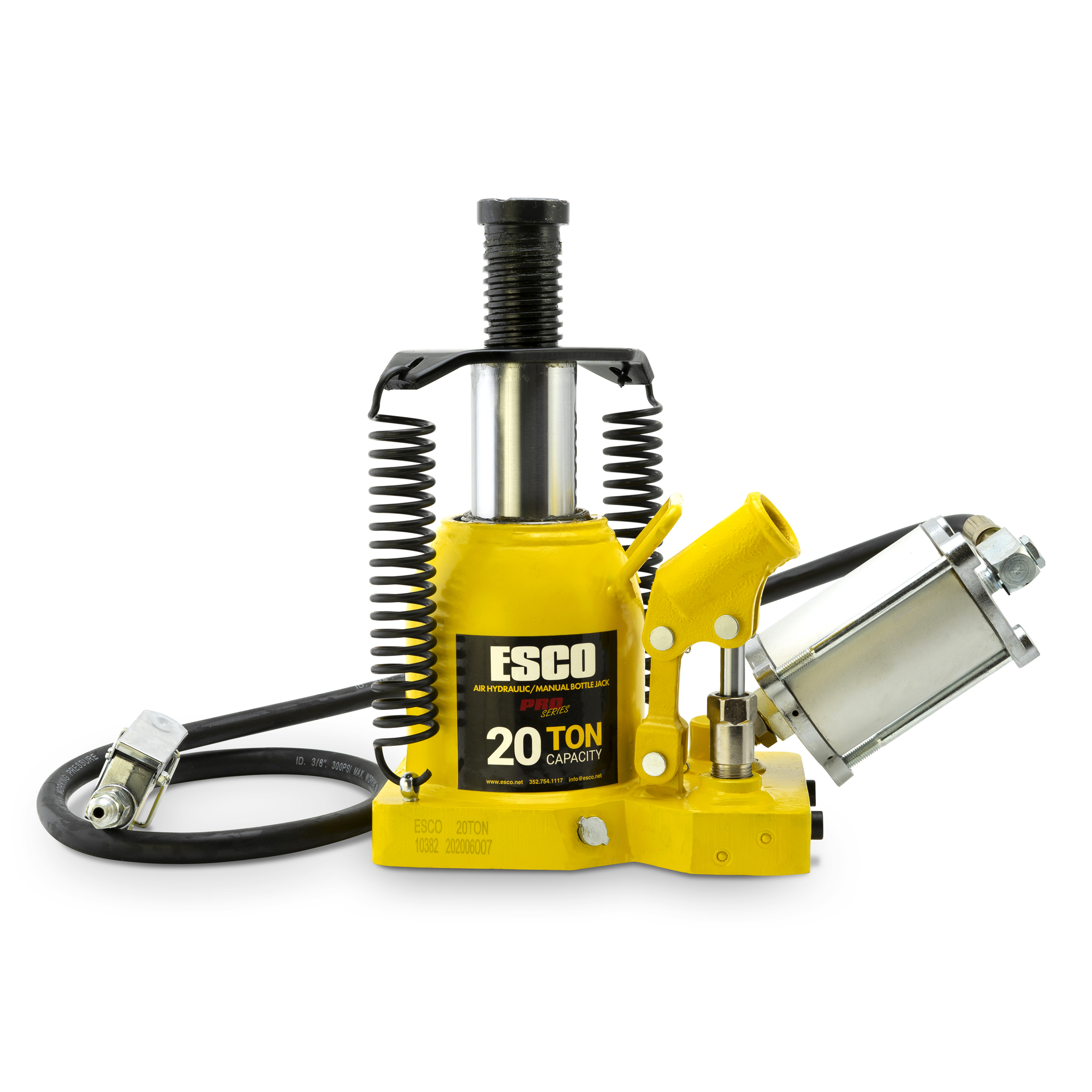

ESCO, 20 Ton Pro Low Hgt Series Air/Hydr Bottle Jack, Lift Capacity 20 Tons, Max. Lift Height 12.625 in, Min. Lift Height 7.125 in, Model# 10382

Item# 5825600
ESCO, 20 Ton Pro Low Hgt Series Air/Hydr Bottle Jack, Lift Capacity 20 Tons, Max. Lift Height 12.625 in, Min. Lift Height 7.125 in, Model# 10382

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESCO, 20 Ton Pro Low Hgt Series Air/Hydr Bottle Jack, Lift Capacity 20 Tons, Max. Lift Height 12.625 in, Min. Lift Height 7.125 in, Model# 10382

Click or Tap image to Zoom

$364.95

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Fully welded cylinder and frame provide superior strength and extended service life.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The ESCO PRO SERIES 20 TON AIR HYDRAULIC BOTTLE JACK lifting equipment is designed with the heavy-duty tire service market in mind. With lifting capacities from 12 Ton and up to 30 Tons, there is a Jack that will fit any service technician’s needs. Each jack is designed uniquely for specific applications including Commercial Truck, Bus, Tractor Farm Equipment, and much more.

What's Included

    (1) 1 Bottle Jack

Features + Benefits

  • Fully welded cylinder and frame provide superior strength and extended service life.

Key Specs

AttributeSpecification

item#

5825600

Brand

ESCO

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.0 LB

Lift Capacity

20 Tons

Max. Lift Height

12.625 in

Min. Lift Height

7.125 in

Ram Travel

3.25 in
AttributeSpecification

Screw Top Adjustment

2.5 in

Power Source

Air/Oil

Handle Included

Yes

Safety Valve

Yes

Saddle Diameter

1.75 in

Material

Steel

Product Weight

35.0000 lb

Dimensions L x W x H (in.)

15.0 x 8.0 x 8.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
