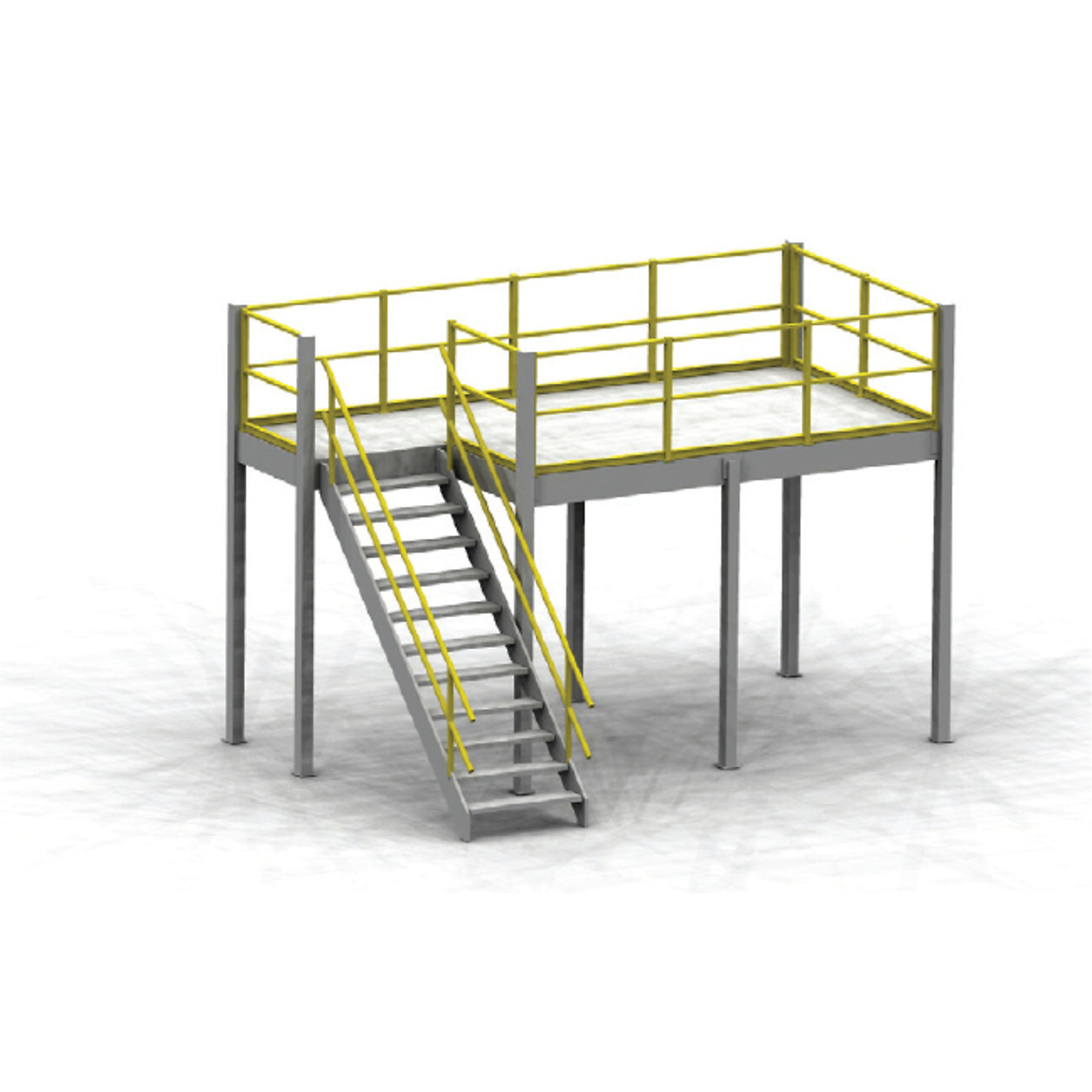

Equipto, 10x10x8 Mezzanine Platform with w Perf Steel Deck 36 inch wide tread Osha stairs, Clearance Height 87 in, Capacity 350 lb, Model# 1010-8GMEZ-PG-17

Item# 6417886
Equipto, 10x10x8 Mezzanine Platform with w Perf Steel Deck 36 inch wide tread Osha stairs, Clearance Height 87 in, Capacity 350 lb, Model# 1010-8GMEZ-PG-17

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Equipto, 10x10x8 Mezzanine Platform with w Perf Steel Deck 36 inch wide tread Osha stairs, Clearance Height 87 in, Capacity 350 lb, Model# 1010-8GMEZ-PG-17

Click or Tap image to Zoom

$10,264.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Flexibility - the design permits the customer to reconfigure the location of the stairs or railings because of modular design and assembly using fastners/nuts/bolts etc - not welded

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

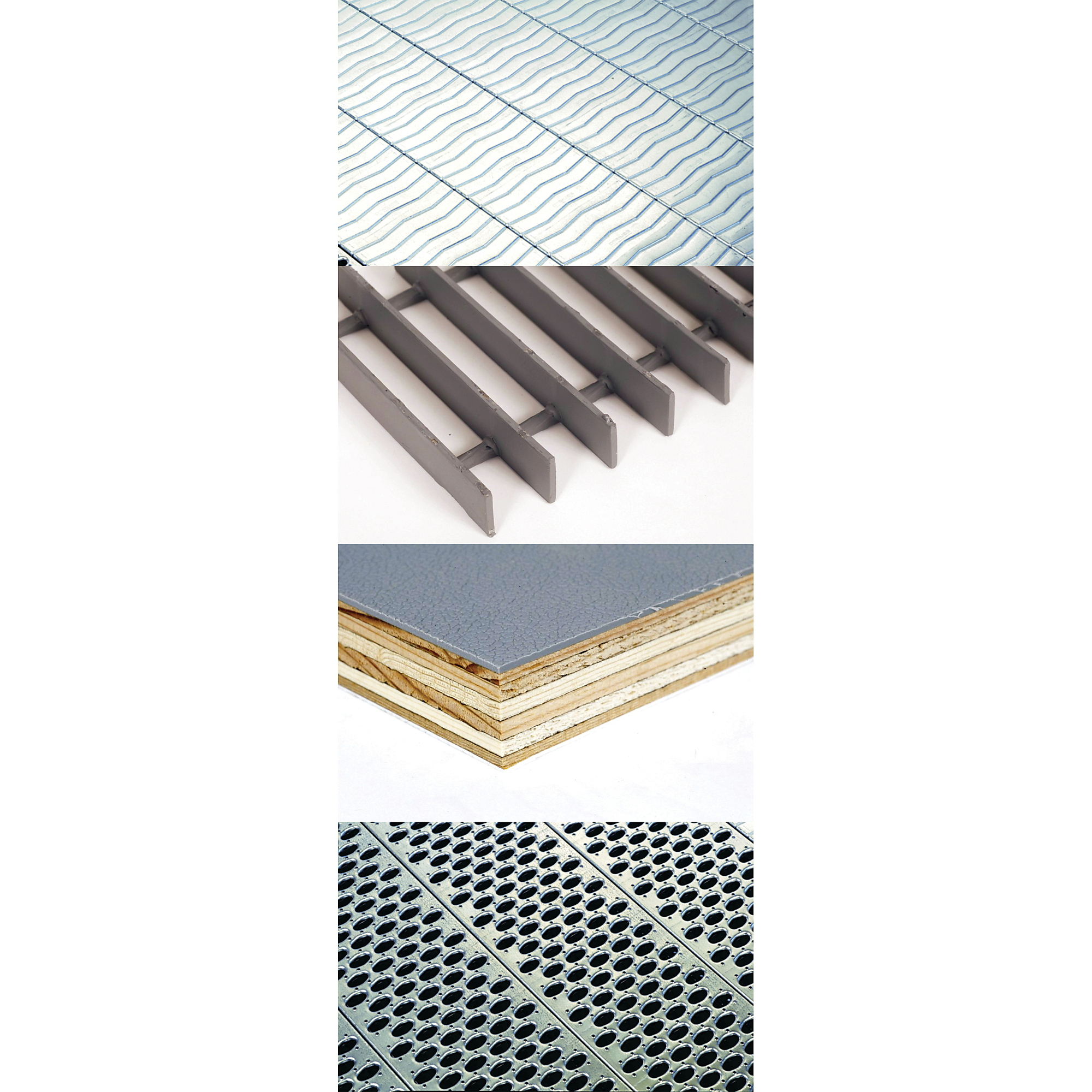

Preconfigured Platforms w/ Stairs-- Equipto 10ft. x 10ft. x 8ft. Mezzanine With Perforated Steel Grating Deck. 30in. wide Osha stairway w/4x4 platform, 4ft. lift gate included. Made in USA *railing will always be Yellow and stairway and flooring will be galvanized. Platform Beams and Posts can be painted a color.Need more space but don’t want to move or add-on? Double your floor space with an Equipto pre-engineered and fabricated mezzanine. These rugged elevated floors, and associated stairways add valuable space at a fraction of the cost of acquiring a new building. Modular design lets you add units as needed. Each preconfigured unit comes with the mezzanine deck, a connected stairway and 4ft.x4ft. landing, safety railing and a lift gate to facilitate loading product or other bulky items directly onto the mezzanine deck. Four decking options- perforated steel grating; solid steel grating; bar grating and a skid resistant tuffdeck and steel underflooring. Load is 125 lbs per square foot.

What's Included

    (1) one unit

Downloads

Product Manual

Features + Benefits

  • Flexibility - the design permits the customer to reconfigure the location of the stairs or railings because of modular design and assembly using fastners/nuts/bolts etc - not welded

Key Specs

AttributeSpecification

item#

6417886

Brand

Equipto

Manufacturer's Warranty

2 year limited warranty

Ship Weight

2355.85 LB

Clearance Height

87 in

Capacity

350 lb

Material

Carbon Steel
AttributeSpecification

Steps (qty.)

11

Platform Height

96 in

Platform Width

120 in

Platform Length

120 in

OSHA Approved

Yes

Product Weight

2355.8528 lb

Dimensions L x W x H (in.)

120.0 x 120.0 x 96.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
