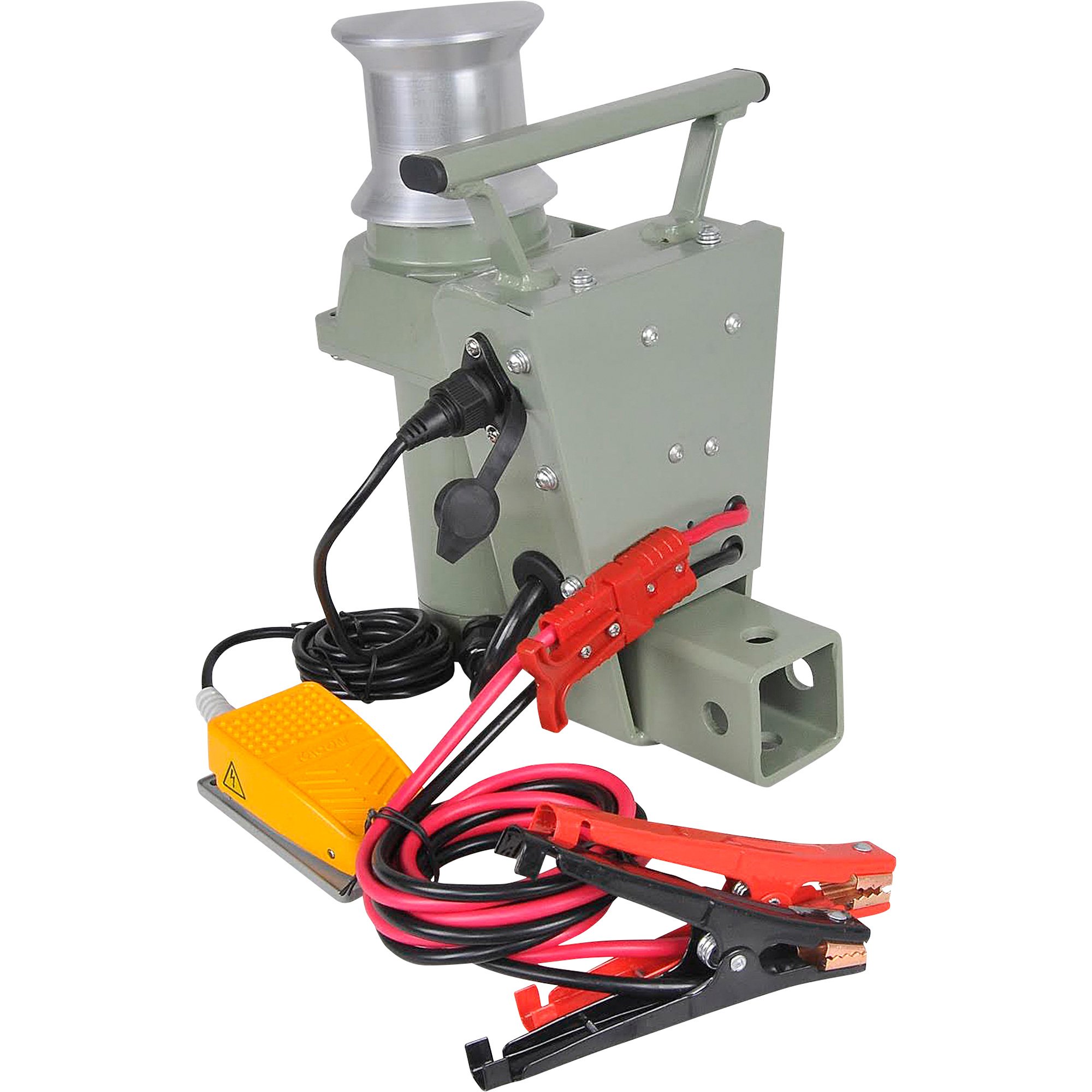

Endurance Marine Tugger 12 Volt DC Powered Capstan Winch — 1,500 Lb. Capacity, 1.5 HP, Model# ETUG 1

Item# 29540
Endurance Marine Tugger 12 Volt DC Powered Capstan Winch — 1,500 Lb. Capacity, 1.5 HP, Model# ETUG 1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Endurance Marine Tugger 12 Volt DC Powered Capstan Winch — 1,500 Lb. Capacity, 1.5 HP, Model# ETUG 1

Click or Tap image to Zoom

  • Handsfree foot switch with 6 1/2-ft. wiring harness for safety and ease of use
  • 1 1/2 HP, 12V motor
  • Delivers 1,500 lbs. of maximum pulling power, but has very low battery draw
  • 2 carriage, 6 planetary gear train with 121:1 gear ratio
  • Motor is water resistant and can stand spray or rain but cannot be immersed

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

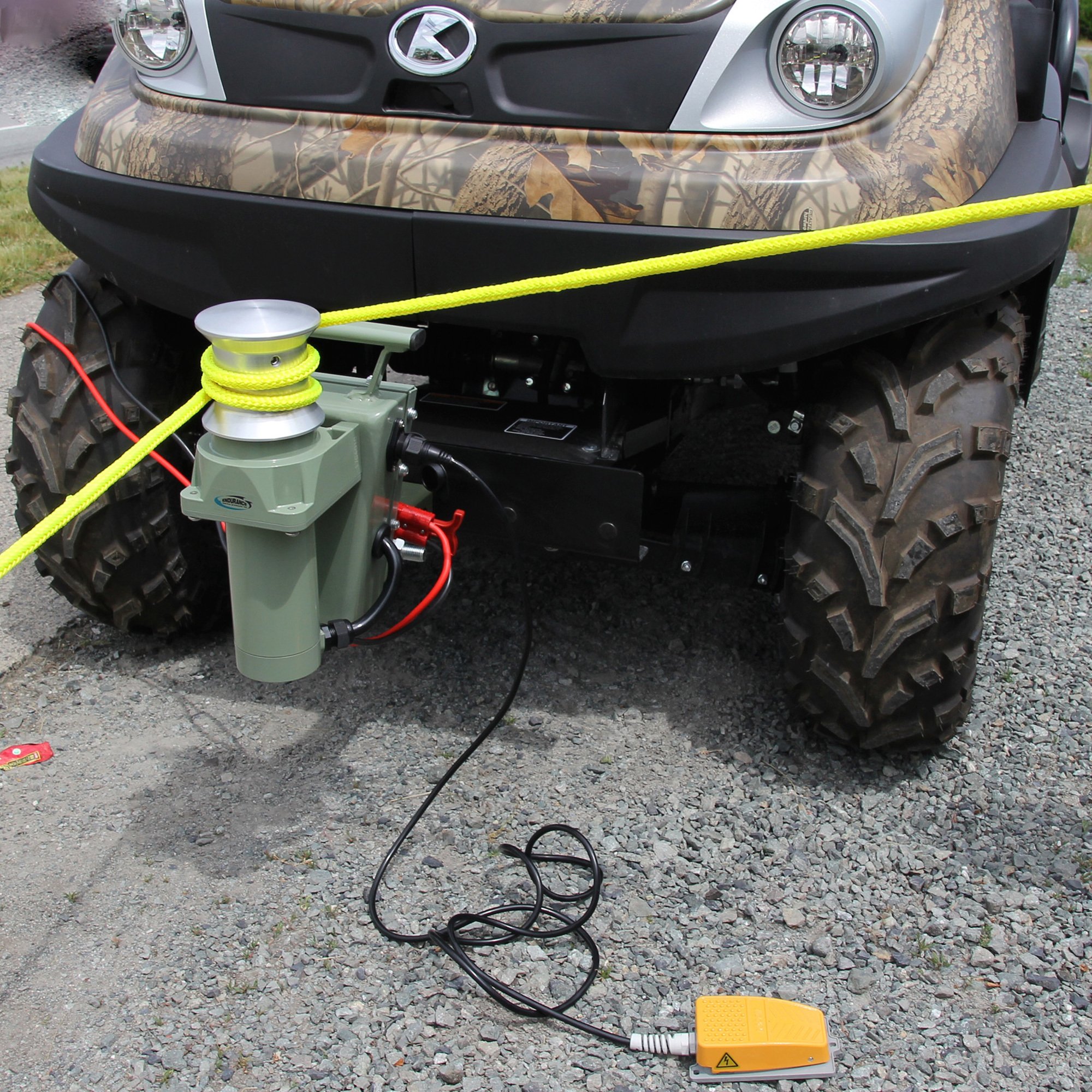

The Endurance Marine Tugger Capstan Winch is a versatile winch that can handle almost any length of rope to pull heavy objects great distances with little effort. Fits into a standard 2 in. hitch receiver to make it fully portable. Motor is water resistant and can stand spray or rain but cannot be immersed.

What's Included

  • (1) Capstan winch
  • (1) Wiring harness
  • (1) Storage bag
  • (1) Foot switch

Downloads

Product Manual

Features + Benefits

  • Handsfree foot switch with 6 1/2-ft. wiring harness for safety and ease of use
  • 1 1/2 HP, 12V motor
  • Delivers 1,500 lbs. of maximum pulling power, but has very low battery draw
  • 2 carriage, 6 planetary gear train with 121:1 gear ratio
  • Motor is water resistant and can stand spray or rain but cannot be immersed
  • Built-in cleat safely secures loads and doubles as a carry handle
  • Includes 25 ft. x 6 ga. wiring harness with commercial grade quick connects for easy setup
  • Comes with heavy-duty zippered storage bag with cushioned bottom, hard styrene insert and heavy-duty marine grade zipper

Key Specs

AttributeSpecification

item#

29540

Brand

Endurance Marine

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

40.0 LB

Horsepower

1.5 HP
AttributeSpecification

Capacity (Line Pull)

1,500 lb

Gear Type

Combination

Line Speed

50 ft./min.

Gear Ratio

121:1

Remote Cord Length

6.5 ft

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Receiver bar

    Does it come with a 2” receiver bar to to connect to hitch?

    1 answer

    1. This capstan winch includes a 2" receiver bar that connects the mounting box assembly to your vehicle's 2" receiver. It can then be secured to the 2" receiver with a bolt and nut (both are included) or a 5/8" hitch pin (not included).

      Helpful?

  2. are there optional mounts?

    Can this winch be mounted to rotate horizontally rather than vertically? are there any accessory mounts available to attach to a pole or tree?

    1 answer

    1. The Tugger capstan winch can be mounted in a vertical or horizontal position to accommodate an optimal working plain. There are no accessories to mount to a pole or tree.

      Helpful?

  3. What is the Duty Cycle?

    1 answer

    1. There is no set duty cycle on this winch. It should be able to run 7-8 minutes or until it gets hot, whichever comes first. Then let it cool down. It could be less with heavier loads.

      Helpful?

  4. Elevation angle adjustment ?

    Are there any attachments to allow for an elevation adjustment

    1 answer

    1. There is not an elevation adjustment on the winch.

      Helpful?

  5. I want to use this to lower a load down a 50-foot ramp. I noted the description only mentions "pulling" a load. Can a capstan winch "repel" a load?

    1 answer

    1. The winch can be used to lower a load down a ramp. You just have to make sure the load does not exceed the weight capacity of the winch. You must be sure to have the rope secured around the winch several times and then lower the load slowly.

      Helpful?

  6. Can this capstan winch be wired to alternate rotation from clockwise to counterclockwise, as needed?

    1 answer

    1. Yes, you can change the rotation direction.

      Helpful?
