EMAX Tank Mount Rotary Screw Air Compressor w/Air Dryer, 10 HP, 80 Gal, 230/460 Volts, Model# ERIK100003

Item# 4907751
EMAX Tank Mount Rotary Screw Air Compressor w/Air Dryer, 10 HP, 80 Gal, 230/460 Volts, Model# ERIK100003

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

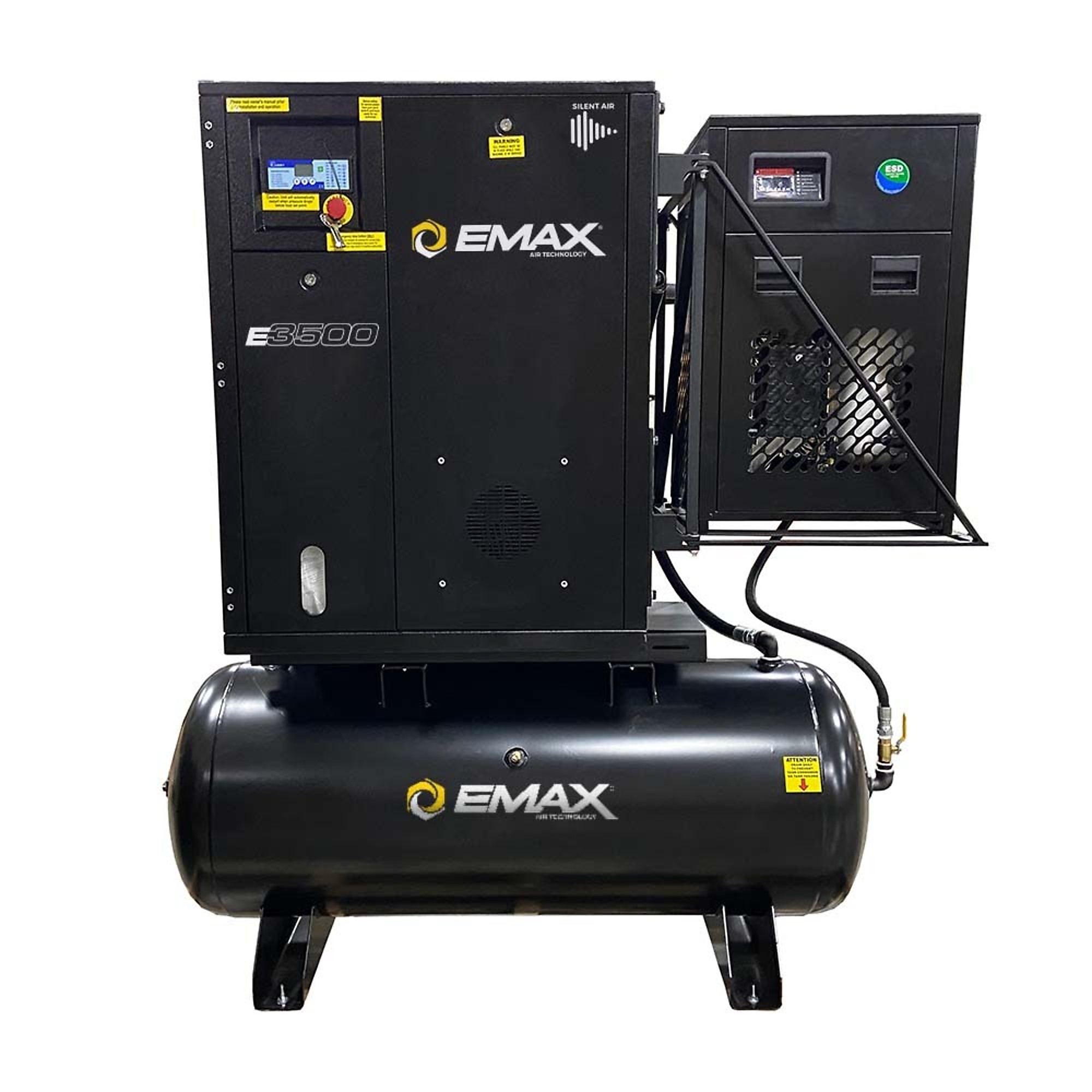

EMAX Tank Mount Rotary Screw Air Compressor w/Air Dryer, 10 HP, 80 Gal, 230/460 Volts, Model# ERIK100003

Click or Tap image to Zoom

$11,896.40

    • Shipping:

      Factory shipped

      Heavy/large item. Lift gate service available.

    • 60,000 Hr. Italian Air end Logic 9 controller, 4 function keys, connect through port to PC for monitoring, multi unit operation/communication,120 gallon receiving tank, refrigerated air dryer, complete air system Warranty: 1 year or 5 Year

    • Prop 65 Warning: See Details

    See full description

    • Description

    • Key Specs

    • Reviews

    • Q & A

    • Warranty

    • Compare

    Product Summary

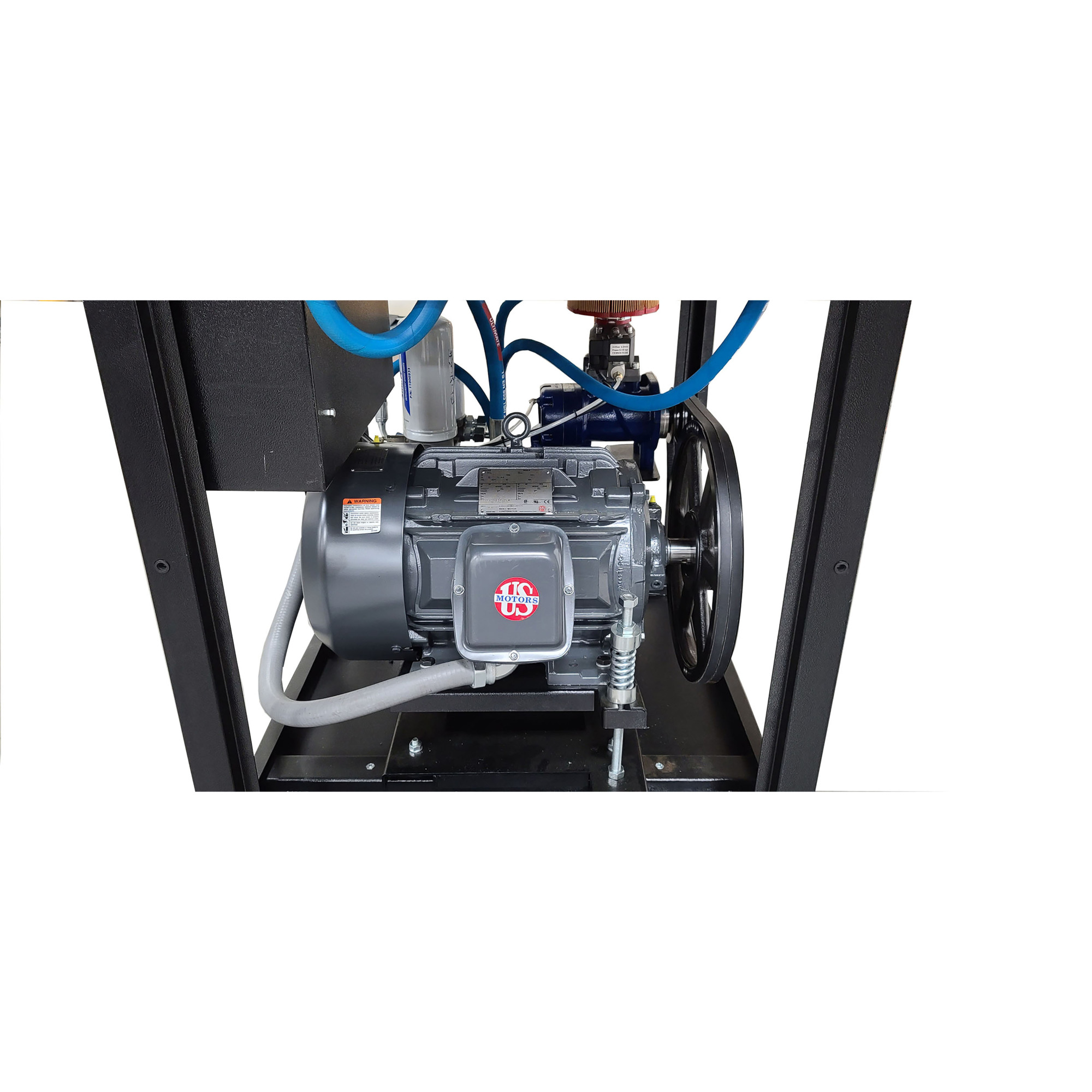

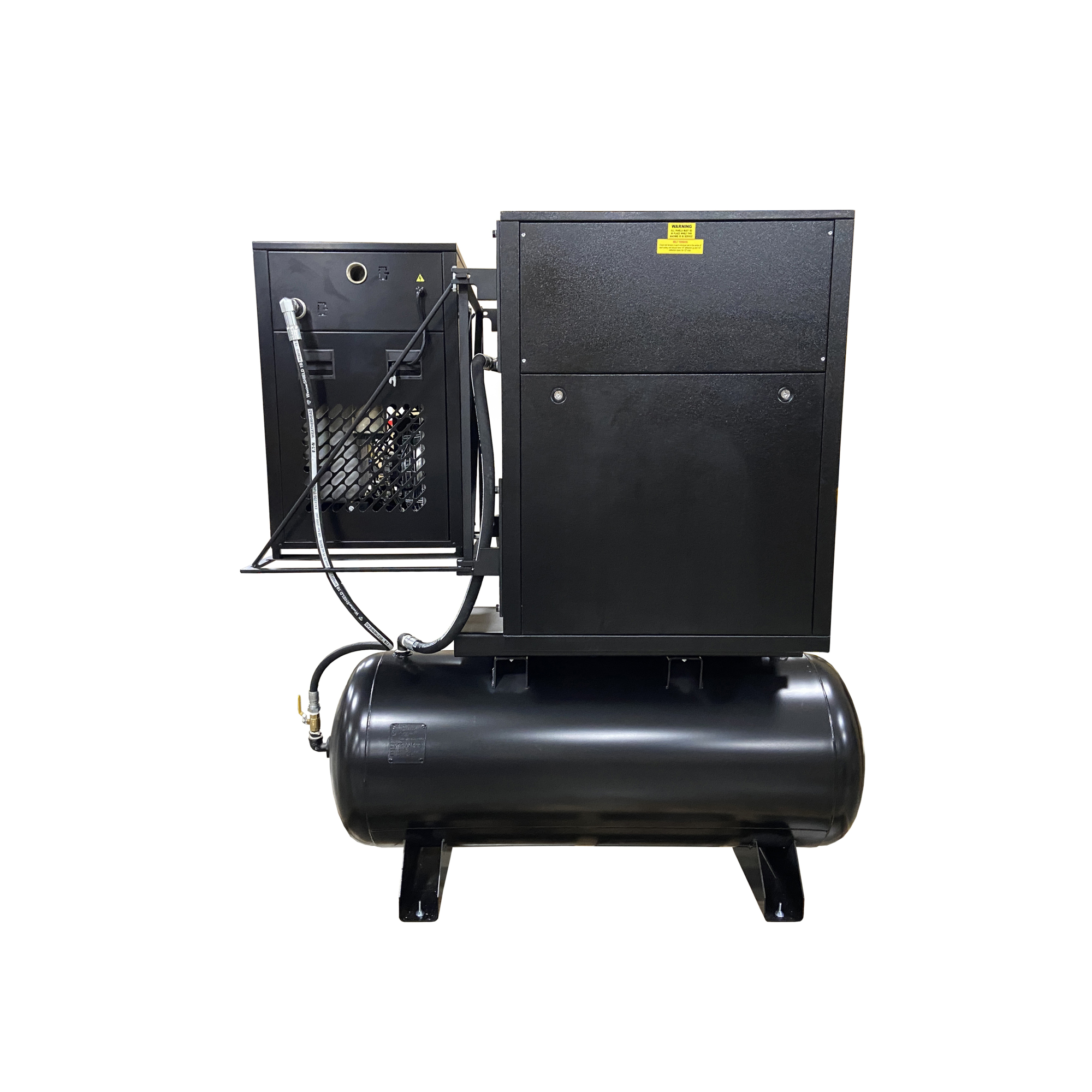

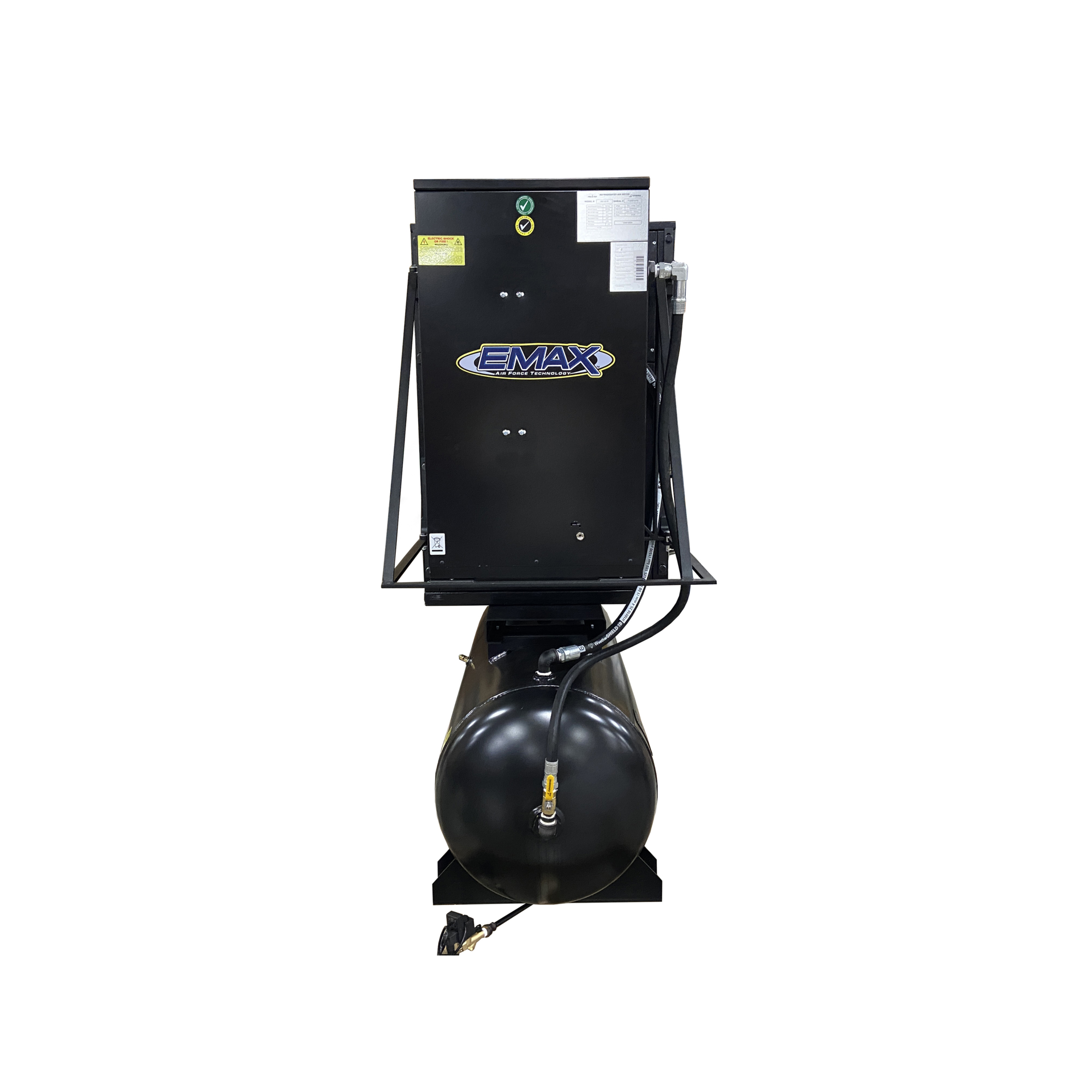

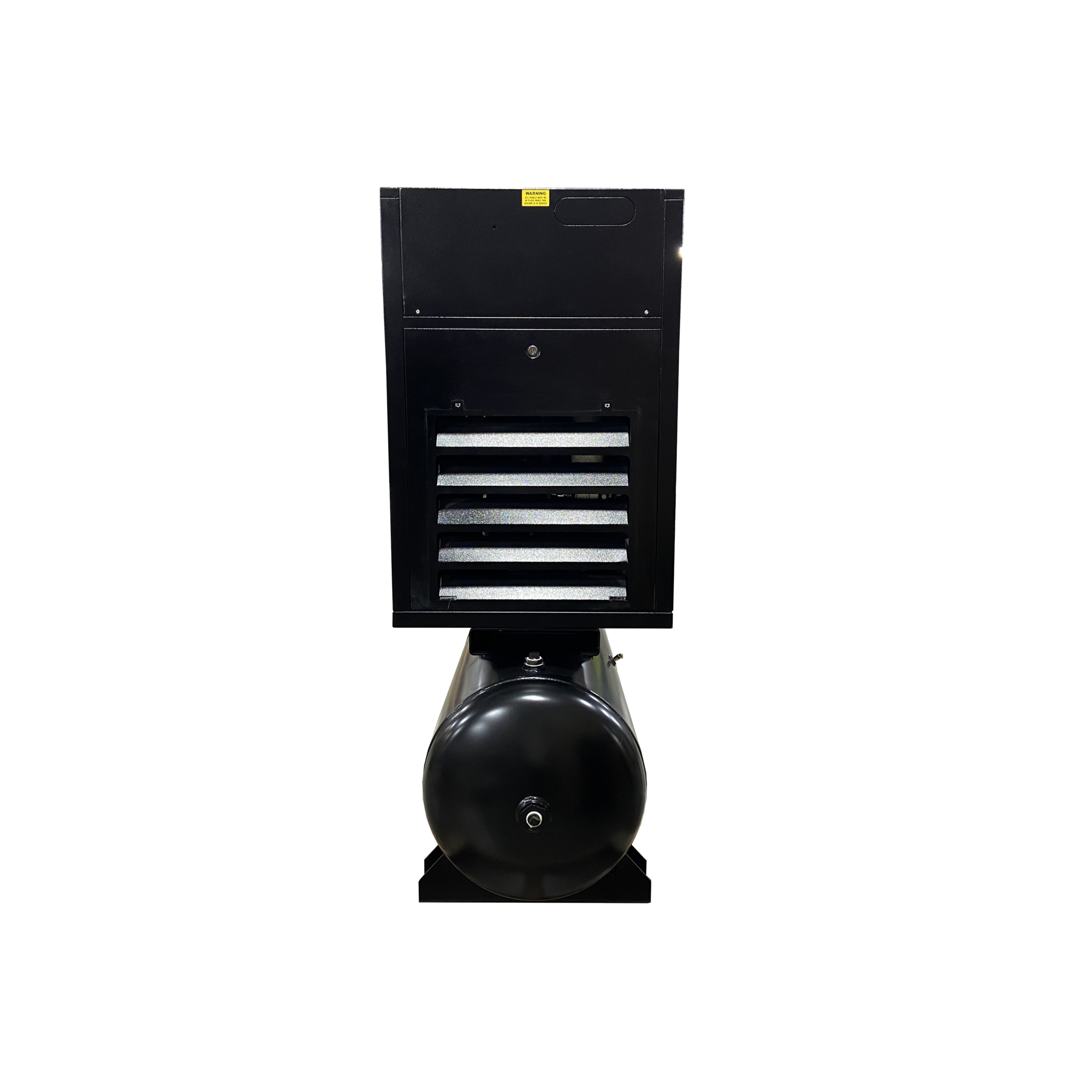

    EMAX Compressors 10HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary’s with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a receiving tank with a patented swingarm mounted air dryer for small foot print and easy maintenance.

    What's Included

      (1) EMAX 10HP 1PH Industrial Rotary Screw Compressor-120 Gal Tank Mount w/Air Dryer

    Features + Benefits

    • 60,000 Hr. Italian Air end Logic 9 controller, 4 function keys, connect through port to PC for monitoring, multi unit operation/communication,120 gallon receiving tank, refrigerated air dryer, complete air system Warranty: 1 year or 5 Year

    Key Specs

    AttributeSpecification

    item#

    		4907751

    Brand

    		EMAX

    Manufacturer's Warranty

    		1 year limited warranty

    Air Tank Size

    		80 Gal

    Volts

    		230/460

    CFM at 90 PSI

    		42

    Motor Phase

    		3

    Stage

    		0

    Horsepower

    		10 HP

    Max. PSI

    		145

    Air Outlets (qty.)

    		1

    Amps

    		24

    Duty Cycle

    		100 %

    Fuel Capacity

    		0 Gal

    Motor RPM

    		1,750

    Working Pressure

    		145 PSI

    Engine Start Type

    		Electric
    AttributeSpecification

    Pump Life

    		60,000 hr

    Pump Drive

    		Belt

    Air Outlet Size

    		3/4 in. NPT

    CFM at 40 PSI

    		44

    CFM at Max. PSI

    		37

    Noise Level

    		65 dB

    Oil Required

    		Yes

    Low Oil Shutdown

    		No

    Lubrication System

    		Pressure

    Pressure Gauge

    		Yes

    Electronic Drain Valve

    		No

    After Cooler Included

    		No

    Tank Fill Time

    		0 min

    Air Dryer

    		Mounted

    Product Weight

    		546.0000 lb

    Dimensions L x W x H (in.)

    		72.0 x 27.0 x 71.0 in

    Reviews

    Questions & Answers

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
