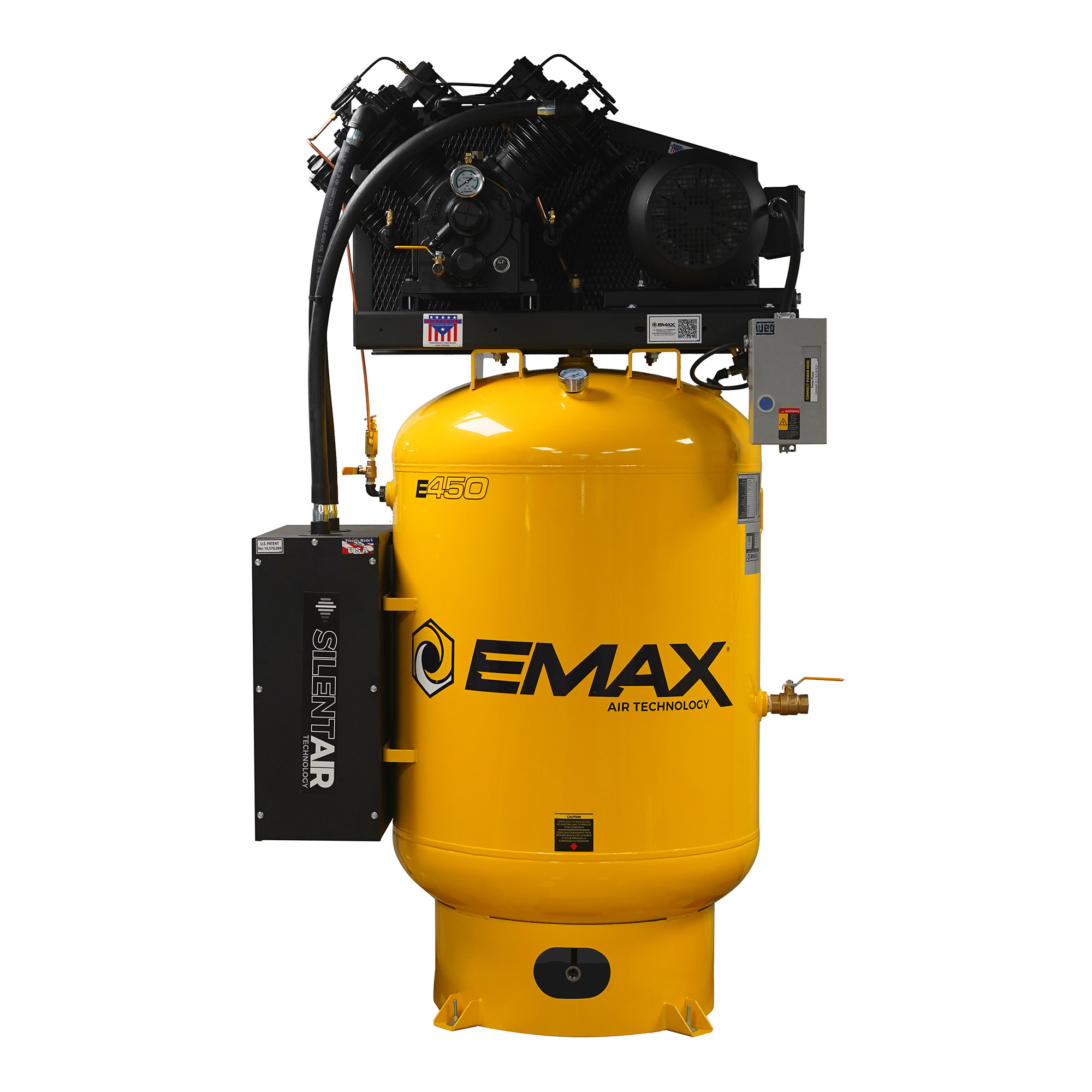

EMAX Silent Air Industrial Vertical Air Compressor — 10 HP, 38 CFM, 1-Phase, 2-Stage, 120 Gal., Pressure Lube Pump, Isolator Pads, Belt Tensioner, Auto Drain, Model# ESP10V120V1

Item# 6984792
EMAX Silent Air Industrial Vertical Air Compressor — 10 HP, 38 CFM, 1-Phase, 2-Stage, 120 Gal., Pressure Lube Pump, Isolator Pads, Belt Tensioner, Auto Drain, Model# ESP10V120V1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Silent Air Industrial Vertical Air Compressor — 10 HP, 38 CFM, 1-Phase, 2-Stage, 120 Gal., Pressure Lube Pump, Isolator Pads, Belt Tensioner, Auto Drain, Model# ESP10V120V1

Click or Tap image to Zoom

$6228.12

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Patented Silent Air Technology
  • 10HP Single Phase Power!
  • 120 Gallon ASME Powdercoated Tank
  • Automatic Timed Tank Drain
  • Pressure Lubricated Pump

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This EMAX Industrial Plus 10HP 2 Stage V4 1Phase vertical 120gal. Piston Air Compressor is designed for up to 60,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38CFM 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 60,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry! 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

What's Included

    (1) Air Compressor

Downloads

Safety Data Sheet

Features + Benefits

  • Patented Silent Air Technology
  • 10HP Single Phase Power!
  • 120 Gallon ASME Powdercoated Tank
  • Automatic Timed Tank Drain
  • Pressure Lubricated Pump

Key Specs

AttributeSpecification

item#

6984792

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1116.0 LB

Air Tank Size

120 Gal

Volts

230

CFM at 90 PSI

38

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

52.9

Duty Cycle

60 %

Fuel Capacity

0 Gal

Motor RPM

1,750

Working Pressure

175 PSI
AttributeSpecification

Engine Displacement

0 cc

Engine Start Type

Electric

Pump Life

60,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1 in. NPT

CFM at 40 PSI

39

CFM at Max. PSI

175

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

No

Air Dryer

None

Drain Type

Automatic

Product Weight

967.0000 lb

Dimensions L x W x H (in.)

44.0 x 44.0 x 80.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
