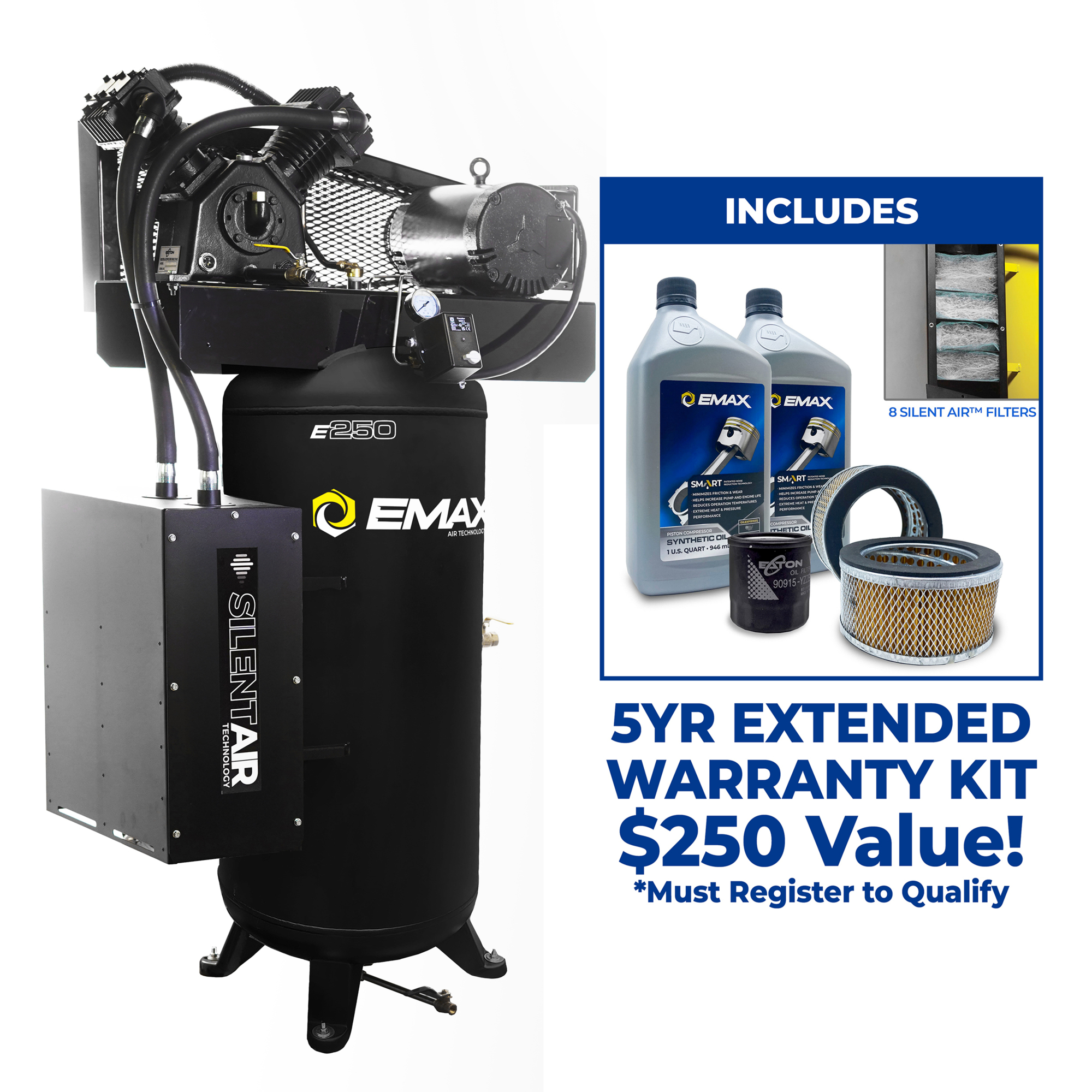

Emax Silent Air Compressor — 5 HP, 60-Gal., 19 CFM, Single-Stage, 2-Cylinder, Splash Lube, Includes Maintenance Kit, Model# ESS05V060V1K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- 60% DUTY cycle, Operation: automatic start/stop
- Patented Silent Air Technology with 5 Stage Filtration
- Condor Pressure Switch
- 1740RPM Industrial Grade Electric Motor
- Single Stage Solid Cast Iron low RPM Splash Lube Pump with High CFM output
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Air Compressor (1) Maintenance Kit
Features + Benefits

- 60% DUTY cycle, Operation: automatic start/stop
- Patented Silent Air Technology with 5 Stage Filtration
- Condor Pressure Switch
- 1740RPM Industrial Grade Electric Motor
- Single Stage Solid Cast Iron low RPM Splash Lube Pump with High CFM output
- 18 gauge steel Belt guard
- ASME 60 Gallon Tank Powdercoated Tank
- 150PSI Max PSI
- ETL Certified
- First Maintenance Kit Up to a $250 Value!
Key Specs
| Attribute | Specification |
|---|---|
item# | 7349301 |
Brand | EMAX |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 570.0 LB |
Horsepower | 5 HP |
Air Tank Size | 60 Gal |
Max. PSI | 150 |
Stage | 1 |
Duty Cycle | 60 % |
Motor RPM | 1,740 |
Motor Phase | 1 |
Pump Life | 50,000 hr |
| Attribute | Specification |
|---|---|
Pump Material | Cast Iron |
Pump Drive | Belt |
Air Outlet Size | 3/4 in. NPT |
CFM at Max. PSI | 17 |
Oil Required | Yes |
Lubrication System | Splash |
Pressure Gauge | Yes |
Air Dryer | None |
Drain Type | Manual |
Tank Orientation | Vertical |
Product Weight | 491.0000 lb |
Dimensions L x W x H (in.) | 35.0 x 21.0 x 69.0 in |
Reviews
Questions & Answers
Questions
Warranty
Manufacturer's Warranty
1 year limited warranty
Compare with Most Popular in Stationary Electric Air Compressors
See All Stationary Electric Air Compressors
See All EMAX Stationary Electric Air Compressors
Currently Viewing This Product
$3999.00Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
Item # 5778284
$4882.00Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
Item # 5745837
$6018.00Shipping:
Free shipping (lower 48 states) - Factory shippedStore Pickup:
Not available - online only
Item # 5778428
$5299.99Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
Specifications
5 HP
5 HP
10 HP
7.5 HP
60 Gal
80 Gal
120 Gal
80 Gal
150
175
175
175
1
2
2
2
60 %
100 %
100 %
100 %
1,740
658
682
896
1
3
3
1
50,000 hr
50,000 hr
50,000 hr
60,000 hr
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Belt
-
-
-
3/4 in. NPT
3/4 in. NPT
1 in. NPT
3/4 in. NPT
17
17.4
35
23.6
Yes
Yes
Yes
Yes
Splash
Splash
Splash
Pressure
Yes
Yes
Yes
Yes
None
-
-
-
Manual
Automatic
Manual
Manual
Vertical
Horizontal
Vertical
Horizontal
491.0000 lb
680.0000 lb
979.0000 lb
720.0000 lb
35.0 x 21.0 x 69.0 in
67.0 x 30.0 x 49.0 in
42.0 x 30.0 x 78.0 in
67.0 x 30.0 x 49.0 in
-
230
200
230
-
18.1
36
24.4
-
1
1
1
-
15.2
32.2
40
-
135-175 PSI
135-175 PSI
135-175 PSI
-
Yes
No
-
-
Yes
No
-
-
Yes
No
-
-
-
Electric
-
