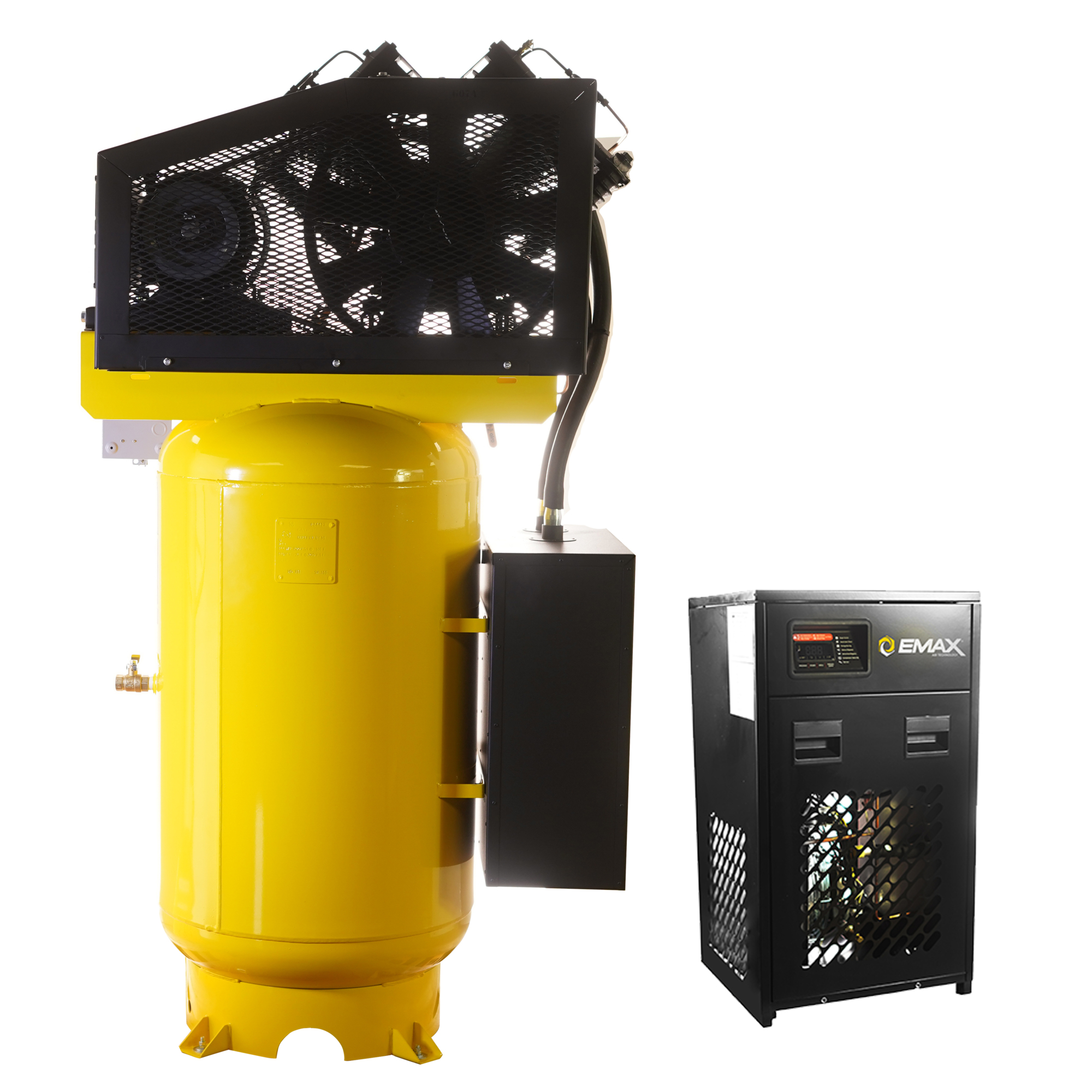

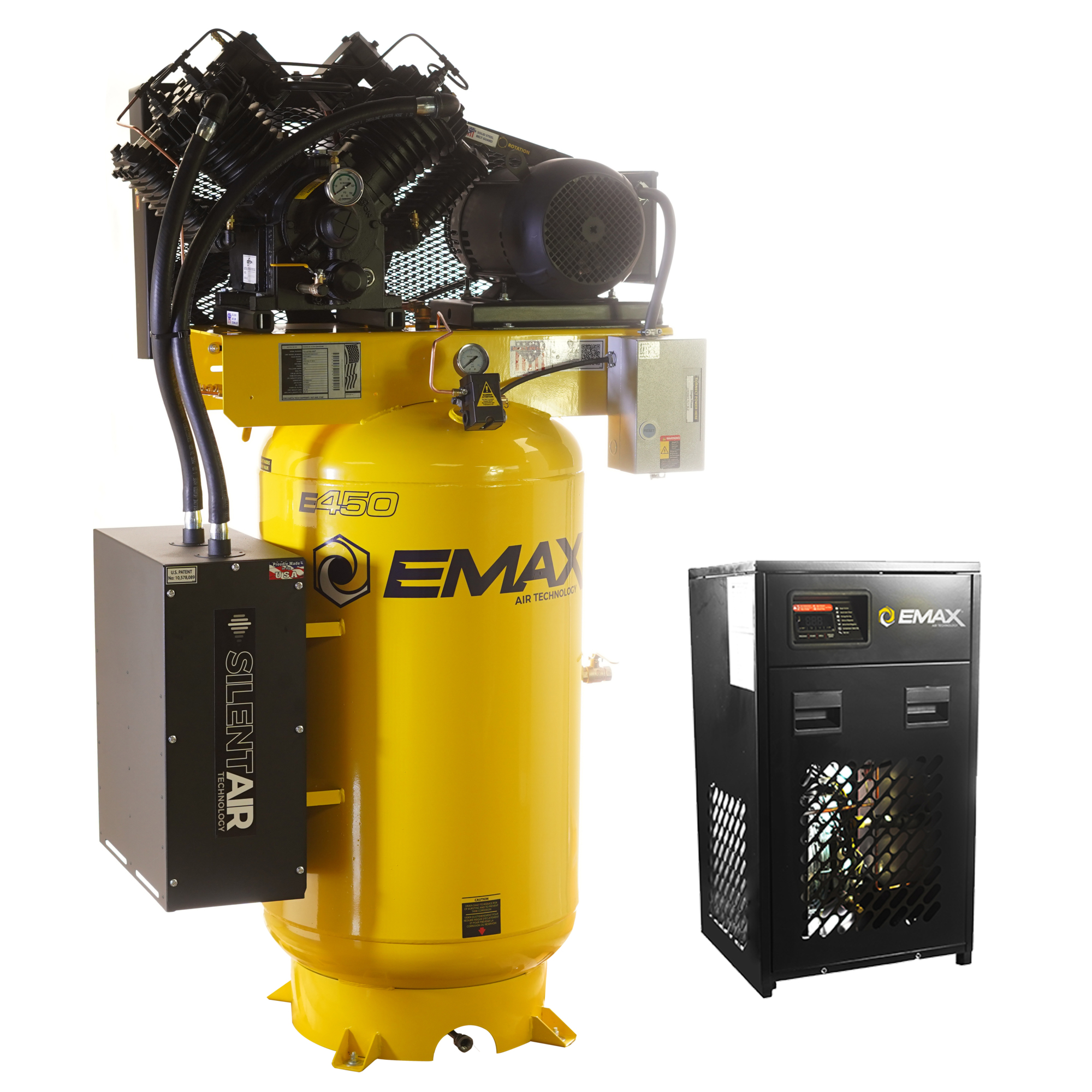

EMAX Silent Vertical Air Compressor Bundle, 7.5HP, 80 Gal, 230/460 Volts, Model# ESP07V080V3PK

Item# 4906694
EMAX Silent Vertical Air Compressor Bundle, 7.5HP, 80 Gal, 230/460 Volts, Model# ESP07V080V3PK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Silent Vertical Air Compressor Bundle, 7.5HP, 80 Gal, 230/460 Volts, Model# ESP07V080V3PK

Click or Tap image to Zoom

$6750.64

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life ratingContinuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactorBelt tension adjustor for fast, easy one-turn design reduces vibration and extends belt lifeAuto tank drain 110-volt dual timer controlled, eliminates daily maintenanceExtended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank drainingWhisper100 dissipates air compressor intake noise by channeling the intake air through a series of baffle platesETL CertifiedSolid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work loadPrecision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operationAll steel connecting rods with replaceable rod bearing inserts allows rods to be rebuiltRe-usable oil filterRemovable 100% cast iron cylinders do not warp from heatAll cast iron cylinder heads are durable and dependableDisc valve design intake and exhaust valves can be serviced in minutesTop quality compression and oil rings ensure performance with low oil carry overPrecision ground pistons are machined to tight tolerances that ensure low oil carry overPremium non-absorbent gaskets prevent oil seepage from the pumpAll cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motorBuilt-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heatBuilt-in inter-cooler and after-coolersRaised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulateName brand open drip motors have a 5 year warrantyLarge 1-3/8 in. output shaft on the motorLarge starting and running capacitorsMotor can be pulled 15% over full load for more break horsepowerDynamically balanced armature for low vibration levelsBelt guard is made from 13-gauge steel and premium grade expanded metalTop quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lowerAll check valves on the air compressor are brass with a Teflon seating to reduce tank noise100% brass ASME safety valves are preset and sealed for correct settings Paired with environmentally friendly refrigerated air dryer with built in coalescing filter and timed auto drain.

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • EMAX Silent Vertical Air Compressor Bundle, 7.5HP, 80 Gal, 230/460 Volts, Model# ESP07V080V3PK
  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211
  • Quincy Compressor 30W Compressor Oil, 1-Qt., Model# 112543Q100
Price for all three:

$6800.62

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

EMAX Bundle comes with our Industrial Plus 7.5 HP 2 Stage V4 3 Phase vertical 80 gal. Piston Air Compressor is designed for up to 60,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31 CFM 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron patented pressure lubricated reciprocating pump. This unit features our Patented Silent Air system already installed. The Silent Air system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. We have paired this compressor with our 30CFM energy efficient refrigerated air dryer to make your buying experience seamless! Our EMAX air dryer filters air solid particles down to 0.01 microns leaving your air dry and reducing contamination to your equipment. These bundles are backed by the best warranty in the industry! 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

What's Included

    (1) EMAX Silent Industrial Plus 7.5 HP 3 Phase 2-Stage 80 gal. Compressor with 30 CFM Dryer Bundle-With Pressure Lube Pump

Features + Benefits

  • Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life ratingContinuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactorBelt tension adjustor for fast, easy one-turn design reduces vibration and extends belt lifeAuto tank drain 110-volt dual timer controlled, eliminates daily maintenanceExtended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank drainingWhisper100 dissipates air compressor intake noise by channeling the intake air through a series of baffle platesETL CertifiedSolid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work loadPrecision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operationAll steel connecting rods with replaceable rod bearing inserts allows rods to be rebuiltRe-usable oil filterRemovable 100% cast iron cylinders do not warp from heatAll cast iron cylinder heads are durable and dependableDisc valve design intake and exhaust valves can be serviced in minutesTop quality compression and oil rings ensure performance with low oil carry overPrecision ground pistons are machined to tight tolerances that ensure low oil carry overPremium non-absorbent gaskets prevent oil seepage from the pumpAll cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motorBuilt-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heatBuilt-in inter-cooler and after-coolersRaised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulateName brand open drip motors have a 5 year warrantyLarge 1-3/8 in. output shaft on the motorLarge starting and running capacitorsMotor can be pulled 15% over full load for more break horsepowerDynamically balanced armature for low vibration levelsBelt guard is made from 13-gauge steel and premium grade expanded metalTop quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lowerAll check valves on the air compressor are brass with a Teflon seating to reduce tank noise100% brass ASME safety valves are preset and sealed for correct settings Paired with environmentally friendly refrigerated air dryer with built in coalescing filter and timed auto drain.

Key Specs

AttributeSpecification

item#

4906694

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1019.0 LB

Air Tank Size

80 Gal

Volts

208/203

CFM at 90 PSI

32

Motor Phase

3

Stage

2

Tank Orientation

Vertical

Horsepower

7.5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

18

Duty Cycle

60 %

Fuel Capacity

0 Gal

Motor RPM

1,750

Working Pressure

145 PSI

Engine Start Type

Electric
AttributeSpecification

Pump Life

60,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

35

CFM at Max. PSI

27

Noise Level

72 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Tank Fill Time

4.5 min

Air Dryer

Mounted

Drain Type

Automatic

Product Weight

1250.0000 lb

Dimensions L x W x H (in.)

38.0 x 42.0 x 72.0 in
