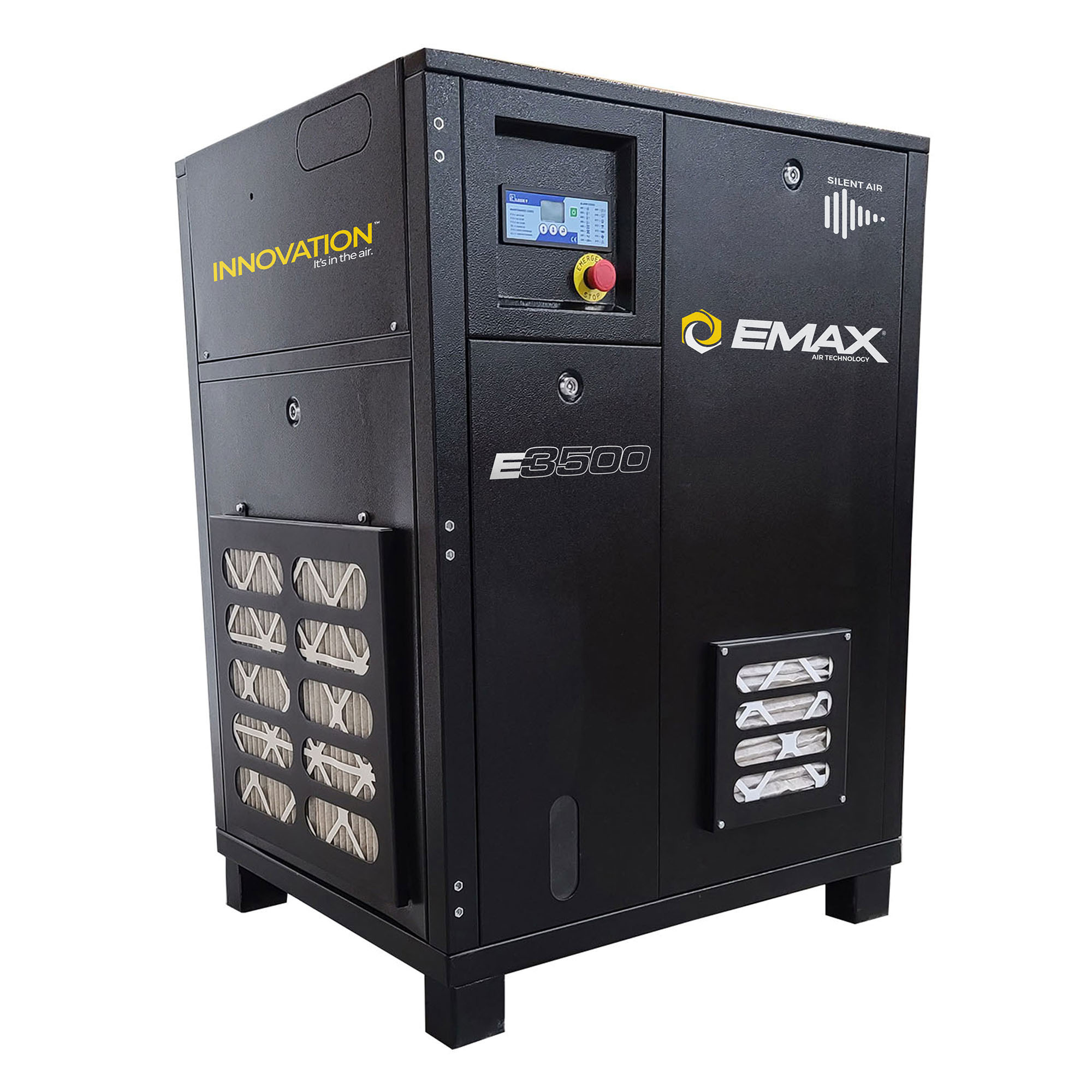

EMAX Rotary Screw Air Compressor Cabinet Only, 5HP, 230 Volts, Model# ERI0050001

Item# 4907603
EMAX Rotary Screw Air Compressor Cabinet Only, 5HP, 230 Volts, Model# ERI0050001

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Rotary Screw Air Compressor Cabinet Only, 5HP, 230 Volts, Model# ERI0050001

Click or Tap image to Zoom

$6665.42

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 60,000 Hr. Italian Air end Logic 9 controller, 4 function keys, connect through port to PC for monitoring, multi unit operation/communication Warranty: 1 year or 5 Year

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

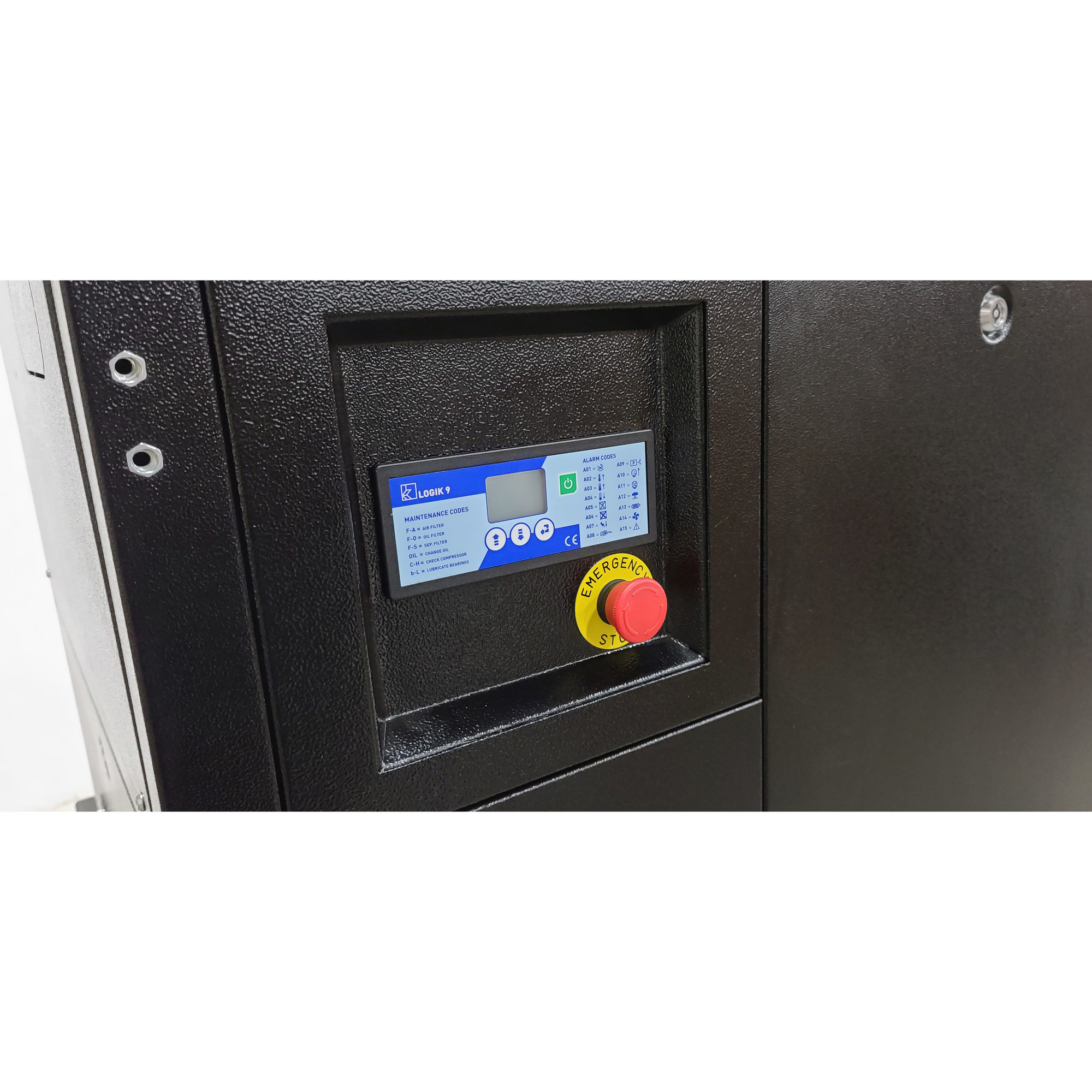

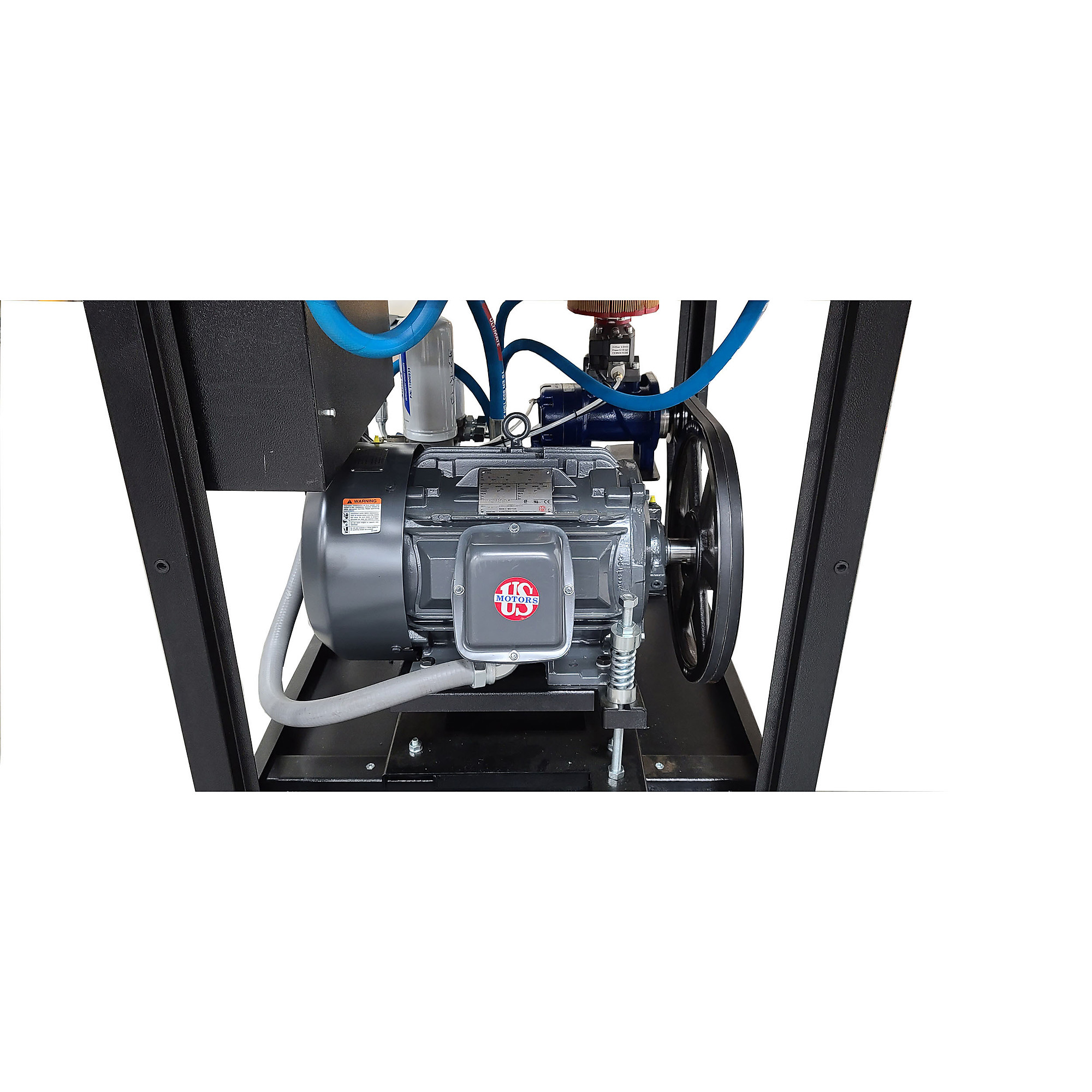

EMAX Compressors 5HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary’s with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is a floor mount model and does not include the receiving tank or air dryer.

What's Included

    (1) EMAX 5HP 1PH Industrial Rotary Screw Compressor-Cabinet Only

Features + Benefits

  • 60,000 Hr. Italian Air end Logic 9 controller, 4 function keys, connect through port to PC for monitoring, multi unit operation/communication Warranty: 1 year or 5 Year

Key Specs

AttributeSpecification

item#

4907603

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

483.0 LB

Air Tank Size

0 Gal

Volts

230

CFM at 90 PSI

22

Motor Phase

1

Stage

0

Horsepower

5 HP

Max. PSI

145

Air Outlets (qty.)

1

Amps

24

Duty Cycle

100 %

Fuel Capacity

0 Gal

Motor RPM

1,750

Working Pressure

145 PSI

Engine Start Type

Electric
AttributeSpecification

Pump Life

60,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

25

CFM at Max. PSI

17

Noise Level

65 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

0 min

Air Dryer

None

Product Weight

438.0000 lb

Dimensions L x W x H (in.)

34.0 x 24.0 x 41.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
