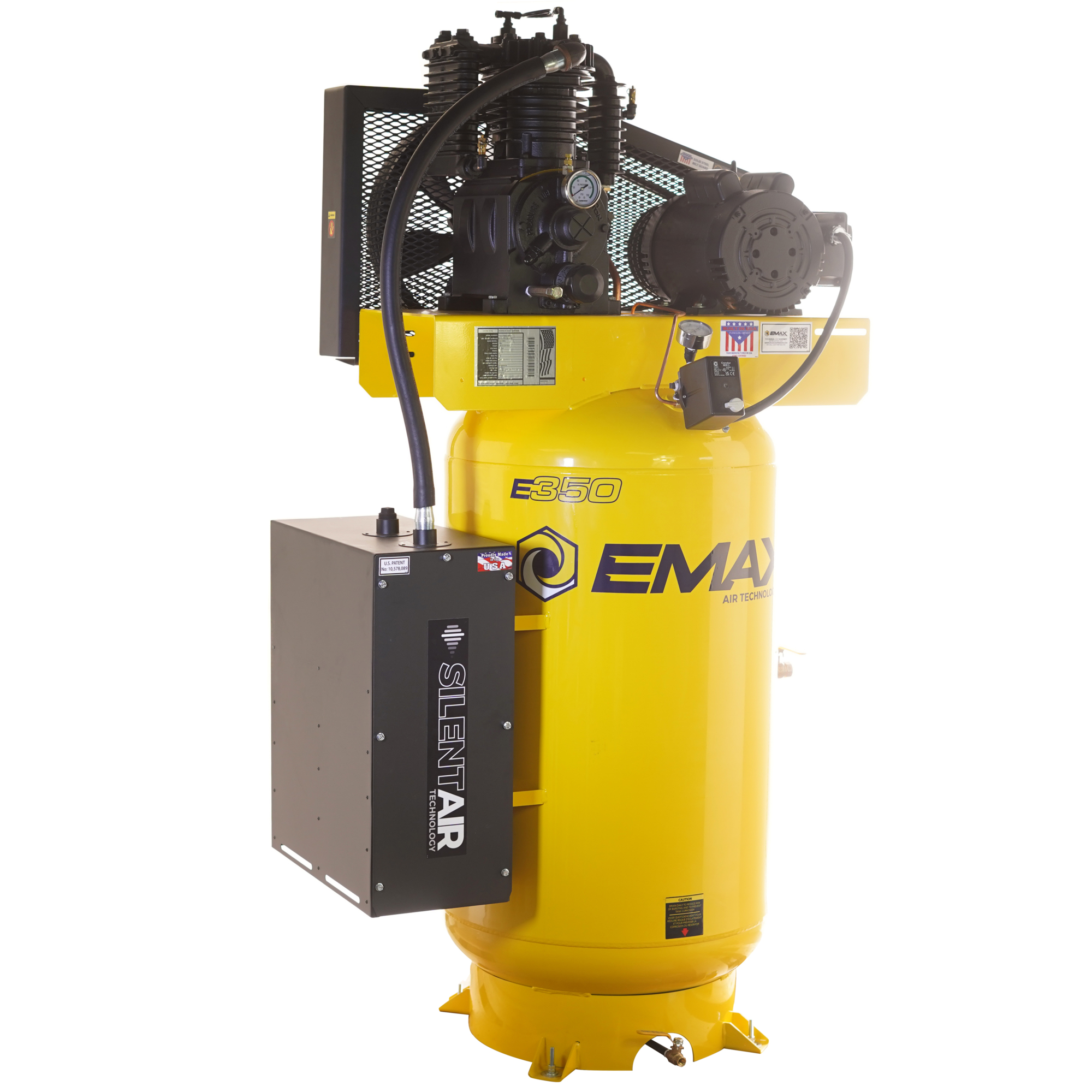

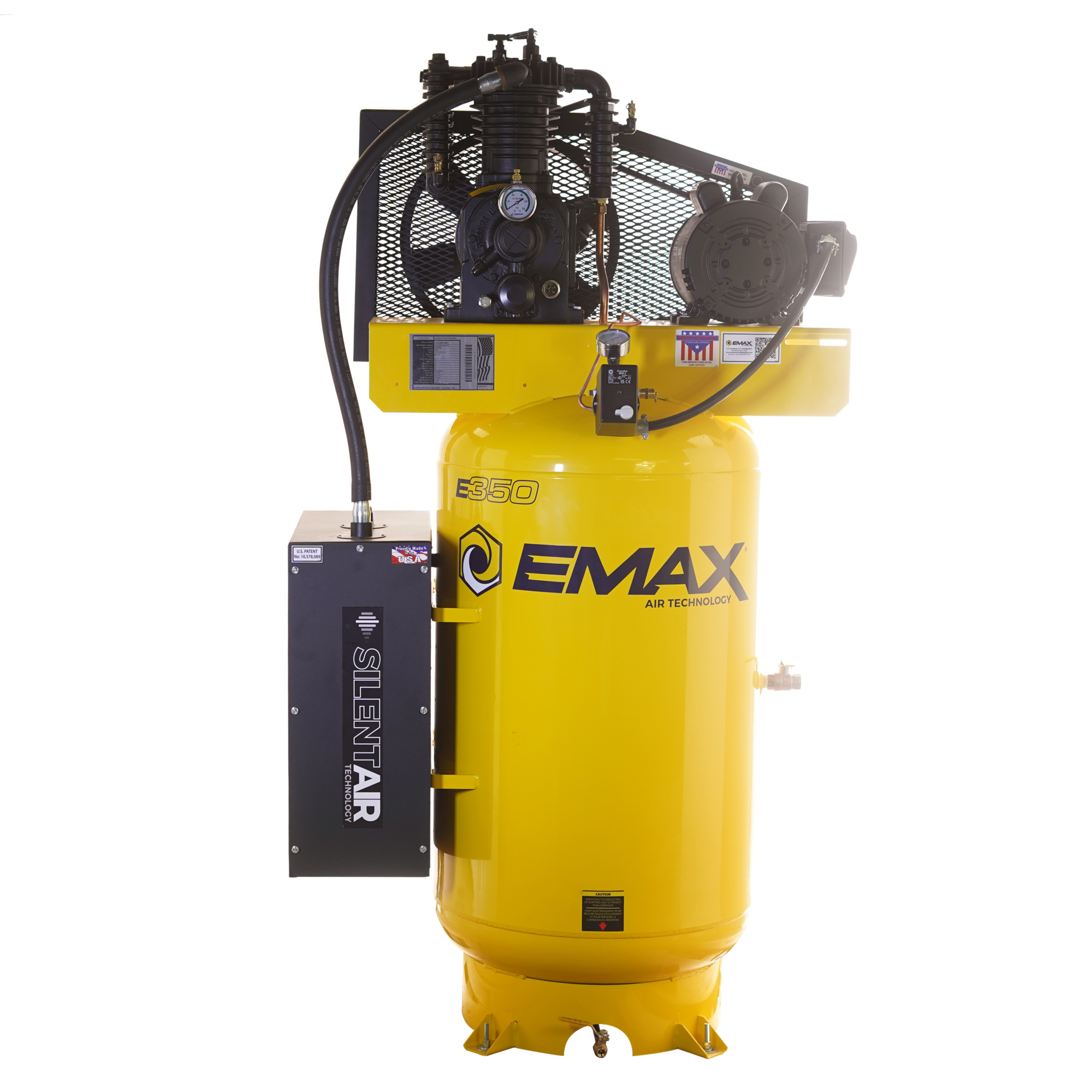

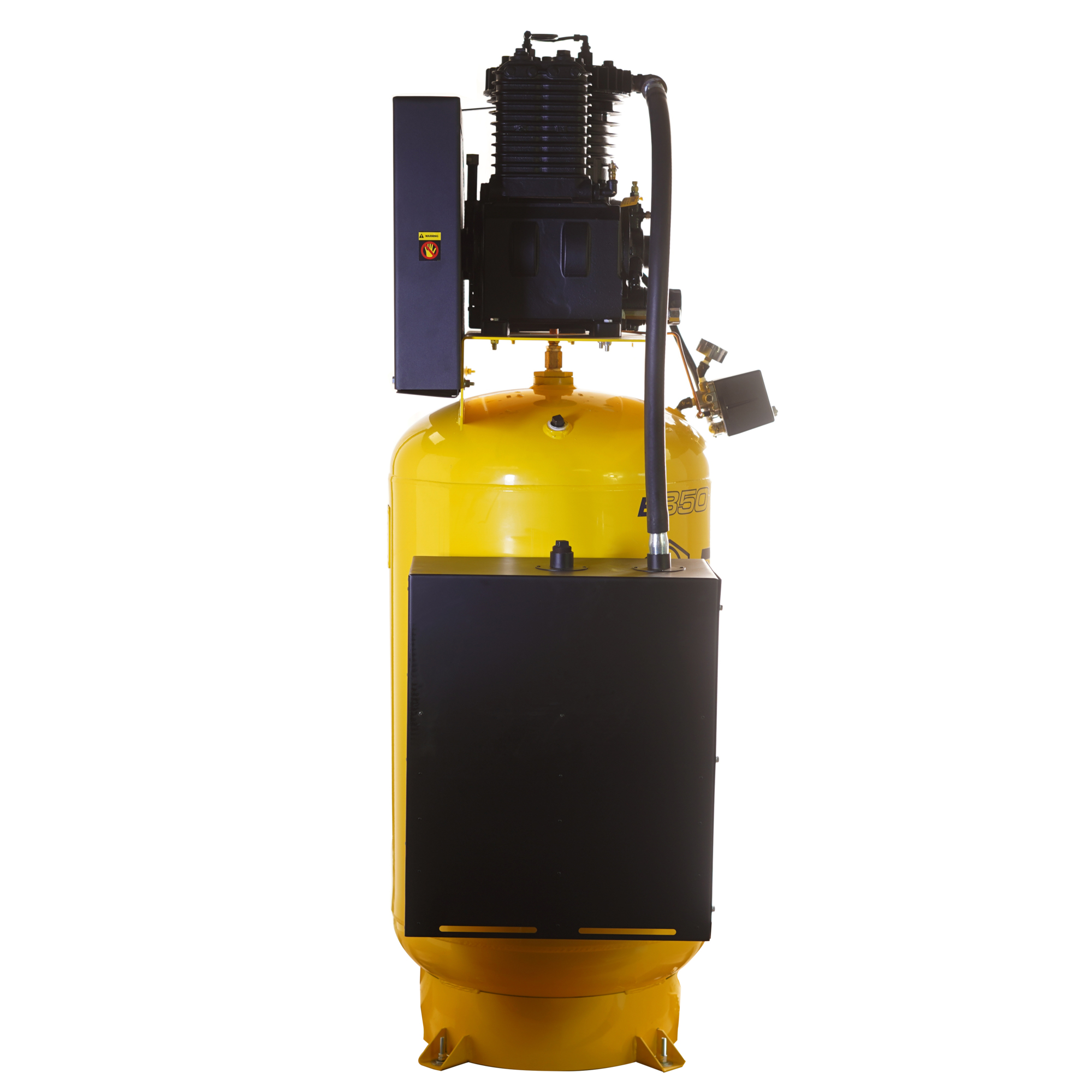

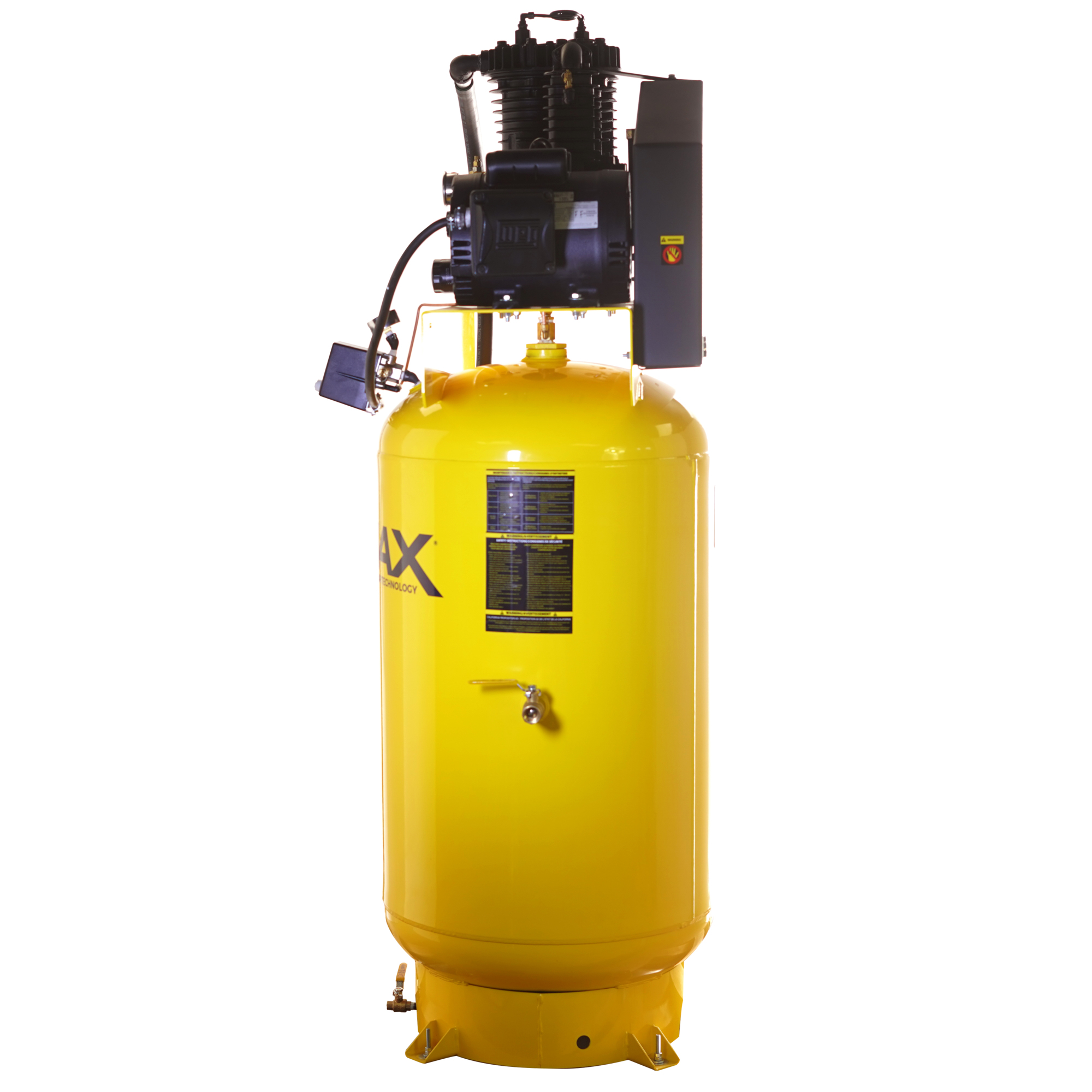

EMAX Industrial Silent Vertical Air Compressor Bundle, 5HP, 80 Gal, 230 Volts, Model# ES05V080I1

Item# 4906651
EMAX Industrial Silent Vertical Air Compressor Bundle, 5HP, 80 Gal, 230 Volts, Model# ES05V080I1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Industrial Silent Vertical Air Compressor Bundle, 5HP, 80 Gal, 230 Volts, Model# ES05V080I1

Click or Tap image to Zoom

$3933.70

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating Condor switch Silent Air Technology helps this air compressor run quietly All steel connecting rods with replaceable rod bearing inserts can be rebuilt Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat All cast iron cylinder heads are more durable and dependable Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM) Precision ground pistons machined to tight tolerances ensures low oil carry over Premium non-absorbent gaskets prevent oil seepage from pump All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor Built-in head unloaders Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank Large 1-3/8 in. output shaft Dynamically balanced armature for low vibration levels ELT Certified

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • EMAX Industrial Silent Vertical Air Compressor Bundle, 5HP, 80 Gal, 230 Volts, Model# ES05V080I1
  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211
  • Quincy Compressor 30W Compressor Oil, 1-Qt., Model# 112543Q100
Price for all three:

$3973.68

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This EMAX Industrial 5 HP 2 Stage Inline, 1 Phase vertical 80 gal. Piston Air Compressor is designed for up to 60,000 hours. This unit delivers 19 CFM 100 PSI, top PSI of 175. Our unit features industrial ODP electric motors, Condor Pressure Switch, manual ball valve tank drain, powder coated ASME tank 200PSI rating, all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

What's Included

    (1) EMAX Industrial w/Silent Air 5 HP 1 PH 80 Gallon Vertical

Features + Benefits

  • Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating Condor switch Silent Air Technology helps this air compressor run quietly All steel connecting rods with replaceable rod bearing inserts can be rebuilt Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat All cast iron cylinder heads are more durable and dependable Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM) Precision ground pistons machined to tight tolerances ensures low oil carry over Premium non-absorbent gaskets prevent oil seepage from pump All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor Built-in head unloaders Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank Large 1-3/8 in. output shaft Dynamically balanced armature for low vibration levels ELT Certified

Key Specs

AttributeSpecification

item#

4906651

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

756.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

20

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

24

Duty Cycle

60 %

Fuel Capacity

0 Gal

Motor RPM

1,750

Working Pressure

145 PSI

Engine Start Type

Electric
AttributeSpecification

Pump Life

60,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

21

CFM at Max. PSI

15

Noise Level

67 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

4 min

Air Dryer

None

Drain Type

Manual

Product Weight

784.0000 lb

Dimensions L x W x H (in.)

42.0 x 34.0 x 75.0 in

Reviews

Questions & Answers

Questions

  1. What type of plug is on the model# ES05V080l1? Making sure I have the right wall plug

    1 answer

    1. This air compressor is not equipped with a plug. If a plug is needed, please reach out to a certified electrician to assist with installing one. In most applications, this would be hardwired to a panel. This requires a 40 amp breaker and an 8 AWG wire for runs less than 50 feet.
