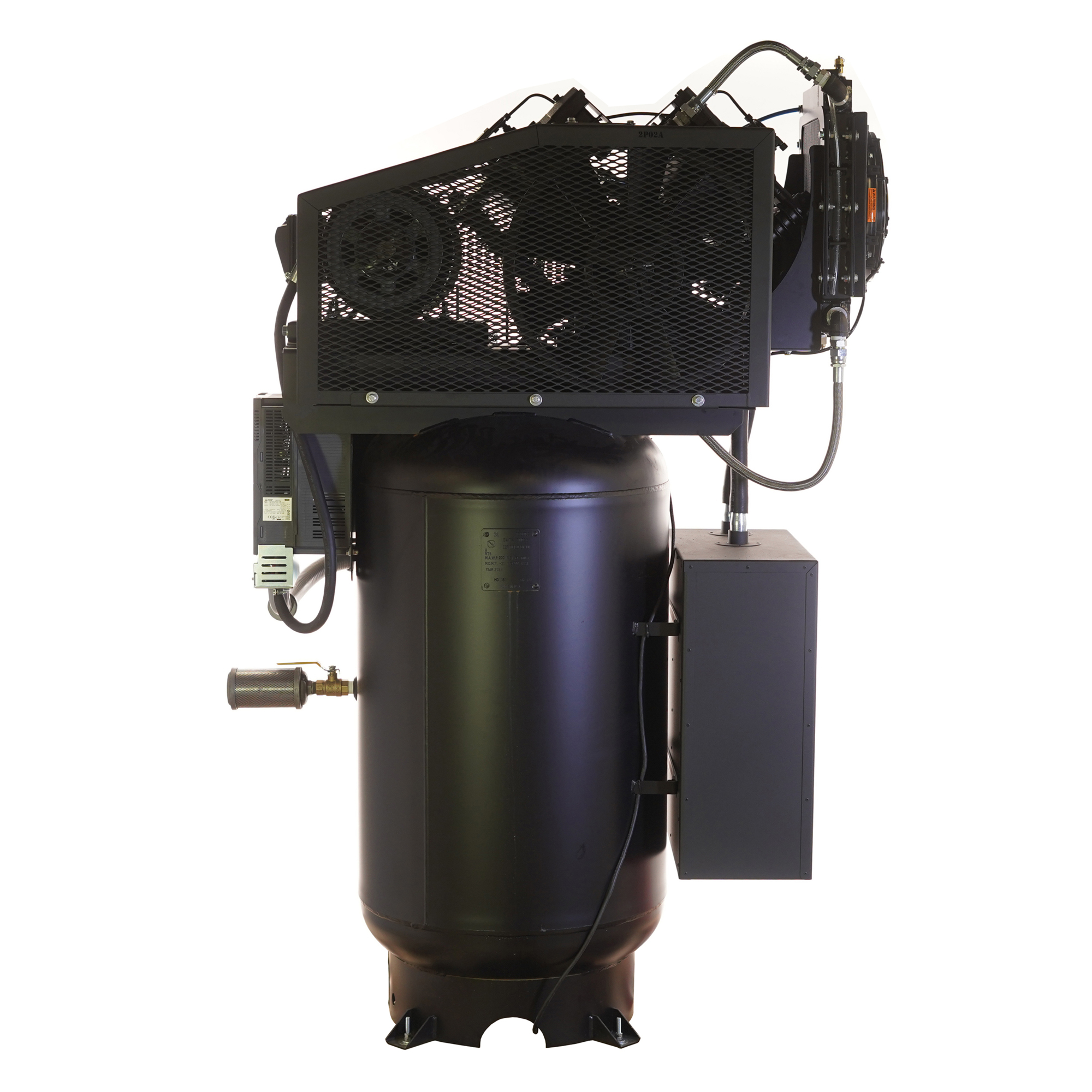

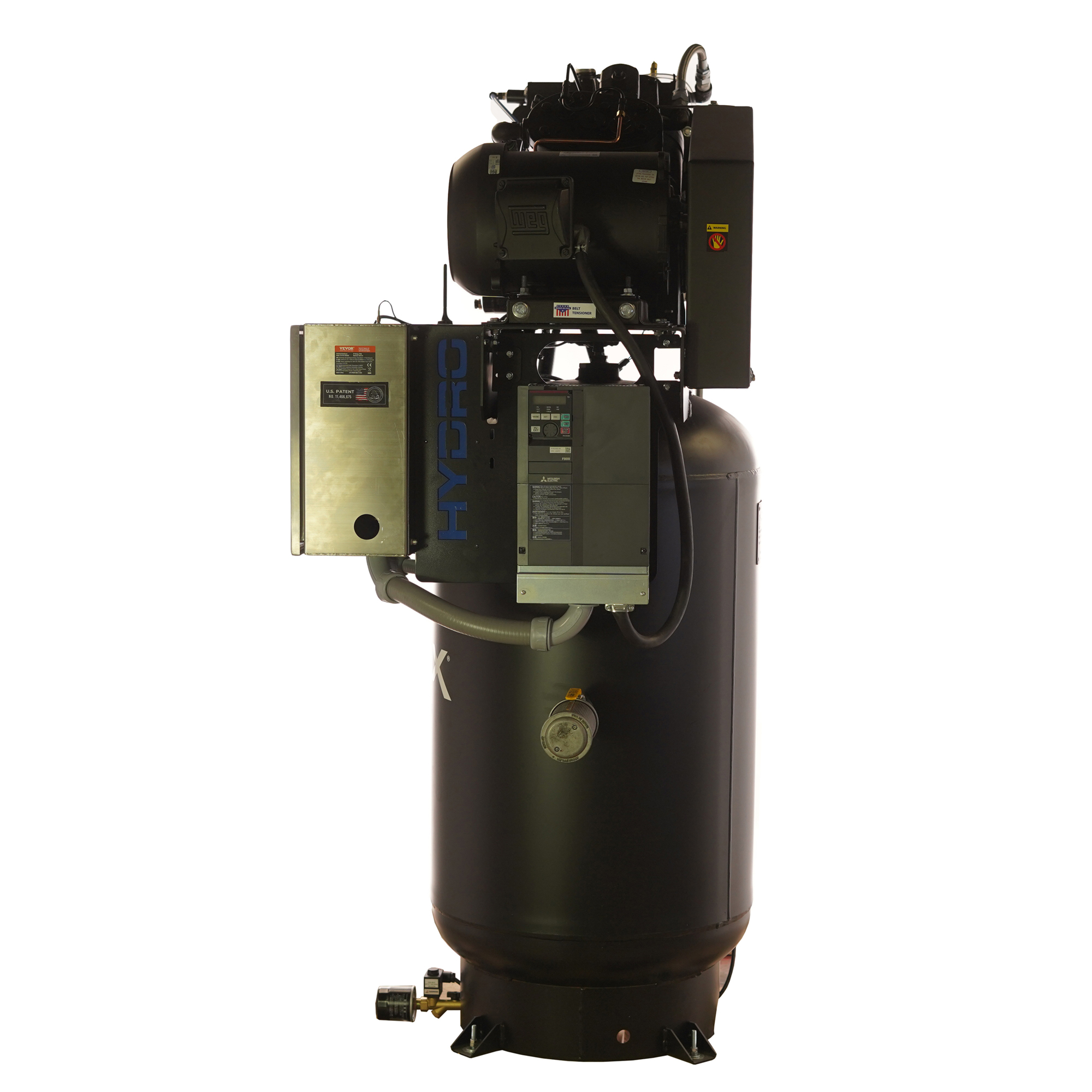

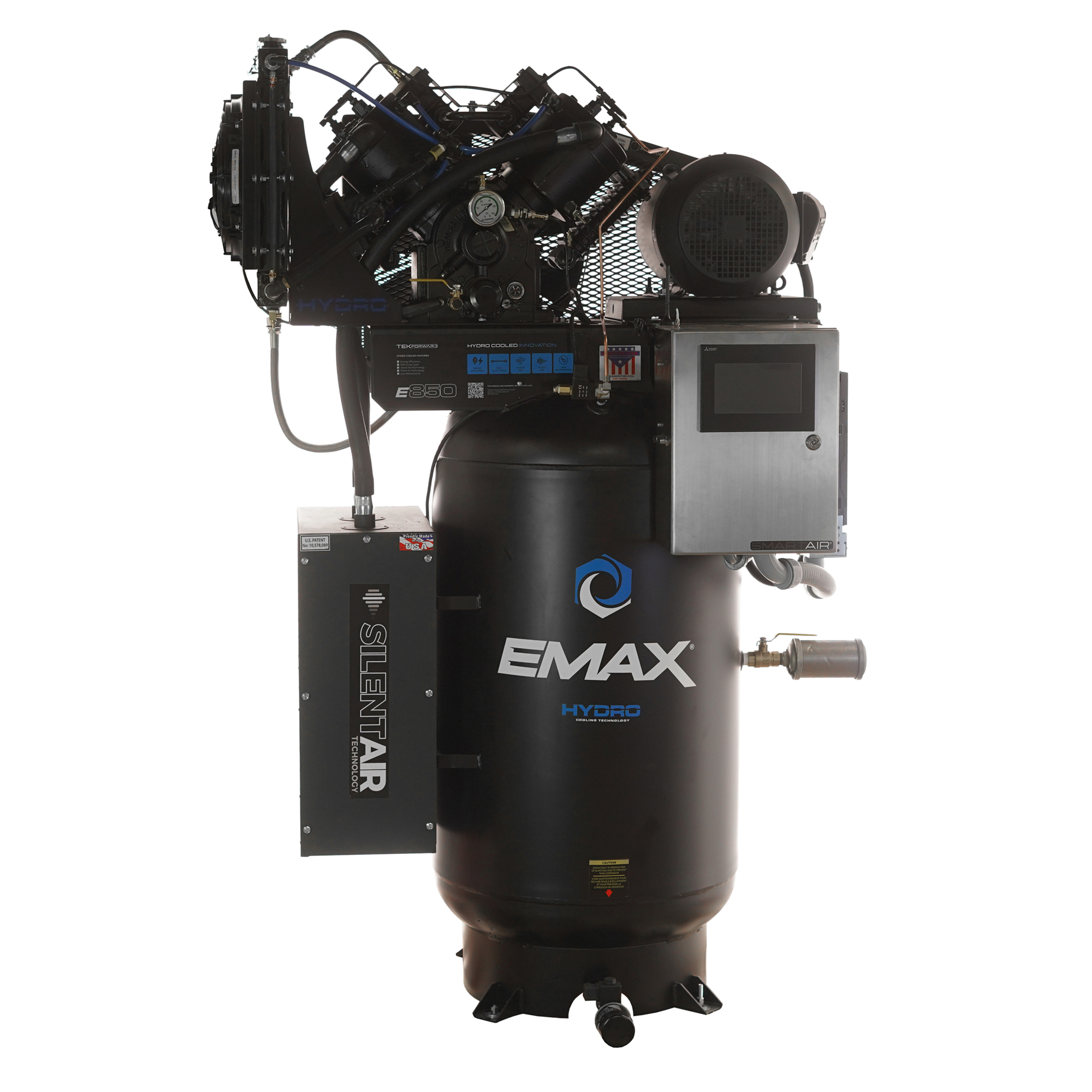

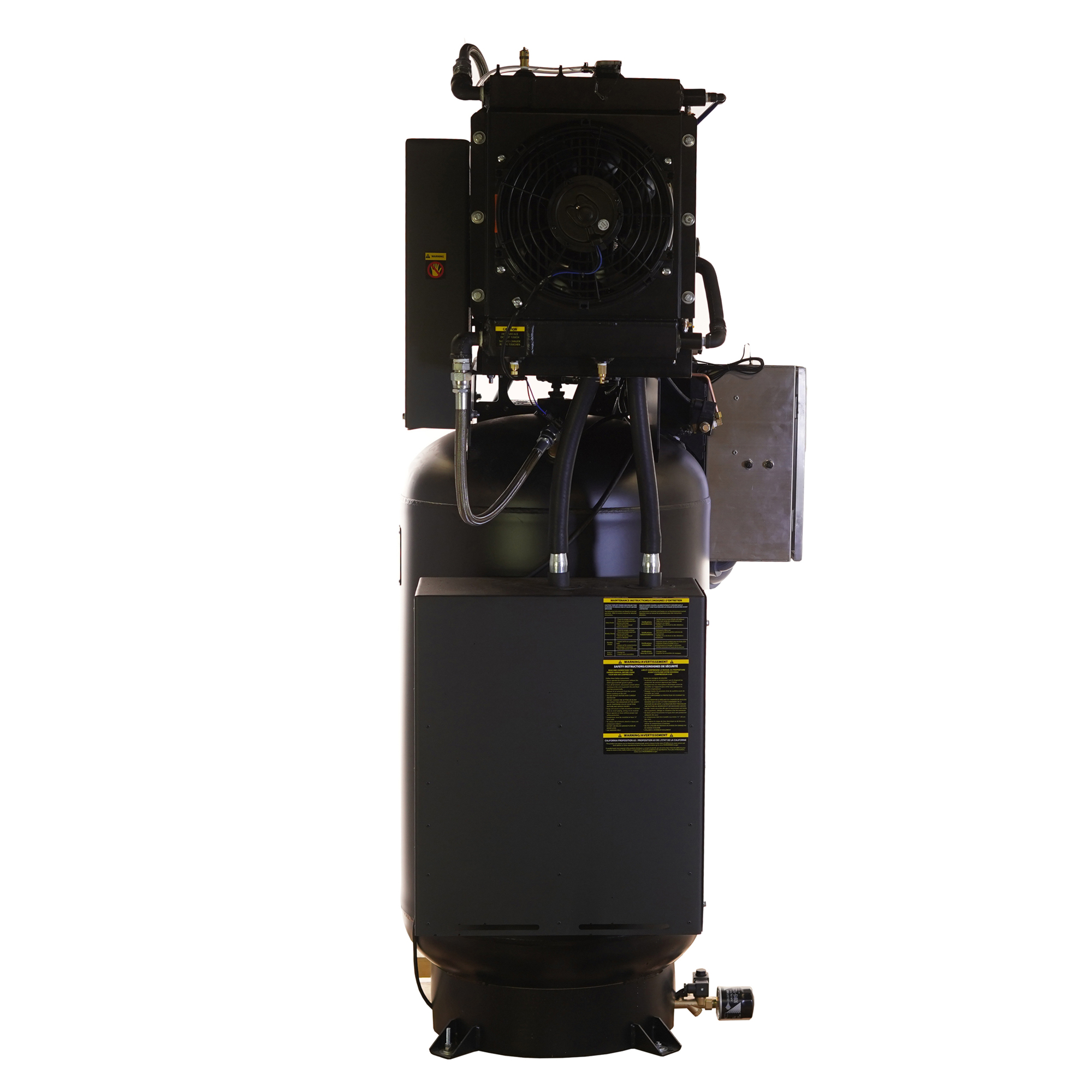

EMAX Hydro SMART AIR® Silent Air Industrial 10HP 38CFM Three Phase 230 Volt 2-Stage 80 Gal. Vertical Stationary Electric Air Compressor-EVW10V080V3-230

Item# 7276309
EMAX Hydro SMART AIR® Silent Air Industrial 10HP 38CFM Three Phase 230 Volt 2-Stage 80 Gal. Vertical Stationary Electric Air Compressor-EVW10V080V3-230

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Hydro SMART AIR® Silent Air Industrial 10HP 38CFM Three Phase 230 Volt 2-Stage 80 Gal. Vertical Stationary Electric Air Compressor-EVW10V080V3-230

Click or Tap image to Zoom

$17,369.20

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • 100% Duty Cycle
  • Watercooled Pressure Lube Pump
  • Patended Silent Air Technology
  • Smart PLC Control
  • Single or 3 Phase power

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

EMAX’s Hydro cooled Smart Air Compressor series is reaching new levels with its ultra quiet Hydro pump, after cooling system, Patented Silent Air and Patented Smart technology! Hydro Cooled Compressors are 100% duty cycle offering 80,000 hours of life. The water jackets act as noise barriers adding another 20% in noise reduction! The aftercooler assist in further cooling the air down to 5 degrees above ambient temperature reducing moisture by 50%! The Patented Silent Air technology further reduces sound output by 30%! The smart air technology provides full control and viability to energy savings and important maintenance alerts.

What's Included

    (1) Air Compressor

Downloads

Safety Data Sheet

Features + Benefits

  • 100% Duty Cycle

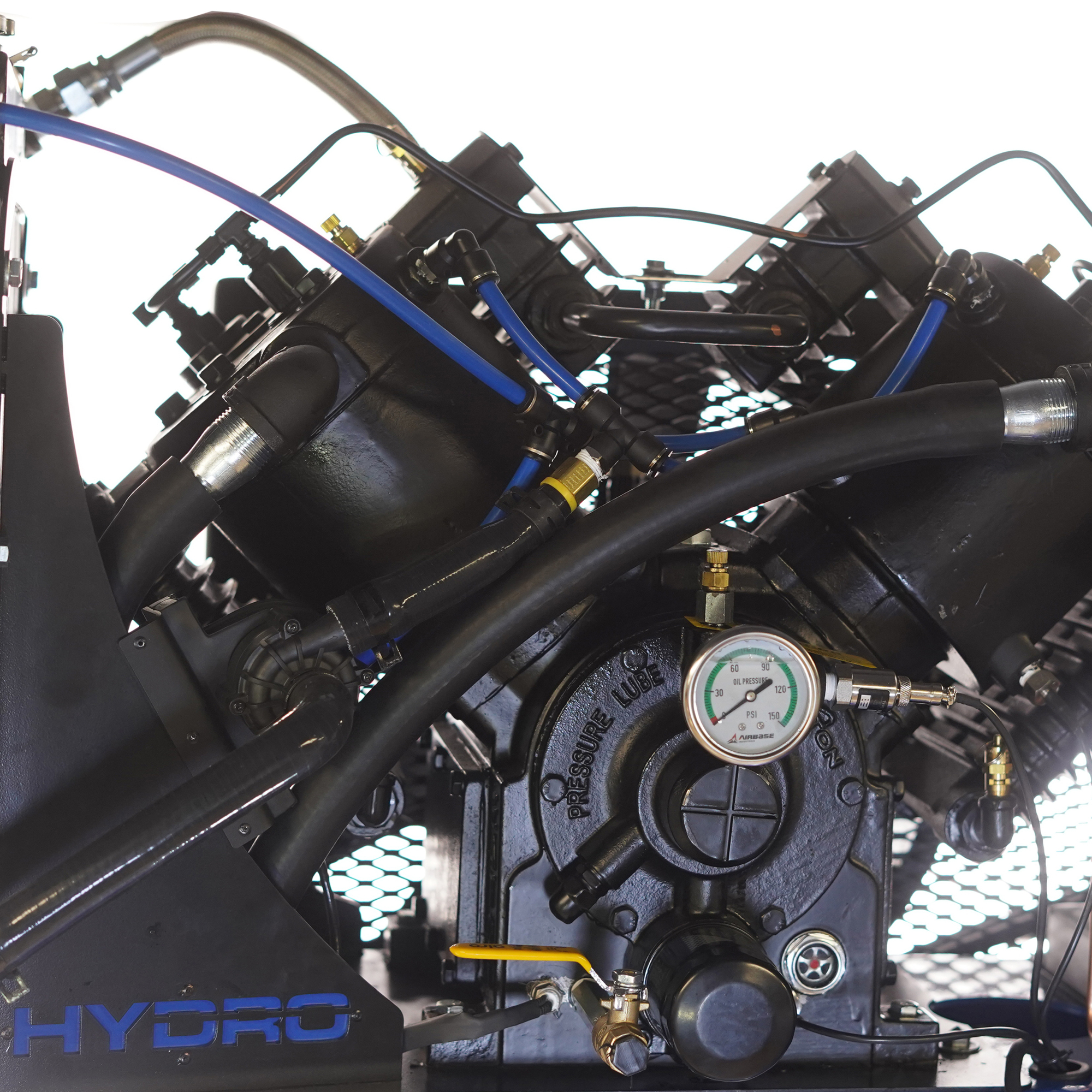

  • Watercooled Pressure Lube Pump
  • Patended Silent Air Technology
  • Smart PLC Control
  • Single or 3 Phase power
  • up to 90 % Energy Savings
  • 50% less Annual Mainteance cost
  • WIFI Enabled
  • Automatic Tank Drain
  • Continuous Run Option
  • Aftercooling System
  • 4 incremental levels of air filtration
  • 230V Three Phase

Key Specs

AttributeSpecification

item#

7276309

Brand

EMAX

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

1364.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

38

Motor Phase

3

Stage

2

Tank Orientation

Vertical

Horsepower

10 HP

Max. PSI

175

Duty Cycle

100 %

Fuel Capacity

0 Gal
AttributeSpecification

Engine Start Type

Electric

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

Noise Level

63 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Air Dryer

None

Drain Type

Automatic

Product Weight

1304.0000 lb

Dimensions L x W x H (in.)

39.0 x 25.0 x 75.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
