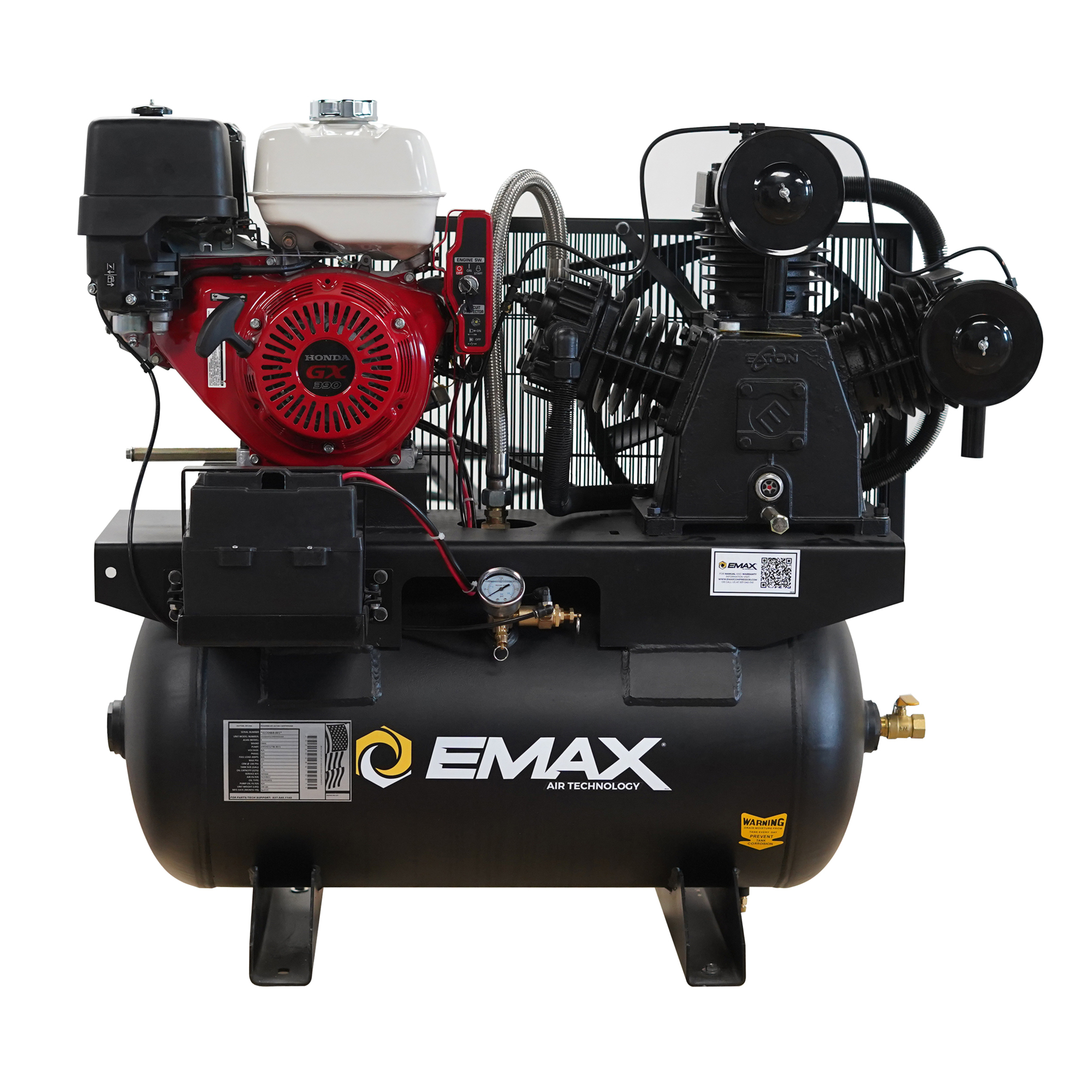

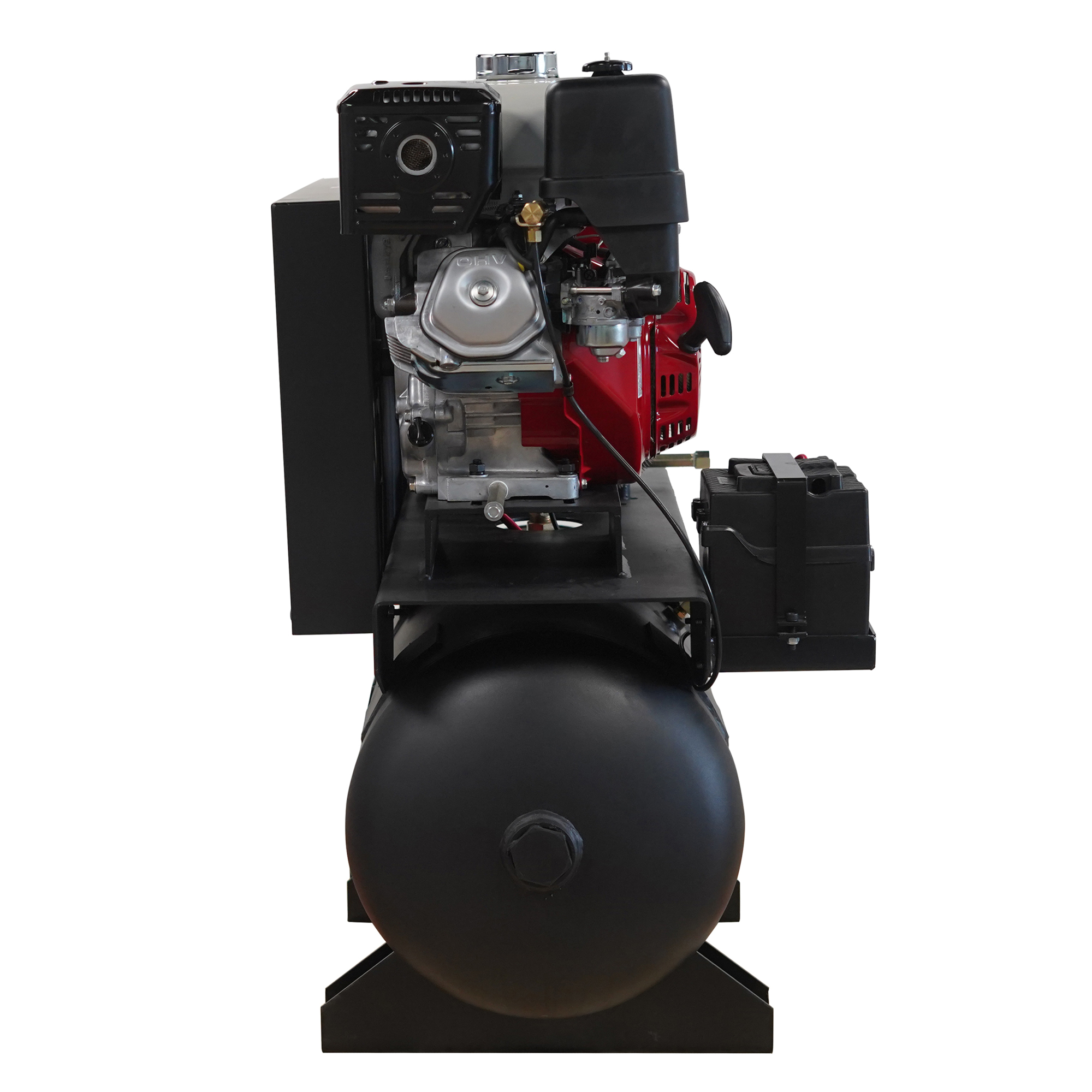

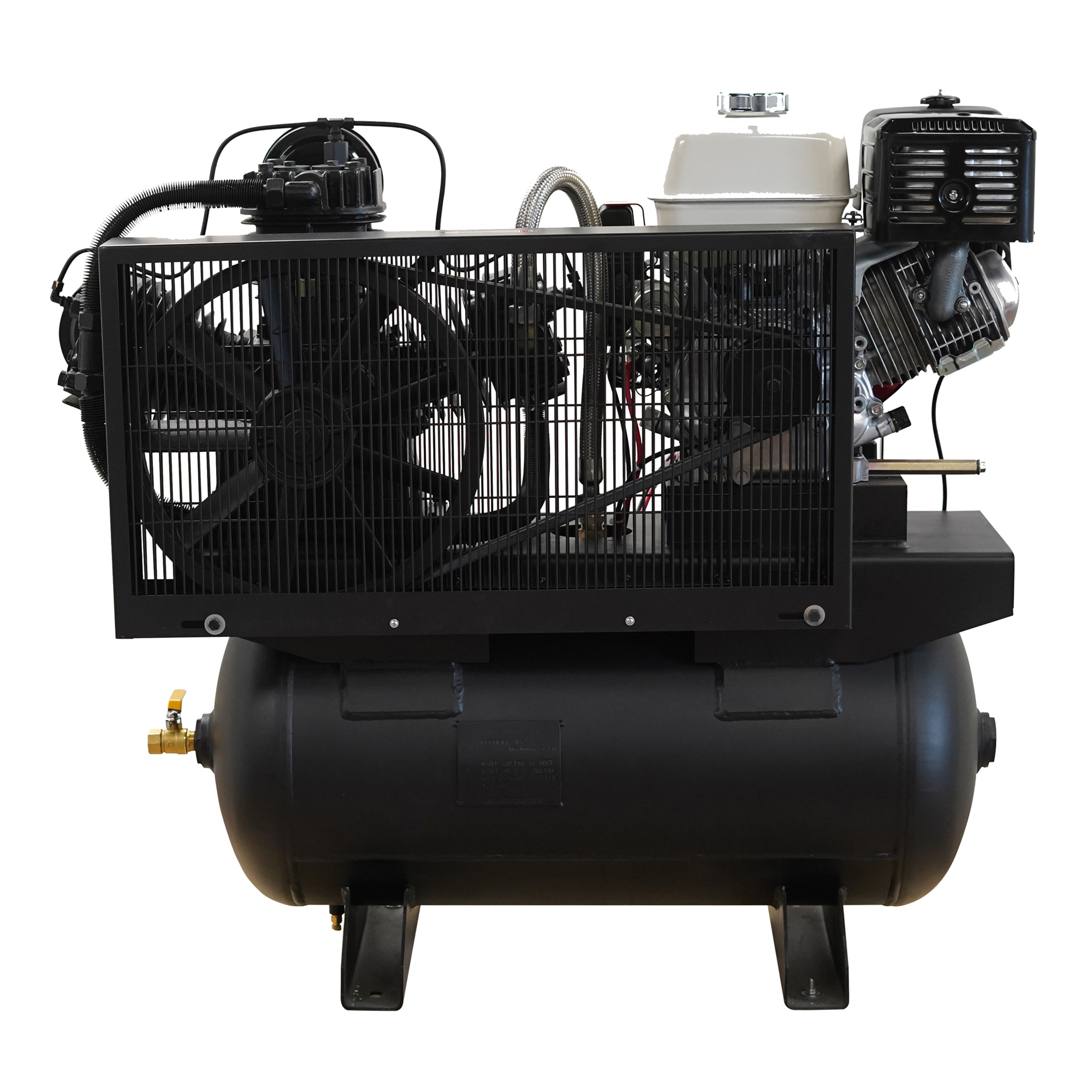

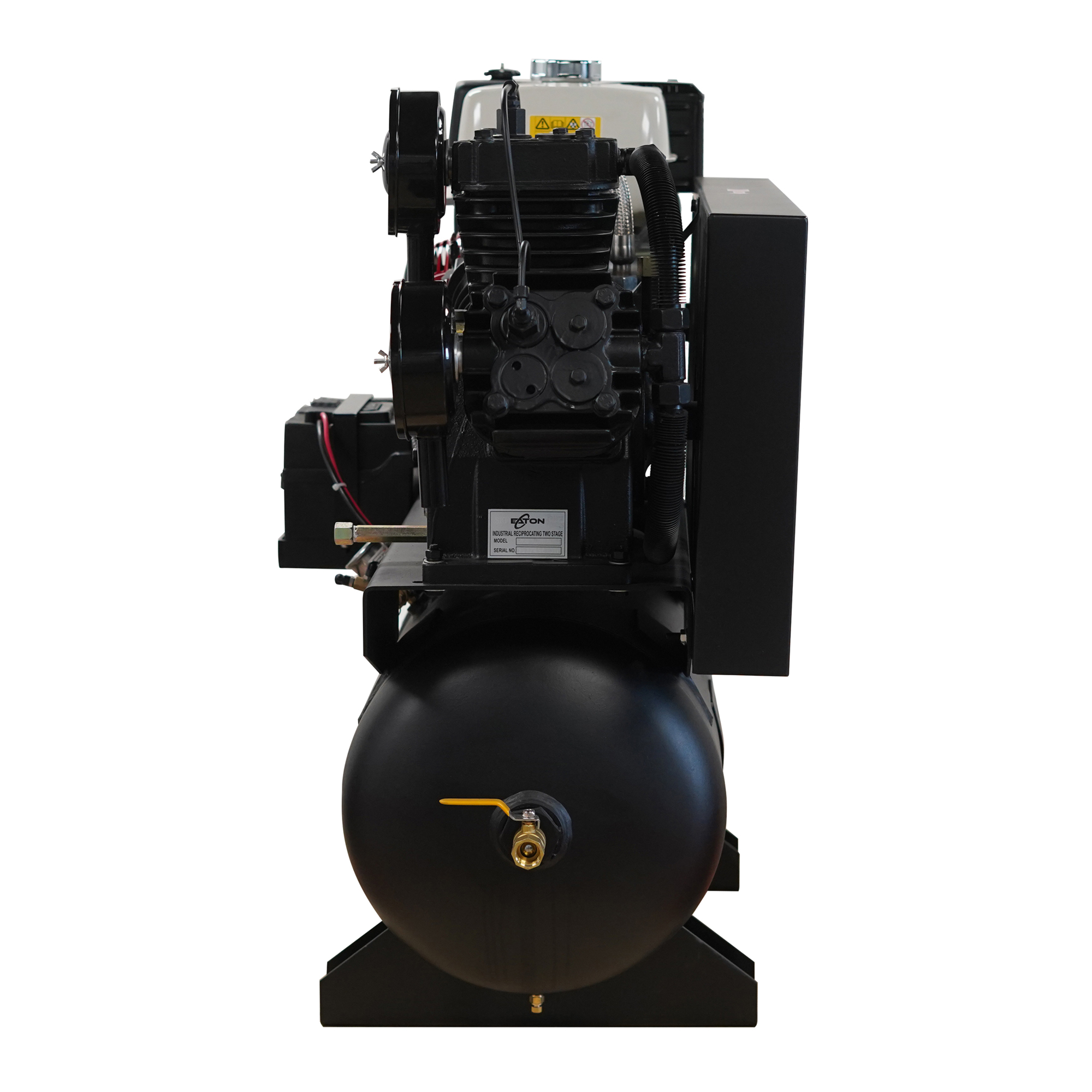

EMAX Honda Gas Driven w/Elec. Start 13HP 3Cyl NEW MAXFLO 30 gal.Truck Mount Stationary Air Compressor

Item# 7276288
EMAX Honda Gas Driven w/Elec. Start 13HP 3Cyl NEW MAXFLO 30 gal.Truck Mount Stationary Air Compressor

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Honda Gas Driven w/Elec. Start 13HP 3Cyl NEW MAXFLO 30 gal.Truck Mount Stationary Air Compressor

Click or Tap image to Zoom

$3625.30

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Honda GX390 Engine
  • 1/4" Ball Valve Tank Drain
  • Flow-tek concentric disc valves delivers maximum air flow and reliability with low replacement cost
  • Truck Mountable
  • 1.5 Gallon fuel tank

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The EMAX Industrial 13HP Honda GX390 3CYL MAXFLO Two Stage 33CFM 100PSI 30 Gallon Industrial Solid Cast Iron Air Compressor is a groundbreaking innovation in compressed air technology. With high 33CFM output and a 30-gallon horizontal certified ASME air tank, you have a heavy-duty industrial compressor with a small footprint, right in the back of your truck or trailer. Equipped with A unique 2-stage Y design, 3-cylinder Solid cast iron pump with Industrial ceramic disc valves Solid steel rods, for extended 50,000 hours pump life. MAXFLO compressors feature a cutting-edge new pump technology that significantly reduces energy waste while producing up to 30% more air delivery per Horsepower. A breakthrough re-engineered pump design that is built to last, insures your compressor starts the first time and every time. For unstoppable performance that exceeds all others, MAXFLO Technology is the right choice. Maintenance is low cost, simple, and made easy. Keeping your filters and oil changed is all that is required, saving hundreds and even thousands of dollars when compared to the maintenance schedule for a rotary screw type compressor. 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

What's Included

    (1) Air Compressor

Downloads

Safety Data Sheet

Features + Benefits

  • Honda GX390 Engine
  • 1/4" Ball Valve Tank Drain
  • Flow-tek concentric disc valves delivers maximum air flow and reliability with low replacement cost
  • Truck Mountable
  • 1.5 Gallon fuel tank
  • Gate valve oil drain provides quick, clean oil changes
  • 2-Stage SOLID cast iron MAX Flo , 3 cylinder Y Pump
  • Oil-lubricated with an oil sight glass
  • Lift Point Rings
  • 30 Gallon Horizontal Tank

Key Specs

AttributeSpecification

item#

7276288

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

585.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Volts

12

Engine Brand

Honda

CFM at 90 PSI

33

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Duty Cycle

60 %

Fuel Capacity

1.5 Gal

Motor RPM

840

Working Pressure

145 PSI

Engine Displacement

389 cc

Engine Start Type

Electric
AttributeSpecification

Pump Life

50,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

33

CFM at Max. PSI

30

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Tank Orientation

Horizontal

Engine Model

GX390

Product Weight

430.0000 lb

Dimensions L x W x H (in.)

43.0 x 18.5 x 44.0 in
