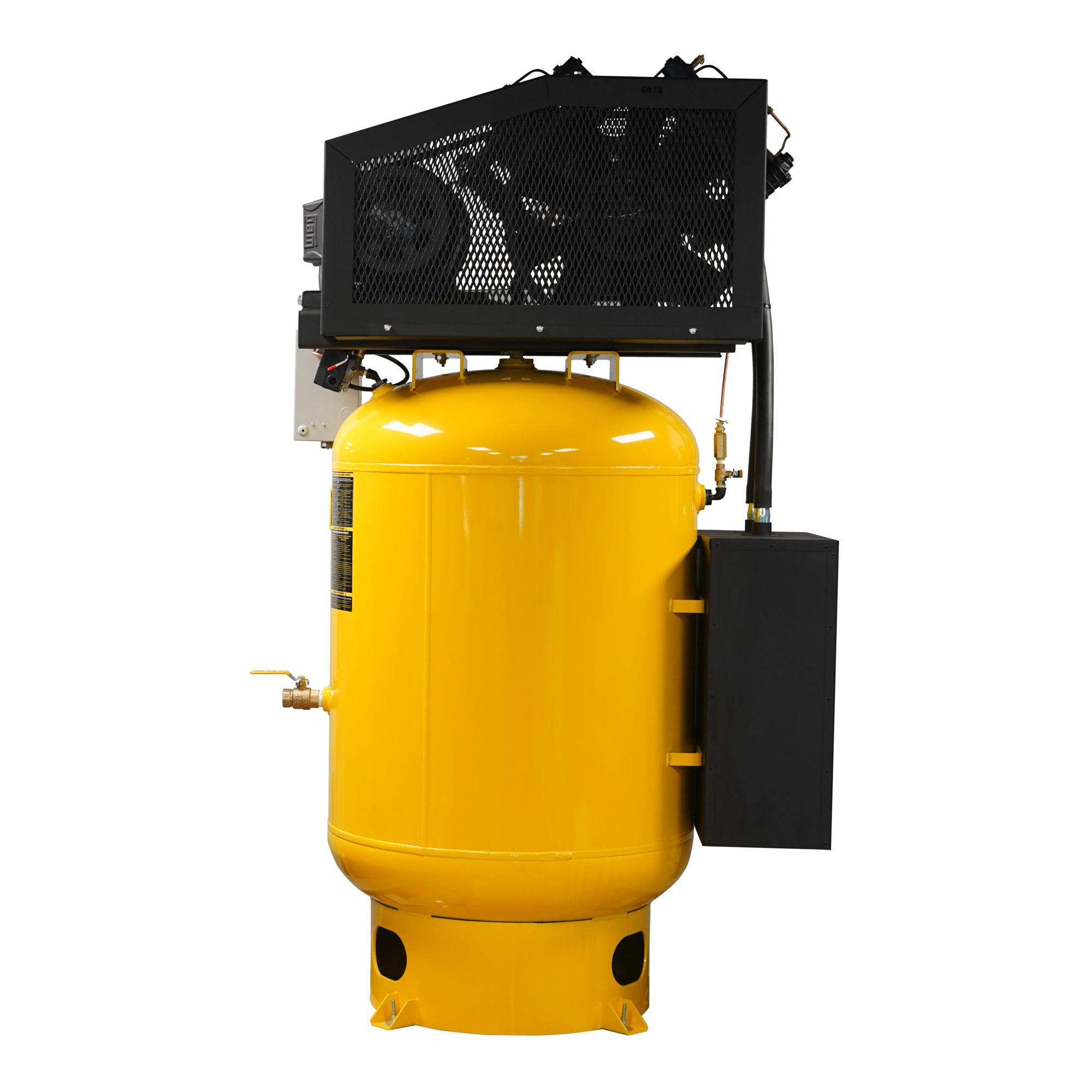

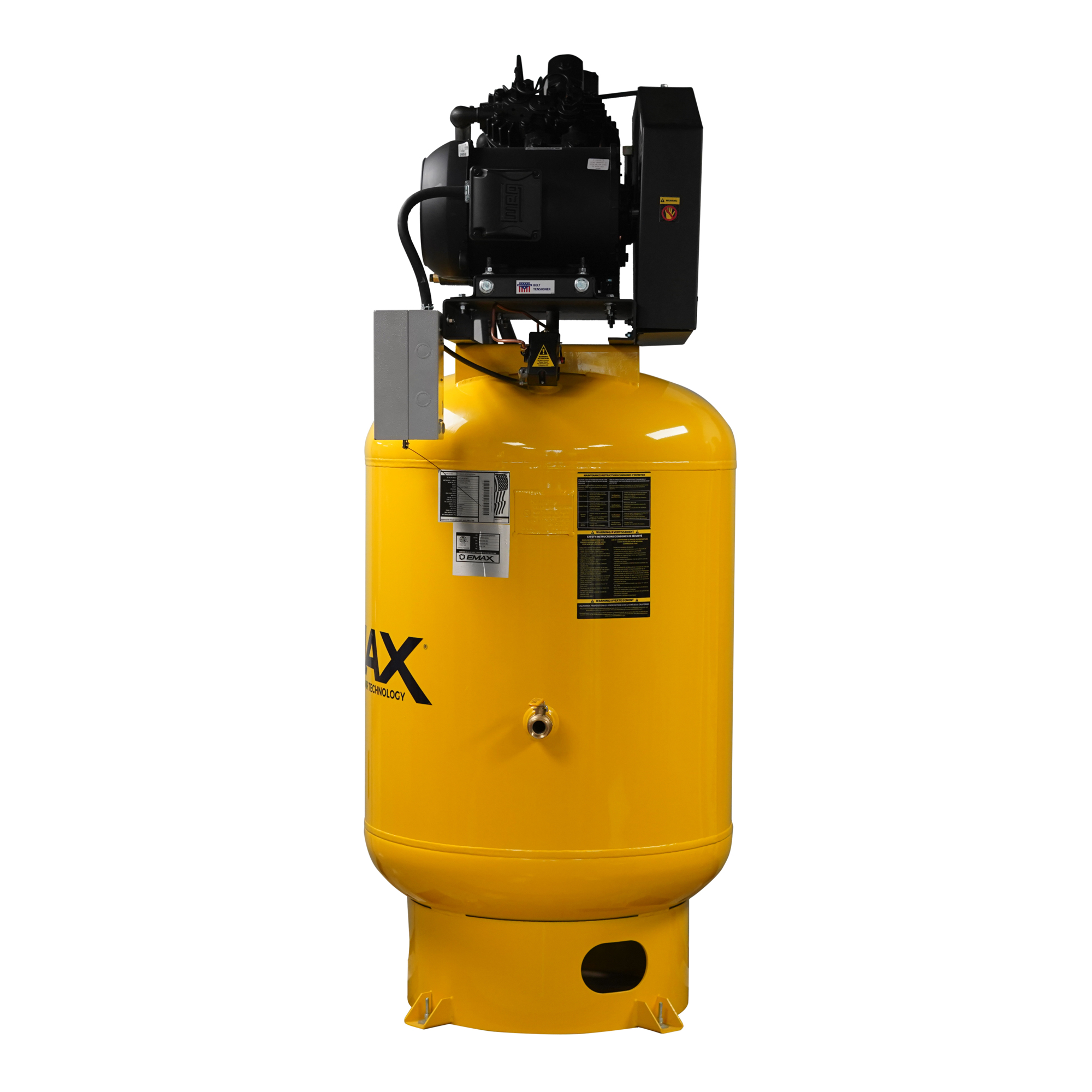

Emax Premium Vertical Air Compressor with Silencer — 10 HP, 120-Gallon Tank, 230 Volts, 3-Phase, Model# ESP10V120V3-208

Item# 4906811
Emax Premium Vertical Air Compressor with Silencer — 10 HP, 120-Gallon Tank, 230 Volts, 3-Phase, Model# ESP10V120V3-208

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Emax Premium Vertical Air Compressor with Silencer — 10 HP, 120-Gallon Tank, 230 Volts, 3-Phase, Model# ESP10V120V3-208

Click or Tap image to Zoom

$7699.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • This EMAX Industrial Plus 10HP 2 Stage V4 3Phase 208/230V vertical 120gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!
  • 12 Month Parts + Labor, 5YR Parts Extended, 5YR Parts + Lifetime Pump Extended Options

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Emax Premium Vertical Air Compressor with Silencer — 10 HP, 120-Gallon Tank, 230 Volts, 3-Phase, Model# ESP10V120V3-208
  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211
  • Quincy Compressor 30W Compressor Oil, 1-Qt., Model# 112543Q100
Price for all three:

$7752.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This EMAX Industrial Plus 10HP 2 Stage V4 3 Phase vertical 120gal. Piston Air Compressor is designed for up to 60,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38CFM 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 60,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our Patented Silent Air system already installed. The Silent Air system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry! 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

What's Included

    (1) EMAX Premium 10 HP 3 PH 230 Volt 120 GALLON VERTICAL WITH AIR SILENCER-With Pressure Lube Pump

Features + Benefits

  • This EMAX Industrial Plus 10HP 2 Stage V4 3Phase 208/230V vertical 120gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!
  • 12 Month Parts + Labor, 5YR Parts Extended, 5YR Parts + Lifetime Pump Extended Options

Key Specs

AttributeSpecification

item#

4906811

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1100.0 LB

Horsepower

10 HP

Air Tank Size

120 Gal

Volts

208/230

CFM at 90 PSI

38

Max. PSI

175

Stage

2

Air Compressor Type

Stationary Electric

Air Outlets (qty.)

1

Amps

40

Duty Cycle

60 %

Fuel Capacity

0 Gal

Motor RPM

1,750

Working Pressure

145 PSI

Engine Start Type

Electric

Motor Phase

3
AttributeSpecification

Pump Life

60,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1 in. NPT

CFM at 40 PSI

34

CFM at Max. PSI

29

Noise Level

79 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

4.5 min

Air Dryer

None

Drain Type

Automatic

Tank Orientation

Vertical

Product Weight

1020.0000 lb

Dimensions L x W x H (in.)

41.0 x 43.0 x 78.0 in
