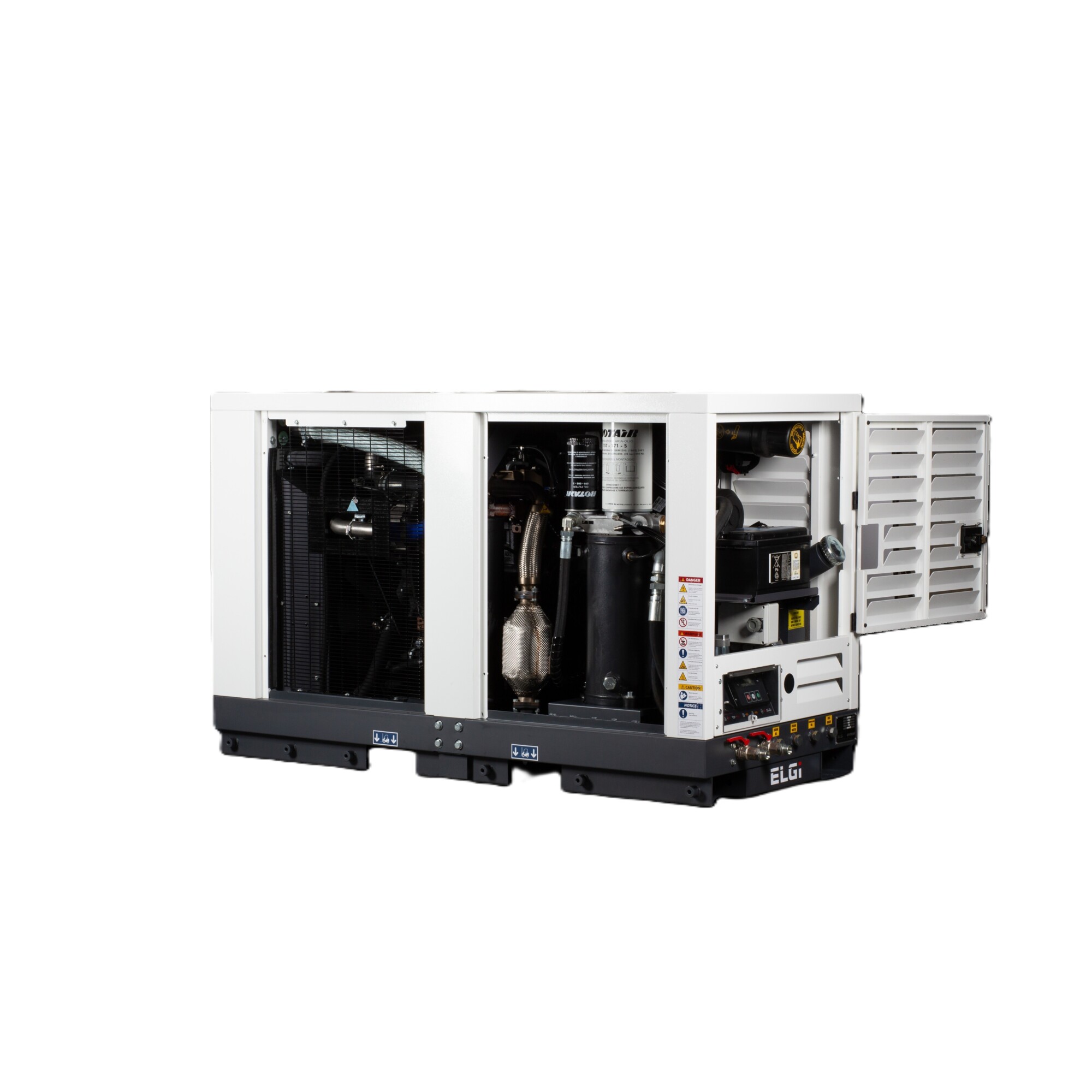

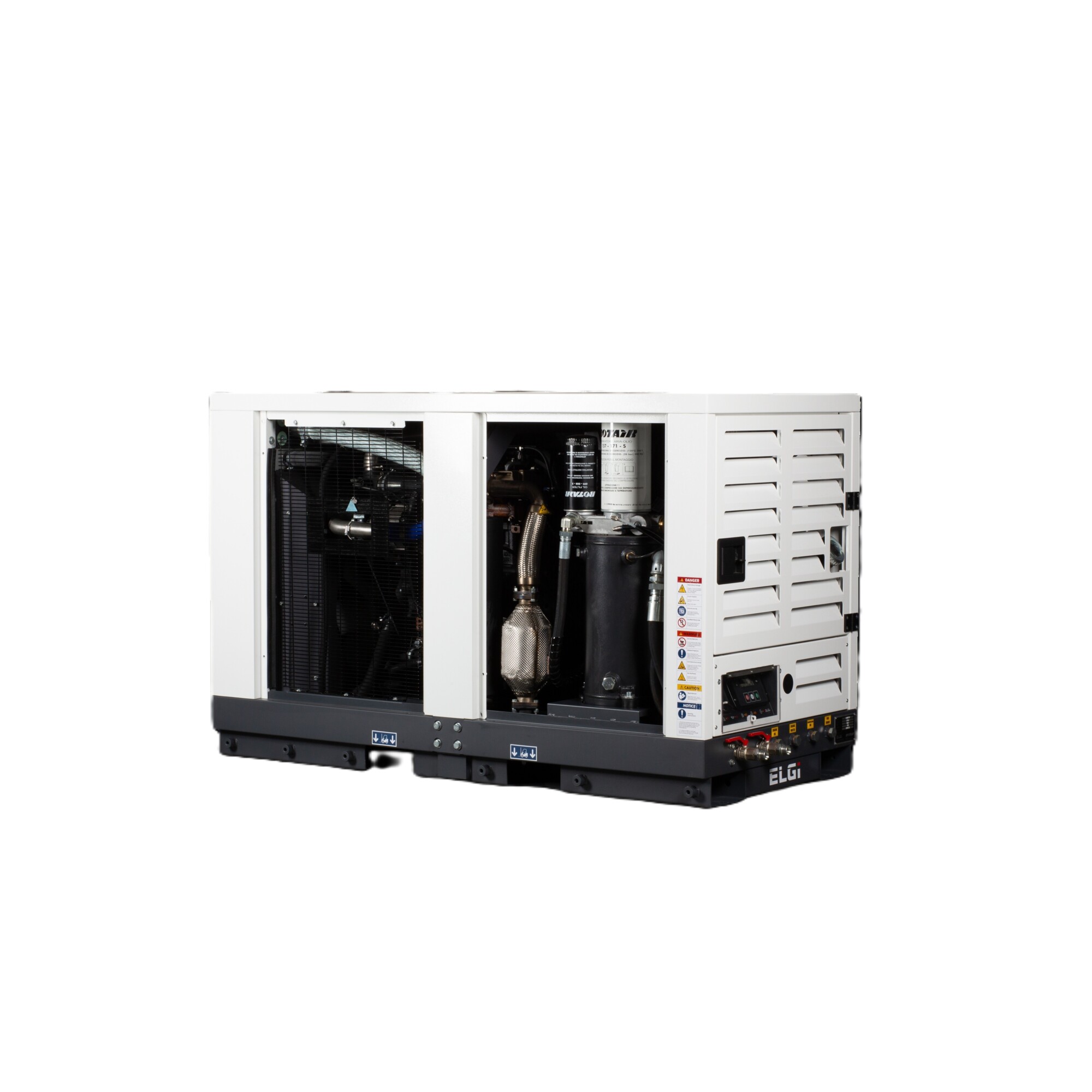

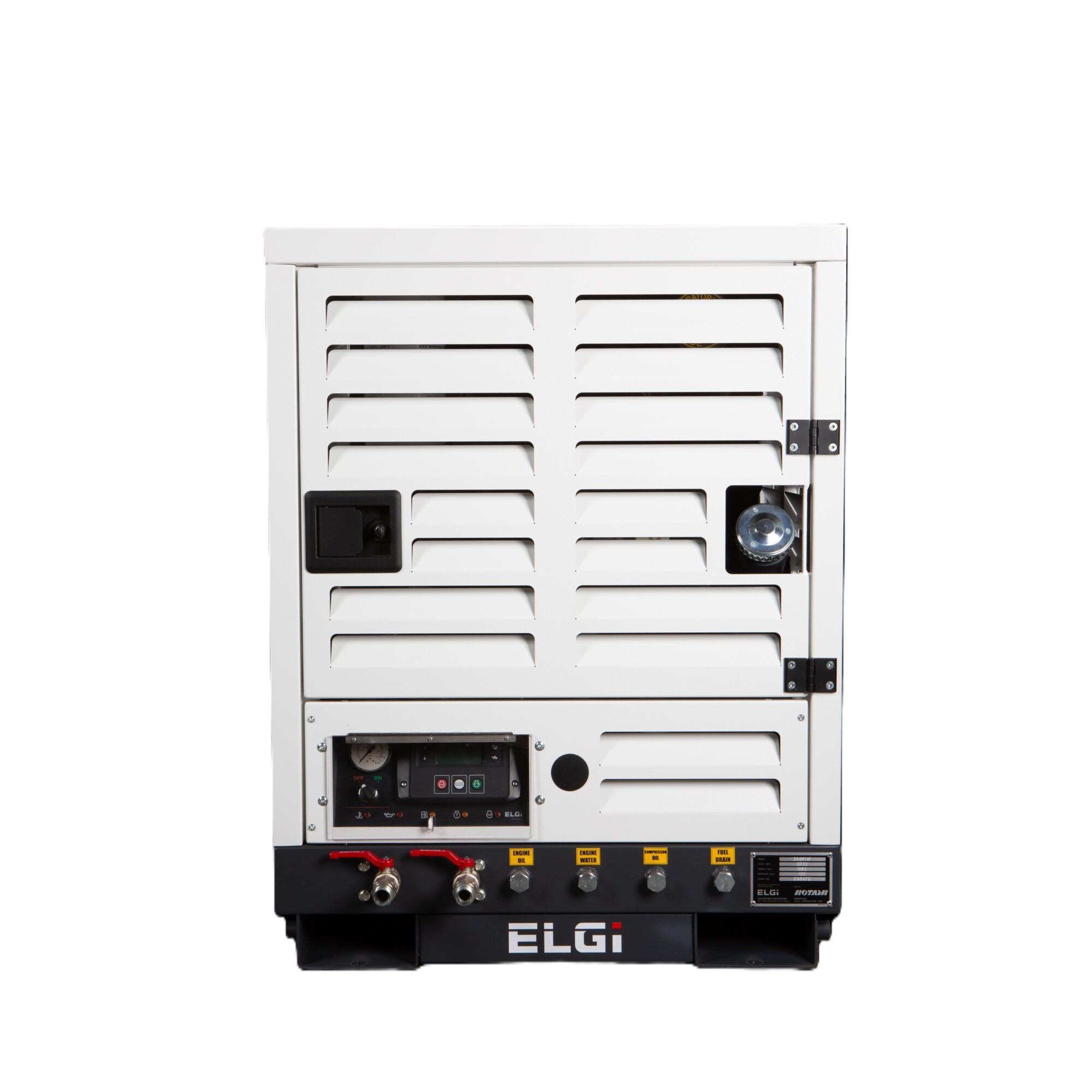

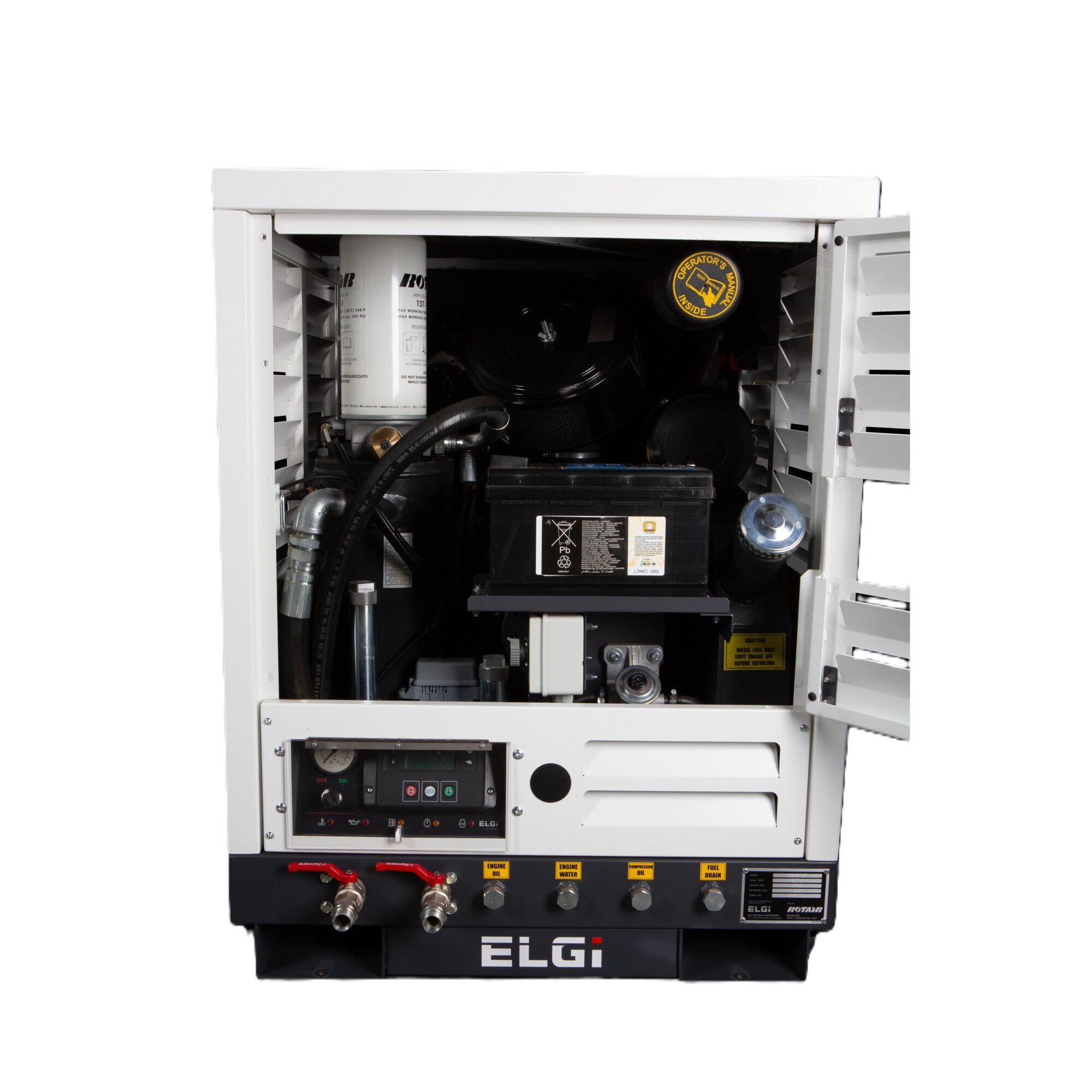

ELGi, Utility Mount Air Compressor, 49 HP, Model# DS185T4F

Item# 6460981
ELGi, Utility Mount Air Compressor, 49 HP, Model# DS185T4F

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ELGi, Utility Mount Air Compressor, 49 HP, Model# DS185T4F

Click or Tap image to Zoom

$31,083.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • The Utility Mount D185 delivers 185 cfm@100 psi and is designed to be mounted on public works, utility and contractor vehicles.
  • Powered by the High quality Kohler KDI 1903 TCR engine with a 3-year/2,000 hour Kohler Engine Warranty
  • Assembled in the USA with an ELGI Engineered and manufactured air end.
  • Equipped with Intellingent start/stop system to prevent cold starts and blowback.
  • Tier 4 Compliant to meet EPA Standards.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DS185T4F is ELGI's only Utility Mount Compressor that provides air at 185cfm100psi. With a Tier 4, Diesel powered Kohler engine, the DS185 Air Compressor provides a durable, yet fuel efficient option for air that has a 23% less foorprint than the competition. Backed by the 2-Year Kohler engine Warranty, this compressor will provide reliable results year after year. A 5-Year, unlimited hour air end warranty is included.

What's Included

    (1) DS185T4F

Downloads

Product Manual

Features + Benefits

  • The Utility Mount D185 delivers 185 cfm@100 psi and is designed to be mounted on public works, utility and contractor vehicles.
  • Powered by the High quality Kohler KDI 1903 TCR engine with a 3-year/2,000 hour Kohler Engine Warranty
  • Assembled in the USA with an ELGI Engineered and manufactured air end.
  • Equipped with Intellingent start/stop system to prevent cold starts and blowback.
  • Tier 4 Compliant to meet EPA Standards.
  • Direct Drive to increase output efficiency.

Key Specs

AttributeSpecification

item#

6460981

Brand

ELGi

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2100.0 LB

Horsepower

49 HP

Engine Brand

Kohler

Max. PSI

100

Air Outlets (qty.)

3

Fuel Capacity

23 Gal

Motor RPM

2,600

Working Pressure

73 PSI

Engine Displacement

1,903 cc

Engine Start Type

Electric

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

Multiple in. NPT

CFM at Max. PSI

185

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Ball Valve

Engine Model

KDI 2504 TCR

Product Weight

1962.0000 lb

Dimensions L x W x H (in.)

68.0 x 33.0 x 52.0 in
