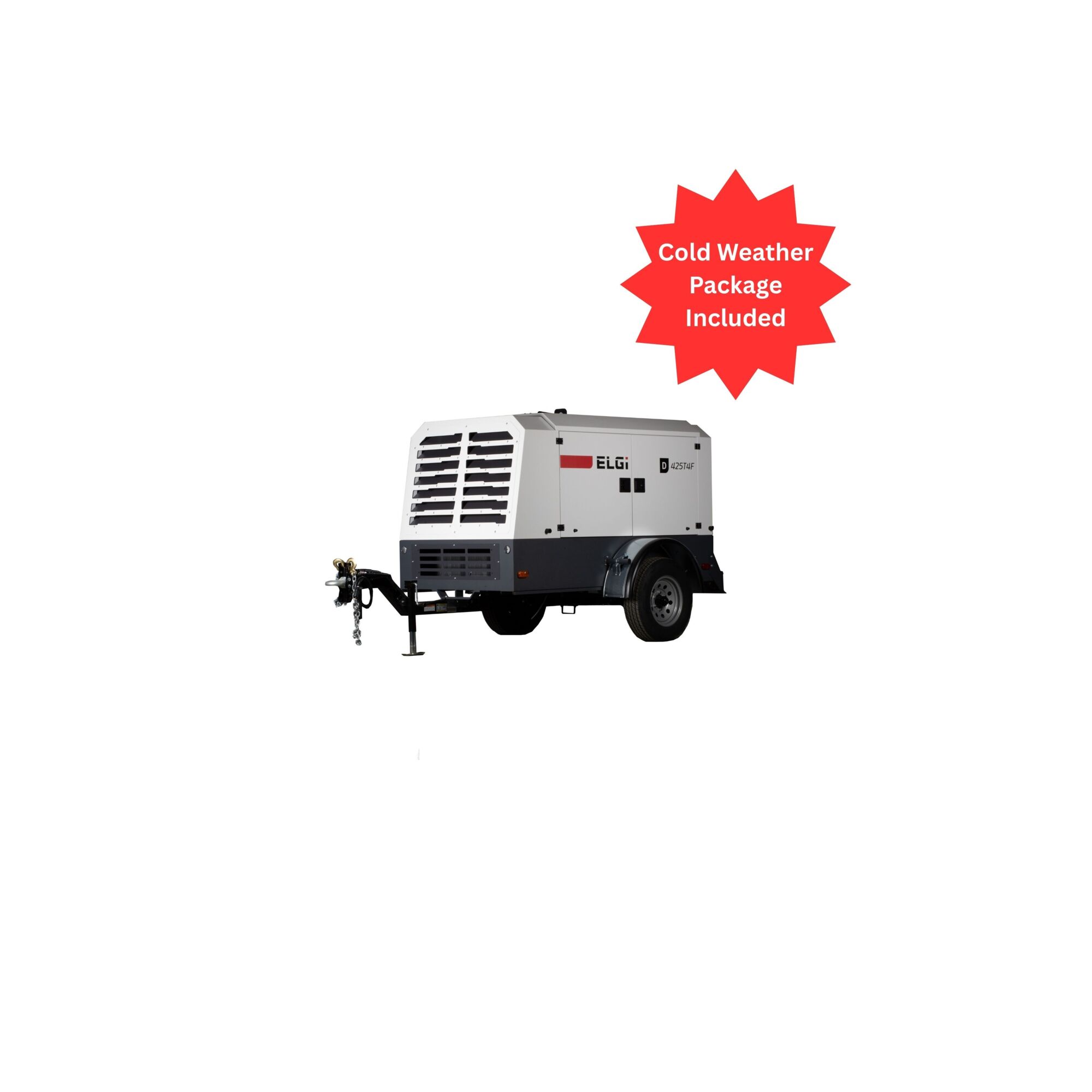

ELGI Trailer Mount Portable Screw Air Compresor, 90 cfm@ 100 PSI with Cold Weather Package,Model# D425T4F-PCWP

Item# 6910718
ELGI Trailer Mount Portable Screw Air Compresor, 90 cfm@ 100 PSI with Cold Weather Package,Model# D425T4F-PCWP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ELGI Trailer Mount Portable Screw Air Compresor, 90 cfm@ 100 PSI with Cold Weather Package,Model# D425T4F-PCWP

Click or Tap image to Zoom

$70,699.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • The towable D425 delivers 425cfm@100psi is easy to move on any job site.
  • Powered by the Tier 4 Cummins QSF 3.8 Engine with a 2-year /4000 hour Cummins Engine Warranty.
  • Equipped with a cold weather package to ensure proper starting in cold weather climates.
  • Equipped with Intellingent start/stop system to prevent cold starts and blowback.
  • Direct Drive to increase output efficiency.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The ELGI D425 is a towable 130 HP Air Compressor that is powered by Cummins highly reliable and powerful Tier 4 Diesel Engine that provides up to 11 hours of run time at 425 cfm100psi. Equipped with a Cold weather package which allows smooth operation in colder climates. Each D425 unit is equipped with a Murphy Contreoller which offers flixble control with built-in monitoring and protection and has an Itelligent Start/Stop System that prevents cold-starting and blowback. A 5-Year, unlimited hour air end warranty is included.

What's Included

    (1) Diesel Air Compressor

Downloads

Product Manual
Safety Data Sheet

Features + Benefits

  • The towable D425 delivers 425cfm@100psi is easy to move on any job site.
  • Powered by the Tier 4 Cummins QSF 3.8 Engine with a 2-year /4000 hour Cummins Engine Warranty.
  • Equipped with a cold weather package to ensure proper starting in cold weather climates.
  • Equipped with Intellingent start/stop system to prevent cold starts and blowback.
  • Direct Drive to increase output efficiency.

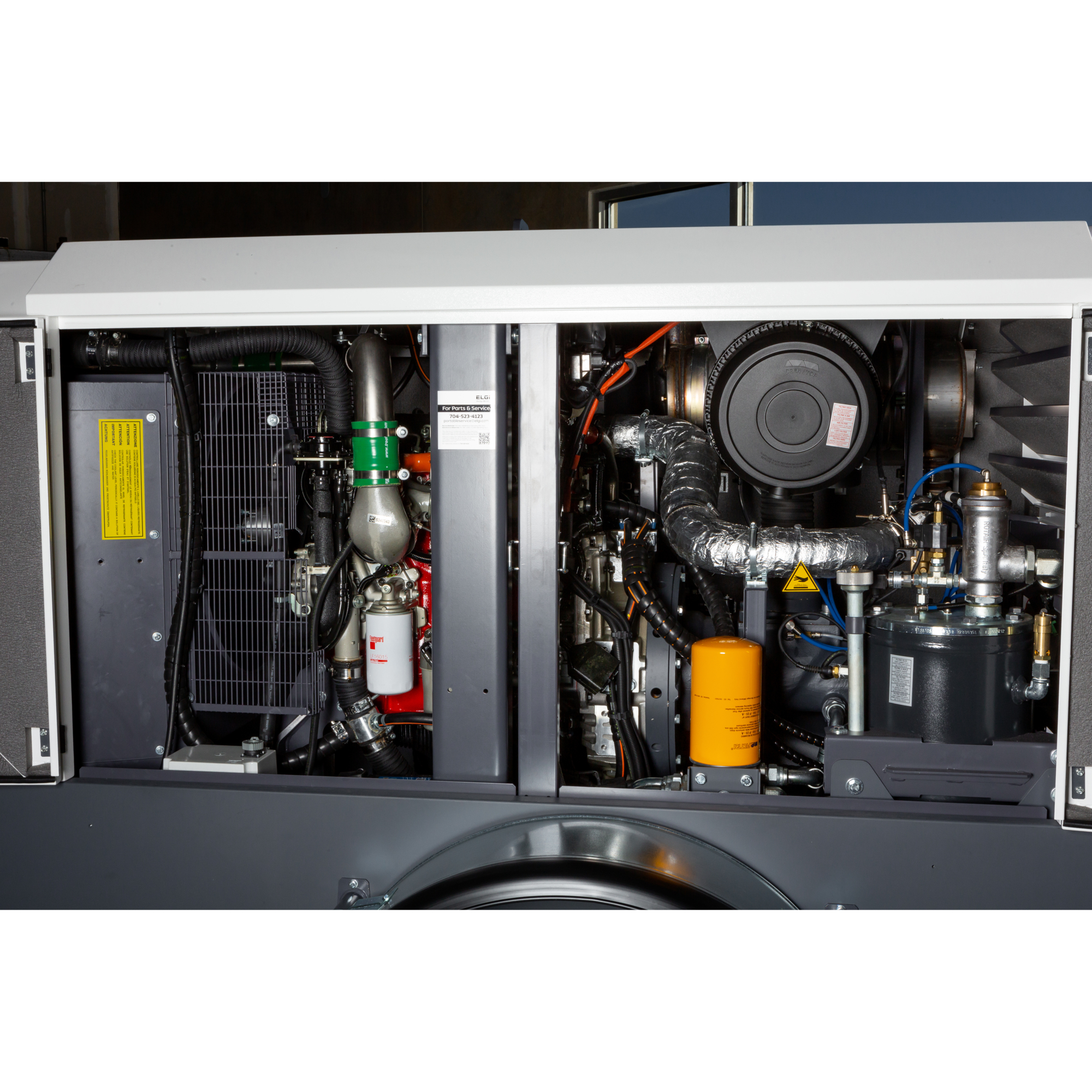

  • Large double doors are located on each side of the machine for easy access for maintenance.

Key Specs

AttributeSpecification

item#

6910718

Brand

ELGi

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4950.0 LB

Horsepower

130 HP

Air Tank Size

0 Gal

Engine Brand

Cummins

Max. PSI

100

Air Outlets (qty.)

4

Fuel Capacity

53 Gal

Motor RPM

2,200

Working Pressure

73 PSI

Engine Start Type

Electric

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

Multiple in. NPT

CFM at Max. PSI

425

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Ball Valve

Engine Model

QSF 3.8 DOC SCR, DEF

Product Weight

4950.0000 lb

Dimensions L x W x H (in.)

112.0 x 76.0 x 78.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
