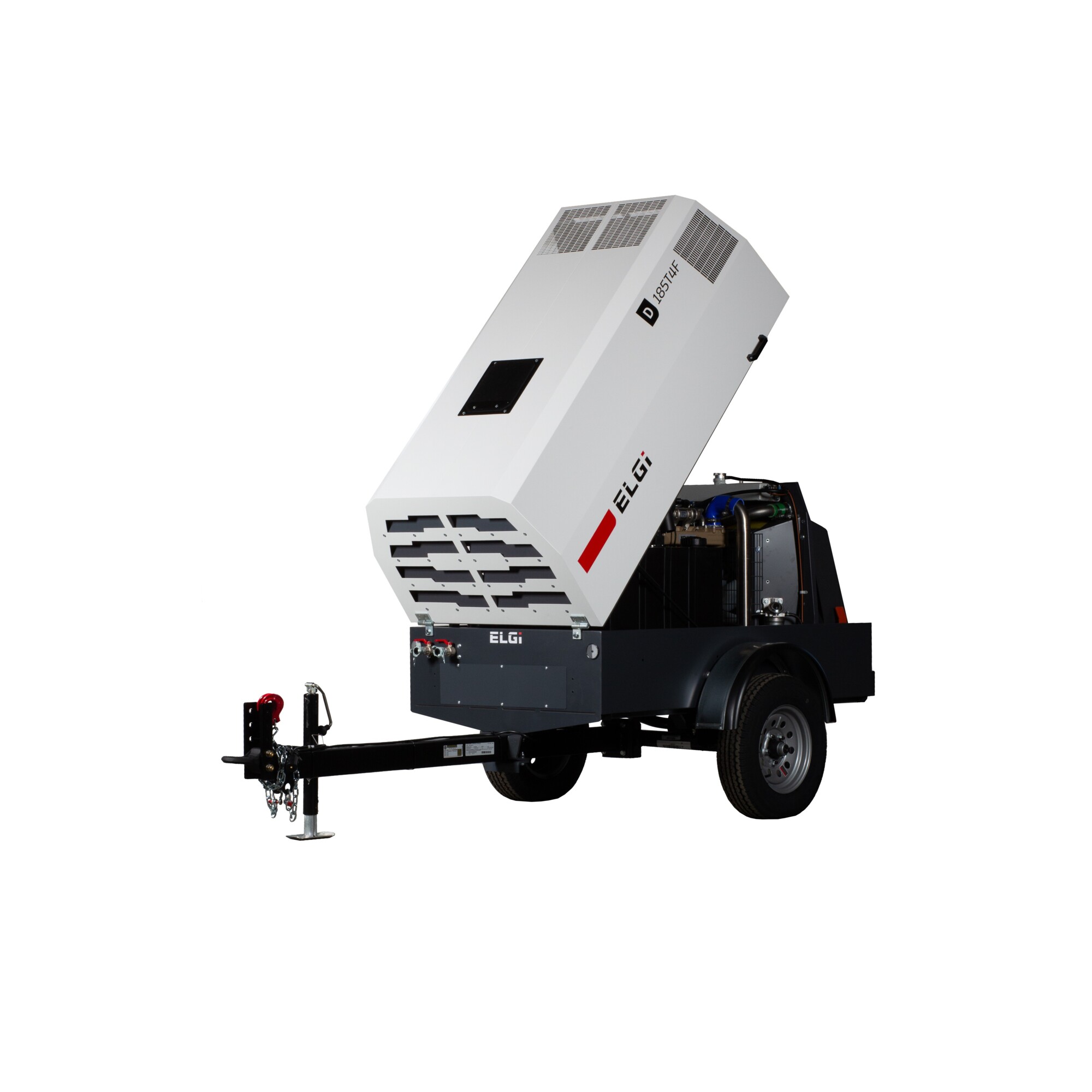

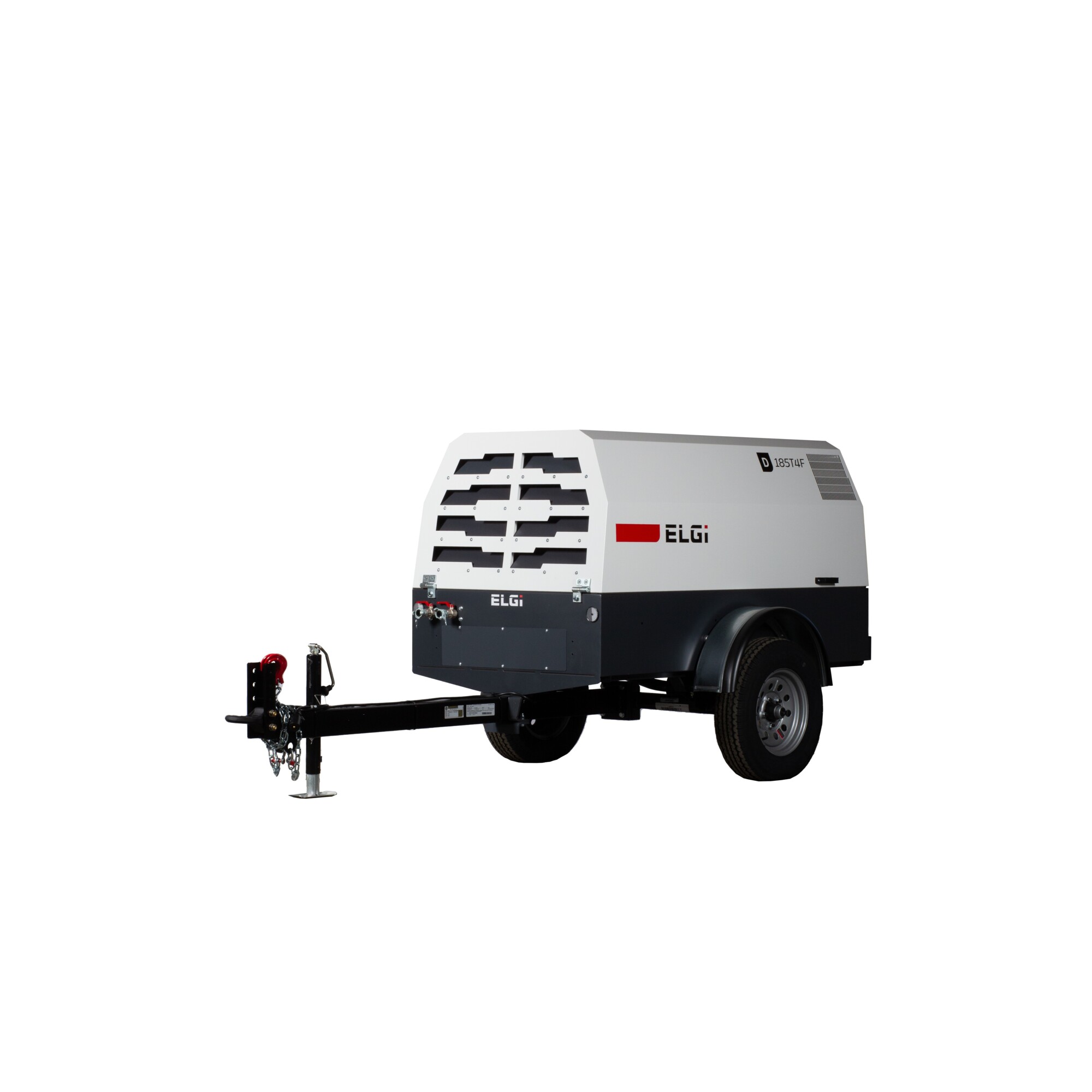

ELGI Trailer Mount Portable Rotary Screw Air Compressor, 49 HP, Kohler Engine, 185 cfm, Model #D185T4F-P

Item# 6460892
ELGI Trailer Mount Portable Rotary Screw Air Compressor, 49 HP, Kohler Engine, 185 cfm, Model #D185T4F-P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ELGI Trailer Mount Portable Rotary Screw Air Compressor, 49 HP, Kohler Engine, 185 cfm, Model #D185T4F-P

Click or Tap image to Zoom

$28,692.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • The towable D185 delivers 185cfm @100psi and can be used on various application such as construction, sand blasting and more.

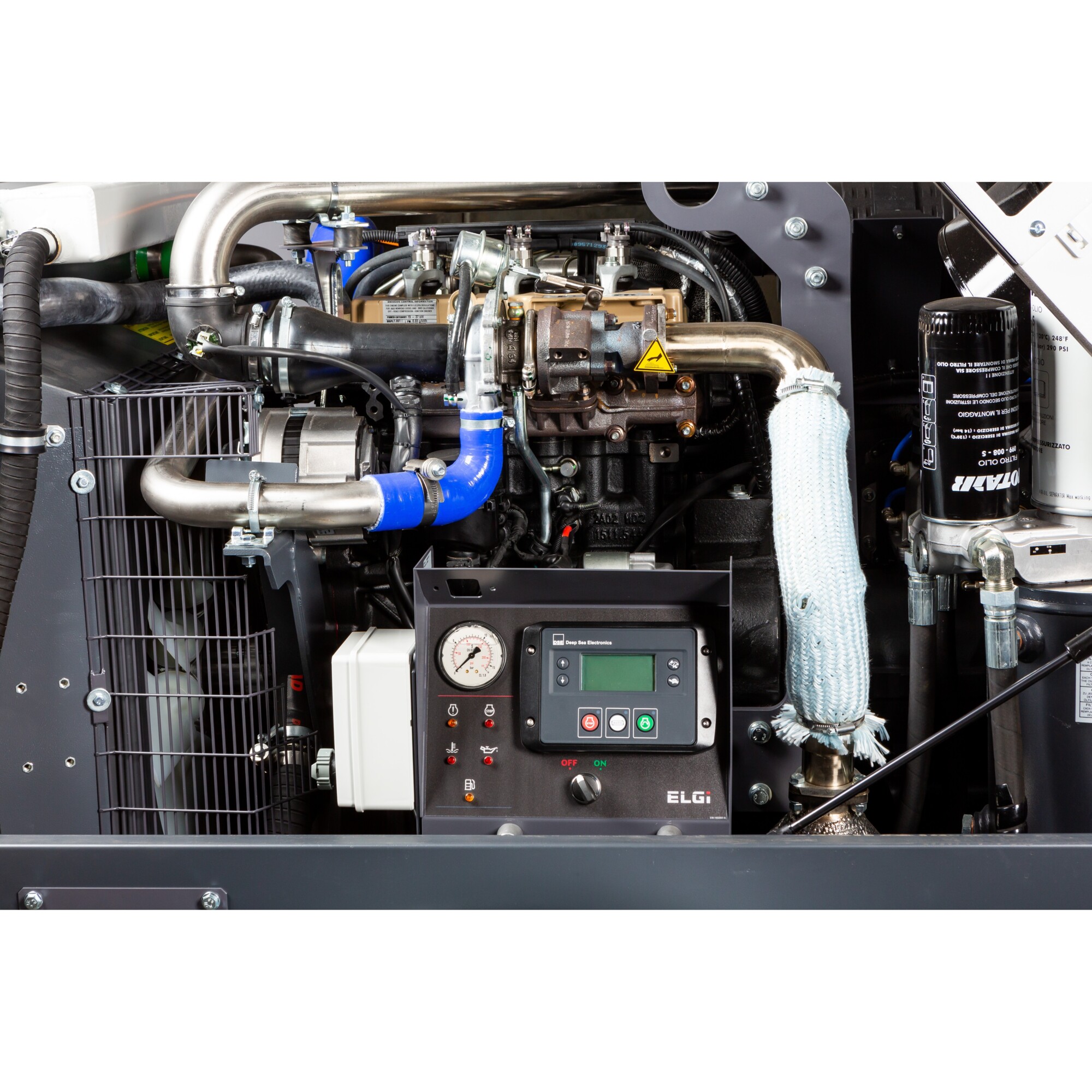

  • Powered by the High quality Kohler KDI 1903 TCR engine with a 3-year/2,000 hour Kohler Engine Warranty
  • Assembled in the USA with an ELGI Engineered and manufactured air end.
  • Equipped with Intellingent start/stop system to prevent cold starts and blowback.
  • Tier 4 Compliant to meet EPA Standards.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

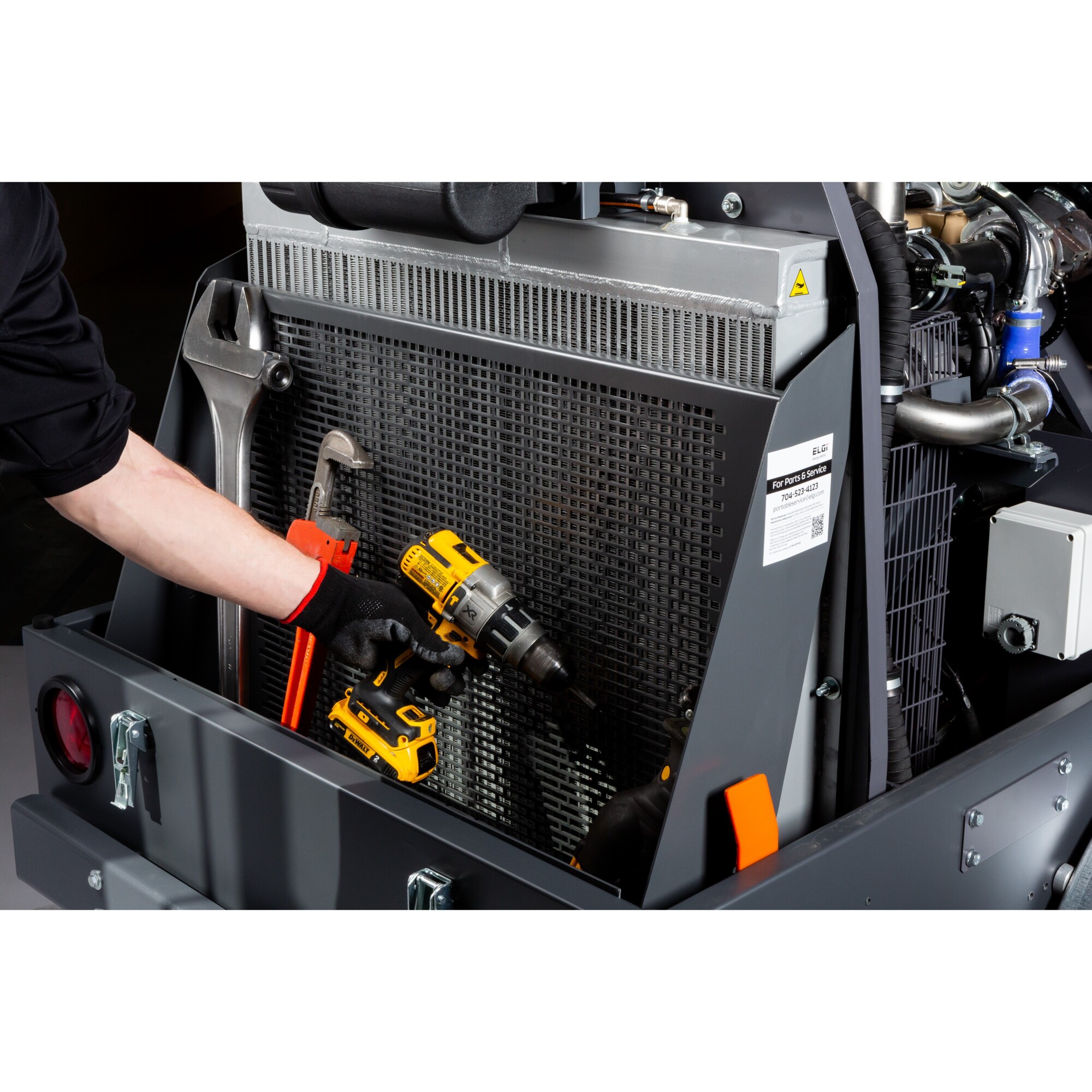

The ELGI D185T4F is a 49 HP towable Air Compressor and is our most popular model. With a Tier 4, Diesel powered Kohler engine, the D185 Air Compressor provides a durable, yet fuel efficient source of air at 185 cfm100 psi with an ample sized toolbox to store accessories. Backed by the 3-Year Kohler engine Warranty, this compressor will provide reliable results year after year. A 5-Year, unlimited hour air end warranty is included.

What's Included

    (1) D185T4F-P

Downloads

Product Manual

Features + Benefits

  • The towable D185 delivers 185cfm @100psi and can be used on various application such as construction, sand blasting and more.
  • Powered by the High quality Kohler KDI 1903 TCR engine with a 3-year/2,000 hour Kohler Engine Warranty
  • Assembled in the USA with an ELGI Engineered and manufactured air end.
  • Equipped with Intellingent start/stop system to prevent cold starts and blowback.
  • Tier 4 Compliant to meet EPA Standards.
  • Direct Drive to increase output efficiency.
  • Our most popular model!

Key Specs

AttributeSpecification

item#

6460892

Brand

ELGi

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2160.0 LB

Horsepower

49 HP

Engine Brand

Kohler

Max. PSI

100

Air Outlets (qty.)

2

Fuel Capacity

23 Gal

Motor RPM

2,600

Working Pressure

73 PSI

Engine Displacement

1,903 cc

Engine Start Type

Electric

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

185

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Ball Valve

Engine Model

KDI 1903 TCR

Product Weight

2160.0000 lb

Dimensions L x W x H (in.)

124.0 x 53.0 x 54.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
